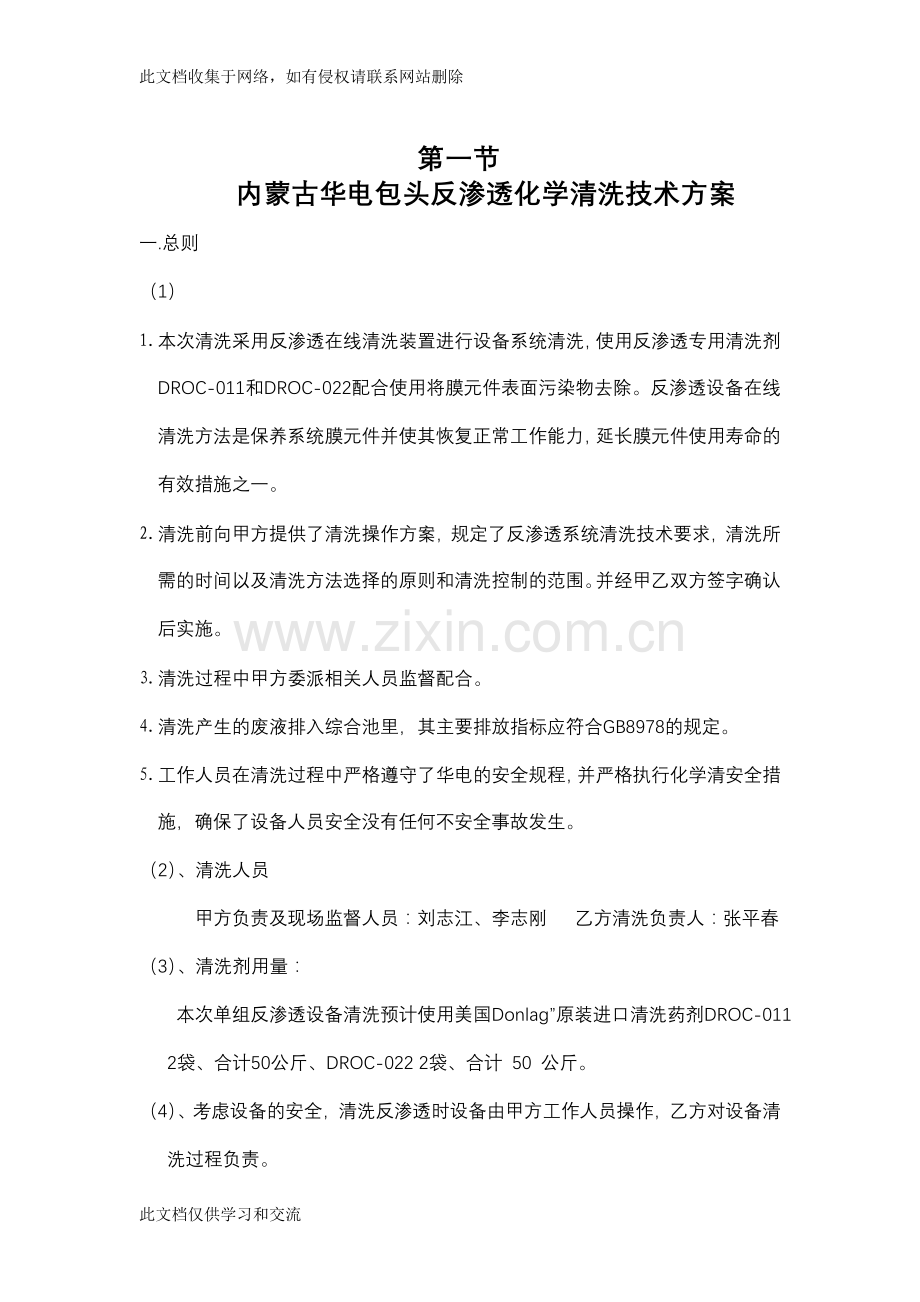

此文档收集于网络，如有侵权请联系网站删除DONAG DONAGDIANLI. 2009-6-8NEIMENGGU HUADIAN BATOU COMPANY CIRCULATION WATER RO SYSTEM TO CLEAN 内蒙古华电包头公司循环水反渗透系统清洗 流水号： 1B5.20清洗方案售后单位：陕西汤纳水化学有限公司售后时间： 二零零九年六月八日地 址：西安市雁翔路99号交大科技园邮 编：710054传 真：029-83396091电 话：029-83396093 029-83396092008-6-8 实施2009-6-8出具此文档仅供学习和交流第一节内蒙古华电包头反渗透化学清洗技术方案一.总则（1）1. 本次清洗采用反渗透在线清洗装置进行设备系统清洗，使用反渗透专用清洗剂DROC-011和DROC-022配合使用将膜元件表面污染物去除。反渗透设备在线清洗方法是保养系统膜元件并使其恢复正常工作能力，延长膜元件使用寿命的有效措施之一。2. 清洗前向甲方提供了清洗操作方案，规定了反渗透系统清洗技术要求，清洗所需的时间以及清洗方法选择的原则和清洗控制的范围。并经甲乙双方签字确认后实施。3. 清洗过程中甲方委派相关人员监督配合。4. 清洗产生的废液排入综合池里，其主要排放指标应符合GB8978的规定。5. 工作人员在清洗过程中严格遵守了华电的安全规程，并严格执行化学清安全措施，确保了设备人员安全没有任何不安全事故发生。（2）、清洗人员 甲方负责及现场监督人员：刘志江、李志刚 乙方清洗负责人：张平春（3）、清洗剂用量： 本次单组反渗透设备清洗预计使用美国Donlag”原装进口清洗药剂DROC-011 2袋、合计50公斤、DROC-022 2袋、合计 50 公斤。（4）、考虑设备的安全，清洗反渗透时设备由甲方工作人员操作，乙方对设备清洗过程负责。（二）、技术要求1. 本次清洗时制定的方案及现场清洗措施时，除符合相应的标准外，还符合与膜元件相关的技术条件和规范，并且应是在现场有关领导配合与严格监督下完成。2清洗前应先对设备查漏补缺，并且更换保安过滤器滤芯.原水水箱、中间水箱、除盐水箱水位应全都应保持高液位，尽量将失效的床子再生完。来确保反渗透系统不能启动时，能够满足清洗用水。并且有关领导负责人应协调用水部门控制用水量.确保化水部门的制水量 在清洗过程中能够满足生产方用水量.3 .清洗介质流速与压力的控制8英寸反渗透膜元件：清洗流速为91-151L/M，压力为0-3bar.4清洗液温度与ph值的控制表-01清洗液PH值45C35C30CCPA ESPA LFC2-102-11.52-12SWC Duraslick2-102-112-12 BW303-112-11.52-12（三），化学清洗工艺及清洗药剂的组方用量：1. 根据贵公司反渗透装置运行及实际情况，本公司采用美国原装进口反渗透专用清洗剂以保障设备能够更加经济安全的运行。DROC-011是一种酸性复合性水溶性药剂，用于生产饮用水和工业用水的反渗透膜元件的化学单根清洗，适用于CA及TFC系列反渗透膜元件和纳滤膜元件，主要清洗去除其表面的钙类沉积物和金属氧化物等污染物。DROC-022是一种碱性复合性水溶性药剂，用于生产饮用水和工业用水的反渗透膜元件的化学单根清洗，适用于CA及TFC系列反渗透膜元件和纳滤膜元件，主要清洗去除其表面的微和有机物等沉积的黏性物质表-02 2.清洗顺序时间及目的药剂名称及类型配制浓度%清洗顺序清洗时间h清洗目的DROC-0111.5-2.5第二部清洗9.0-12垢类及金属氧化物颗粒DROC-0221.5-2.0第三部清洗9.0-12去除微生物黏膜及胶体物质和有机物表-03清洗剂牌号药剂量/1立方水清洗液PH值清洗温度（理想）DROC-011 15-25Kg 2-4 30DROC-02215-20Kg 9-11.5353、 清洗工艺鉴于此设备微生物污染较严重（压力容器外侧有绿藻），因此本次清洗反渗透将清洗工艺进行以下调整：根据本次系统情况特定以下化学清洗工艺步： RO装置性能标定（已标定） 置换冲洗 DROC-011（二段）清洗水冲洗DROC-011（一段）清洗水冲洗 水冲洗DROC-022（二段）清洗 水冲洗DROC-022（一段）清洗 水冲洗3-1 RO装置性能标定采用手动操作方式，对清洗列反渗透装置进行清洗前性能标定，标定方法为：在给水压力一定的条件下，水的回收率：75%的运行条件下，记录装置进水温度、产水、浓排水量；一、二段工作压力和进水、产水电导率。3-2置换冲洗在0.3MPa进水压力条件下，采用反渗透淡水或除盐水，由反渗透清洗系统对清洗列反渗透装置进行膜面冲洗，冲洗至进、出水电导率差值50s/cm。3-3 DROC-011（二段）清洗采用低压循环清洗法，首先低流量（压力0.15MPa）进药20min后，检测回流液pH值或清洗液的颜色。循环一定时间后，当pH值变化2.0个pH单位时，应重新配制药液或添加药剂调节。浸泡30min再低流量循环清洗30min 浸泡30min低流量循环清洗30min 重新配制药液或添加药剂 浸泡30min低流量循环清洗60min若pH值变化不大（若pH值变化较大应重新配制药液或添加药剂）高流量（压力0.25MPa）循环清洗当pH值不在变化时酸洗完毕。3-4水冲洗在0.3MPa进水压力条件下，采用反渗透淡水或除盐水，由反渗透清洗系统对清洗列反渗透二段装置进行膜面冲洗，冲洗至进、出水pH值6.5。 3-5 DROC-011（一段）清洗采用低压循环清洗法，首先低流量（压力0.15MPa）进药20min后，检测回流液pH值或清洗液的颜色。循环一定时间后，当pH值变化1.0个pH单位或清洗液逐渐变浑浊时，应重新配制药液或添加药剂调节。浸泡30min再低流量循环清洗30min 浸泡30min高流量（压力0.25MPa）循环清洗30min 若pH值变化不大（若pH值变化较大应重新配制药液或添加药剂）高流量（压力0.30MPa）循环清洗当pH值不在化时酸洗完毕。3-6水冲洗在0.3MPa进水压力条件下，采用反渗透淡水或除盐水，由反渗透清洗系统对清洗列反渗透整体装置进行膜面冲洗，冲洗至进、出水pH值6.5。3-8 水冲洗在0.3MPa进水压力条件下，采用反渗透淡水或除盐水，由反渗透清洗系统对清洗列反渗透整体装置进行膜面冲洗，冲洗至进、出水pH值为中性，并且反渗透进出水电导差值50s/cm。3-9DROC-022（二段）清洗采用低压循环清洗法，首先待低流量进药30min后，浸泡30min高流量循环清洗30min 药液颜色较脏时重新配制药液 浸泡30min高流量循环清洗30min 浸泡30min高流量循环清洗30min药液颜色变化不大时清晰完毕，否则重新配制药液。3-10 水冲洗在0.3MPa进水压力条件下，采用反渗透淡水或除盐水，由反渗透清洗系统对清洗列反渗透二段装置进行膜面冲洗，冲洗至进、出水pH值为中性。3-119DROC-022（一段）清洗采用低压循环清洗法，首先待低流量进药30min后，浸泡30min高流量循环清洗30min 药液颜色较脏时重新配制药液 浸泡30min高流量循环清洗30min 浸泡30min高流量循环清洗30min药液颜色变化不大时清晰完毕，否则重新配制药液。3-12 水冲洗在0.3MPa进水压力条件下，采用反渗透淡水或除盐水，由反渗透清洗系统对清洗列反渗透整体装置进行膜面冲洗，冲洗至进、出水pH值为中性，并且反渗透进出水电导差值50s/cm。五、清洗监督项目表04 A/B组反渗透清洗监督项目过程时间温度()pH值流量(m3/h)进液压力(MPa)加药量及补加药量清洗液颜色标定水冲洗DROC-011洗DROC-022洗水冲洗（四）、清洗废液的处理DROC-011、DROC-022清洗药剂无毒，其清洗废液可直接排入化学除盐系统酸碱中和池，采用生水稀释1015倍即可达到排放标准。（五）、清洗前数据标定反渗透清洗前数据标定 表-03 现场签字确认： 设备编号A09-5-120：00）B09-5-120：00）C09-5-120：00）进水温度20.820.820.8电导率s/cm536453645364流量T/h123.4114.5139.8反渗透进水压力MPa1.091.051.11段间压力MPa1.030.991.05膜后压力MPa0.950.920.99淡水流量T/h69.662.890.2浓水流量T/h53.851.749.6产水电导s/cm322.6360.3275.1回收率%56.1655.1466.16脱盐率%94.0193.3994.92运行压差MPa0.140130.12备注以A套设备为例反渗透设备数据对比表 设备编号A09-2-110：00）A09-5-250：00）进水温度20.8电导率s/cm67935030流量T/h103.7130.8反渗透进水压力MPa1.081.06段间压力MPa1.020.99膜后压力MPa0.930.90淡水流量T/h52.365.8浓水流量T/h51.465产水电导s/cm131.1360.1回收率%50.4850.48脱盐率%98.0793.60运行压差MPa0.15016备注用手动电导率仪现场对B套反渗透设备每个压力容器产水进行监测，发现一二段膜元件统一电导率增加，并且总产水电导率和表计显示基本吻合。（六）现场情况分析结论：（此结论的前提是现场反渗透设备表计监测的数据准确无误）三套反渗透设备情况非常相似，均是在2009年4月初（4月2日-到4月8日）设备停运后再次启动出现的脱盐率下降。以A套设备为例：由数据可以看出，当回收率一样、系统压差几乎没有变化的情况下，产水量和浓水量增加而脱盐率降低，这一切都完全符合膜片被氧化的症状。根据经验我方判断设备脱盐率低是膜氧化造成的。贵单位可以将具有代表性膜元件送往厂家进行染料评定试验以确诊。 膜元件一旦被氧化，系统脱盐率将不可恢复。清洗后由于清洗掉了膜表面的部分污染物，一般反而脱盐率会有所下降，但是一两个月便可恢复。要想恢复膜元件的性能只有更换膜元件才能保证系统正常的脱盐率。虽然此次循环水深度处理反渗透设备脱盐率降低和我阻垢剂供应商无关，但如果需要我方会全程跟踪协助贵单位。 如果贵单位决定试洗，现场需提供一下物品：1、本方案约定的RO装置化学清洗是指单列反渗透装置清洗。2、氢氧化钠（化学纯）15kg PH试纸一本（调整PH值，由华电负责提供。3、并且清洗使所需要的电导率仪一台、PH计一台和试纸一本均由甲方提供。项目中国内蒙包头华电反渗透系统在线清洗项目主要内容反渗透设备清洗项目免费/收费免费化学清洗审批签字内蒙包头华电脱盐水车间: 年 月 日陕西汤纳水化学有限公司: 年 月 日清洗方案审批表（英文版 ） Two regulations promulgated for implementation is in the party in power for a long time and the rule of law conditions, the implementation of comprehensive strictly strategic plan, implementation in accordance with the rules and discipline to manage the party, strengthen inner-party supervision of major initiatives. The two regulations supporting each other, the adhere to a positive advocate, focusing on morality is of Party members and Party leading cadres can see, enough to get a high standard; around the party discipline, disciplinary ruler requirements, listed as negative list, focusing on vertical gauge, draw the party organizations and Party members do not touch the bottom line . Here, the main from four square face two party rules of interpretation: the first part introduces two party Revised regulations the necessity and the revision process; the second part is the interpretation of the two fundamental principles of the revision of laws and regulations in the party; the third part introduces two party regulations modified the main changes and needs to grasp several key problems; the fourth part on how to grasp the implementation of the two regulations of the party. and revised the necessity and revised history of the CPC Central Committee the amendment to the Chinese Communist Party members and leading cadres honest politics several guidelines and column 1 by 2015 to strengthen party laws and regulations focus. Two party regulations revision work lasted a Years, pooling the wisdom of the whole party, ideological consensus, draw historical experience, respect for the wisdom of our predecessors, which reflects the unity of inheritance and innovation; follow the correct direction, grasp the limited goals, adhere to the partys leadership, to solve the masses of the people reflect a focus on the problem. The new revision of the and , reflects the partys 18 and the eighth session of the third, the spirit of the fourth plenary session, reflecting the experience of studying and implementing the General Secretary Xi Jinping series of important speech, reflects the partys eighteen years comprehensive strictly practice. (a) revised two regulations of the party need of in based on revised, the promulgation and implementation of January 2010, to strengthen the construction of the contingent of leading cadres play an important role. But with the party to manage the party strictly administering the deepening, has not been able to fully meet the actual needs. Content is too complicated, eight prohibition, 52 are not allowed to hard to remember, and also difficult to put into practice; the second is concisely positive advocated by the lack of prohibited provisions excessive, no autonomy requirements; the third is banned terms and discipline law, both with the party discipline, disciplinary regulations repeat and Criminal law and other laws and regulations repeat; the fourth is to clean the theme is not prominent, not for the existing problems, and is narrow, only needle of county-level leading cadres above. is in 1997 based on revision, in December 2003 the promulgation and implementation, to strengthen the construction of the party play very important role. Along with the development of the situation, which many provisions have been unable to fully meet the comprehensive strictly administering the practice needs. One is Ji law, more than half of the provisions and criminal law and other countries laws and regulations Repetition; two is the political discipline regulations is not prominent, not specific, for violation of the party constitution, damage the authority of Party Constitution of misconduct lack necessary and serious responsibility to pursue; third is the main discipline for the leading cadres, does not cover all Party members. Based on the above situation, need to and the two is likely to be more relevant regulations first amendment. By revising, really put the authority of Party discipline, the seriousness in the party tree and call up the majority of Party members and cadres of the party constitution of party compasses party consciousness. (II) two party regulations revision process the Central Committee of the Communist Party of China attaches great importance to two regulations revision . Xi Jinping, general books recorded in the Fifth Plenary Session of the eighth session of the Central Commission for Discipline Inspection, on the revised regulations made clear instructions. According to the central deployment, the Central Commission for Discipline Inspection from 2014 under six months begin study two regulations revision. The Standing Committee of the Central Commission for Discipline Inspection 4 review revised. Comrade Wang Qishan 14 times held a special meeting to study two regulations revision, amendment clarifies the direction, major issues of principle, path and target, respectively held a forum will listen to part of the province (area) secretary of the Party committee, Secretary of the Discipline Inspection Commission, part of the central ministries and state organs Department The first party committee is mainly responsible for people, views of experts and scholars and grassroots party organizations and Party members. Approved by the Central Committee of the Communist Party of China, on 7 September 2015, the general office of the Central Committee of the Party issued a notice to solicit the provinces (autonomous regions, municipalities) Party, the central ministries and commissions, state ministries and commissions of the Party (party), the General Political Department of the military, every 3 people organization of Party of two regulations revision opinion. Central Commission for Discipline Inspection of extensive solicitation of opinions, careful study, attracting, formed a revised sent reviewers. In October 8 and October 12, Central Committee Political Bureau Standing Committee and the Political Bureau of the Central Committee After consideration of the two regulations revised draft. On October 18, the Central Committee of the Communist Party of China formally issued two regulations. Can say, two laws amendment concentrated the wisdom of the whole party, embodies the party. Second, and revision of the basic principles of two party regulations revision work and implement the partys eighteen, ten eight plenary, the spirit of the Fourth Plenary Session of the Eleventh Central Committee and General Secretary Xi Jinping important instructions on the revised and , highlighting the ruling party characteristics, serious discipline, the discipline quite in front of the law, based on the current, a long-term, advance as a whole, with Bu Xiuding independent and . Main principle is: first, adhere to the party constitution to follow. The constitution about discipline and self-discipline required specific, awaken the party constitution of party compasses party consciousness, maintaining the authority of the constitution. General Secretary Xi Jinping pointed out that no rules, no side round. Party constitution is the fundamental law, the party must follow the general rules. In early 2015 held the eighth session of the Central Commission for Discipline Inspection Fifth Plenary Session of the 16th Central Committee, Xi Jinping again pointed out that constitution is the party must follow the general rules, but also the general rules. the revision of the and is Method in adhere to the regulations established for the purpose of combining rule of virtue is to adhere to the party constitution as a fundamental to follow, the constitution authority set up, wake up the party constitution and party rules the sense of discipline, the party constitution about discipline and self-discipline specific requirements. 4 second is to adhere to in accordance with the regulations governing the party and the party. The Party of rule of virtue de, mainly refers to the partys ideals and beliefs, excellent traditional style. The revised the closely linked to the self-discipline, insisting on the positive initiative, for all members, highlight the vital few, emphasized self-discipline, focusing on the morality, and the majority of Party members and the ideological and moral standards. The revised Ji method separately, Ji, Ji Yan to Method, as a negative list, emphasizing the heteronomy, focusing on vertical gauge. Is this one high and one low, a positive reaction, the strict party discipline and practice results transformation for the integration of the whole party to observe moral and discipline requirements, for the majority of Party members and cadres provides benchmarking and ruler. Third, insist on to. In view of the problems existing in the party at the present stage, the main problems of Party members and cadres in the aspect of self-discipline and abide by the discipline to make clearly defined, especially the partys eighteen years strict political discipline and political rules, organ
