天正建筑图层与其相对应的建筑构件以及颜色.doc

资源描述

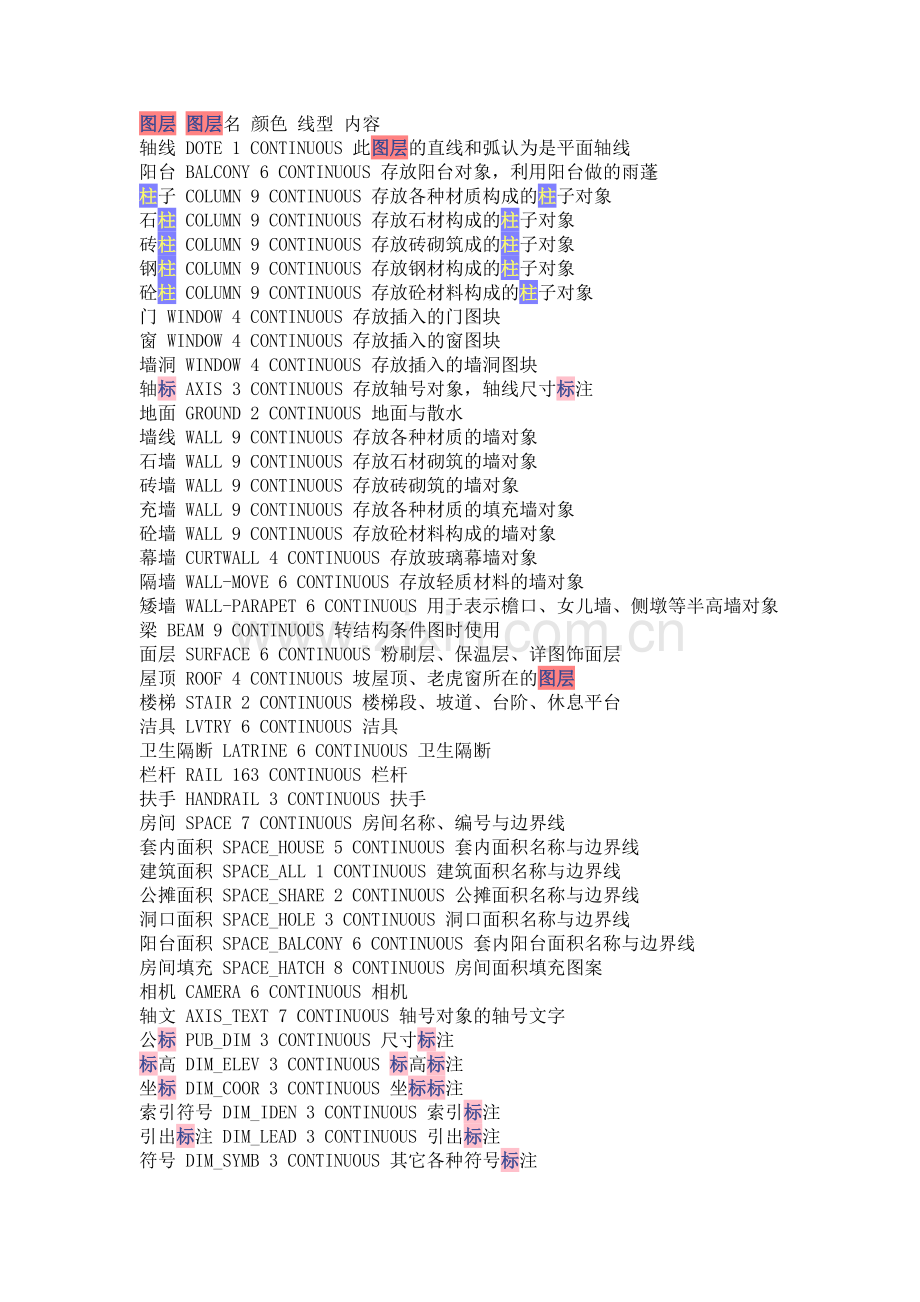

图层图层名颜色线型内容轴线 DOTE 1 CONTINUOUS 此图层的直线和弧认为是平面轴线阳台 BALCONY 6 CONTINUOUS 存放阳台对象，利用阳台做的雨蓬柱子 COLUMN 9 CONTINUOUS 存放各种材质构成的柱子对象石柱 COLUMN 9 CONTINUOUS 存放石材构成的柱子对象砖柱 COLUMN 9 CONTINUOUS 存放砖砌筑成的柱子对象钢柱 COLUMN 9 CONTINUOUS 存放钢材构成的柱子对象砼柱 COLUMN 9 CONTINUOUS 存放砼材料构成的柱子对象门 WINDOW 4 CONTINUOUS 存放插入的门图块窗 WINDOW 4 CONTINUOUS 存放插入的窗图块墙洞 WINDOW 4 CONTINUOUS 存放插入的墙洞图块轴标 AXIS 3 CONTINUOUS 存放轴号对象，轴线尺寸标注地面 GROUND 2 CONTINUOUS 地面与散水墙线 WALL 9 CONTINUOUS 存放各种材质的墙对象石墙 WALL 9 CONTINUOUS 存放石材砌筑的墙对象砖墙 WALL 9 CONTINUOUS 存放砖砌筑的墙对象充墙 WALL 9 CONTINUOUS 存放各种材质的填充墙对象砼墙 WALL 9 CONTINUOUS 存放砼材料构成的墙对象幕墙 CURTWALL 4 CONTINUOUS 存放玻璃幕墙对象隔墙 WALL-MOVE 6 CONTINUOUS 存放轻质材料的墙对象矮墙 WALL-PARAPET 6 CONTINUOUS 用于表示檐口、女儿墙、侧墩等半高墙对象梁 BEAM 9 CONTINUOUS 转结构条件图时使用面层 SURFACE 6 CONTINUOUS 粉刷层、保温层、详图饰面层屋顶 ROOF 4 CONTINUOUS 坡屋顶、老虎窗所在的图层楼梯 STAIR 2 CONTINUOUS 楼梯段、坡道、台阶、休息平台洁具 LVTRY 6 CONTINUOUS 洁具卫生隔断 LATRINE 6 CONTINUOUS 卫生隔断栏杆 RAIL 163 CONTINUOUS 栏杆扶手 HANDRAIL 3 CONTINUOUS 扶手房间 SPACE 7 CONTINUOUS 房间名称、编号与边界线套内面积 SPACE_HOUSE 5 CONTINUOUS 套内面积名称与边界线建筑面积 SPACE_ALL 1 CONTINUOUS 建筑面积名称与边界线公摊面积 SPACE_SHARE 2 CONTINUOUS 公摊面积名称与边界线洞口面积 SPACE_HOLE 3 CONTINUOUS 洞口面积名称与边界线阳台面积 SPACE_BALCONY 6 CONTINUOUS 套内阳台面积名称与边界线房间填充 SPACE_HATCH 8 CONTINUOUS 房间面积填充图案相机 CAMERA 6 CONTINUOUS 相机轴文 AXIS_TEXT 7 CONTINUOUS 轴号对象的轴号文字公标 PUB_DIM 3 CONTINUOUS 尺寸标注标高 DIM_ELEV 3 CONTINUOUS 标高标注坐标 DIM_COOR 3 CONTINUOUS 坐标标注索引符号 DIM_IDEN 3 CONTINUOUS 索引标注引出标注 DIM_LEAD 3 CONTINUOUS 引出标注符号 DIM_SYMB 3 CONTINUOUS 其它各种符号标注公文 PUB_TEXT 7 CONTINUOUS 各种说明文字表格 PUB_TAB 7 CONTINUOUS 表格公窗 PUB_WINDW 7 CONTINUOUS 图纸空间的布局视口公填 PUB_HATCH 8 CONTINUOUS 填充图案公框 PUB_TITLE 4 CONTINUOUS 存放图框线与标题栏、会签栏图块窗名 WINDOW_TEXT 7 CONTINUOUS 门窗编号剖线 S_WALL 9 CONTINUOUS 剖切到的墙线剖窗 S_WINDOW 4 CONTINUOUS 剖切到的门窗剖块 S_BLOCK 7 CONTINUOUS 剖梯 S_STAIR 9 CONTINUOUS 剖切到的楼梯层线 E_FLOOR 4 CONTINUOUS 立面楼层分隔线立线 E_LINE 7 CONTINUOUS 立面可见线立窗 E_WINDOW 4 CONTINUOUS 立面门窗立块 E_BLOCK 7 CONTINUOUS 立梯 E_STAIR 2 CONTINUOUS 立面楼梯建筑 TG_SUNBUILD 41 CONTINUOUS 日照分析建筑模型日窗 TG_SUNVIS 6 CONTINUOUS 日照分析的窗模型日影 TG_SUNTESTE 7 CONTINUOUS 日照分析的输出结果基线 BASE 5 CONTINUOUS 基线单墙 WALL1 2 CONTINUOUS 单线墙(TArch3) 墙-1 WLL1 7 CONTINUOUS 墙层1(TArch3)_ 墙-2 WLL2 2 CONTINUOUS 墙层2(TArch3)_ 墙-3 0 0 CONTINUOUS 墙层3 墙-4 0 0 CONTINUOUS 墙层4 墙-5 0 0 CONTINUOUS 墙层5 墙-6 0 0 CONTINUOUS 墙层6 墙-7 0 0 CONTINUOUS 墙层7 墙-8 0 0 CONTINUOUS 墙层8 墙-9 0 0 CONTINUOUS 墙层9 墙-0 0 0 CONTINUOUS 墙层0 门窗 WINDOW 4 CONTINUOUS 存放T3插入的门窗图块梁板 FLOOR 2 CONTINUOUS 梁与楼板(组合用) 檐口 EAVES 7 CONTINUOUS 屋面檐口(组合用) 玻璃 GLASS 6 CONTINUOUS 门窗玻璃(组合用) 图框 TITLE 4 CONTINUOUS (组合用) 标注 DIM 3 CONTINUOUS (组合用) 赞同
