A附件一 主要机械设备明细表.doc

GW786L-79.6M PSV Main Machinery Equipment List NWN561-024-02 Page 11/11

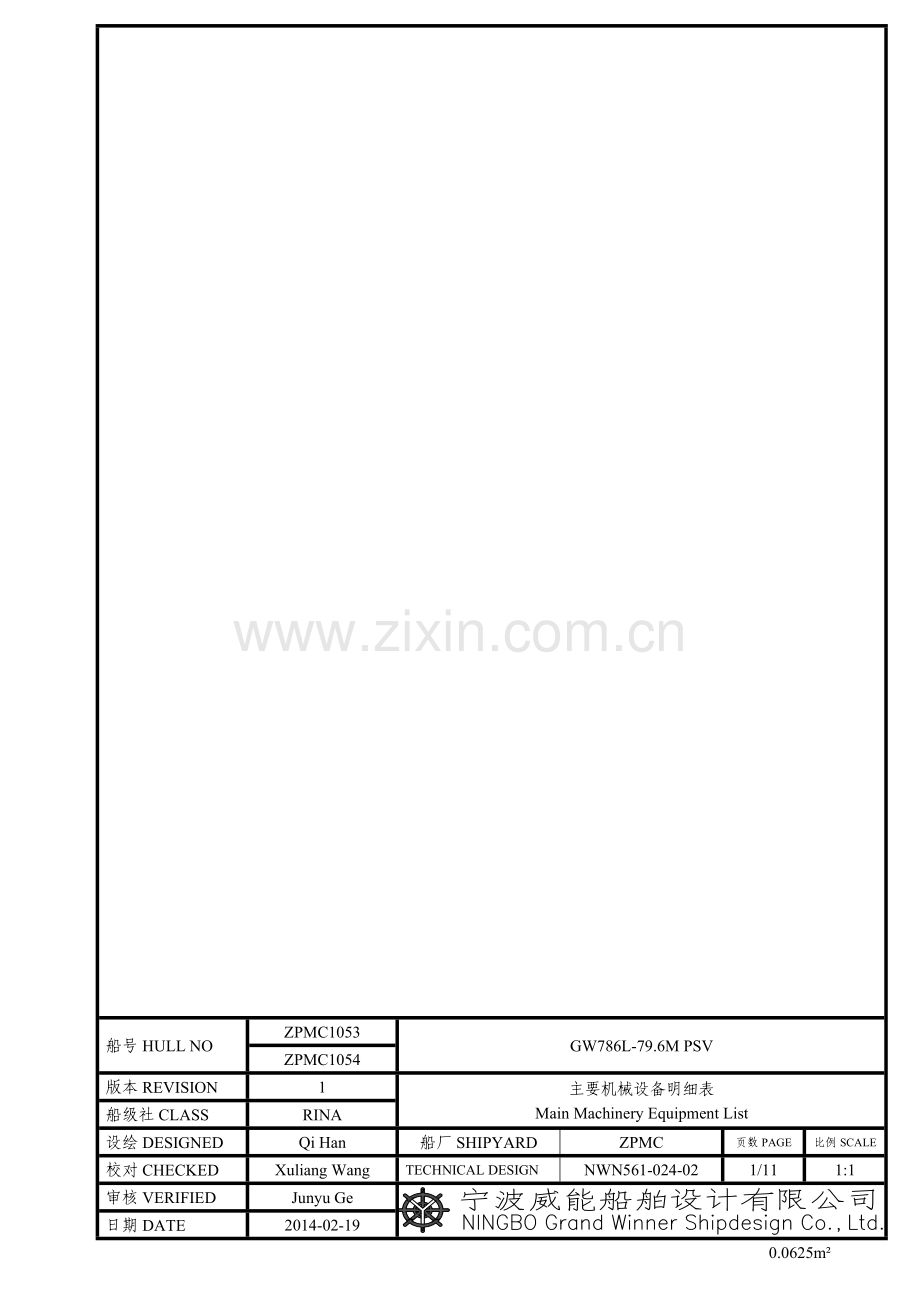

主要机械设备明细表

船号HULL NO
ZPMC1053
GW786L-79.6M PSV
ZPMC1054
版本REVISION
1
主要机械设备明细表
Main Machinery Equipment List
船级社CLASS
RINA
设绘DESIGNED
Qi Han
船厂SHIPYARD
ZPMC
页数PAGE
比例SCALE
校对CHECKED
Xuliang Wang
TECHNICAL DESIGN
NWN561-024-02
1/11
1:1
审核VERIFIED
Junyu Ge

日期DATE
2014-02-19
0.0625m²

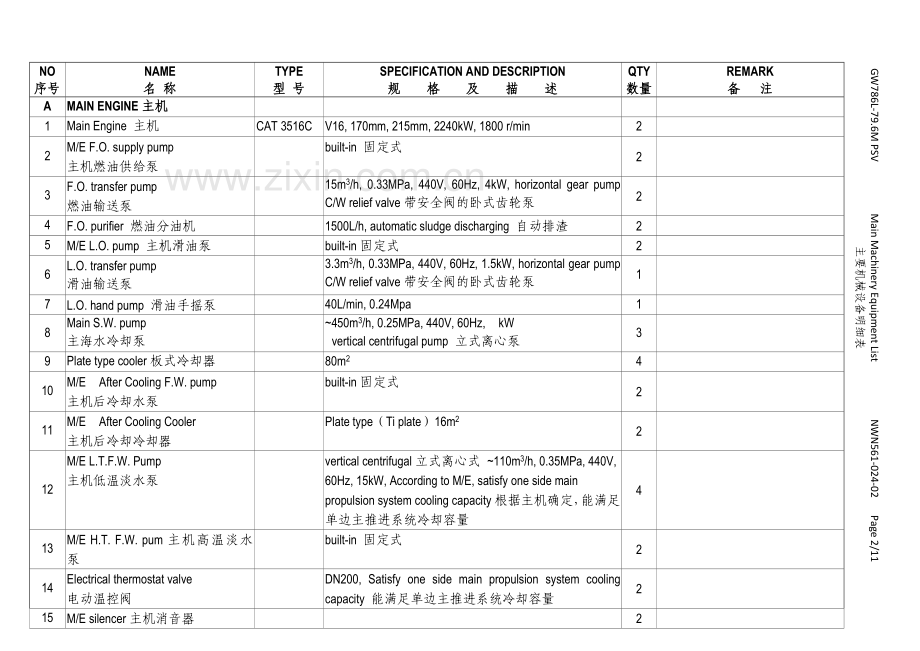

NO
序号
NAME
名 称
TYPE
型 号
SPECIFICATION AND DESCRIPTION
规 格 及 描 述
QTY
数量
REMARK
备 注
A
MAIN ENGINE主机

1
Main Engine 主机
CAT 3516C
V16, 170mm, 215mm, 2240kW, 1800 r/min
2

2
M/E F.O. supply pump
主机燃油供给泵

built-in 固定式
2

3
F.O. transfer pump
燃油输送泵

15m3/h, 0.33MPa, 440V, 60Hz, 4kW, horizontal gear pump C/W relief valve带安全阀的卧式齿轮泵
2

4
F.O. purifier 燃油分油机

1500L/h, automatic sludge discharging 自动排渣
2

5
M/E L.O. pump 主机滑油泵

built-in固定式
2

6
L.O. transfer pump
滑油输送泵

3.3m3/h, 0.33MPa, 440V, 60Hz, 1.5kW, horizontal gear pump C/W relief valve带安全阀的卧式齿轮泵
1

7
L.O. hand pump 滑油手摇泵

40L/min, 0.24Mpa
1

8
Main S.W. pump
主海水冷却泵

~450m3/h, 0.25MPa, 440V, 60Hz, kW
vertical centrifugal pump 立式离心泵
3

9
Plate type cooler板式冷却器

80m2
4

10
M/E After Cooling F.W. pump
主机后冷却水泵

built-in固定式
2

11
M/E After Cooling Cooler
主机后冷却冷却器

Plate type（Ti plate）16m2
2

12
M/E L.T.F.W. Pump
主机低温淡水泵

vertical centrifugal立式离心式 ~110m3/h, 0.35MPa, 440V, 60Hz, 15kW, According to M/E, satisfy one side main propulsion system cooling capacity根据主机确定，能满足单边主推进系统冷却容量
4

13
M/E H.T. F.W. pum主机高温淡水泵

built-in 固定式
2

14
Electrical thermostat valve
电动温控阀

DN200, Satisfy one side main propulsion system cooling capacity 能满足单边主推进系统冷却容量
2

15
M/E silencer主机消音器

2

16
M/E F.O. flowmeter
主机燃油流量计

Flow range流量范围: 0.6~6 m3/h（DN25mm）
4

B
GEAR BOX 减速齿轮箱

1
Gear box 齿轮箱

9.515:1, 1800rpm, 186rpm, 1400kw, 1800rpm
２

2
Gear box L.O.pump齿轮箱滑油泵

built-in 固定式
2

3
Stand-by gear box L.O. pump
齿轮箱滑油备用泵

2

C
PROPELLER & SHAFT LINE 调距桨及轴系

1
Propeller螺旋桨

CPP, 2900mm, Ni-Al bronze, 4
2

2
Shaft 轴

2set

D
GENERATOR SET 发电机组

1
Main generator 主发电机组

730kW
2

1)
Diesel engine 柴油机

781kW , 1800 r/min
2

2)
Generator 发电机

1800r/min, 730kW, 450V, 60Hz, 3Φ
2

3)
A/E silencer 辅机消音器

2

2
Shaft generator 轴带发电机

1400kW, 450V, 60Hz, air cooled
2

3
Auxiliary generator 辅发电机

269kW , 1800 r/min
1

1)
Diesel engine 柴油机

1800 r/min;
1

2)
Generator 发电机

1800r/min;250kW, 450V, 60Hz, 3Φ
1

4
Emergency generator应急发电机

95kW
1

1)
Diesel engine 柴油机

1

2)
Generator 发电机

95kW, 450V, 60Hz
1

3)
Silencer 消音器

1

5
G/E F.O. flowmeter
主发电机组燃油流量计

Flow range流量范围: 0.05~1.5 m3/h（DN20mm）
2

A/E F.O. flowmeter
辅发电机组燃油流量计

Flow range流量范围: 0.05~0.5 m3/h（DN15mm）
1

E
COMPRESSED AIR SYSTEM 压缩空气系统

1
Air compressor 空压机

40m3/h, 3.0MPa, air-cooled, 12.5kW, 440V, 60Hz
2

2
Start-air receiver 启动空气瓶

500L, 3.0MPa
2

3
Service air receiver 杂用空气瓶

1000L, 1.3MPa
1

4
General Purpose Air Compressor
日用空压机

76.4m3/h, 1.25MPa, air-cooled, 11kW, 440V, 60Hz
Screw type with dryer 螺杆式带干燥器
1

5
Air horn air receiver 气笛空气瓶

200L, 1.0MPa
1

6
Air dryer 空气干燥器

28m3/h
1

F
BILGE /BALLAST WATER SYSTEM 舱底 /消防水系统

1
Bilge pump
舱底泵

Vertical centrifugal self-priming 立式离心自吸式
65m3/h, 0.65MPa, 22kW, 440V, 60HZ
1

2
Sludge pump
污油泵

Horizontal Single Screw Pump 卧式单螺杆泵
4m3/h, 0.3MPa, 1.5Kw, 440V, 60HZ
1

3
Oil water separator 油水分离器

1m3/h, 1.5kw, ≤15ppm
1

4
C.L. ejector pump 锚链舱喷射泵

10m3/h
1

5
Methanol cofferdam ejector pump
甲醇隔离舱喷射泵

20m3/h
1

6
Cargo pump room ejector pump
货泵舱喷射泵

~15m3/h
2

7
Fire fighting pump
消防用泵

Vertical centrifugal self-priming 立式离心自吸式
65m3/h, 0.65MPa, 22kW, 440V, 60Hz
1

8
Emergency fire fighting pump
应急消防泵

Vertical centrifugal self-priming 立式离心自吸式
65m3/h, 0.65MPa, 22kW, 440V, 60Hz
1

9
Bilge day pump
舱底日用泵

Horizontal Single Screw Pump 卧式单螺杆泵
4m3/h, 0.3MPa, 1.5Kw, 440V, 60HZ
1

G
DOMESTIC F.W./S.W. SYSTEM 生活用水系统

1
F.W. Pressure Set 淡水压力柜

Vertical, 0.6m3 , 0.4MPa, SS 316L 立式
2

2
F.W. Pressure Pump
淡水泵组

Horizontal centrifugal vortex 卧式离心漩涡式
5m3/h, 0.45MPa, 4kW, 440V, 60Hz
2

3
Electrical heating F.W. Heater
电加热热水柜

Vertical, 0.3m3, 0.4MPa,SS 316L
立式

2

4
Hot water circulation pump
热水循环泵

Horizontal Centrifugal 立式离心
1.5m3/h, 0.2MPa, 1.5kW, 440V, 60Hz
2

5
UV-sterilizer 紫外线消毒器

1

H
AIR CONDITIONER/HEATER /CONDENSATION SYSTEM 空调、加热、冷藏系统

1
Indirect air conditioner 间接式中央空调

Cooling Capacity: ~2x165kW, cooling water: ~45 m3/h, Electrical heated: ~186kW, compressor: 50kW, fan: 15kW, frequency controlled, R407C
制冷量：~2x165kW，冷却水量：~45 m3/h，电加热：~186kW，空压机：50kW，风机：15kW，变频，R407C
1

2
ECR air conditioner 集控室空调

25kW, F.W. cooled 水冷
2

3
Refrigeration condensing unit
组装式冷藏装置

~4kW, two F.W. cooled condensers, each have 100% capacity 两台淡水冷凝器，每台有100%能力
1

I
VENT SYSTEM 通风系统
Ventilation fans shall be flexible mounted. 所有风机需弹性安装
1
Supply air Fan for E/R
机舱送风机

86000m3/h, 730Pa，400Pa, 34kW, 1750rpm, 60Hz, 440V, axial, 2-speed type, propeller轴流式，双速型，叶片式
2
One of fans shall be reversible
一台可逆。
2
Exhaust air Fan for E/R
机舱抽风机

9600m3/h, 530Pa, 3.0kW, 60Hz, 440V
axial 轴流式
2

3
Exhaust air Fan for E/R purifier
机舱分油机抽风机

2100m3/h, 420Pa, 0.55kW, 3500rpm, 60Hz, 440V
axial, explosion-proof, non-sparking轴流防爆无火花式
1

4
Exhaust air Fan for CO2 RM.
CO2室抽风机

1200m3/h, 490Pa, 0.55kW, 3500rpm, 60Hz, 440V
axial 轴流式
1

5
Supply air Fan for B.T. RM.
艏侧推舱送风机

3000m3/h, 580Pa, 0.84kW, 3500rpm, 60Hz, 440V
axial 轴流式
1

6
Exhaust air Fan for B.STORE
艏储物舱抽风机

1200m3/h, 380Pa, 0.55kW, 3500rpm, 60Hz, 440V
centrifugal 离心式
1

7
Supply air Fan for DRY CARGO
干散货间送风机

15000m3/h, 580Pa, 4.0kW, 1750rpm, 60Hz, 440V
axial 轴流式
2

8
Supply air Fan for STEERING GEAR RM.& S.T. RM.
舵机舱和尾侧推舱送风机

12000m3/h, 580Pa,3.0kW, 60Hz, 440V
axial 轴流式
2
根据FMEA需要更改，最终可能还要等图纸重新送审，但是设备应该不会变了
9
Supply air Fan for ORO PUMP TK.
溢油回收泵舱送风机

200m3/h, 500Pa, 0.64kW, 60Hz, 440V, centrifugal,
explosion-proof,non-sparking离心防爆无火花式
2

10
Exhaust air Fan for ORO PUMP TK.
溢油回收泵舱抽风机

1300m3/h, 410Pa, 0.64kW, 60Hz, 440V, centrifugal,
explosion-proof, non-sparking 离心防爆无火花式
2

11
Supply air Fan for PUMP TK.
泵舱送风机

10000m3/h, 580Pa, 3.6kW, 3492rpm, 60Hz, 440V
axial, explosion-proof, non-sparkin轴流防爆无火花式
1

12
Exhaust air Fan for PUMP TK.
泵舱抽风机

10000m3/h, 580Pa, 3.6kW, 3492rpm, 60Hz, 440V
axial, explosion-proof, non-sparkin轴流防爆无火花式
1

13
Exhaust air Fan for EMER. GEN. RM. 应急发电机室抽风机

780m3/h, 420Pa, 0.84kW, 3500rpm, 60Hz, 440V
centrifugal 离心式
1

14
Exhaust air Fan for GALLEY
厨房抽风机

2000m3/h, 460Pa, 1.891kW,1455rpm, 60Hz, 440V
Rectangular duct fan 矩形管道风机
1

15
Supply air Fan for GALLEY
厨房送风机

1200m3/h,500Pa, 0.917kW, 1363rpm, 60Hz, 440V
Rectangular duct fan 矩形管道风机
1

16
Exhaust air Fan for HOSPITAL
医疗室抽风机

550m3/h, 350Pa, 0.221kW, 2877rpm, 60Hz, 220V
Circle duct fan 圆形管道风机
1

17
Exhaust air Fan for LAU.&SMOKING RM. /A-DECK / B-DECK / C-DECK SANITARY通风机（洗衣间和吸烟室/A甲板/B甲板/C甲板卫生间）

1200m3/h, 430Pa, 0.672kW, 1475rpm, 60Hz, 440V
Rectangular duct fan 矩形管道风机
4

18
Exhaust air Fan for PAINT STORE
油漆间抽风机

200m3/h, 410Pa, 3500rpm, 0.64 kW, 60Hz, 440V
centrifugal,explosion-proof, non-sparkin离心防爆无火花式
1

19
Exhaust air Fan for A.H.U.RM.
空调机室抽风机

780m3/h, 420Pa, 0.64kW, 60Hz, 440V
centrifugal 离心式
1

20
Exhaust air Fan for ELEC.RM.
电工间抽风机

270m3/h, 410Pa, 0.64kW, 60Hz, 440V
centrifugal 离心式
1

21
Supply Air Fan For PUMP ROOM ESCAPE
应急逃生通道送风机

600m3/h, 500Pa, 0.86kW, , 60Hz, 440V
axial, explosion-proof, non-sparkin轴流防爆无火花式
1

J
FIXED FIRE EXTINGUISHING SYSTEM 固定CO2灭火系统

1
Fixed CO2 fire fighting plant
固定式CO2灭火装置

E/R room 机舱：68L, 67%
E.Genset RM 应急发电室： 68L , 67%
Galley 厨房：40L, 67%
18
1
1

2
Fixed water-based local application fire fighting system
固定式水基局部细水雾灭火装置

Protection Area 保护区域: 6
1

3
Fixed deck foam extinguishing system
固定式甲板泡沫灭火系统

Foam Monitor 消防炮: 2, 24L/s
Foam Applicator 泡沫喷头: 4
Foam tank 泡沫舱 : ~1.2m3
Sea Water Pump 海水泵 :~ 130m3/h, 0.8MPa, 30kW
Foam pump:泡沫泵
Proportioner 混合比例 : 3%
1 set
1套
海水泵兼舱底泵 Vertical centrifugal self-priming 立式离心自吸式

K
AUXILIARY COOLING PUMP 辅助设备冷却泵

1
Main generators F.W. cooling pump主发电机淡水冷却泵

70m3/h, 0.30MPa, 440V, 60Hz, kW
Vertical Centrifugal 立式离心式
3

2
Air conditioner F.W.Cooling Pump空调淡水冷却泵

110m3/h, 0.32MPa, 440V, 60Hz, kW
Vertical Centrifugal 立式离心式
1

3
MCR air conditioner & Refrigeration plant F.W. cooling pump 集控室空调、冷藏装置淡水冷却泵

35m3/h, 0.32MPa, 440V, 60Hz, kW
Horizontal Centrifugal 卧式离心式
1

4
Dry bulk air comreseeor F.W. cooling pump散料空压机淡水冷却泵

50m3/h, 0.4MPa, 440V, 60Hz, kW
Vertical Centrifugal 立式离心式
1

5
Bow thruster F.W. cooling pump
艏侧推冷却泵

~35m3/h, 0.3MPa, 440V, 60Hz, kW
Horizontal Centrifugal 卧式离心式
2

6
Power pack F.W. cooling pump
液压泵站冷却泵

~60m3/h, 0.25MPa, 440V, 60Hz, kW
Vertical Centrifugal 立式离心式
1

7
Auxiliary generators F.W. cooling pump
辅发电机淡水冷却泵

40m3/h, 0.25MPa, 440V, 60Hz, kW
Vertical Centrifugal 立式离心式
1

L
SEWAGE SYSTEM 生活污水系统

1
Sewage treatment plant
生活污水处理装置

60 persons
1

2
Sewage Smash Pump
生活污水粉碎泵

~10m3/h, 0.37MPa, 440V, 60Hz, 7.5kW
Horizontal 卧式
1

3
Skimmer 撇油器

1

M
REMOTE LEVELMEASURING SYSTEM 液位遥测

1
Type of sensor
传感器类型

F.W.: Single pressure transmitter ceramic type
F.O./B.O.: Single pressure transmitter ceramic type
B.W./D.W.: Single pressure transmitter ceramic type
（Liquid mud: Electro pneumatic, Ultrasonic + Electronic level switch + Pressure & Temperature
Methanol: Electro pneumatic, Ultrasonic + Electronic level switch + Pressure & Temperature）
1set
1套

N
REMOTE CONTROLLED VALVE SYSTEM 阀门遥控系统

1
pneumatically driven Remote controlled valve气动遥控阀

Dry bulk & Cargo fuel oil/base oil & Cargo F.W. &Liquid mud/brine /ORO &Drill/Ballast water system
1set
1套

O
EXTERNAL FIRE FIGHTING SYSTEM 对外消防系统

1
External fire fighting pump
对外消防泵

~m3/h, ~MPa, Centrifugal, Driven by M/E free-end, 离心式，主机自由端驱动
2

2
Cultch离合器

2

3
Electrical/hand valve
电动/手动阀

1set
1套

4
Proportional eductor
比例混合器

0~7%
1

5
Water-foam monitor
水—泡沫两用炮

1200m3/h(water水) 300m3/h(foam泡沫)
Horizontally Trajectory水平轨迹：>120m(water), >70m(foam) , Height高度：>45m
2

P
DISPERSANT SYSTEM 消油剂系统

1
Dispersant plant消油喷洒装置

~15m3/h, 9m, 2set, 6 /30L/min
1

Q
DRY BULK SYSTEM 散料干粉系统

1
Bulk Cement Tank水泥干粉罐

~50m3
6

2
Air compressor for dry bulk
水泥空压机

~1200m3/h, 5.6bar, Oil-injected FW-cooled rotary screw type 喷射油润滑，水冷，旋转螺杆式
2

R
CARGO SYSTEM 货物系统

1
Liquid mud/brine /ORO transfer pump 泥浆/盐水/溢油输送泵

100m3/h,1.8MPa(mud泥浆)/0.9MPa(oil油), 440V, 60Hz, ~160kW, single screw单螺杆式
2

2
Liquid mud agitator
泥浆搅拌器

8

3
Cargo fuel oil pump
货物燃油泵

150m3/h, 0.9MPa, 440V, 60Hz, ~75kW
Vertical Centrifugal 立式离心式
2

4
Cargo oil flowmeter
货油流量计

Flow range 流量范围 :24~240 m3/h

2

5
Cargo base oil pump
货物原油泵

150m3/h, 0.9MPa, 440V, 60HZ, ~75kW
Vertical Centrifugal立式离心式
1

6
Cargo F.W. pump
货物淡水泵

150m3/h, 0.9MPa, 440V, 60HZ, ~75kW
Vertical Centrifugal立式离心式
1

7
Cargo F.W. flowmeter
货淡水流量计

Flow range流量范围: 24~240 m3/h
1

8
Methanol pump
甲醇输送泵

50m3/h, 0.9MPa, ~37kW, Horizontal screw pump, Hydraulic driven 卧式螺杆泵，液压驱动
2

9
Methanol flowmeter甲醇流量计

Flow range 流量范围: 24~240 m3/h
2

10
Mud tank washing pump
泥浆冲洗泵

12m3/h, 0.9MPa, 440V, 60HZ, ~11kW

1

11
Liquid mud tank washing machine
泥浆洗舱机

≥8m³/h
8

12
Washing water heater
洗舱水加热器

1

13
N2 maker
制氮装置

10m³/h, 97%, Membrane 膜式
N2 generator, N2 receiver, N2 booster compressor, storage bottles or tank, reducers, block and bleed valves
氮气发生器，氮气存储器，氮气增压器，存储瓶或舱，减压，截止和发泄阀
1

14
Ballast/drilling pump
压载/钻井水泵

150m3/h, 0.9MPa, 440V, 60HZ, ~75kW
Vertical centrifugal 立式离心式
1

15
Ballast water treatment plant
压载水处理装置

~ 150m3/h

1

16
B.W./D.W. flowmeter
钻井水流量计

Flow range流量范围: 24~240 m3/h
1

S
OTHERS 其它

1
Air Whistle 雾航气笛

≥130dB, 315Hz, 1nm, 0.7~1.0MPa, DC220V
1

2
Valves & accessaries
阀和附件

1 set
一套

High speed vent vavle
高速透气阀

Exhuast speed≥30m/s

DN80 mm S.S.316L PN: +0.02/-0.007MPa
6

DN100 mm
16

DN80 mm
2

3
Quick close valve control box
气动速闭阀控制箱

100L，8way+1way standby,(33个阀和8个百叶窗)
1set
一套

4
Grinder
砂轮机

Elec.drive 200mm, 300mm,
0.6kW, 1500rpm, 440V, 60Hz
1

5
Table borer
台式钻床

Max. drilling hold:13mm, 0.6kW, 440V, 60Hz
1

6
Vice bench
钳工台

A tool locker with vice带锁的柜子和台虎钳
1

★★★ END ★★★
★★★ 结束 ★★★
Note:
Due to most equipment approval documents are not provided, details in the table will be adjusted by final document.
说明:
因大部分设备未提供认可资料，以上表内的内容会根据最终资料做适当的调整。
