目录
1、 SG型手动滚轮(0.5~10吨)
2、 SLX手动单梁悬挂起重机（0.5~3吨）
3、 SL手动单梁起重机（1~10吨）
4、 SQ手动双梁起重机（5~20吨）
5、 BZ定柱式悬臂起重机（0.5~3吨）
6、 BB壁行式起重机（2~5吨）
7、 LX电动单梁悬挂起重机（0.5~10吨）
8、 LDA电动单梁起重机（1~20吨）
9、 LH电动葫芦桥式起重机（5~32吨）
10、 LDA低净空单梁起重机(3.2~16吨)
11、 LH低净空电动葫芦桥式起重机（5~63吨）

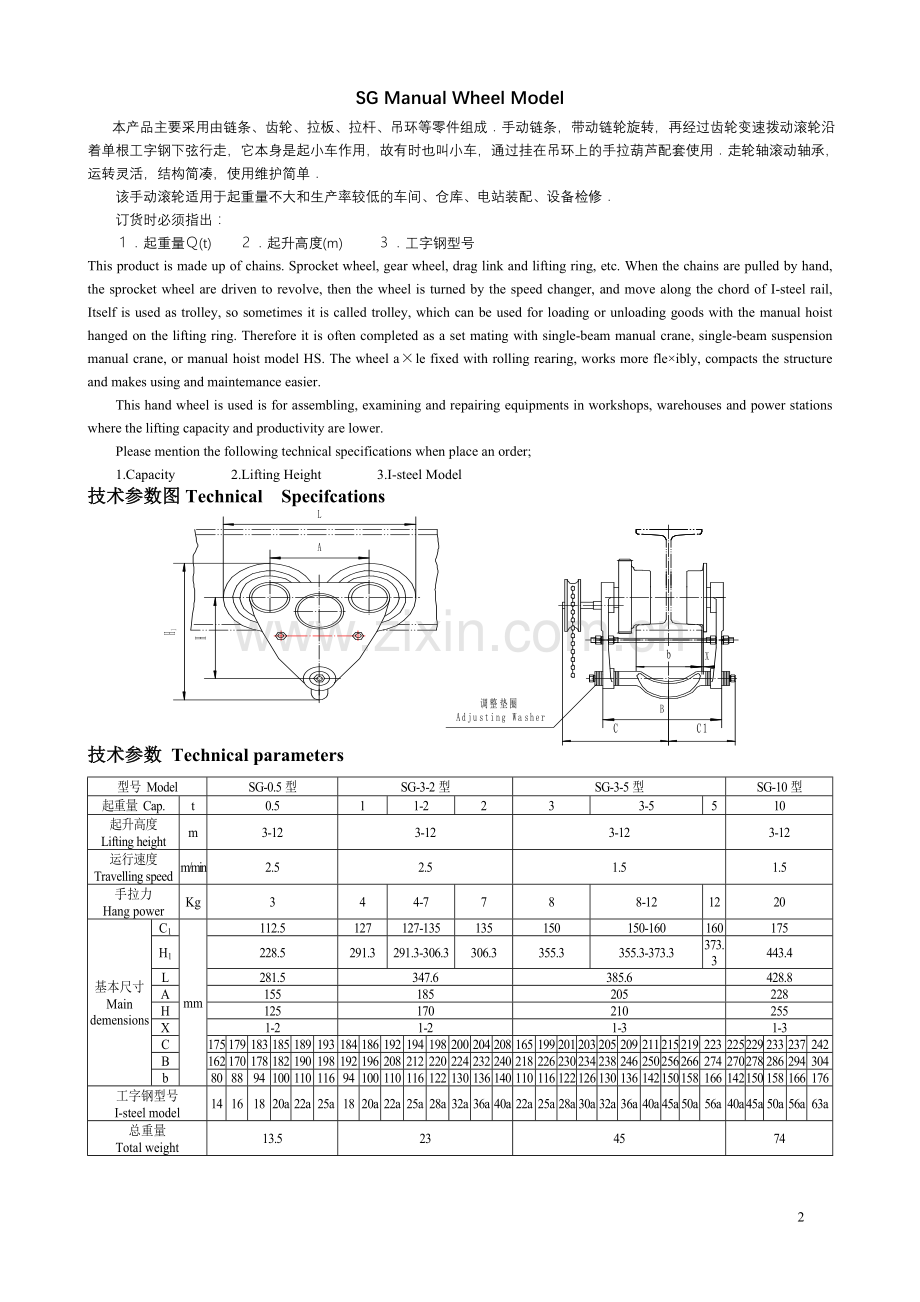

ＳＧ手动滚轮
SG Manual Wheel Model
　 本产品主要采用由链条、齿轮、拉板、拉杆、吊环等零件组成．手动链条，带动链轮旋转，再经过齿轮变速拨动滚轮沿着单根工字钢下弦行走，它本身是起小车作用，故有时也叫小车，通过挂在吊环上的手拉葫芦配套使用．走轮轴滚动轴承，运转灵活，结构简凑，使用维护简单．
　　该手动滚轮适用于起重量不大和生产率较低的车间、仓库、电站装配、设备检修．
　　订货时必须指出：
　 １．起重量Ｑ(t)　　２．起升高度(m) ３．工字钢型号
This product is made up of chains. Sprocket wheel, gear wheel, drag link and lifting ring, etc. When the chains are pulled by hand, the sprocket wheel are driven to revolve, then the wheel is turned by the speed changer, and move along the chord of I-steel rail, Itself is used as trolley, so sometimes it is called trolley, which can be used for loading or unloading goods with the manual hoist hanged on the lifting ring. Therefore it is often completed as a set mating with single-beam manual crane, single-beam suspension manual crane, or manual hoist model HS. The wheel a×le fixed with rolling rearing, works more fle×ibly, compacts the structure and makes using and maintemance easier.
This hand wheel is used is for assembling, examining and repairing equipments in workshops, warehouses and power stations where the lifting capacity and productivity are lower.
Please mention the following technical specifications when place an order;
1.Capacity 2.Lifting Height 3.I-steel Model
技术参数图Technical Specifcations

技术参数 Technical parameters
型号 Model
SG-0.5型
SG-3-2型
SG-3-5型
SG-10型
起重量 Cap.
t
0.5
1
1-2
2
3
3-5
5
10
起升高度
Lifting height
m
3-12
3-12
3-12
3-12
运行速度
Travelling speed
m/min
2.5
2.5
1.5
1.5
手拉力
Hang power
Kg
3
4
4-7
7
8
8-12
12
20
基本尺寸
Main demensions
C1
mm
112.5
127
127-135
135
150
150-160
160
175
H1
228.5
291.3
291.3-306.3
306.3
355.3
355.3-373.3
373.3
443.4
L
281.5
347.6
385.6
428.8
A
155
185
205
228
H
125
170
210
255
X
1-2
1-2
1-3
1-3
C
175
179
183
185
189
193
184
186
192
194
198
200
204
208
165
199
201
203
205
209
211
215
219
223
225
229
233
237
242
B
162
170
178
182
190
198
192
196
208
212
220
224
232
240
218
226
230
234
238
246
250
256
266
274
270
278
286
294
304
b
80
88
94
100
110
116
94
100
110
116
122
130
136
140
110
116
122
126
130
136
142
150
158
166
142
150
158
166
176
工字钢型号
I-steel model
14
16
18
20a
22a
25a
18
20a
22a
25a
28a
32a
36a
40a
22a
25a
28a
30a
32a
36a
40a
45a
50a
56a
40a
45a
50a
56a
63a
总重量
Total weight
13.5
23
45
74

SLX 0.5-3吨手动单梁悬挂起重机
SLX 0.5-3t Manual Operational Single Beam Suspension Crane
该起重机由桥架、传动机构、“SG型”手动单轨小车等部件组成。起重机在轨道工字钢轨的下弦行走. “SG型”手动单轨小车悬挂在大车架上行走。大小车及“SG型”手动单轨小车的行走，起吊货物都用手拉链条驱动。
该起重机适用于无电源、运行速度要求的仓库及车间悬挂安装在固定跨间作起吊、装卸货物、检修设备。特别适用于仓库吊运防爆、防火、防碰货物。
订货时必须提出：
1.起重量 Q(t) 2.起升高度(m) 3.梁伸出长度L1(m)
4.跨度S(m) 5.轨道型号

This crane is made up of girder frame gearing mechanism and single-track manual trolley model SG, etc. The crane travels on the chord of I-steel rail, while the suspended single-track manual trolley model SG traversing on the frame. The crane, the trolley and the single-track manual trolley model SG, and hoisting of goods are all driven by hand-pulling chain.
This crane suspended and installed on the fixed span, is used for lifting, loading and unloading goods, and examining and repairing equipments in warehouses and workshops, where no electric power supply and lower required Travelling speed are provided. It is especially used for preventing the goods from explosive, fire and shock during lifting in warehouses.
Please mention the following technical specifications when place an order:
1. Capacity Q(t) 2. Lifting Height(m) 3.Reach of Beam L1(m)
4. Span S(m) 5.Rail Model

外形示意图 Schematic diagram
技术参数 Technical parameters
起重量
Cap.
跨度
Span
S
基本尺寸Basic size
车轮直径
Wheel
diameter
最大轮压
Max.wheel load（Kg）
总重Total
weight
起升
高度
拉力
L1
W
M
H
A
B
起升
Lifting
小车
Crab
大车
Cran
(mm)
（Kg）
0.5
3
1000
1000
1516
525
746
805
120
198
451
0.25～10
19.5
6
3
3.5
200
466
4
201
478
4.5
202
490
5
204
501
5.5
1200
1200
1716
585
800
1005
220
602
6
221
642
7
226
678
8
232
714
9
1400
1500
2016
605
820
1205
254
872
10
259
913
11
1700
2216
635
850
276
1078
12
281
1127
1
3
1000
1000
1516
545
816
852
346
474
21
9
5
3.5
350
500
4
352
514
4.5
354
527
5
355
541
5.5
1200
1200
1716
605
870
1052
373
677
6
375
698
7
385
740
8
386
780
9
1400
1500
2016
665
930
1252
403
1012
10
421
1063
11
1700
2216
745
1000
480
1393
12
490
1551
2
3
800
1200
1726
585
1150
560
150
641
567
3～10
32.5
12
11
3.5
644
586
4
646
605
4.5
648
622
5
650
639
5.5
1200
1700
2026
665
1227
760
676
824
6
680
860
7
685
943
8
690
954
9
1200
1700
2226
745
1305
960
721
1186
10
726
1250
11
2426
780
1345
788
1605
12
790
1674
3
3
600
1200
2126
566
1304
340
490
831
34.5
15
13
3.5
492
864
4
494
884
4.5
496
901
5
498
928
5.5
800
1500
2426
706
1422
540
558
1244
6
560
1279
7
564
1347
8
566
1416
9
1000
1700
2626
746
1460
740
623
1639
10
630
1712
11
796
1508
642
1966
12
650
2047

SL1-10吨手动单梁起重机
SL1-10t Manual Operational Single Beam Crane
该起重机由大梁桥架，传动机构，“SG型”手动单轨小车，“HS型”手动葫芦等主要部件组成，起重机安装在固定跨间的轨道上，大、小车以及起吊货物由手拉链条驱动。
该起重机适用于无电源，运行速度要求低，工作不繁忙的工矿、码头、仓库及车间在固定跨间作吊运、装卸检修设备之用。
订货时必须提出:
1.起重量Q(t) 2.跨度Lk(m) 3.起升高度H(m)
4.轨道面高度a(mm) 5.轨道至地面高度(m)

This crane is made up of main components: beam, Travelling mechanism and hand hoister model HS, etc. The crane, the trolley and the goods are driven by hand-pulling chains.
This crane is used for lifting, loading and unloading goods, and examining and repairing equipments in industrial and mining enterprises, harbour port, warehouses and workshops, where no electric power, lower required Travelling speed and not-so-busy work are supplied.
Please mention the following technical specifications when place an order:
1.Capacity Q（t） 2.Span Lk(m) 3.Lifting Height H(m)
4.Rail Surface Width a(mm)
5.Height Form Rail Surface to Ground (m)

外形示意图Schematic diagram

技术参数 Technical parameters
起重量Cap.
1
2
3
5
10
起升高度 Lifting height
3～10
工作级别Classification group
A3
轨道面宽（mm）Track width
37～70
技术参数 Technical parameters
起重量
Cap.
跨度
Span
S
基本尺寸Basic size
吊钩极限尺寸
Hook limit size
拽引力Puling force
车轮直径
Wheel
diameter
最大轮压
Max.wheel load
总重
Total
weight
W
B
H
A
h
L
起重lift
小车handcart
大车cart
t
m
(mm)
Kg
(mm)
t
t
1
5
1200
1800
520
145
550
360
21
6
9.4
350
0.65
0.65
6
0.67
0.69
7
0.70
0.76
8
580
380
0.72
0.81
9
0.73
0.85
10
0.76
0.94
11
1600
2200
610
395
0.79
1.04
12
0.81
1.09
13
650
420
0.85
1.25
14
0.86
1.31
2
5
1200
1800
720
400
32.5
12
13.4
1.10
0.70
6
1.13
0.74
7
750
415
1.17
0.82
8
1.19
0.87
9
790
440
1.23
1.00
10
1.26
1.06
11
1600
2200
830
465
1.29
1.16
12
1.33
1.32
13
870
490
1.38
1.48
14
1.40
1.55
3
5
1200
1800
900
460
34.5
14
19.5
1.61
0.81
6
1.64
0.87
7
1.70
0.98
8
940
485
1.72
1.05
9
1.76
1.13
10
1.79
1.20
11
1600
2200
980

510
1.84
1.39
12
1.87
1.46
13
1030
540
1.94
1.72
14
1.97
1.80
5
5
1200
1800
600
150
1210
520
37.5
20
20
350
2.50
0.96
6
2.57
1.03
7
2.65
1.19
8
1250
560
2.70
1.28
9
2.75
1.36
10
2.81
1.60
11
1600
2200
1300
585
2.86
1.73
12
2.95
1.89
13
1360
625
2.98
2.09
14
3.01
2.21
10
5
1800
2600
720
160
1390
555
40
25
20
4.89
1.42
6
5.01
1.49
7
5.14
1.68
8
1440
585
5.21
1.77
9
5.29
1.87
10
5.38
2.09
11
1490
615
5.44
2.25
12
5.50
2.38
13
1550
650
5.60
2.57
14
5.65
2.83

SQ5-20吨手动双梁桥式起重机
SQ5-20t Manual Operational Double Beam Overhead Crane

本起重机由大车,传动机构,卷扬小车等主要部件组成.大车和小车行走,起重均以拉链条驱动.大车轨道型号如不采用钢轨或吊车专用轨道时,轨头宽度应符合表格内a尺寸.
该起重机适用于无电源,运行速度低,工作不繁忙的工矿、仓库、码头及车间在固定跨间作吊运、装卸、检修设备用。
This crane is made up of main components such as Travelling structure, gearing and trolley, etc. The Travelling of crane and trolley and lifting are all driven by hand-pulling chains. The width of the rail should accord with the dimensions in the table a, if square steel rail is replaced by steel rail or special rail for the crane.
This crane is used for lifting, loading and unloading goods and overhauling equipments in industrial and mining enterprises, harbour ports, warehouses, and workshops, where no electric power, lower required Travelling speed, and not-so-busy work are supplied.

外形示意图 Schematic diagram
技术参数 Technical parameters
起重量
Cap.
跨度
Span
S
起升高度Lifting height
钢轨宽a Track width
基本尺寸 Basic size
吊钩极限尺寸
Hook limit size
拽引力
Puling force
最大轮压
Max.wheel load
总重Total
weight
W
B
H
A
Wc
K
h
L1
L2
起升
Lifting
小车
Crab
大车
Cran
t
m
m
mm
mm
Kg
t
5
10
10；16
40
50
2200
2800
950
160
1300
1300
680
980
1020
37
10
30
3.35
3.45
11
3.42
3.64
12
3.52
4.04
13
3.63
4.25
14
3.83
4.78
15
3.86
5.00
16
4.01
5.64
17
4.10
5.89
10
10
60
70
53
16
35
5.67
3.79
11
5.76
4.00
12
5.97
4.60
13
6.07
4.85
14
6.23
5.30
15
6.31
5.57
16
6.50
6.25
17
6.59
6.54
16
10
60
70
2600
3200
1170
170
1500
1600
800
1000
1260
58
25
25
8.8
5.12
11
8.9
5.48
12
9.12
5.98
13
9.34
6.28
14
9.62
7.21
15
9.76
7.56
16
9.96
8.21
17
10.1
8.57
20
10
60
70
64
29
30
10.3
5.45
11
11.13
5.75
12
11.34
6.30
13
11.52
6.63
14
11.78
7.47
15
11.94
7.85
16
12.23
8.74
17
12.43
9.55

BZ0.5-3吨定柱式旋臂起重机
BZ0.5-3t Pillar Jib Crane

产品简介
BZ型定柱式旋臂起重机是参照国外引进设备研制的新产品，该机结构新颖独特，操作灵活方便，动作安全可靠，广泛使用于工厂车间生产线，装配线和其他各种场所的物料吊运作业。
Product Introduction:
Pillar Jib Crane model BZ is a new product researched and manufactured with the imported advanced foreign equipments. This crane has a new structure, flexible and easy operation, and reliability. It is widely applicated for lifting transporting goods and materials on producing lines and assembling lines in factory workshops and other various places.

产品示意图 Schematic diagram

安装基础图 Installation Diagram基本性能参数Basic Function Data Sheet
产品型号Model
BZ-0.5
BZ-1
BZ-2
BZ-3
额定起重量Cap.
Kg
500
1000
2000
3000
起升高度Lifting Height
mm
3000
3000
3000
5000
最大回转半径Max Radius of Gyration
mm
5000
4500
4500
5500
最大水平行程Max Horizontal Travel
mm
4000
3500
3500
4000
最大回转角度Max Angel of Gyration

360°
360°
360°
360°
提升速度Lifting Speed
m/min
8或8/0.8
8或8/0.8
8或8/0.8
8或8/0.8
水平运行速度Horizontal Travelling Speed
r/min
20
20
20
20
回转速度Gyration Speed
mm
0.7
0.8
0.8
0.5
外形尺寸Contour Size
高L2Height
mm
4117
4300
4300
6580
宽L1Width
5400
5630
5630
6650
自重Dead weight
Kg
1009.4
1344
2072
3819
定位半板尺寸Positioning Plate Dimensions
起重量
BZ-0.5
BZ-1
BZ-2
BZ-3
外形尺寸
-8×φ700
-8×φ800
-8×φ850
-20×φ1500
孔中心距D
φ600
φ600
φ720
φ1100
孔
φ28
φ34
φ40
φ40
安装材料 Installation Material
序号
代号
名称
数量
备注
1

定位板
1
用户自备
2
GB/T799-1988
地脚螺栓M24×1200
8
BZ-0.5 用户自备
GB/T799-1988
地脚螺栓M30×1500
8
BZ-1 用户自备
GB/T799-1988
地脚螺栓M36×1500
8
BZ-2 用户自备
GB/T799-1988
地脚螺栓M36×1500
16
BZ-3 用户自备
3
GB/T6170-2000
螺母M24
8
BZ-0.5 用户自备
GB/T6170-2000
螺母M30
8
BZ-1 用户自备
GB/T6170-2000
螺母M36
8
BZ-2 用户自备
GB/T6170-2000
螺母M36
16
BZ-3 用户自备
4
GB/T93-1987
弹垫24
8
BZ-0.5 用户自备
GB/T93-1987
弹垫30
8
BZ-1 用户自备
GB/T93-1987
弹垫36
8
BZ-2 用户自备
GB/T93-1987
弹垫36
16
BZ-3 用户自备
5
GB/T95-1985
平垫24
8
BZ-0.5 用户自备
GB/T95-1985
平垫30
8
BZ-1 用户自备
GB/T95-1985
平垫36
8
BZ-2 用户自备
GB/T95-1985
平垫36
16
BZ-3 用户自备
BB2.1-5吨壁行式起重机
BB0.52-5t Pillar JibWall Crane
产品简介

BB型壁行式旋臂起重机是参照国外引进设备研制的新产品，该机结构新颖独特，操作灵活方便，动作安全可靠，广泛使用于工厂车间生产线，装配线和其他各种场所的物料吊运作业。

Product Introduction:

Pillar JibWall Crane model BB is a new product researched and manufactured with the imported advanced foreign equipments. This crane has a new structure, flexible and easy operation, and reliability. It is widely applicated for lifting transporting goods and materials on producing lines and assembling lines in factory workshops and other various places.

产品示意图Schematic diagram

序号Number
名称 Name
单位Unit
BB2
BB3
BB5
1
起重量Cap. (t)
t
2
3
5
2
起重机运行机构
Crane travelling
运行速度Travelling speed
m/min
0.2~2
0.2~2
0.2~2
3
电机
Motor
型号Model

SEW
SEW
SEW
4
功率Power
Kw
2×1.5
2×1.5
2×1.5
5

电动葫芦
Electric hoists
型号Model

DR-BAS
DR-BAS
DR-BAS
6
起升高度Lifting height
m
25
25
15
7
起升速度Lifting speed
m/min
10/1.6
10/1.6
10/1.6
8
起升电机功率Lifting Power
kw
4.5
4.5
7.5
9
运行速度Travelling speed
m/min
20/5
20/5
20/5
10
运行电机功率TravellingPower
kw
0.4
0.4
0.8
11
工作级别Classification group

A3-A5
12
电源Power supply

380V 50HZ 3Ph
13
大运车轮直径Wheel diameter
mm
350
350
350
14
（驱动车轮）轨道Steel track
Kg/m
24
24
24

15

基本尺寸
Basic size
R有

mm
9900
8500
6300
Rmax
11240
9400
7500
Rmin
1300
1400
1400
L
4600
3400
3400
W
4000
2800
2800
H
3900
2283
3500
H1
230
230
384
H2
175
175
175
H3
380
380
380
H4
175
175
175
Hmin
770
770
800
16
重量Total weight
kg
6140
6440
6740

LX0.5-10（LX0.5-5）吨电动单梁悬挂起重机
LX0.5-10t Electric Single-Beam Suspension Crane
本起重机是按标准JB/T2603-2008设计制造的，与CD、MD等型号的电动葫芦配套使用成为一种有轨运行的小型起重机，起重量为0.5～10t，跨度为3～16m，环境温度为-25℃～40℃范围内。
本产品一般用途：起重机多用于机械制造试验室、装配工场、起重机由桥架、电动葫芦、运行机构、电器装配等四部分组成。
The electric single-beam suspension crane Model LX is designed and manufactured according to the stangards of JB/T2603-2008 .It is fromed into a kind of light and small sized suspension crane with track by mating with the electric hoist of models CD and MD,ect .Its applicable-hoisting capacity is 0.5～10 ton and span is 3～16 meters to be operated in a environment with ambient with ambient temperature within the range of -25℃～40℃
The Product is a general peurpose crane .It is mainly used for mechanical manufacturing central lab and assembly shops as well as warehouses and other sites .The crane is made up of four components :single-beam ,hoist ,traveiiling meachanism and electric devises ,ect .
外形示意图 Schematic diagram

订货时必须提出：1.起重量Q(t) 2.跨度S（米） 3.起升高度H（米） 4.悬臂长L（米）
5.大运速度V（米/分） 6.配置葫芦型号
Please mention the following technical specifications when place an order:
1. Capacity Q(t) 2.Span S(m) 3.Lifting height H(m)
4.Cantilever length L(m) 5.Travelling Speed V(m/min) 6.Hoist Model
