ASA5505透明模式下完全配置
2008-08-01 13:04

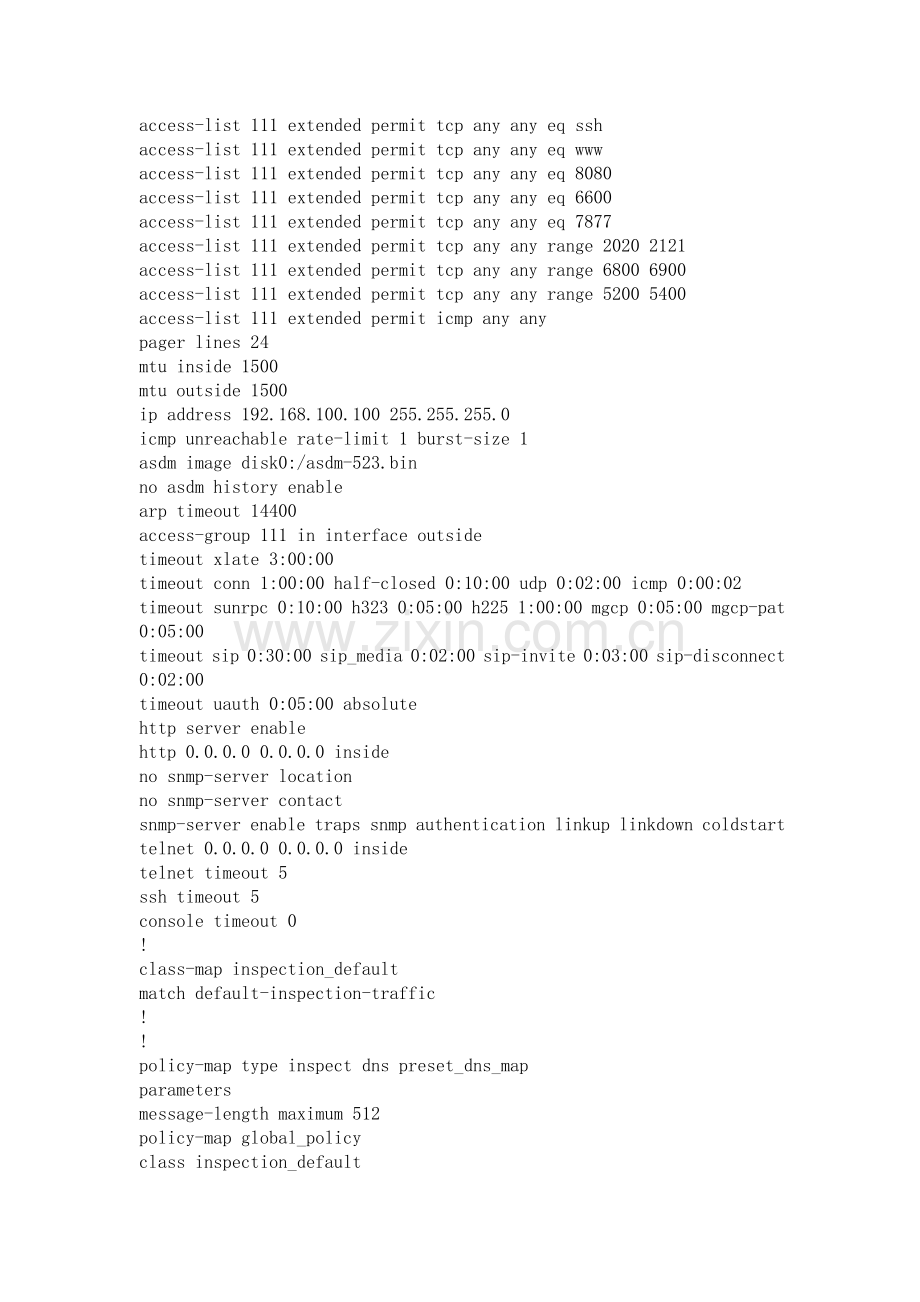

ciscoasa# show run
: Saved
:
ASA Version 7.2(3)
!
firewall transparent
hostname ciscoasa
domain-name default.domain.invalid
enable password 8Ry2YjIyt7RRXU24 encrypted
names
!
interface Vlan1
nameif inside
security-level 100
!
interface Vlan2
nameif outside
security-level 0
!
interface Ethernet0/0
!
interface Ethernet0/1
!
interface Ethernet0/2
!
interface Ethernet0/3
!
interface Ethernet0/4
switchport access vlan 2
!
interface Ethernet0/5
switchport access vlan 2
!
interface Ethernet0/6
!
interface Ethernet0/7
!
passwd 2KFQnbNIdI.2KYOU encrypted
ftp mode passive
dns server-group DefaultDNS
domain-name default.domain.invalid
access-list 111 extended permit tcp any any eq ftp-data
access-list 111 extended permit tcp any any eq ssh
access-list 111 extended permit tcp any any eq www
access-list 111 extended permit tcp any any eq 8080
access-list 111 extended permit tcp any any eq 6600
access-list 111 extended permit tcp any any eq 7877
access-list 111 extended permit tcp any any range 2020 2121
access-list 111 extended permit tcp any any range 6800 6900
access-list 111 extended permit tcp any any range 5200 5400
access-list 111 extended permit icmp any any
pager lines 24
mtu inside 1500
mtu outside 1500
ip address 192.168.100.100 255.255.255.0
icmp unreachable rate-limit 1 burst-size 1
asdm image disk0:/asdm-523.bin
no asdm history enable
arp timeout 14400
access-group 111 in interface outside
timeout xlate 3:00:00
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02
timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00
timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00
timeout uauth 0:05:00 absolute
http server enable
http 0.0.0.0 0.0.0.0 inside
no snmp-server location
no snmp-server contact
snmp-server enable traps snmp authentication linkup linkdown coldstart
telnet 0.0.0.0 0.0.0.0 inside
telnet timeout 5
ssh timeout 5
console timeout 0
!
class-map inspection_default
match default-inspection-traffic
!
!
policy-map type inspect dns preset_dns_map
parameters
message-length maximum 512
policy-map global_policy
class inspection_default
inspect dns preset_dns_map
inspect ftp
inspect h323 h225
inspect h323 ras
inspect rsh
inspect rtsp
inspect esmtp
inspect sqlnet
inspect skinny
inspect sunrpc
inspect xdmcp
inspect sip
inspect netbios
inspect tftp
!
service-policy global_policy global
prompt hostname context
Cryptochecksum:871ee08b54631ff021ad0c4a1a3db59d
: end
ciscoasa#
ciscoasa#
ciscoasa#
ciscoasa#
ciscoasa# show ver
ciscoasa# show version

Cisco Adaptive Security Appliance Software Version 7.2(3)
Device Manager Version 5.2(3)

Compiled on Wed 15-Aug-07 16:08 by builders
System image file is "disk0:/asa723-k8.bin"
Config file at boot was "startup-config"

ciscoasa up 5 mins 34 secs

Hardware: ASA5505, 256 MB RAM, CPU Geode 500 MHz
Internal ATA Compact Flash, 128MB
BIOS Flash M50FW080 @ 0xffe00000, 1024KB

Encryption hardware device : Cisco ASA-5505 on-board accelerator (revision 0x0)
Boot microcode : CNlite-MC-Boot-Cisco-1.2
SSL/IKE microcode: CNlite-MC-IPSEC-Admin-3.03
IPSec microcode : CNlite-MC-IPSECm-MAIN-2.04
0: Int: Internal-Data0/0 : address is 001e.4a39.b59d, irq 11
1: Ext: Ethernet0/0 : address is 001e.4a39.b595, irq 255
2: Ext: Ethernet0/1 : address is 001e.4a39.b596, irq 255
3: Ext: Ethernet0/2 : address is 001e.4a39.b597, irq 255
4: Ext: Ethernet0/3 : address is 001e.4a39.b598, irq 255
5: Ext: Ethernet0/4 : address is 001e.4a39.b599, irq 255
6: Ext: Ethernet0/5 : address is 001e.4a39.b59a, irq 255
7: Ext: Ethernet0/6 : address is 001e.4a39.b59b, irq 255
8: Ext: Ethernet0/7 : address is 001e.4a39.b59c, irq 255
9: Int: Internal-Data0/1 : address is 0000.0003.0002, irq 255
10: Int: Not used : irq 255
11: Int: Not used : irq 255

Licensed features for this platform:
Maximum Physical Interfaces : 8
VLANs : 3, DMZ Restricted
Inside Hosts : 10
Failover : Disabled
VPN-DES : Enabled
VPN-3DES-AES : Enabled
VPN Peers : 10
WebVPN Peers : 2
Dual ISPs : Disabled
VLAN Trunk Ports : 0

This platform has a Base license.

Serial Number: JMX1145Z03D
Running Activation Key: 0x33184371 0x3cfb93d2 0xbc80d584 0x8efca824 0xcb0aadac
Configuration register is 0x1
Configuration has not been modified since last system restart.
ciscoasa#
ciscoasa#
ciscoasa#
ciscoasa# show in
ciscoasa# show interface
Interface Vlan1 "inside", is up, line protocol is up
Hardware is EtherSVI
MAC address 001e.4a39.b59d, MTU 1500
IP address 1.1.1.1, subnet mask 255.255.255.255
Traffic Statistics for "inside":
48 packets input, 3275 bytes
68 packets output, 3206 bytes
3 packets dropped
1 minute input rate 0 pkts/sec, 5 bytes/sec
1 minute output rate 0 pkts/sec, 15 bytes/sec
1 minute drop rate, 0 pkts/sec
5 minute input rate 0 pkts/sec, 10 bytes/sec
5 minute output rate 0 pkts/sec, 9 bytes/sec
5 minute drop rate, 0 pkts/sec
Interface Vlan2 "outside", is up, line protocol is up
Hardware is EtherSVI
MAC address 001e.4a39.b59e, MTU 1500
IP address 1.1.1.1, subnet mask 255.255.255.255
Traffic Statistics for "outside":
113 packets input, 6686 bytes
13 packets output, 855 bytes
60 packets dropped
1 minute input rate 0 pkts/sec, 26 bytes/sec
1 minute output rate 0 pkts/sec, 5 bytes/sec
1 minute drop rate, 0 pkts/sec
5 minute input rate 0 pkts/sec, 18 bytes/sec
5 minute output rate 0 pkts/sec, 2 bytes/sec
5 minute drop rate, 0 pkts/sec
Interface Ethernet0/0 "", is up, line protocol is up
Hardware is 88E6095, BW 100 Mbps
Auto-Duplex(Full-duplex), Auto-Speed(100 Mbps)
Available but not configured via nameif
MAC address 001e.4a39.b595, MTU not set
IP address unassigned
25 packets input, 2547 bytes, 0 no buffer
Received 4 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 L2 decode drops
0 switch ingress policy drops
112 packets output, 7756 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collisions, 0 deferred
0 lost carrier, 0 no carrier
0 rate limit drops
0 switch egress policy drops
Interface Ethernet0/1 "", is down, line protocol is down
Hardware is 88E6095, BW 100 Mbps
Auto-Duplex, Auto-Speed
Available but not configured via nameif
MAC address 001e.4a39.b596, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 L2 decode drops
0 switch ingress policy drops
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collisions, 0 deferred
0 lost carrier, 0 no carrier
0 rate limit drops
0 switch egress policy drops
Interface Ethernet0/2 "", is down, line protocol is down
Hardware is 88E6095, BW 100 Mbps
Auto-Duplex, Auto-Speed
Available but not configured via nameif
MAC address 001e.4a39.b597, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 L2 decode drops
0 switch ingress policy drops
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collisions, 0 deferred
0 lost carrier, 0 no carrier
0 rate limit drops
0 switch egress policy drops
Interface Ethernet0/3 "", is down, line protocol is down
Hardware is 88E6095, BW 100 Mbps
Auto-Duplex, Auto-Speed
Available but not configured via nameif
MAC address 001e.4a39.b598, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 L2 decode drops
0 switch ingress policy drops
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collisions, 0 deferred
0 lost carrier, 0 no carrier
0 rate limit drops
0 switch egress policy drops
Interface Ethernet0/4 "", is down, line protocol is down
Hardware is 88E6095, BW 100 Mbps
Auto-Duplex, Auto-Speed
Available but not configured via nameif
MAC address 001e.4a39.b599, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 L2 decode drops
0 switch ingress policy drops
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collisions, 0 deferred
0 lost carrier, 0 no carrier
0 rate limit drops
0 switch egress policy drops
Interface Ethernet0/5 "", is up, line protocol is up
Hardware is 88E6095, BW 100 Mbps
Auto-Duplex(Full-duplex), Auto-Speed(100 Mbps)
Available but not configured via nameif
MAC address 001e.4a39.b59a, MTU not set
IP address unassigned
113 packets input, 8726 bytes, 0 no buffer
Received 97 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 L2 decode drops
0 switch ingress policy drops
13 packets output, 1089 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collisions, 0 deferred
0 lost carrier, 0 no carrier
0 rate limit drops
0 switch egress policy drops
Interface Ethernet0/6 "", is down, line protocol is down
Hardware is 88E6095, BW 100 Mbps
Auto-Duplex, Auto-Speed
Available but not configured via nameif
MAC address 001e.4a39.b59b, MTU not set
IP address unassigned
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 L2 decode drops
0 switch ingress policy drops
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collisions, 0 deferred
0 lost carrier, 0 no carrier
0 rate limit drops
0 switch egress policy drops
Interface Ethernet0/7 "", is down, line protocol is down
Hardware is 88E6095, BW 100 Mbps
Auto-Duplex, Auto-Speed
Available but not configured via nameif
MAC address 001e.4a39.b59c, MTU not set
IP address unassigned
47 packets input, 3554 bytes, 0 no buffer
Received 30 broadcasts, 0 runts, 0 giants
1 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 L2 decode drops
0 switch ingress policy drops
12 packets output, 1458 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 babbles, 0 late collisions, 0 deferred
0 lost carrier, 0 no carrier
0 rate limit drops
0 switch egress policy drops
ciscoasa#
ciscoasa#
ciscoasa#
开启web管理
asdm image disk0:/asdm-523.bin
http server enable
http 192.168.100.0 255.255.255.0 inside
username cisco password 3USUcOPFUiMCO4Jk encrypted privilege 15

配置透明模式的时候,一定要配置管理地址,不然是不会通的!

清空配置
wr erase
