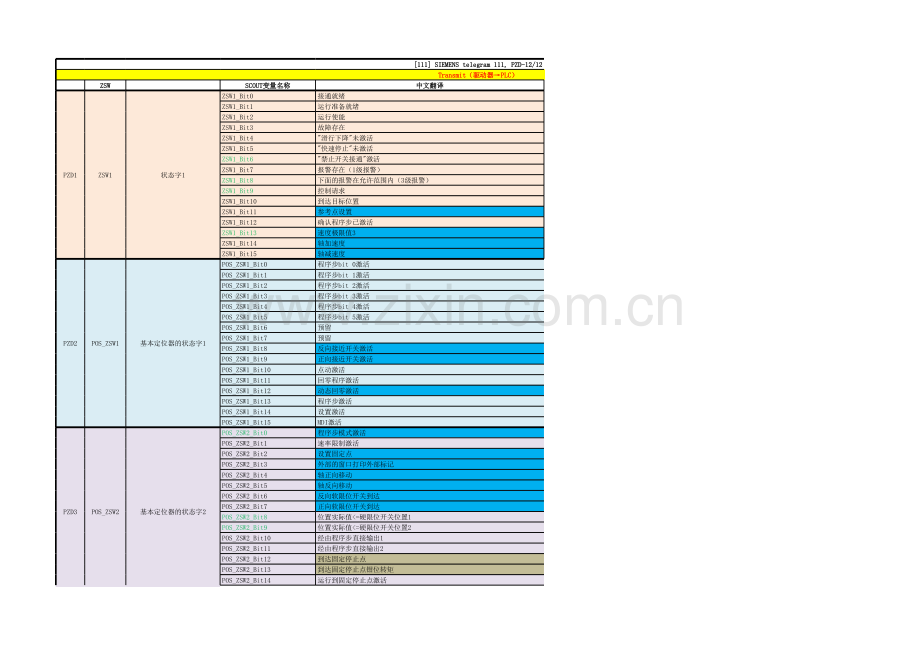

111111 SIEMENSSIEMENS telegramtelegram 111,111,PZD-12/12PZD-12/12TransmitTransmit（驱驱动动器器PLCPLC）ZSWZSWSCOUTSCOUT变变量量名名称称中中文文翻翻译译PZD1ZSW1状态字1ZSW1_Bit0接通就绪ZSW1_Bit1运行准备就绪ZSW1_Bit2运行使能ZSW1_Bit3故障存在ZSW1_Bit4滑行下降未激活ZSW1_Bit5快速停止未激活ZSW1_Bit6禁止开关接通激活ZSW1_Bit7报警存在（1级报警）ZSW1_Bit8下面的报警在允许范围内（3级报警）ZSW1_Bit9控制请求ZSW1_Bit10到达目标位置ZSW1_Bit11参考点设置ZSW1_Bit12确认程序步已激活ZSW1_Bit13速度极限值3ZSW1_Bit14轴加速度ZSW1_Bit15轴减速度PZD2POS_ZSW1基本定位器的状态字1POS_ZSW1_Bit0程序步bit 0激活POS_ZSW1_Bit1程序步bit 1激活POS_ZSW1_Bit2程序步bit 2激活POS_ZSW1_Bit3程序步bit 3激活POS_ZSW1_Bit4程序步bit 4激活POS_ZSW1_Bit5程序步bit 5激活POS_ZSW1_Bit6预留POS_ZSW1_Bit7预留POS_ZSW1_Bit8反向接近开关激活POS_ZSW1_Bit9正向接近开关激活POS_ZSW1_Bit10点动激活POS_ZSW1_Bit11回零程序激活POS_ZSW1_Bit12动态回零激活POS_ZSW1_Bit13程序步激活POS_ZSW1_Bit14设置激活POS_ZSW1_Bit15MDI激活PZD3POS_ZSW2基本定位器的状态字2POS_ZSW2_Bit0程序步模式激活POS_ZSW2_Bit1速率限制激活POS_ZSW2_Bit2设置固定点POS_ZSW2_Bit3外部的窗口打印外部标记POS_ZSW2_Bit4轴正向移动POS_ZSW2_Bit5轴反向移动POS_ZSW2_Bit6反向软限位开关到达POS_ZSW2_Bit7正向软限位开关到达POS_ZSW2_Bit8位置实际值=硬限位开关位置1POS_ZSW2_Bit9位置实际值=硬限位开关位置2POS_ZSW2_Bit10经由程序步直接输出1POS_ZSW2_Bit11经由程序步直接输出2POS_ZSW2_Bit12到达固定停止点POS_ZSW2_Bit13到达固定停止点钳位转矩POS_ZSW2_Bit14运行到固定停止点激活POS_ZSW2_Bit15运行命令激活PZD4ZSW2状态字2ZSW2_Bit0驱动数据设置bit 0有效ZSW2_Bit1驱动数据设置bit 1有效ZSW2_Bit2驱动数据设置bit 2有效ZSW2_Bit3驱动数据设置bit 3有效ZSW2_Bit4驱动数据设置bit 4有效ZSW2_Bit5报警分类bit 0ZSW2_Bit6报警分类bit 1ZSW2_Bit7轴停车命令激活ZSW2_Bit8运行到固定点停止激活ZSW2_Bit9预留ZSW2_Bit10脉冲使能ZSW2_Bit11电动机转换激活ZSW2_Bit12从站时钟同步bit 0ZSW2_Bit13从站时钟同步bit 1ZSW2_Bit14从站时钟同步bit 2ZSW2_Bit15从站时钟同步bit 3PZD5MELDW信息状态字MELDW_Bit0斜坡上升/斜坡下降完成MELDW_Bit1转矩利用 转矩极限值MELDW_Bit2|n_act|速率极限值3MELDW_Bit3|n_act|速率极限值2 p2155MELDW_Bit4电压-数字变换器控制器激活MELDW_Bit5信号发生器输出信号MELDW_Bit6超温报警MELDW_Bit7电源单元热过载报警MELDW_Bit8速度实际运行值偏差在“t_on”公差内MELDW_Bit9预留MELDW_Bit10预留MELDW_Bit11控制器使能MELDW_Bit12驱动器准备好MELDW_Bit13脉冲使能MELDW_Bit14预留MELDW_Bit15预留PZD67XIST_A位置实际值（32位）XIST_A位置实际值PZD89NIST_B转速实际值（32位）NIST_B速度实际值PZD10FAULT_CODE当前报警的编号FAULT_CODE故障代码PZD11WARN_CODE当前故障的编号WARN_CODE警告代码PZD12 FREE_CONNECTED可自由互联FREE_CONNECTED_Transmit111111 SIEMENSSIEMENS telegramtelegram 111,111,PZD-12/12PZD-12/12ReceiveReceive（PLCPLC驱驱动动器器）STWSTWSCOUTSCOUT变变量量名名称称中中文文PZD1STW1控制字1STW1_Bit0轴的运行命令/变频器启动STW1_Bit1无滑行下降命令STW1_Bit2无快速停止命令STW1_Bit3运行使能（脉冲使能与封锁）STW1_Bit4停止任务 1：不激活 0：激活STW1_Bit5停止命令 1：不激活 0：激活STW1_Bit6激活程序步任务STW1_Bit7故障确认STW1_Bit8点动1命令STW1_Bit9点动2命令STW1_Bit10通过PLC控制驱动器STW1_Bit11启动回参考点命令STW1_Bit12预留STW1_Bit13外部块变化STW1_Bit14预留STW1_Bit15预留PZD2POS_STW1基本定位器的控制字1POS_STW1_Bit0选择程序步 bit0POS_STW1_Bit1选择程序步 bit1POS_STW1_Bit2选择程序步 bit2POS_STW1_Bit3选择程序步 bit3POS_STW1_Bit4选择程序步 bit4POS_STW1_Bit5选择程序步 bit5POS_STW1_Bit6预留POS_STW1_Bit7预留POS_STW1_Bit8直接数据输入/MDI_定位模式 1：绝对位置 0：相对位置POS_STW1_Bit9直接数据输入/MDI_方向选择 正向POS_STW1_Bit10直接数据输入/MDI_方向选择 反向POS_STW1_Bit11预留POS_STW1_Bit12直接数据输入/MDI_数据传输方式 1：连续 0：单步POS_STW1_Bit13预留POS_STW1_Bit14直接数据输入/MDI_设置选择 1：速度模式 0:位置模式POS_STW1_Bit15直接数据输入/MDI_选择（激活MDI功能）PZD3POS_STW2基本定位器的控制字2POS_STW2_Bit0激活程序步模式POS_STW2_Bit1激活轴的“设置参考点”命令，将当前位置设置成零位。POS_STW2_Bit2参考点挡块信号POS_STW2_Bit3预留POS_STW2_Bit4预留POS_STW2_Bit5设置点动模式 0：速度模式 1：位置模式POS_STW2_Bit6预留POS_STW2_Bit7预留POS_STW2_Bit8选择回参考点方式 0：主动回零 1：被动回零POS_STW2_Bit9设置寻参考点方向 0：正向回零 1：反向回零POS_STW2_Bit10选择测量探头的评估，闭环位置控制POS_STW2_Bit11测量探头评价优势，闭环位置控制POS_STW2_Bit12预留POS_STW2_Bit13预留POS_STW2_Bit14激活软限位POS_STW2_Bit15激活硬限位PZD4STW2控制字2STW2_Bit0驱动数据设置 bit 0STW2_Bit1驱动数据设置 bit 1STW2_Bit2驱动数据设置 bit 2STW2_Bit3驱动数据设置 bit 3STW2_Bit4驱动数据设置 bit 4STW2_Bit5预留STW2_Bit6预留STW2_Bit7轴停车命令STW2_Bit8预留STW2_Bit9预留PZD1STW1控制字1STW2_Bit10预留STW2_Bit11电动机转换反馈信号STW2_Bit12主站时钟同步bit 0STW2_Bit13主站时钟同步bit 1STW2_Bit14主站时钟同步bit 2STW2_Bit15主站时钟同步bit 3PZD5Override转速设定值Override速率极限值PZD67MDI_TARPOS设定值直接给定/MDI的位置设定值MDI_TARPOS双字：MDI 位置值(单位：LU)PZD89 MDI_VELOCITYMDI 速度MDI_VELOCITY双字：MDI 速度给定（单位：1000LU/min）PZD10MDI_ACCMDI 加速度MDI_ACCMDI 加速度(4000H 对应100%)PZD11MDI_DECMDI 减速度MDI_DECMDI 减速度(4000H 对应100%)PZD12 FREE_CONNECTED可自由互联FREE_CONNECTED_Receive自由连接_接收运行极限点（到达极限点，p2613/p2614=0，轴反转；都为0则停止）注注释释Ready for switch on(1=Yes/0=No)Ready for operation(1=Yes/0=No)Operation enabled(1=Yes/0=No)Fault present(1=Yes/0=No)No coasting down active(1=OFF2 inactive/0=OFF2 active)No Quick Stop active(1=OFF3 inactive/0=OFF3 active)Switching on inhibited active(1=Yes/0=No)Alarm present(1=Yes/0=No)Following error in tolerance(1=Yes/0=No)Control requeset(1=Yes/0=No)Target Position reached(1=Yes/0=No)Reference point set(1=Yes/0=No),p208011Acknowledgement traversing block activated(1=Yes/0=No)|n_act|speed threshold value 3(1=Yes/0=No),p208013Axis accelerating(1=Yes/0=No),p208014Axis decelerating(1=Yes/0=No),p208015Active traversing block bit 0(1=Active/0=Not active)Active traversing block bit 1(1=Active/0=Not active)Active traversing block bit 2(1=Active/1=Not active)Active traversing block bit 3(1=Active/1=Not active)Active traversing block bit 4(1=Active/0=Not active)Active traversing block bit 5(1=Active/0=Not active)ReservedReservedSTOP cam minus active(1=Yes/0=No),p20838STOP cam plus active(1=Yes/0=No),p20839Jog active(1=On/0=Off)Homing procedure active(1=On/0=Off)Fiying referencing active(1=Active/0=Not active),p208312Traversing block active(1=On/0=Off)Setup active(1=On/0=Off)MDI active(1=Active/0=Not active)Tracking mode active(1=Yes/0=No),p20840Velocity limiting active(1=Yes/0=No)Setpoint fixed(1=Yes/0=No),p20841Printing mark outside outer window(1=Yes/0=No),p20843Axis moves forward(1=Yes/0=No),p20844Axis moves backward(1=Yes/0=No),p20845Software limit switch minus Reached(1=Yes/0=No),p20846Software limit switch plus Reached(1=Yes/0=No),p20847Position actual value=cam switching Position 1(1=Yes/0=No)Position actual value=cam switching Position 2(1=Yes/0=No)Direct output 1 via the traversing block(1=Yes/0=No)Direct output 2 via the traversing block(1=Yes/0=No)Fixed stop Reached(1=Yes/0=No),r2526.4Fixed stop clamping torque Reached(1=Yes/0=No)Travel to Fixed stop active(1=Yes/0=No)111111 SIEMENSSIEMENS telegramtelegram 111,111,PZD-12/12PZD-12/12Travel command active(1=Yes/0=No),p208415DDS effective bit 0(1=On/0=Off)DDS effective bit 1(1=On/0=Off)DDS effective bit 2(1=On/0=Off)DDS effective bit 3(1=On/0=Off)DDS effective bit 4(1=On/0=Off)Alarm class bit 0(1=High/0=Low)Alarm class bit 0(1=High/1=Low)Parking axis active(1=Yes/0=No)Travel to fixed stop active(1=Yes/0=No)ReservedPulses enabled(1=Yes/0=No)Motor changeover active(1=Yes/0=No)Slave sign-of-life bit 0(1=On/0=Off)Slave sign-of-life bit 1(1=On/0=Off)Slave sign-of-life bit 2(1=On/0=Off)Slave sign-of-life bit 3(1=On/0=Off)Ramp-up/ramp-down completed(1=Yes/0=No)Torque utilization torque threshold value(1=Yes/0=No)|n_act|speed threshold value 3(1=Yes/0=No)|n_act|speed threshold value 2 p2155(1=Yes/0=No)Vdc_min controller active(1=Yes/0=No)Variable signaling function output signal(1=On/0=Off)Alarm motor overtemperature(1=No/0=Yes)Alarm power unit thermal overload(1=No/0=Yes)Speed setp-act val deviation in tolerance t_on(1=Yes/0=No)ReservedReservedController enable(1=Yes/0=No)Drive ready(1=Yes/0=No)Pulses enabled(1=Yes/0=No)ReservedReservedPosition actual value:p20615=r2521Speed actual value:p20617=r00630Fault code:p20519=r2131Warning codeFree Connected_TransmitPLCPLC功功能能块块名名称称ON/OFF(OFF1)(1=On/0=Off):p0840=r2090.0No coast-down/coast-down(OFF2)signal source(1=On/0=Off):p0844=r2090.1No Quick Stop/Quick Stop(OFF3)signal source(1=On/0=Off):p0848=r2090.2Enable operation/inhibit operation(1=On/0=Off):p0852=r2090.3EPOS reject traversing task(0 singal)(1=On/0=Off):p2641=r2090.4EPOS intermediate stop(0 singal)(1=On/0=Off):p2640=r2090.5EPOS activate traversing task(01)(1=On/0=Off):r2090.6,setpoint acceptance edge1.Acknowledge fault(1=On/0=Off):p2103=r2090.7111111 SIEMENSSIEMENS telegramtelegram 111,111,PZD-12/12PZD-12/12EPOS jog1 singal source(1=On/0=Off):p2589=r2090.8EPOS jog2 singal source(1=On/0=Off):p2590=r2090.9Control by PLC/no control by PLC(1=On/0=Off):p0854=r2090.10EPOS referencing start(1=On/0=Off):p2595=r2090.11ReservedEPOS external block change(01)(1=On/0=Off):p2632=1;p2633=r2090.13ReservedReservedEPOS traversing block selection bit 0(1=On/0=Off):p2625=r2091.0EPOS traversing block selection bit 1(1=On/0=Off):p2626=r2091.1EPOS traversing block selection bit 2(1=On/0=Off):p2627=r2091.2EPOS traversing block selection bit 3(1=On/0=Off):p2628=r2091.3EPOS traversing block selection bit 4(1=On/0=Off):p2629=r2091.4EPOS traversing block selection bit 5(1=On/0=Off):p2630=r2091.5ReservedReservedEPOS direct setpoint input/MDI positioning type(1=On/0=Off):p2648=r2091.8EPOS direct setpoint input/MDI direction selection,positive(1=On/0=Off):p2651=r2091.9EPOS direct setpoint input/MDI direction selection,negative(1=On/0=Off):p2652=r2091.10ReservedEPOS direct setpoint input/MDI transfer type selection(1=On/0=Off):p2649=r2091.12ReservedEPOS direct setpoint input/MDI setting-up selection(1=On/0=Off):p2653=r2091.14EPOS direct setpoint input/MDI Selection(1=On/0=Off):p2647=r2091.15EPOS Select tracking mode(1=On/0=Off):p26550=r2092.0EPOS set referencing point(1=On/0=Off):p2596=r2092.1EPOS search for reference cam(1=On/0=Off):p2612=r2092.2ReservedReservedEPOS jogging incremental(1=On/0=Off):p2591=r2092.5ReservedReservedEPOS referencing type selection(1=On/0=Off):p2597=r2092.8EPOS search for reference start direction(1=On/0=Off):p2604=r2092.9LR selecting measuring probe evaluation,Cl-loop pos crtl(1=On/0=Off):p2510=r2092.10LR measuring probe evaluation edge,Cl-loop pos crtl(1=On/0=Off):p2511=r2092.11ReservedReservedEPOS software limit switch activation(1=On/0=Off):p2582=r2092.14EPOS STOP cam activation(1=On/0=Off):p2568=r2092.15Drive data set selection DDS bit 0(1=On/0=Off):p08200=r2093.0 Drive data set selection DDS bit 1(1=On/0=Off):p08210=r2093.1Drive data set selection DDS bit 2(1=On/0=Off):p08220=r2093.2Drive data set selection DDS bit 3(1=On/0=Off):p08230=r2093.3Drive data set selection DDS bit 4(1=On/0=Off):p08240=r2093.4ReservedReservedParking axis selection(1=On/0=Off):p0897=r2093.7ReservedReservedReservedMotor changeover feedback singal(1=On/0=Off):p0828=r2093.11Master sign-of-life bit 0(1=On/0=Off):p2045=r20503Master sign-of-life bit 1(1=On/0=Off):Master sign-of-life bit 2(1=On/0=Off):Master sign-of-life bit 3(1=On/0=Off):Override:p2646=r20504MDI Target position:p2642=r20605MDI Velocity:p2643=r20607MDI Acceleration(4000H100%):p2644=r20509MDI Deceleration(4000H100%):p2645=r205010Free Connected_ReceiveBI:EPOS search for reference reversing cam minusBI:EPOS search for reference reversing cam plus390390 SIEMENSSIEMENS telegramtelegram 390,390,PZD-2/2PZD-2/2TransmitTransmit（驱驱动动器器PLCPLC）SCOUTSCOUT变变量量名名称称SCOUTSCOUT变变量量注注释释PZD1CU_ZSW1CU_ZSW1_Bit0备用ReservedCU_ZSW1_Bit1备用ReservedCU_ZSW1_Bit2备用ReservedCU_ZSW1_Bit3故障存在Fault present(1=Yes/0=No)CU_ZSW1_Bit4备用ReservedCU_ZSW1_Bit5备用ReservedCU_ZSW1_Bit6备用ReservedCU_ZSW1_Bit7报警存在Alarm present(1=Yes/0=No)CU_ZSW1_Bit8系统时间同步System time synchronized(1=Yes/0=No)CU_ZSW1_Bit9组报警存在Group alarm present(1=No/0=Yes)CU_ZSW1_Bit10组故障存在Group fault present(1=No/0=Yes)CU_ZSW1_Bit11存在安全组消息safety group message present(1=No/0=Yes)CU_ZSW1_Bit12从站时钟同步bit 0Slave sign-of-life bit 0(1=Yes/0=No)CU_ZSW1_Bit13从站时钟同步bit 1Slave sign-of-life bit 1(1=Yes/0=No)CU_ZSW1_Bit14从站时钟同步bit 2Slave sign-of-life bit 2(1=Yes/0=No)CU_ZSW1_Bit15从站时钟同步bit 3Slave sign-of-life bit 3(1=Yes/0=No)PZD2 E_DIGITALE_DIGITAL_Bit0DI/DO 8(X122.9/X121.7)(X122.9/X121.7)(1=h High/0=Low)E_DIGITAL_Bit1DI/DO 9(X122.10/X121.8)(X122.10/X121.8)(1=h High/0=Low)E_DIGITAL_Bit2DI/DO 10(X122.12/X121.10)(X122.12/X121.10)(1=h High/0=Low)E_DIGITAL_Bit3DI/DO 11(X122.13/X121.11)(X122.13/X121.11)(1=h High/0=Low)E_DIGITAL_Bit4DI/DO 12(X132.9/X131.1)(X132.9/X131.1)(1=h High/0=Low)E_DIGITAL_Bit5DI/DO 13(X132.10/X131.2)(X132.10/X131.2)(1=h High/0=Low)E_DIGITAL_Bit6DI/DO 14(X132.12/X131.4)(X132.12/X131.4)(1=h High/0=Low)E_DIGITAL_Bit7DI/DO 15(X132.13/X131.5)(X132.13/X131.5)(1=h High/0=Low)E_DIGITAL_Bit8DI 0(X122.1/X121.1)(X122.1/X121.1)(1=h High/0=Low)E_DIGITAL_Bit9DI 1(X122.2/X121.2)(X122.2/X121.2)(1=h High/0=Low)E_DIGITAL_Bit10DI 2(X122.3/X121.3)(X122.3/X121.3)(1=h High/0=Low)E_DIGITAL_Bit11DI 3(X122.4/X121.4)(X122.4/X121.4)(1=h High/0=Low)E_DIGITAL_Bit12DI 4(X132.1/-)(X132.1/-)(1=h High/0=Low)E_DIGITAL_Bit13DI 5(X132.2/-)(X132.2/-)(1=h High/0=Low)E_DIGITAL_Bit14DI 6(X132.3/-)(X132.3/-)(1=h High/0=Low)E_DIGITAL_Bit15DI 7(X132.4/-)(X132.4/-)(1=h High/0=Low)390390 SIEMENSSIEMENS telegramtelegram 390,390,PZD-2/2PZD-2/2ReceiveReceive（PLCPLC驱驱动动器器）SCOUTSCOUT变变量量名名称称PZD1CU_STW1CU_STW1_Bit0中心的测量探头同步信号命令CU_STW1_Bit1CU_STW1_Bit2备用CU_STW1_Bit3备用CU_STW1_Bit4备用CU_STW1_Bit5备用CU_STW1_Bit6备用CU_STW1_Bit7故障确认CU_STW1_Bit8备用CU_STW1_Bit9备用CU_STW1_Bit10禁止自动控制确认CU_STW1_Bit11备用CU_STW1_Bit12主站时钟同步bit 0CU_STW1_Bit13主站时钟同步bit 1CU_STW1_Bit14主站时钟同步bit 2CU_STW1_Bit15主站时钟同步bit 3PZD2A_DIGITALA_DIGITAL_Bit0控制单元端子排信号DI/DO 8A_DIGITAL_Bit1控制单元端子排信号DI/DO 9A_DIGITAL_Bit2控制单元端子排信号DI/DO 10A_DIGITAL_Bit3控制单元端子排信号DI/DO 11A_DIGITAL_Bit4控制单元端子排信号DI/DO 12A_DIGITAL_Bit5控制单元端子排信号DI/DO 13A_DIGITAL_Bit6控制单元端子排信号DI/DO 14A_DIGITAL_Bit7控制单元端子排信号DI/DO 15A_DIGITAL_Bit8备用A_DIGITAL_Bit9备用A_DIGITAL_Bit10备用A_DIGITAL_Bit11备用A_DIGITAL_Bit12备用A_DIGITAL_Bit13备用A_DIGITAL_Bit14备用A_DIGITAL_Bit15备用SCOUTSCOUT变变量量注注释释Central measuring probe synchronizing signal signal source(1=On/0=Off)RTC real time synchronization PING(1=On/0=Off)ReservedReservedReservedReservedReserved1.Acknowledge fault(1=On/0=Off)ReservedReservedAcknowledgement automatically suppressed(1=On/0=Off)ReservedMaster sign-of-life bit 0(1=On/0=Off)Master sign-of-life bit 1(1=On/0=Off)Master sign-of-life bit 2(1=On/0=Off)390390 SIEMENSSIEMENS telegramtelegram 390,390,PZD-2/2PZD-2/2Master sign-of-life bit 3(1=On/0=Off)CU singal source for terminal DI/DO 8(1=On/0=Off)CU singal source for terminal DI/DO 9(1=On/0=Off)CU singal source for terminal DI/DO 10(1=On/0=Off)CU singal source for terminal DI/DO 11(1=On/0=Off)CU singal source for terminal DI/DO 12(1=On/0=Off)CU singal source for terminal DI/DO 13(1=On/0=Off)CU singal source for terminal DI/DO 14(1=On/0=Off)CU singal source for terminal DI/DO 15(1=On/0=Off)ReservedReservedReservedReservedReservedReservedReservedReserved370370 SIEMENSSIEMENS telegramtelegram 370,370,PZD-1/1PZD-1/1TransmitTransmit（驱驱动动器器PLCPLC）SCOUTSCOUT变变量量名名称称PZD1 E_ZSW1E_ZSW_BIT0Ready for switch on(1=Yes/0=No):r2089.0E_ZSW_BIT1Ready for operation(1=Yes/0=No)E_ZSW_BIT2Operation enabled(1=Yes/0=No)E_ZSW_BIT3Fault present(1=Yes/0=No)E_ZSW_BIT4No OFF2 effective(1=OFF2 inactive/0=OFF2 active)E_ZSW_BIT5ReservedE_ZSW_BIT6Switch on inhibite(1=Yes/0=No)E_ZSW_BIT7Alarm present(1=Yes/0=No)E_ZSW_BIT8ReservedE_ZSW_BIT9control requests(1=Yes/0=No)E_ZSW_BIT10ReservedE_ZSW_BIT11Pre-charging complete(1=Yes/0=No)E_ZSW_BIT12Line contactor closed(1=Yes/0=No)E_ZSW_BIT13ReservedE_ZSW_BIT14ReservedE_ZSW_BIT15Reserved370370 SIEMENSSIEMENS telegramtelegram 370,370,PZD-1/1PZD-1/1ReceiveReceive（PLCPLC驱驱动动器器）SCOUTSCOUT变变量量名名称称PZD1 E_STW1E_STW_BIT0ON/OFF(OFF1)(1=On/0=Off):p08400=r2090.0E_STW_BIT1No coast-down/coast-down(OFF2)signal source 1(1=On/0=Off):p08440=r2090.1E_STW_BIT2ReservedE_STW_BIT3Enable operation/Inhibit operation(1=On/0=Off):p08520=r2090.3E_STW_BIT4ReservedE_STW_BIT5ReservedE_STW_BIT6Infeed inhibit Generator Mode(1=On/0=Off):p3533E_STW_BIT71.Acknowledge fault(1=On/0=Off):p21030E_STW_BIT8Rese
