MATLAB上机测验题
（考试时间：2:20----4:20）
姓名 学号
考试要求：
1、要求独立完成不得与他人共享，答卷雷同将做不及格处理。
2、答卷用Word文件递交，文件名为学号+姓名.doc，试卷写上姓名及学号。
3、答卷内容包括：
（1） 程序；
（2） 运行结果及其分析；
（3） 图也要粘贴在文档中。
上机考题：
一、系统传递函数为，按照以下要求求解：
1） 求其极零点图，判断系统的稳定性，画出系统的频谱特性；
2） 当系统输入信号为：，时，画出系统的输出。
(1) 代码如下：
clc
clear
b=[1 1 0];
a=[1,-1,0.81];
sys=tf(b,a,-1);
figure
pzmap(sys);
saveas(gcf,'p1_1','bmp');
figure
w=0:0.1:20;
freqz(b,a,w);
saveas(gcf,'p1_2','bmp');
%第二问开始
figure;
n=0:50;
x=5+cos(0.2*pi*n)+2*sin(0.7*pi*n);
lsim(sys,x)
saveas(gcf,'p1_3','bmp');
运行结果如下：

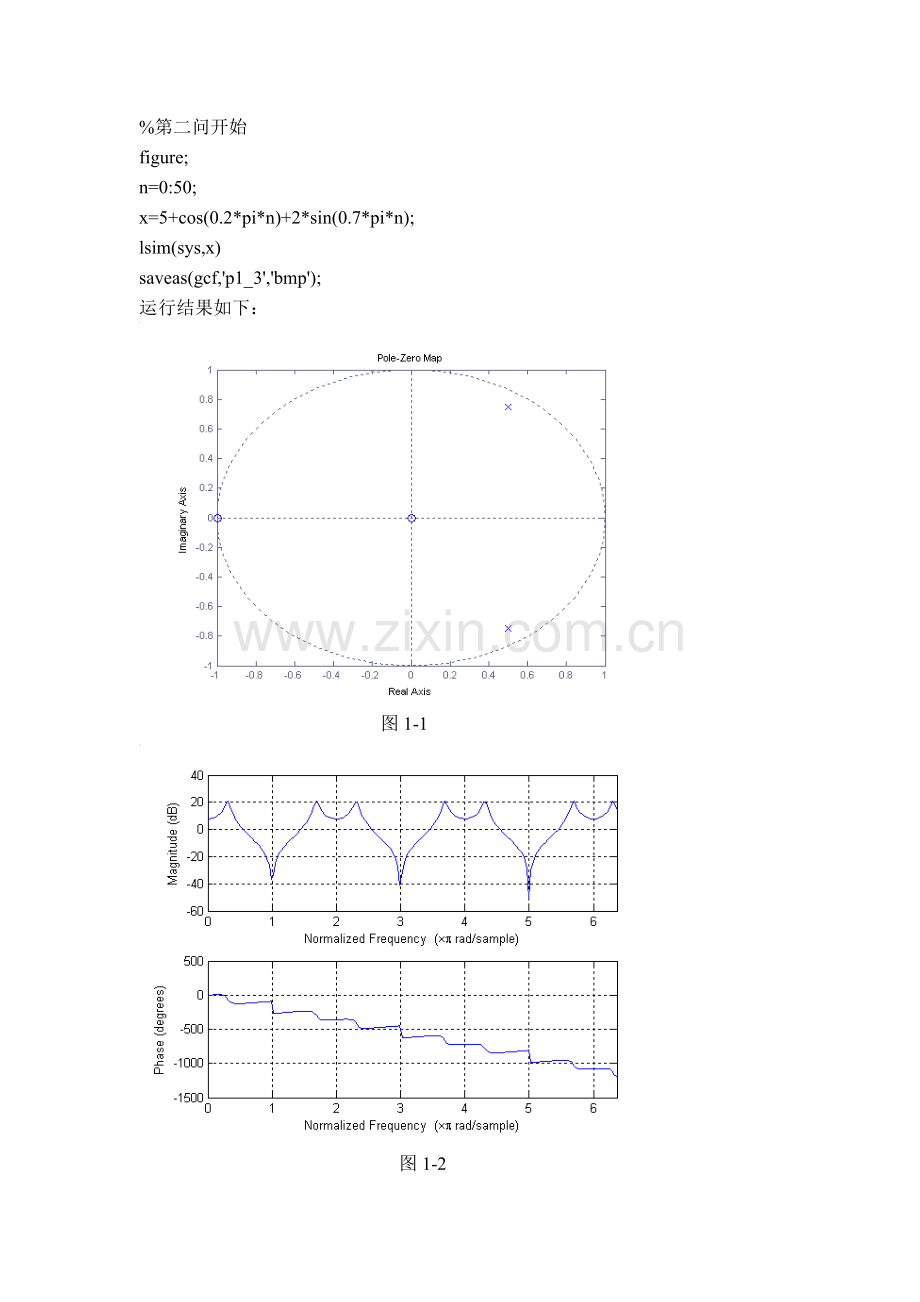

图1-1
图1-2
系统极零图如图1-1所示，通过该离散系统的极零图可以看出，极点全部都在单位圆内，所以系统是稳定的。
系统的频谱特性曲线如图1-2所示
（2）运行结果如下图所示
图1-3
图1-3为系统在x(n)激励下的输出，其中灰色部分为输入信号，蓝色为输出信号。
二、系统传递函数为，
1) 画出系统的零极点图，判断稳定性；
2) 给定频率范围为[0,10]，步长为0.1，画出其频率响应；
3) 画出系统的单位脉冲响应。
（1）代码如下：
clc
clear
b=[1 11 30 0];
a=[1 9 45 97 50];
sys=tf(b,a);
figure
pzmap(sys);
saveas(gcf,'p2_1','bmp');
%第二问
figure
w=0:0.1:10;
freqs(b,a,w);
saveas(gcf,'p2_2','bmp');
%第三问
figure
impulse(sys);
saveas(gcf,'p2_3','bmp');
运行结果如下：
图2-1
极零图如上图所示，该连续系统的极点均在左半平面，所以系统稳定。
（2）系统的频率响应如下图所示：
图2-2
(3) 该系统的单位脉冲响应如下图所示：
图2-3
三、系统传递函数为，初始状态为，激励信号为，求系统的零输入、零状态和全响应。
由题目条件可以得到方程组：
q’’(0)+3q’(0)+2q(0)=0;
q’(0)+3q(0)=1;
q’’(0)+3q’(0)=2;
求得x0=[q’(0) q(0)]=[4 -1]
代码如下：
clc
clear
A=[1 3 2;0 1 3;1 1 0];
B=[0;1;2];
X=inv(A)*B; %求解方程组
x0=[X(2),X(3)];
figure
b=[1 3];
a=[1 3 2];
sys=tf(b,a);
[A B C D]=tf2ss(b,a);
sys=ss(A,B,C,D);
t=0:0.1:10;
z=zeros(size(t));
e=exp(-2*t).*(e(t)-e(t-6));
subplot(3,1,1);
lsim(sys,z,t,x0)
title('零输入响应')
subplot(3,1,2);
lsim(sys,e,t)
title('零状态响应')
subplot(3,1,3);
lsim(sys,e,t,x0);
title('全响应')
saveas(gcf,'p3_1','bmp');
运行结果如下：
图3-1
四、信号，以进行采样，N分别为(1)N＝70、(2)N＝200，给出两种条件下信号x(t)的频谱图(用FFT命令)，并分析差异以及产生差异的原因。
代码如下：
clc
clear
N=70; %第二次改为N=200
n=0:N-1;
t=0.01*n;
F=zeros(1,1000)
x=2*sin(4*pi*t)+5*cos(8*pi*t);
F(1:N)=x;
for i=1:N
w(i)=(i-1)*0.2*pi;
end
figure;
G=fft(F,N)/100;%取样间隔0.01s
subplot(2,1,1);
plot(abs(G),'r');xlabel('w');ylabel('G');
title(['N=',num2str(N)])
subplot(2,1,2);
plot(angle(G));xlabel('w');ylabel('Phi');
saveas(gcf,'p4_1','bmp'); %第二次改为p4_2
运行结果如下：
图4-1
图4-2
N=70和N=200相比较，N=200的频谱图像在频率边缘非常“陡”，产生了截断效应，原因是N=200时，原函数是周期函数。
