橡塑合金 产品说明书
RUBBER-PLASTIC ALLOYS (NBR/PVC Blends)
Production manual

本公司的“橡塑合金”是丁腈橡胶（NBR）与聚氯乙烯（PVC）的熔融共混胶。由于丁腈橡胶与聚氯乙烯有很好的相容性，两种材料可以用任何比例进行共混。
The company's "Rubber-Plastic Alloy" is a NBR and PVC melting blends. Because the good compatibility of NBR and PVC, two materials can be blended with any proportion.
● “橡塑合金”为非污染型浅黄色胶片.牌号、技术参数、重要特性和特殊用途见下表
“Rubber-Plastic Alloys”, non polluting light yellow films. Thier trademark, technical parameters, main characteristics and special usage are in the table below:
牌号
NBR的丙烯 腈含 量
%
共混比
(NBR/PVC)
典 型
门尼粘度
ML(1+4)100℃

特 性

特殊用途
耐臭氧耐候性
耐油耐溶剂性
抗燃油透过性
耐磨抗撕强度
阻燃性
耐寒性
挤出压延工艺
NV7218
18
70/30
60
B~
C
B~
C
D
B~
C
A
A
A~
B
耐寒优，适宜生产胶辊、安全靴、胶管
NV5070
28
70/30
55
B~
A
B
B~
C
B
A
A~
B
A
耐寒优良，挤出压延性能优
NV5075
33
70/30
55
A
A~
B
A~
B
A~
B
A
B
A
与金属及织物
粘合性佳，挤出压延性优
NV5495
33
70/30
65
A
A~
B
A~
B
A~
B
A
B
A
工艺性能优。可与国外相称品牌匹比
NV7050
33
70/30
45
A
A~
B
A~
B
A~
B
A
B
A
制品表面光洁度高，工艺性能佳
NV6420
33
60/40
65
A
A~
B
A~
B
A
A
B~
C
A
耐磨、屈挠性优异，宜生产胶辊、输送带
NV5093
40
70/30
75
A
A
A
A
A
D
A
耐臭氧及屈挠
性能优，适宜生产纺织器材

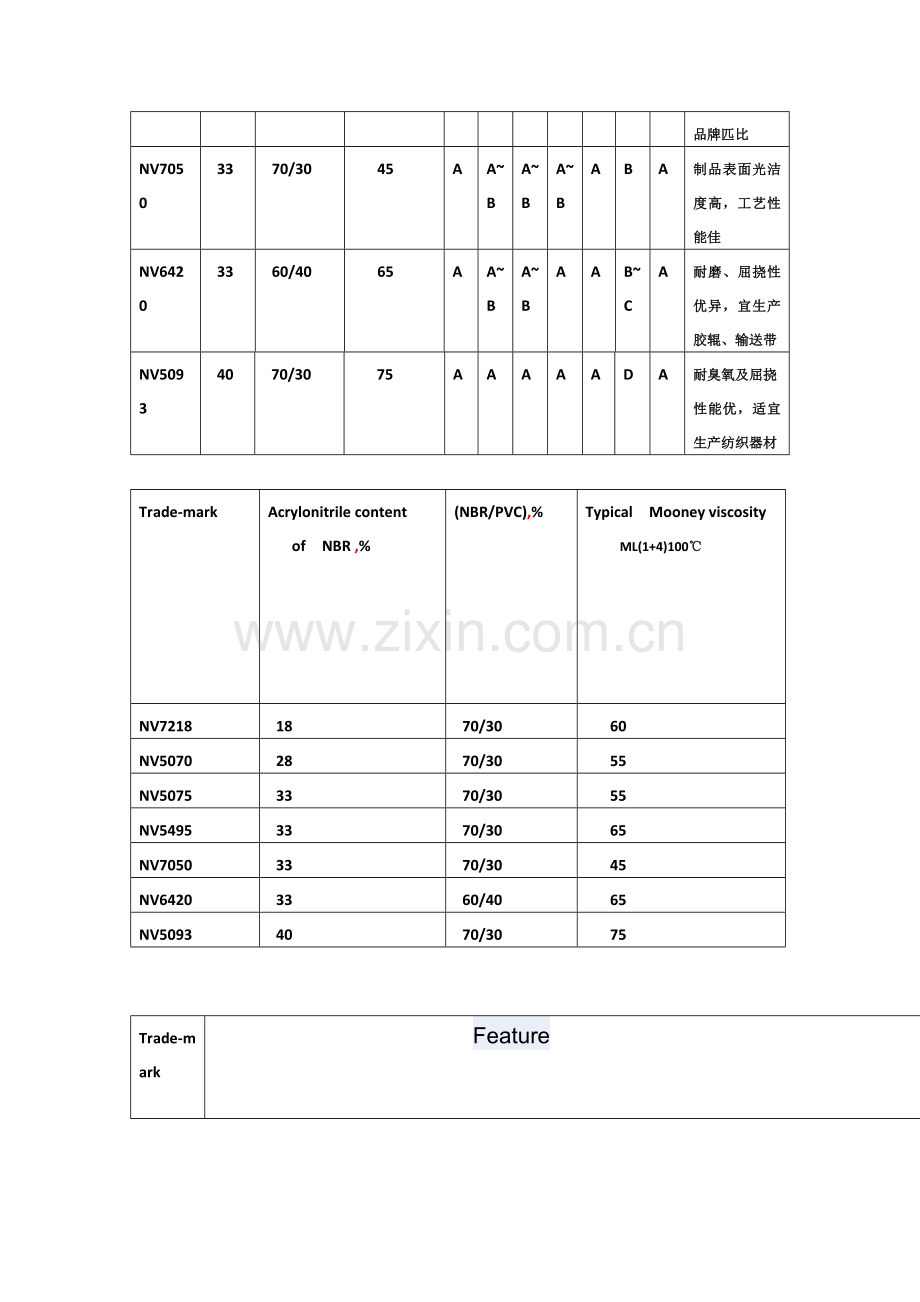

Trade-mark
Acrylonitrile content
of NBR ,%
(NBR/PVC),%
Typical Mooney viscosity
ML(1+4)100℃

NV7218
18
70/30
60
NV5070
28
70/30
55
NV5075
33
70/30
55
NV5495
33
70/30
65
NV7050
33
70/30
45
NV6420
33
60/40
65
NV5093
40
70/30
75

Trade-mark
Feature

特殊用途

Ozone and
weather
resistance

Oil
and
solvent
resitance
Anti-fuel permeability
Wear and tear strength
Fuel re-
tardance
Cold re-
sistance
Extruding
and calen-
dering
Special
Usage
NV7218
B~C
B~C
D
B~C
A
A
A~B
Excellent cold resistanse, suitable for production of rubber rollers, safety boots, rubber hose
NV5070
B~A
B
B~C
B
A
A~B
A
Excellent cold re resistance, excellent extruding and calendering performance
NV5075
A
A~B
A~B
A~B
A
B
A
good adhesion with metals
and fablics, excellent extruding
and calendaring
performace

NV5495
A
A~B
A~B
A~B
A
B
A
Excellent processing property. Can be compared with foreign brands rather
NV7050
A
A~B
A~B
A~B
A
B
A
Glossy surface on
Products,
good processing property
NV6420
A
A~B
A~B
A
A
B~C
A
Excellent wear and flex
resistance, f should produce rubber roller, conveyor belt
NV5093
A
A
A
A
A
D
A
Excellent flex
And ozone resistance, suitable for production of textile equipment

● 橡塑合金的特点
● Characteristics of NBR/PVC Blend：
与丁腈橡胶相比，橡塑合金有如下优点：
Compared with the nitrile rubber, NBR/PVC Blend has the following advantages：
★ 耐臭氧性和耐候性（耐臭氧龟裂性和耐阳光龟裂性）显著提高。
★ Ozone resistance and weather ability（Resistance to ozone cracking and Sunshine cracking resistance）Significantly increased
在标准臭氧老化实验条件下（臭氧浓度50pphm、拉伸20%、温度40℃）实验72小时，橡塑合金不龟裂(化学工业合成材料老化质量监督检查中心和上海市橡胶制品研究所检查报告)，而丁腈橡胶则严重龟裂（见照片）。在更苛刻的条件下（臭氧浓度370～520pphm、
拉伸40%、温度40℃）实验96小时，橡塑合金也不龟裂(沈阳橡胶四厂研究所检测报告)l
50pphm×20%×40℃×70h
臭氧老化实验后试样表面状况
← 丁腈橡胶（丙烯腈含量33%）
Nitrile Rubber (Acrylonitrile content 33%)
←橡塑合金（共混比70/30、
丙烯腈含量33%） NBR/PVC Blend (blend ratio 70 /30,
Acrylonitrile content 33%)

After 72 hours testing under a standard ozone aging conditions (Ozone concentration50pphm, extend 20%,tempreture 40℃), NBR/PVC Blend does not cracks , but the NBR is severely cracking(seeing the photo). Under more severe conditions, (Ozone 370-520pphm X 40%, X 40℃) After 96 hours testing, NBR/PVC Blend is still not cracking.

★ 耐油、耐溶剂和耐化学药品性能提高。
★ Oil, solvent and chemical resistance increase
橡塑合金与丁腈橡胶的耐油性均随丙烯腈含量的增长而提高，在丙烯腈含量同等的情况下，橡塑合金明显优于丁腈橡胶。增长PVC的比例，橡塑合金的耐油性提高。
Oil resistance of NBR/PVC Blend and nitrile rubber with acrylonitrile contents were increased with the increase, Acrylonitrile content in the same case, NBR/PVC Blend is superior to NBR. Increase the proportion of PVC, the blend increased oil resistance.

图中英文更改→

左in No.3 Oil ，volum e change ，NBR，NBR/PVC右in No.2 OilI ，volume change

英文更改：
左in fuel B 右in fuel B
左 Tensile strengthn retention 右volume change
左 NBR/PVC Blend 右 Blend ratio

★ 燃油透过率明显减少，并且丙烯腈含量越高。
★ Permeability of fuel decrease obviously, and the higher the acrylonitrile content, the lower the permeability

英文更改
左 in fuel C 右 in fuel M 15
左，右 volume change
左，右 NBR NBR/PVC blend（70/30）
【Note A】 【注A】

1.标准实验油（standard test oils）
① 2号油—苯胺点93±3℃；
① No.2 Oil— Aniline Point 93±3℃；
② 3号油— 苯胺点70±1℃；
② No.3 Oil — Aniline Point 70±1℃；
2.实验用燃油（以下组成均为体积比）
2. Test fuels（the following component
are volume ratio）
①燃油B— 甲 /异辛烷（30/70）, 模拟普通汽油（无添加剂）
①Fuel oil B—Toluene / isooctane(30/70), Simulation of reg ular gasoline(no-additive)

② 燃油C— 甲苯/异辛烷（50/50）模拟高芳烃含量汽油；
②Fuel C- toluene/isooctane(50/50) , Simulation of high aromatic content of gasoline
③ 燃油E-10—燃油B/乙醇（90/10），
模拟中、美使用的乙醇汽油；
③ Fuel E-10—Fuel B/ethanol(90/10),
Simulation china and the U.S. use of
The ethanol gasoline.
④ 燃油M-15—燃油C/甲醇（85/15）,
模拟欧洲使用的甲醇汽油；
④Fuel M-15—fuelC/ Methanol(85/15),Simulation methanol fuel used in Europe;
⑤ 燃油M-85—燃油C/甲醇（15/85），
模拟欧洲特种车辆使用的燃油。

⑤FuelM-85---fuelC/ Methanol(15/85),Simulation special vehicles fuel used in Europe
以上各图的英文修改：

透过率--Permeability
燃油C透过率— Permeability of fuel C
燃油透过率—Permeability of fuels
Fuel B, Fuel C,fuel E-10,fuel M15,Fuel M85

★ 耐磨性和撕裂强度提高。
★ Abrasion resistance and tear strength increased

以下图的英文修改：
左- 耐磨性Abrasion resistance 右- 撕裂强度tear strength
左- 阿克隆磨耗Akron abration 右- 同上
左-丙烯腈含量- Acrylonitrile content 右-共混比blend ratio
丁腈橡胶- NBR 橡塑合金-NBR/PVC Blend

★ 阻燃性提高。氧指数是衡量高聚物是否易燃的一项重要指标：氧指数越小，则越容易燃烧。氧指数＜21的材料，一般在空气中很容易燃烧。如下图可见，丁腈橡胶属易燃材料。由于聚氯乙烯树脂的含氯量达56%左右，氧指数＞40，属自熄性材料。丁腈橡胶与聚氯乙烯共混的“橡塑合金”，氧指数比丁腈橡胶高，使阻燃性提高
★ improve flame retardance. Oxygen index is a measure of whether the combustible polymer is an important indicator: the smaller the oxygen index, the more easy to burn. Oxygen index <21 of material, usually in the air is easy to burn. Following chart shows, nitrile rubber is flammable materials. As the PVC resin reached about 56% chlorine, oxygen index> 40, is self-extinguishing material. Oxygen index of NBR/PVC Blend higher than the nitrile rubber to improve the flame retardancy

上图英文：阻燃性（生胶）Flame retardance ( raw rubber),氧指数 Oxygen index

★ 加工性能改善。与丁腈橡胶相比，挤出速度加快、挤出口型膨胀减少、表面光洁。
对压延和模压制品的加工和外观质量都有改善。

★ processing property improvement. Compared with the NBR, faster extrusion, die swell reduction, smooth surface.processing and appearance of calendered and molded products has improved.

上图的英文： 挤出速度extrusion speed 挤出膨胀率 die swell
●● 橡塑合金的局限性：压缩永久变形及耐寒性比丙烯腈含量相同的丁腈橡胶要差。但是，通过合理选择牌号、并用以及配方调整，可以填补局限性、改善性能。

上图英文：压缩永久变形 compression set 耐寒性 cold resistance
脆性温度 brittleness temperature
【说明】 以上橡塑合金与丁腈橡胶性能对比图例是供客户选用作参考。使用不同的助剂、配方以及工艺条件，会获得不同的性能数据。

【Description】 above rubber alloy compared with the NBR is for customers to use the legend for reference. Using different additives, formulation and process conditions, will be different performance data.
● 橡塑合金的重要应用
●● 胶管 — 燃油胶管、液压胶管的内、外层胶，消防胶管；
●● 电线、电缆 — 耐油电缆护套、矿用电缆护套、阻燃电缆护套、船用电缆护套；；
●● 纺织配件 — 纺织皮圈、纺织皮辊；
●● 胶辊 — 印刷胶辊（墨辊、酒精润版辊、UV油墨辊）、橡塑并用胶辊；
●● 输送带 — 阻燃输送带、耐油输送带；
●● 密封件 — 密封垫圈、高硬度防尘圈、防尘罩、密封条；
●● 胶板 — 耐油胶板、阻燃地板；
●● 胶布 — 软体贮油制品（油箱、油囊、油罐）；
●● 鞋底 — 安全鞋、远动鞋。
●● 其他耐油工业配件
● The main application of NBR/PVC Blend:
    ●●Hose - Outer and inner ruuer of fuel hose and hydraulic hose, fire hose;
    ●●Wires, cables - Oil resistant cable jacket, mine cable sheath, flame retardant cable jacket, marine cable sheath;
    ●● Textile Accessories - Textile apron, textile roller;
    ●● Roller - printing rubber roller (roller, alcohol dampening rollers, UV ink roller), industrial rubber rollers
    ●● Conveyor – Flame retardant and oil resistant conveyor belt;
    ●● seals - sealing gaskets, high hardness dust ring, automobile dust cover

    ●●Rubber sheet - oil resistant rubbersheet, flame retardant floor;
    ●●Rubber coated fabric- oil storage products (fuel tank, oil bag, tank);
    ●● shoes - safety shoes, sports shoes
   ●● Other oil resistant industry parts
● 配方举例
● Formulation example
【说明】以下举例系初始配方，仅供参考。客户需根据产品的技术规定、使用的橡胶原材料、生产设备、工艺条件以及成本的具体情况设计合理的生产配方。
1. 胶管
（1）燃油胶管内层胶
橡塑合金（NV5495）100、氧化锌 5、硬脂酸 2、防老剂RD 1、防老剂4010NA 1、
N550炭黑 20、N770炭黑60、增塑剂DOP 20,、增塑剂TCP 20、古马隆树脂 8、
促进剂CZ 1.5、 促进剂TMTD 0.5、硫黄 0.5，合计239.5
