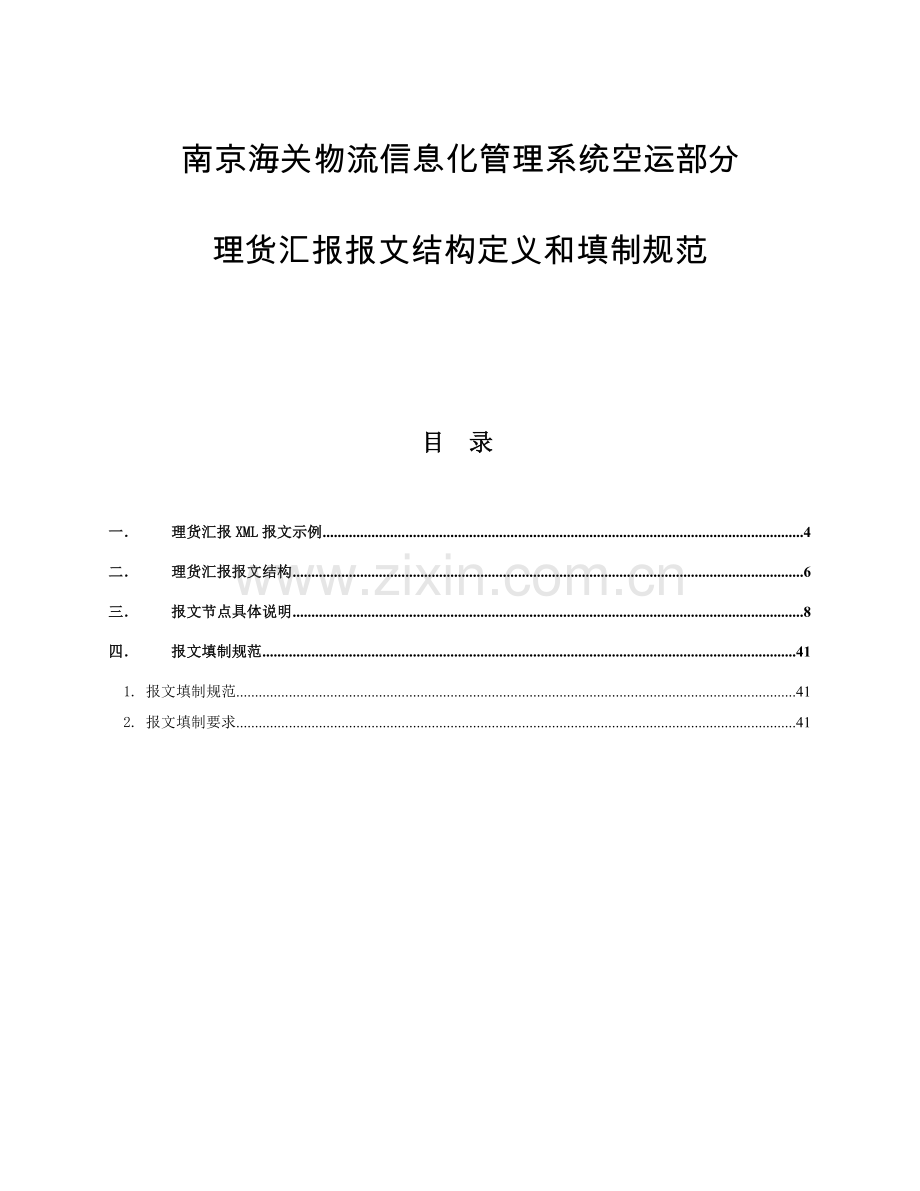

南京海关物流信息化综合管理系统空运部分理货报告报文结构定义和填制综合规范.doc

资源描述

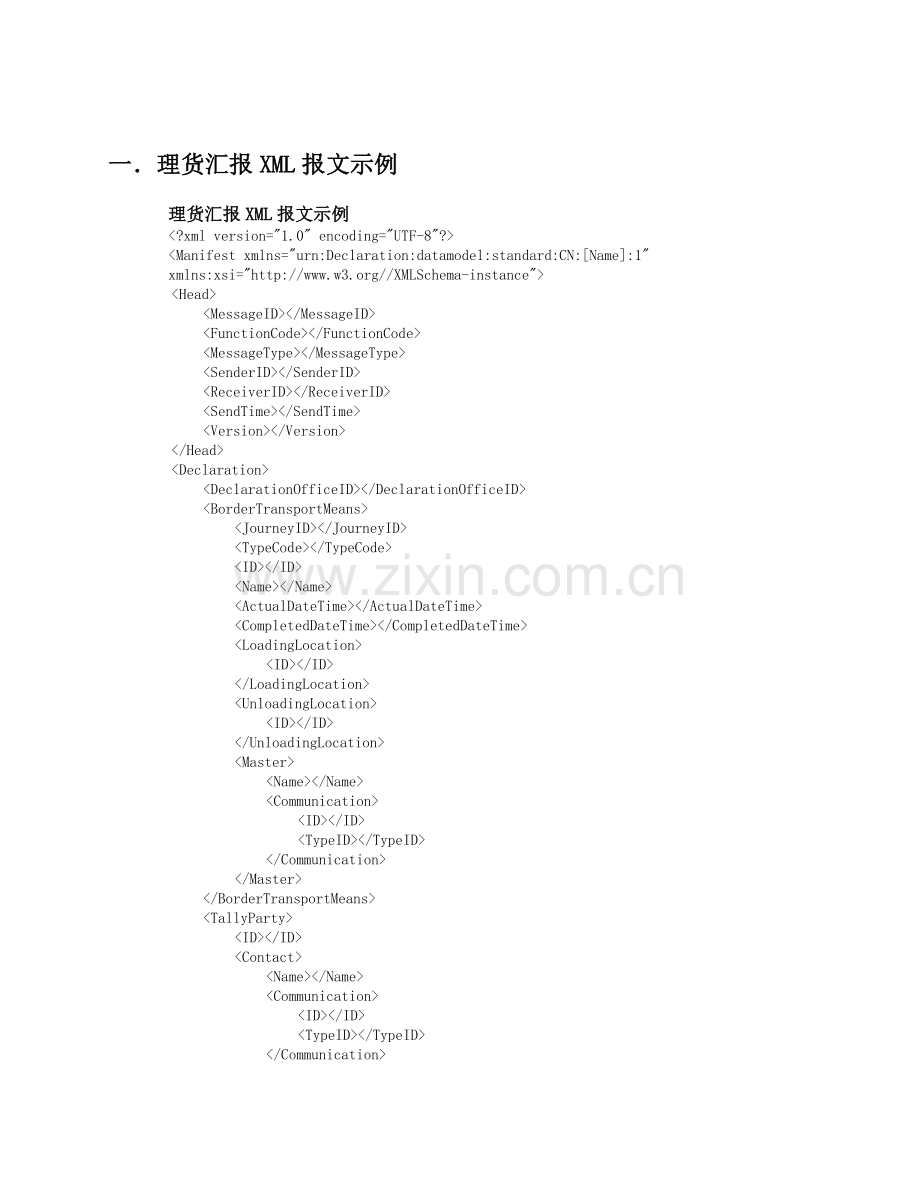

南京海关物流信息化管理系统空运部分理货汇报报文结构定义和填制规范目录一．理货汇报XML报文示例 4 二．理货汇报报文结构 6 三．报文节点具体说明 8 四．报文填制规范 41 1. 报文填制规范 41 2. 报文填制要求 41 一．理货汇报XML报文示例理货汇报XML报文示例 <?xml version="1.0" encoding="UTF-8"?> <Manifest xmlns="urn:Declaration:datamodel:standard:CN:[Name]:1" xmlns:xsi="http://www.w3.org//XMLSchema-instance"> <Head> <MessageID></MessageID> <FunctionCode></FunctionCode> <MessageType></MessageType> <SenderID></SenderID> <ReceiverID></ReceiverID> <SendTime></SendTime> <Version></Version> </Head> <Declaration> <DeclarationOfficeID></DeclarationOfficeID> <BorderTransportMeans> <JourneyID></JourneyID> <TypeCode></TypeCode> <ID></ID> <Name></Name> <ActualDateTime></ActualDateTime> <CompletedDateTime></CompletedDateTime> <LoadingLocation> <ID></ID> </LoadingLocation> <UnloadingLocation> <ID></ID> </UnloadingLocation> <Master> <Name></Name> <Communication> <ID></ID> <TypeID></TypeID> </Communication> </Master> </BorderTransportMeans> <TallyParty> <ID></ID> <Contact> <Name></Name> <Communication> <ID></ID> <TypeID></TypeID> </Communication> </Contact> </TallyParty> <Consignment> <TransportContractDocument> <ID></ID> </TransportContractDocument> <AssociatedTransportDocument> <ID></ID> </AssociatedTransportDocument> <ConsignmentPackaging> <QuantityQuantity></QuantityQuantity> <TypeCode></TypeCode> </ConsignmentPackaging> <TotalGrossMassMeasure></TotalGrossMassMeasure> <StoreInformation> <LibInfo></ LibInfo> </StoreInformation> <GrossVolumeMeasure></GrossVolumeMeasure> </Consignment> <AdditionalInformation> <LineFlag></LineFlag> <NativeVoyageNo></NativeVoyageNo> <NativeTrafMode></NativeTrafMode> <NativeBillNo></NativeBillNo> <Content></ Content> </AdditionalInformation> </Declaration> </Manifest> 二．理货汇报报文结构理货汇报报文结构定义循环次数节点名称 1 Manifest 1 |______ Head报文头 1 | |______ MessageID报文编号 1 | |______ FunctionCode报文功效代码 1 | |______ MessageType报文类型代码 1 | |______ SenderID发送方代码 1 | |______ ReceiverID接收方代码 1 | |______ SendTime发送时间 1 | |______ Version报文版本 1 |______ Declaration报文体 1 | |______ DeclarationOfficeID申报地海关代码 0-1 | |______ BorderTransportMeans运输工具信息 1 | | |______ JourneyID航次航班编号 1 | | |______ TypeCode运输方法代码 0-1 | | |______ ID运输工具代码 0-1 | | |______ Name运输工具名称 1 | | |______ ActualDateTime装卸开始时间 1 | | |______ CompletedDateTime装卸结束时间 1 | | |______ LoadingLocation装货地信息 1 | | | |______ ID装货地代码 1 | | |______ UnloadingLocation卸货地信息 1 | | | |______ ID卸货地代码 0-1 | | |______ Master船长/大副信息 1 | | | |______ Name船长/大副名称 0-3 | | | |______ Communication船长/大副联络方法 1 | | | | |______ ID通讯方法号码 1 | | | | |______ TypeID通讯方法类别代码 1 | |______ TallyParty理货部门信息 1 | | |______ ID理货部门代码 0-1 | | |______ Contact理货责任人信息 1 | | | |______ Name理货责任人名称 0-3 | | | |______ Communication理货责任人联络方法 1 | | | | |______ ID通讯方法号码 1 | | | | |______ TypeID通讯方法类别代 1-9999 | |______ Consignment提运单信息 0-1 | | |______ NativeBillNo境内运单号 1 | | |______ TransportContractDocument运输协议信息 1 | | | |______ ID总提运单号 0-1 | | |______ AssociatedTransportDocument运输协议附加信息 1 | | | |______ ID分提运单号 1 | | |______ ConsignmentPackaging提运单包装信息 1 | | | |______ QuantityQuantity托运货物件数 0-1 | | | |______ TypeCode包装种类代码 1 | | |______ TotalGrossMassMeasure货物总毛重 0-99 | | |______ StoreInformation库位信息 1 | | | |______ LibInfo库位信息 0-1 | | |______ GrossVolumeMeasure货物体积 0-1 | |______ AdditionalInformation补充信息 1 | | |______ LineFlag 航线标识 0-1 | | |______ NativeVoyageNo境内航次航班编号 0-1 | | |______ NativeTrafMode境内运输方法 1 | | |______ Content备注序号中国海关数据元名称 WCO DATA MODEL或UNTDED编号填制条件 1 航次航班编号 149 Conveyance reference number 必填如航线标识是支线，为空 2 运输方法代码 183 Mode/type of means of transport crossing the border, coded 必填如航线标识是支线，为空 3 运输工具代码 167 Identification of means of transport crossing the border, coded 选填如航线标识是支线，为空 4 运输工具名称 160 Identification of means of transport crossing the border 选填如航线标识是支线，为空 5 装卸开始时间 UNTDED 2380 Date/time/period 必填 6 装卸结束时间 UNTDED 2380 Date/time/period 必填 7 申报地海关代码 065 Customs office of declaration, coded 必填 8 理货部门代码 238 Party ID identification 必填 9 理货责任人名称 246 Department or employee contact name 选填 10 理货责任人联络号码 240 Communication number 选填 11 通讯方法类别代码 253 Communication number Type 选填 12 船长/大副名称 246 Department or employee contact name 选填 13 船长/大副联络号码 240 Communication number 选填 14 通讯方法类别代码 253 Communication number Type 选填 15 总提运单号 015 Transport document number 必填 16 分提运单号 189 Associated transport document number 条件 17 装货地代码 070 Place of loading, coded 条件 18 卸货地代码 080 Place of discharge, coded 条件 19 包装种类代码 141 Type of packages identification 选填 20 托运货物件数 146 Total number of packages 必填 21 货物总毛重 131 Total gross weight 必填 22 货物体积 134 Cube 选填 23 库位信息 Store Information of Gross，length:20bytes 条件 24 备注 105 Free text 选填 25 航线标识 LineFlag include international flight and native flight length:1bytes 必填 26 境内运单号 Native BillNo. length:32bytes 条件 27 境内航次航班编号 Native VoyageNo. length:32bytes 条件支线必填写 28 境内运输方法 Native TrafMode, length:1bytes 条件支线必填写三．报文节点具体说明 element Manifest diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 type Manifest properties content complex children Head Declaration annotation documentation 理货汇报 complexType AdditionalInformation diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 children Content used by element Declaration/AdditionalInformation annotation documentation 补充信息 element AdditionalInformation/ LineFlag diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 航线标识 element AdditionalInformation/ TrafName diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 境内航次航班编号 element AdditionalInformation/ TrafDate diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 境内运输方法 element AdditionalInformation/ NativeBillNo diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 境内运单号 element AdditionalInformation/Content diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 105 Free text 备注 complexType AssociatedTransportDocument diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 children ID used by element Consignment/AssociatedTransportDocument annotation documentation 运输协议附加信息 element AssociatedTransportDocument/ID diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 189 Associated transport document number 分提运单号 complexType BorderTransportMeans diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 children JourneyID TypeCode ID Name ActualDateTime CompletedDateTime LoadingLocation UnloadingLocation Master used by element Declaration/BorderTransportMeans annotation documentation 运输工具信息 element BorderTransportMeans/JourneyID diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 149 Conveyance reference number 航次航班编号 element BorderTransportMeans/TypeCode diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 183 Mode/type of means of transport crossing the border code 运输方法代码 element BorderTransportMeans/ID diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 167 Identification of means of transport crossing the border code 运输工具代码 element BorderTransportMeans/Name diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 160 Identification of means of transport crossing the border 运输工具名称 element BorderTransportMeans/ActualDateTime diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation UNTDED 2380 Date/time/period 装卸开始时间格式为：YYYYMMDDhhmmZZZ element BorderTransportMeans/CompletedDateTime diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation UNTDED 2380 Date/time/period 装卸结束时间格式为：YYYYMMDDhhmmZZZ element BorderTransportMeans/LoadingLocation diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 type LoadingLocation properties isRef 0 content complex children ID annotation documentation 装货地信息 element BorderTransportMeans/UnloadingLocation diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 type UnloadingLocation properties isRef 0 content complex children ID annotation documentation 卸货地信息 element BorderTransportMeans/Master diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 type Captain properties isRef 0 content complex children Name Communication annotation documentation 船长/大副信息 complexType Captain diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 children Name Communication used by element BorderTransportMeans/Master annotation documentation 船长/大副信息 element Captain/Name diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 246 Department or employee contact name 船长/大副名称 element Captain/Communication diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 type Communication properties isRef 0 minOcc 1 maxOcc 3 content complex children ID TypeID annotation documentation 船长/大副联络方法 complexType Communication diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 children ID TypeID used by elements Contact/Communication Captain/Communication annotation documentation 通讯方法信息 element Communication/ID diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 240 Communication number 通讯方法号码 element Communication/TypeID diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 253 Communication number Type 通讯方法类别代码 complexType Consignment diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 children TransportContractDocument AssociatedTransportDocument ConsignmentPackaging TotalGrossMassMeasure GrossVolumeMeasure used by element Declaration/Consignment annotation documentation 提运单信息 element Consignment/TransportContractDocument diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 type TransportContractDocument properties isRef 0 content complex children ID annotation documentation 运输协议信息 element Consignment/AssociatedTransportDocument diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 type AssociatedTransportDocument properties isRef 0 content complex children ID annotation documentation 运输协议附加信息 element Consignment/ConsignmentPackaging diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 type ConsignmentPackaging properties isRef 0 content complex children QuantityQuantity TypeCode annotation documentation 提运单包装信息 element Consignment/TotalGrossMassMeasure diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 131 Total gross weight 货物总毛重 element Consignment/GrossVolumeMeasure diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 134 Cube 货物体积 element Consignment/StoreInformation diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 minOcc 1 maxOcc 99 annotation documentation 134 Cube 库位信息 complexType ConsignmentPackaging diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 children QuantityQuantity TypeCode used by element Consignment/ConsignmentPackaging annotation documentation 提运单包装信息 element ConsignmentPackaging/QuantityQuantity diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 146 Total number of packages 托运货物件数 element ConsignmentPackaging/TypeCode diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 141 Type of packages identification 包装种类代码 complexType Contact diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 children Name Communication used by element Party/Contact annotation documentation 理货责任人信息 element Contact/Name diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 properties isRef 0 annotation documentation 246 Department or employee contact name 理货责任人名称 element Contact/Communication diagram namespace urn:Declaration:datamodel:standard:CN:[Name]:1 type Communication properties isRef 0 minOcc 1 maxOcc 3 content complex children ID TypeID annotation documentation 理货责任人联络方法 complexType Declaration diagram namespace urn:Declaration:datamod
