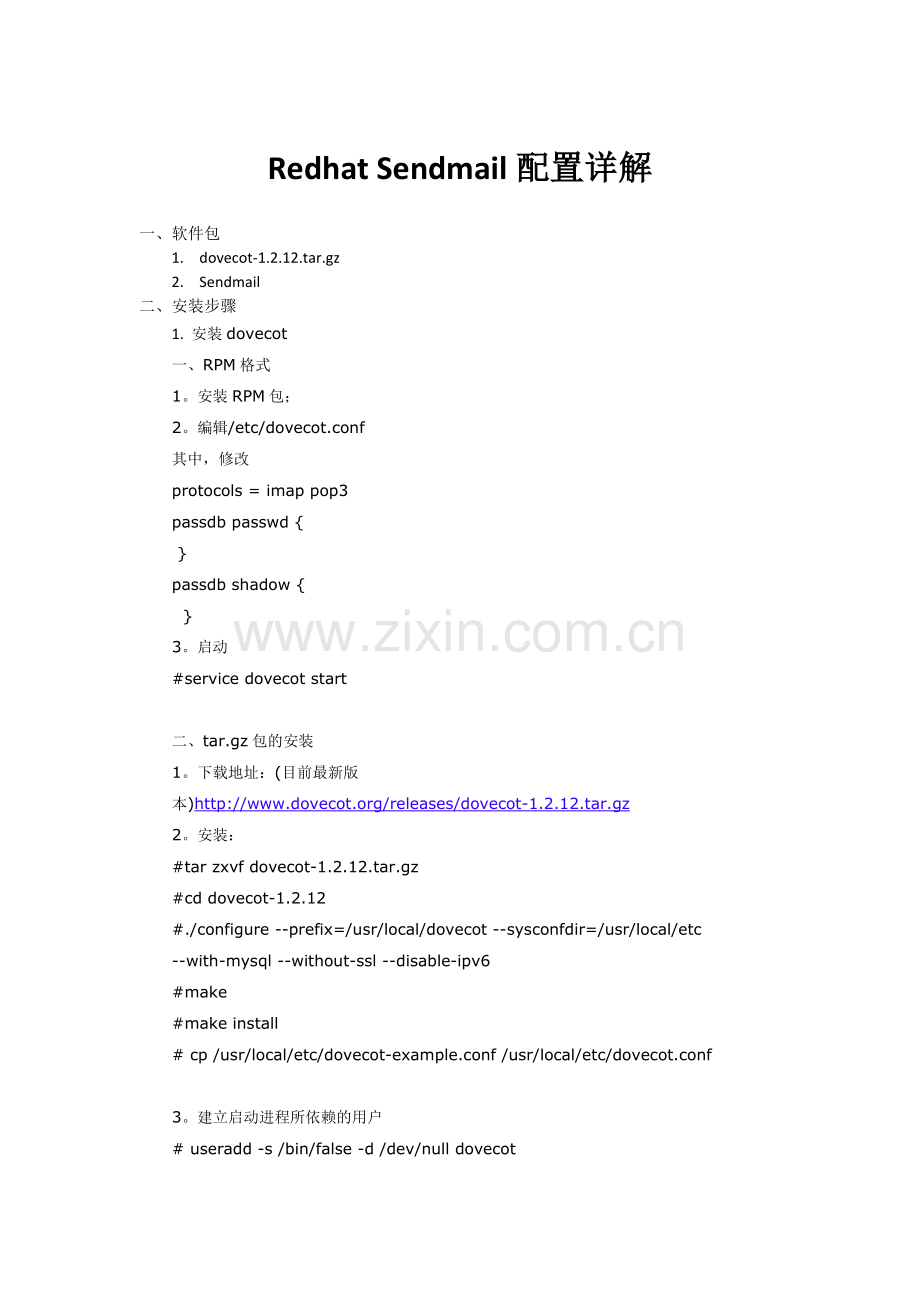

Redhat Sendmail配置详解
一、 软件包
1. dovecot-1.2.12.tar.gz
2. Sendmail
二、安装步骤
1. 安装dovecot
一、RPM格式
1。安装RPM包；
2。编辑/etc/dovecot.conf
其中，修改
protocols = imap pop3
passdb passwd {
 }
passdb shadow {
  }
3。启动
#service dovecot start

二、tar.gz包的安装
1。下载地址：(目前最新版本)http://www.dovecot.org/releases/dovecot-1.2.12.tar.gz
2。安装：
#tar zxvf dovecot-1.2.12.tar.gz
#cd dovecot-1.2.12
#./configure --prefix=/usr/local/dovecot --sysconfdir=/usr/local/etc --with-mysql --without-ssl --disable-ipv6
#make
#make install
# cp /usr/local/etc/dovecot-example.conf /usr/local/etc/dovecot.conf

3。建立启动进程所依赖的用户
# useradd -s /bin/false -d /dev/null dovecot

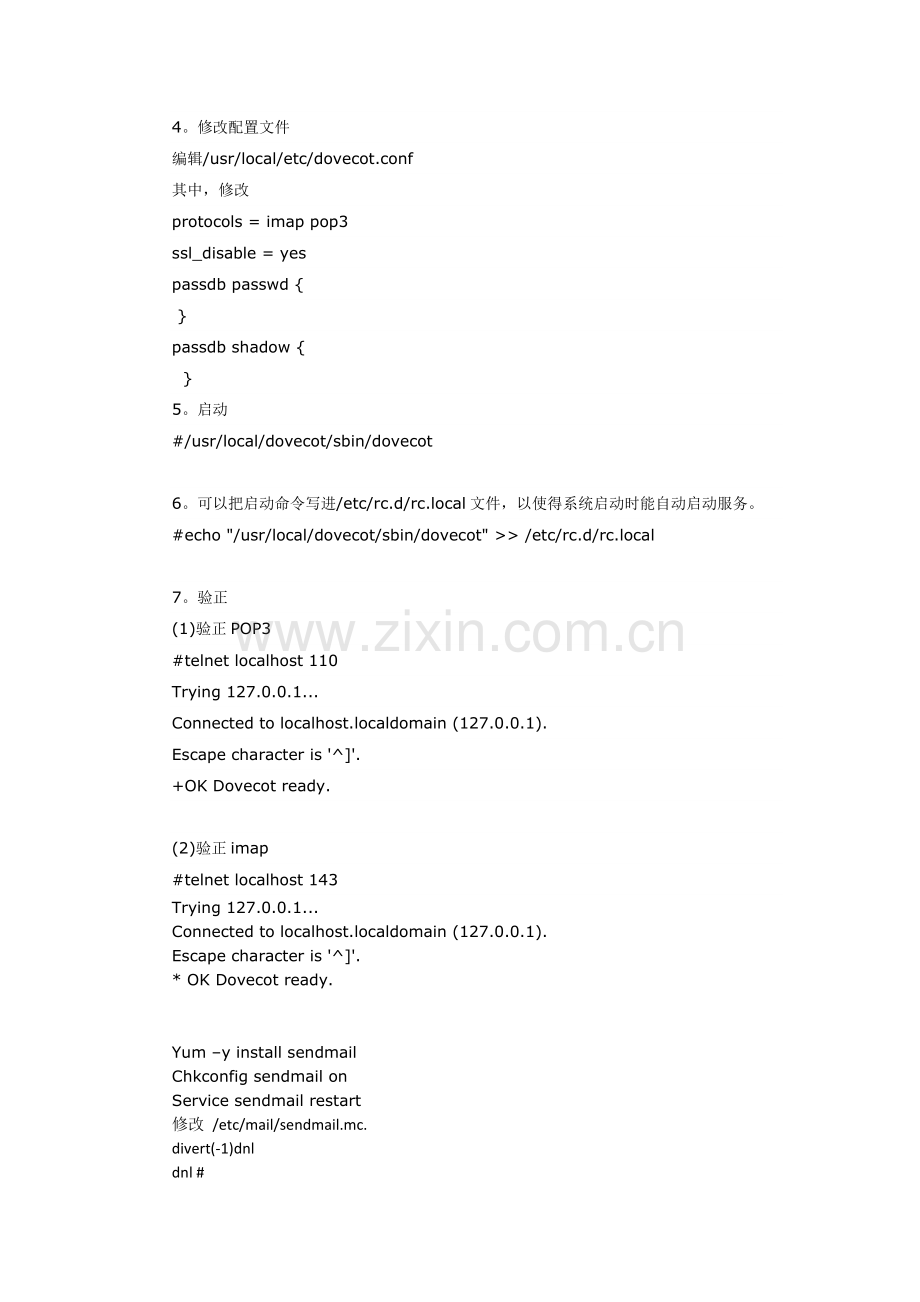

4。修改配置文件
编辑/usr/local/etc/dovecot.conf
其中，修改
protocols = imap pop3
ssl_disable = yes
passdb passwd {
 }
passdb shadow {
  }
5。启动
#/usr/local/dovecot/sbin/dovecot

6。可以把启动命令写进/etc/rc.d/rc.local文件，以使得系统启动时能自动启动服务。
#echo "/usr/local/dovecot/sbin/dovecot" >> /etc/rc.d/rc.local

7。验正
(1)验正POP3
#telnet localhost 110
Trying 127.0.0.1...
Connected to localhost.localdomain (127.0.0.1).
Escape character is '^]'.
+OK Dovecot ready.

(2)验正imap
#telnet localhost 143
Trying 127.0.0.1...
Connected to localhost.localdomain (127.0.0.1).
Escape character is '^]'.
* OK Dovecot ready.

Yum –y install sendmail
Chkconfig sendmail on
Service sendmail restart
修改 /etc/mail/sendmail.mc.
divert(-1)dnl
dnl #
dnl # This is the sendmail macro config file for m4. If you make changes to
dnl # /etc/mail/sendmail.mc, you will need to regenerate the
dnl # /etc/mail/sendmail.cf file by confirming that the sendmail-cf package is
dnl # installed and then performing a
dnl #
dnl #      make -C /etc/mail
dnl #
include(`/usr/share/sendmail-cf/m4/cf.m4')dnl
VERSIONID(`setup for Red Hat Linux')dnl
OSTYPE(`linux')dnl
dnl #
dnl # Uncomment and edit the following line if your outgoing mail needs to
dnl # be sent out through an external mail server:
dnl #
dnl define(`SMART_HOST',`smtp.your.provider')
dnl #
define(`confDEF_USER_ID',``8:12'')dnl
define(`confTRUSTED_USER', `smmsp')dnl
dnl define(`confAUTO_REBUILD')dnl
define(`confTO_CONNECT', `1m')dnl
define(`confTRY_NULL_MX_LIST',true)dnl
define(`confDONT_PROBE_INTERFACES',true)dnl
define(`PROCMAIL_MAILER_PATH',`/usr/bin/procmail')dnl
define(`ALIAS_FILE', `/etc/aliases')dnl
dnl define(`STATUS_FILE', `/etc/mail/statistics')dnl
define(`UUCP_MAILER_MAX', `2000000')dnl
define(`confUSERDB_SPEC', `/etc/mail/userdb.db')dnl
define(`confPRIVACY_FLAGS', `authwarnings,novrfy,noexpn,restrictqrun')dnl
define(`confAUTH_OPTIONS', `A')dnl
dnl #
dnl # The following allows relaying if the user authenticates, and disallows
dnl # plaintext authentication (PLAIN/LOGIN) on non-TLS links
dnl #
dnl define(`confAUTH_OPTIONS', `A p')dnl
dnl #
dnl # PLAIN is the preferred plaintext authentication method and used by
dnl # Mozilla Mail and Evolution, though Outlook Express and other MUAs do
dnl # use LOGIN. Other mechanisms should be used if the connection is not
dnl # guaranteed secure.
dnl #
TRUST_AUTH_MECH(`EXTERNAL DIGEST-MD5 CRAM-MD5 LOGIN PLAIN')dnl
define(`confAUTH_MECHANISMS', `EXTERNAL GSSAPI DIGEST-MD5 CRAM-MD5 LOGIN PLAIN')dnl
dnl #
dnl # Rudimentary information on creating certificates for sendmail TLS:
dnl #      make -C /usr/share/ssl/certs usage
dnl #
dnl define(`confCACERT_PATH',`/usr/share/ssl/certs')
dnl define(`confCACERT',`/usr/share/ssl/certs/ca-bundle.crt')
dnl define(`confSERVER_CERT',`/usr/share/ssl/certs/sendmail.pem')
dnl define(`confSERVER_KEY',`/usr/share/ssl/certs/sendmail.pem')
dnl #
dnl # This allows sendmail to use a keyfile that is shared with OpenLDAP's
dnl # slapd, which requires the file to be readble by group ldap
dnl #
dnl define(`confDONT_BLAME_SENDMAIL',`groupreadablekeyfile')dnl
dnl #
dnl define(`confTO_QUEUEWARN', `4h')dnl
dnl define(`confTO_QUEUERETURN', `5d')dnl
dnl define(`confQUEUE_LA', `12')dnl
dnl define(`confREFUSE_LA', `18')dnl
define(`confTO_IDENT', `0')dnl
dnl FEATURE(delay_checks)dnl
FEATURE(`no_default_msa',`dnl')dnl
FEATURE(`smrsh',`/usr/sbin/smrsh')dnl
FEATURE(`mailertable',`hash -o /etc/mail/mailertable.db')dnl
FEATURE(`virtusertable',`hash -o /etc/mail/virtusertable.db')dnl
FEATURE(redirect)dnl
FEATURE(always_add_domain)dnl
FEATURE(use_cw_file)dnl
FEATURE(use_ct_file)dnl
dnl #
dnl # The -t option will retry delivery if e.g. the user runs over his quota.
dnl #
FEATURE(local_procmail,`',`procmail -t -Y -a $h -d $u')dnl
FEATURE(`access_db',`hash -T; -o /etc/mail/access.db')dnl
FEATURE(`blacklist_recipients')dnl
EXPOSED_USER(`root')dnl
dnl #
dnl # The following causes sendmail to only listen on the IPv4 loopback address
dnl # 127.0.0.1 and not on any other network devices. Remove the loopback
dnl # address restriction to accept email from the internet or intranet.
dnl #
DAEMON_OPTIONS(`Port=smtp,Addr=0.0.0.0, Name=MTA')dnl
dnl #
dnl # The following causes sendmail to additionally listen to port 587 for
dnl # mail from MUAs that authenticate. Roaming users who can't reach their
dnl # preferred sendmail daemon due to port 25 being blocked or redirected find
dnl # this useful.
dnl #
DAEMON_OPTIONS(`Port=25, Name=MSA')dnl
dnl #
dnl # The following causes sendmail to additionally listen to port 465, but
dnl # starting immediately in TLS mode upon connecting. Port 25 or 587 followed
dnl # by STARTTLS is preferred, but roaming clients using Outlook Express can't
dnl # do STARTTLS on ports other than 25. Mozilla Mail can ONLY use STARTTLS
dnl # and doesn't support the deprecated smtps; Evolution 1.1.1 uses smtps
dnl # when SSL is enabled-- STARTTLS support is available in version 1.1.1.
dnl #
dnl # For this to work your OpenSSL certificates must be configured.
dnl #
dnl DAEMON_OPTIONS(`Port=smtps, Name=TLSMTA, M=s')dnl
dnl #
dnl # The following causes sendmail to additionally listen on the IPv6 loopback
dnl # device. Remove the loopback address restriction listen to the network.
dnl #
dnl # NOTE: binding both IPv4 and IPv6 daemon to the same port requires
dnl #        a kernel patch
dnl #
dnl DAEMON_OPTIONS(`port=smtp,Addr=::1, Name=MTA-v6, Family=inet6')dnl
dnl #
dnl # We strongly recommend not accepting unresolvable domains if you want to
dnl # protect yourself from spam. However, the laptop and users on computers
dnl # that do not have 24x7 DNS do need this.
dnl #
FEATURE(`accept_unresolvable_domains')dnl
dnl #
dnl FEATURE(`relay_based_on_MX')dnl
dnl #
dnl # Also accept email sent to "localhost.localdomain" as local email.
dnl #
LOCAL_DOMAIN(`')dnl
dnl #
dnl # The following example makes mail from this host and any additional
dnl # specified domains appear to be sent from
dnl #
dnl MASQUERADE_AS(`')dnl
dnl #
dnl # masquerade not just the headers, but the envelope as well
dnl #
dnl FEATURE(masquerade_envelope)dnl
dnl #
dnl # masquerade not just @, but @* as well
dnl #
dnl FEATURE(masquerade_entire_domain)dnl
dnl #
dnl MASQUERADE_DOMAIN(localhost)dnl
dnl MASQUERADE_DOMAIN(localhost.localdomain)dnl
dnl MASQUERADE_DOMAIN()dnl
dnl MASQUERADE_DOMAIN(mydomain.lan)dnl
MAILER(smtp)dnl
MAILER(procmail)dnl
2.运行：
# m4 /etc/mail/sendmail.mc >/etc/mail/sendmail.cf
3.修改local-host-names文件，加入

4.修改access文件，加入：
Connect:                  RELAY
生成库文件
# makemap hash /etc/mail/access.db & 重新启动sendmail服务，运行：
# service sendmail restart
二. Pop3服务配置：
1. 修改/etc/dovecot.conf文件：
#protocols = imap imap3
更改为：
protocols = imap imap3 pop3 pop3s
2. # service dovecot start
启动 Dovecot Imap： [ 确定 ]
三．saslauthd认证配置：
#service saslauthd restart
四．Outlook 2003配置：
1．配置电子邮件帐户：
2．配置其他设置：
