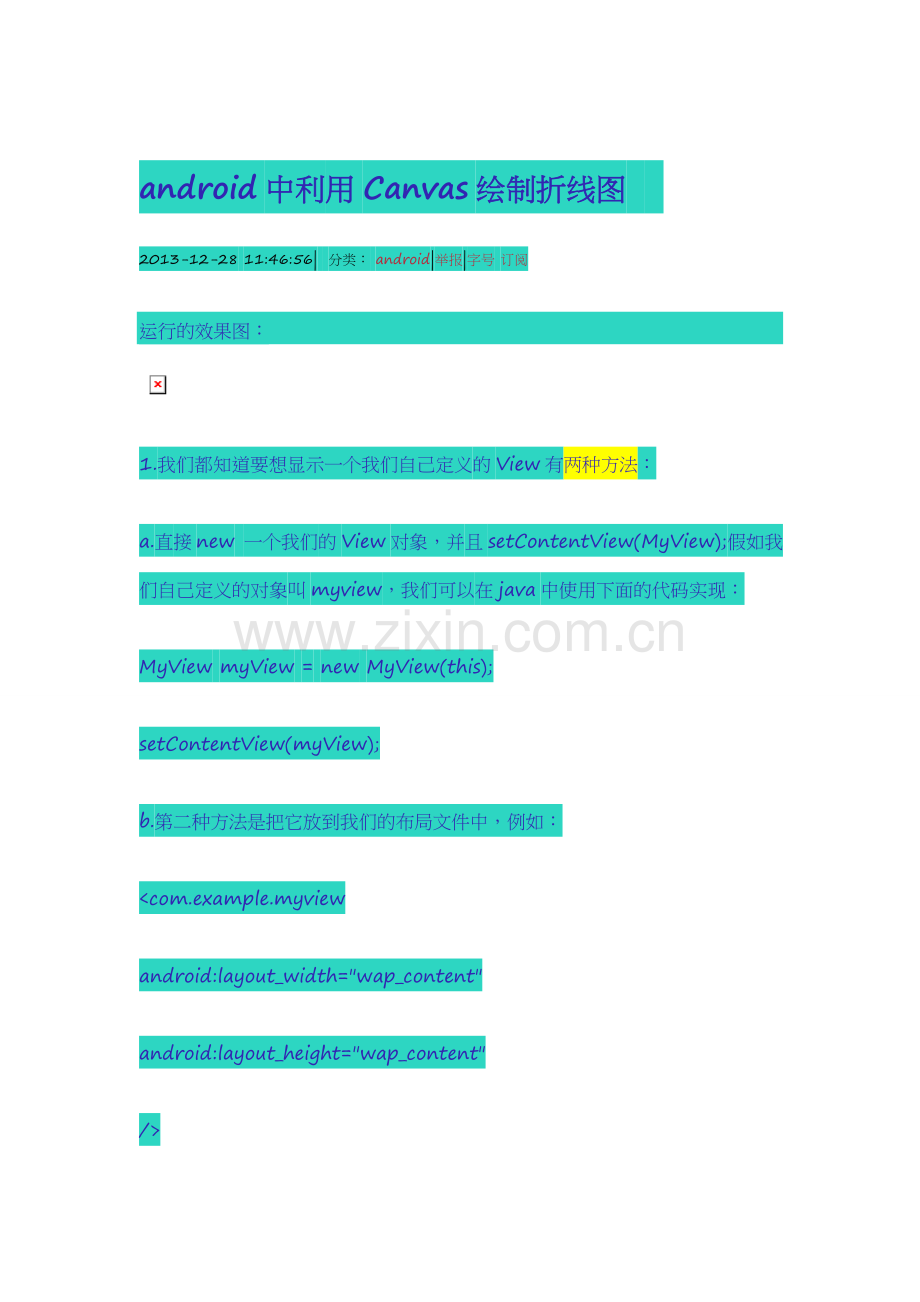

android中利用Canvas绘制折线图
2013-12-28 11:46:56|  分类： android|举报|字号 订阅
运行的效果图：

1.我们都知道要想显示一个我们自己定义的View有两种方法：
a.直接new 一个我们的View对象，并且setContentView(MyView);假如我们自己定义的对象叫myview，我们可以在java中使用下面的代码实现：
MyView myView = new MyView(this);
setContentView(myView);
b.第二种方法是把它放到我们的布局文件中，例如：
<com.example.myview
android:layout_width="wap_content"
android:layout_height="wap_content"
/>

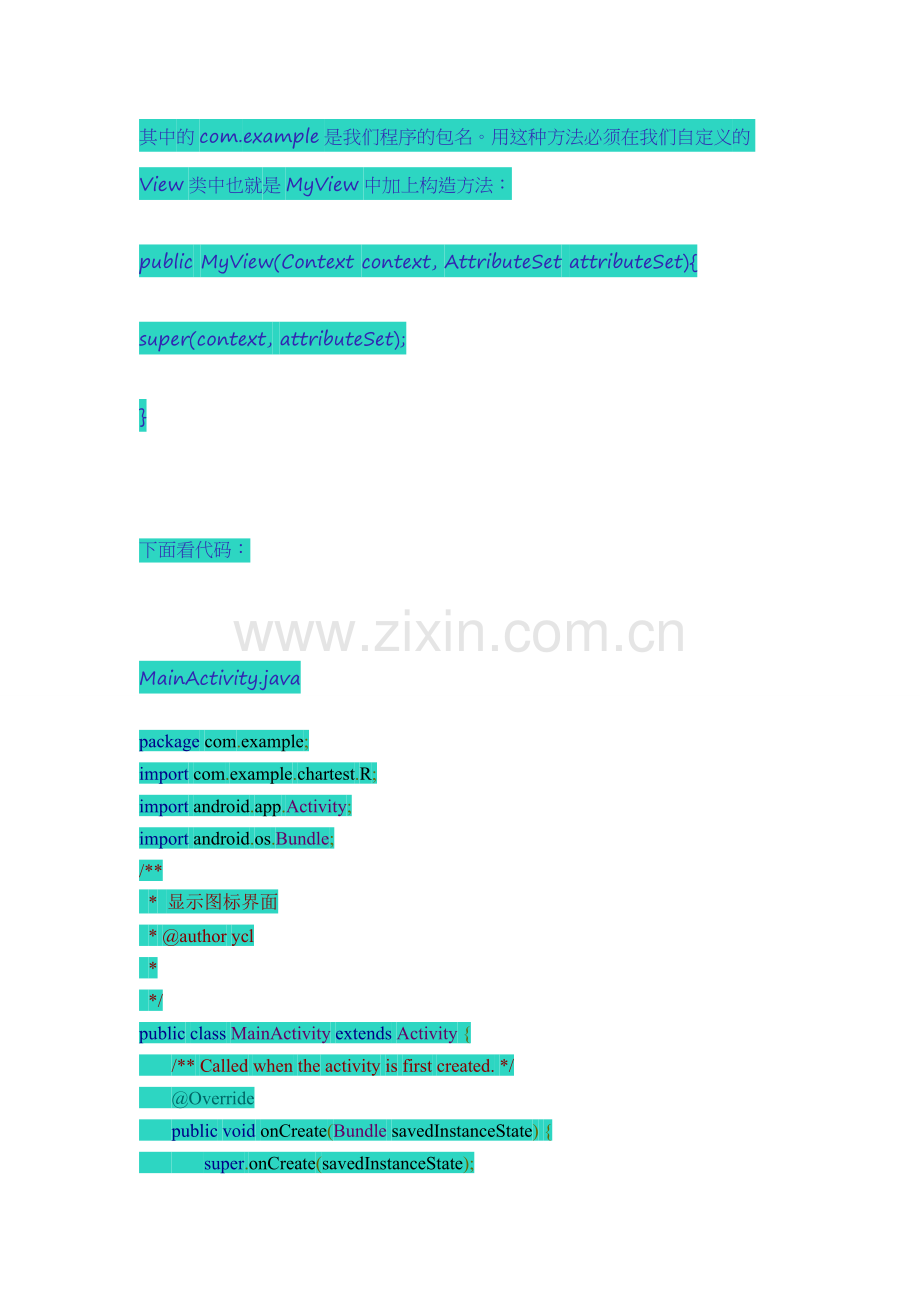

其中的com.example是我们程序的包名。用这种方法必须在我们自定义的View类中也就是MyView中加上构造方法：
public MyView(Context context, AttributeSet attributeSet){
super(context, attributeSet);
}

下面看代码：

MainActivity.java
package com.example;
import com.example.chartest.R;
import android.app.Activity;
import android.os.Bundle;
/**
* 显示图标界面
* @author ycl
*
*/
public class MainActivity extends Activity {
/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
ChartView myView = (ChartView) this.findViewById(R.id.myView);
System.out.println("1");
myView.SetInfo(new String[] { "7-11", "7-12", "7-13", "7-14", "7-15",
"7-16", "7-17" }, // X轴刻度
new String[] { "", "50", "100", "150", "200", "250" }, // Y轴刻度
new int[] { 15, 23, 10, 36, 45, 40, 12 }, // 数据
"图标的标题");
}
}
activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="
android:layout_width="match_parent" android:layout_height="match_parent"
android:id="@+id/relativeLayout1" android:background="@android:color/white">
<com.example.ChartView android:layout_width="fill_parent"
android:id="@+id/myView" android:layout_height="wrap_content" />
</RelativeLayout>
ChartView.java
package com.example;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.View;
import android.widget.Scroller;
/**
* 图标
* @author ycl
*
*/
public class ChartView extends View {
public int XPoint = 40; // 原点的X坐标
public int YPoint = 460; // 原点的Y坐标
public int XScale = 55; // X的刻度长度
public int YScale = 60; // Y的刻度长度
public int XLength = 380; // X轴的长度
public int YLength = 360; // Y轴的长度
public String[] XLabel; // X的刻度
public String[] YLabel; // Y的刻度
public int[] Data; // 数据
public String Title; // 显示的标题
private float screenW, screenH;
private float lastX;
private float lastY;
private Scroller scroller;
private float total_Width = 0;
public ChartView(Context context, AttributeSet attr) {
super(context, attr);
scroller=new Scroller(context);
screenW = this.getWidth();
screenH = this.getHeight();
}

public void SetInfo(String[] XLabels, String[] YLabels, int[] AllData,
String strTitle) {
XLabel = XLabels;
YLabel = YLabels;
Data = AllData;
Title = strTitle;
}

@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);// 重写onDraw方法

System.out.println("3");
// canvas.drawColor(Color.WHITE);//设置背景颜色
Paint paint = new Paint();
paint.setStyle(Paint.Style.STROKE);
paint.setAntiAlias(true);// 去锯齿
paint.setColor(Color.BLACK);// 颜色
Paint paint1 = new Paint();
paint1.setStyle(Paint.Style.STROKE);
paint1.setAntiAlias(true);// 去锯齿
paint1.setColor(Color.DKGRAY);
paint.setTextSize(12); // 设置轴文字大小
// 设置Y轴(对于系统来讲屏幕的原点在左上角）
canvas.drawLine(XPoint, YPoint - YLength, XPoint, YPoint, paint); // 轴线
for (int i = 0; i * YScale < YLength; i++) {
canvas.drawLine(XPoint, YPoint - i * YScale, XPoint + 5, YPoint - i
* YScale, paint); // 刻度 XPoint+5画出了一条短的小横线
try {
canvas.drawText(YLabel[i], XPoint - 22,
YPoint - i * YScale + 5, paint); // 文字
} catch (Exception e) {
}
}
canvas.drawLine(XPoint, YPoint - YLength, XPoint - 3, YPoint - YLength
+ 6, paint); // 箭头
canvas.drawLine(XPoint, YPoint - YLength, XPoint + 3, YPoint - YLength
+ 6, paint);
// 设置X轴
canvas.drawLine(XPoint, YPoint, XPoint + XLength, YPoint, paint); // 轴线
for (int i = 0; i * XScale < XLength; i++) {
canvas.drawLine(XPoint + i * XScale, YPoint, XPoint + i * XScale,
YPoint - 5, paint); // 刻度
try {
canvas.drawText(XLabel[i], XPoint + i * XScale - 10,
YPoint + 20, paint); // 文字
// 数据值
if (i > 0 && YCoord(Data[i - 1]) != -999
&& YCoord(Data[i]) != -999) // 保证有效数据
canvas.drawLine(XPoint + (i - 1) * XScale,
YCoord(Data[i - 1]), XPoint + i * XScale,
YCoord(Data[i]), paint);
canvas.drawCircle(XPoint + i * XScale, YCoord(Data[i]), 2,
paint);
} catch (Exception e) {
}
}
canvas.drawLine(XPoint + XLength, YPoint, XPoint + XLength - 6,
YPoint - 3, paint); // 箭头
canvas.drawLine(XPoint + XLength, YPoint, XPoint + XLength - 6,
YPoint + 3, paint);
paint.setTextSize(16);
canvas.drawText(Title, 150, 50, paint);
}

private int YCoord(int y0) // 计算绘制时的Y坐标，无数据时返回-999
{
int y;
try {
y = y0;
} catch (Exception e) {
return -999; // 出错则返回-999
}
try {
return YPoint - y * YScale / Integer.parseInt(YLabel[1]);
} catch (Exception e) {
}
return y;
}

@Override
public boolean onTouchEvent(MotionEvent event) {
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
lastX=event.getX();
lastY=event.getY();

return true;
case MotionEvent.ACTION_MOVE:
float newX=event.getX();
float newY=event.getY();

scrollBy((int) ((lastX-newX)*0.5), (int) ((lastY-newY)*0.5));
lastX=newX;
lastY=newY;
break;
case MotionEvent.ACTION_UP:
int scrollX=getScrollX();
int scrollY=getScrollY();
if((scrollX<0)&&(scrollX<-10||scrollY>10)){
//XY方向超出左边位置
scroller.startScroll(scrollX,scrollY, -scrollX, -scrollY);
invalidate();
}
else if((scrollX>total_Width-screenW)&&(scrollY<-10||scrollY>10)){
//XY方向超出右边位置
scroller.startScroll(scrollX,scrollY, (int) (total_Width-screenW-scrollX), -scrollY);
invalidate();
}else if(scrollX<0){
//X方向超出左边的位置
scroller.startScroll(scrollX,scrollY, -scrollX, 0);
invalidate();

}else if(scrollX>total_Width-screenW){
//X方向超出右边边的位置
scroller.startScroll(scrollX,scrollY, (int) (total_Width-screenW-scrollX), 0);
invalidate();
}else if(scrollY<-10||scrollY>10){
//Y方向超出了位置
scroller.startScroll(scrollX,scrollY, 0, -scrollY);
invalidate();
}
break;
default:
break;
}
return super.onTouchEvent(event);
}

@Override
public void computeScroll() {
if (puteScrollOffset()) {
// 调用这个下面的条件是由于scroller调用了滑动从而使它激发
scrollTo(scroller.getCurrX(), scroller.getCurrY());
invalidate();
return;
}
puteScroll();
}
}
