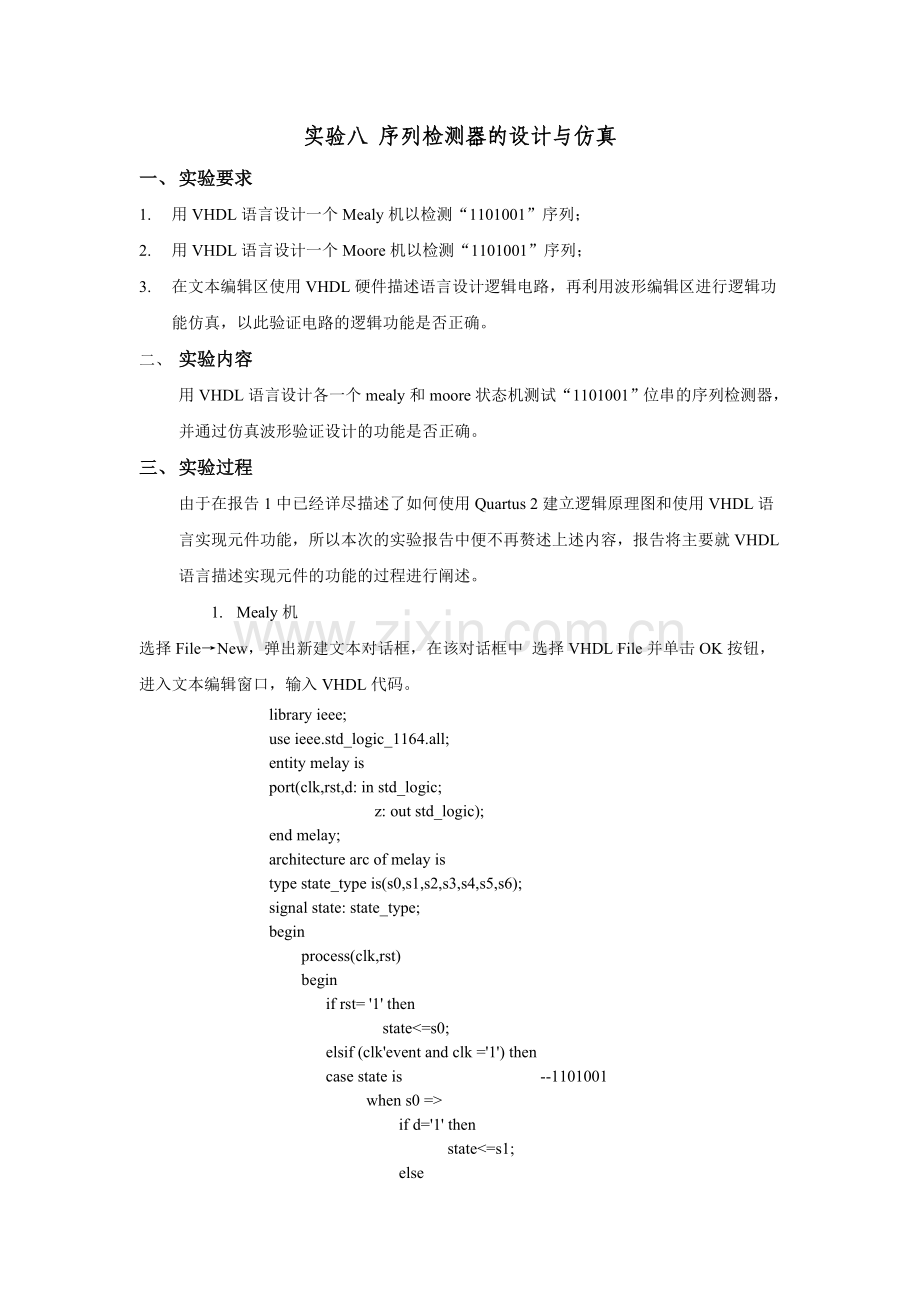

实验八 序列检测器的设计与仿真
一、 实验要求
1. 用VHDL语言设计一个Mealy机以检测“1101001”序列;
2. 用VHDL语言设计一个Moore机以检测“1101001”序列;
3. 在文本编辑区使用VHDL硬件描述语言设计逻辑电路,再利用波形编辑区进行逻辑功能仿真,以此验证电路的逻辑功能是否正确。
二、 实验内容
用VHDL语言设计各一个mealy和moore状态机测试“1101001”位串的序列检测器,并通过仿真波形验证设计的功能是否正确。
三、 实验过程
由于在报告1中已经详尽描述了如何使用Quartus 2建立逻辑原理图和使用VHDL语言实现元件功能,所以本次的实验报告中便不再赘述上述内容,报告将主要就VHDL语言描述实现元件的功能的过程进行阐述。
1. Mealy机
选择File→New,弹出新建文本对话框,在该对话框中 选择VHDL File并单击OK按钮,进入文本编辑窗口,输入VHDL代码。
library ieee;
use ieee.std_logic_1164.all;
entity melay is
port(clk,rst,d: in std_logic;
z: out std_logic);
end melay;
architecture arc of melay is
type state_type is(s0,s1,s2,s3,s4,s5,s6);
signal state: state_type;
begin
process(clk,rst)
begin
if rst= '1' then
state<=s0;
elsif (clk'event and clk ='1') then
case state is --1101001
when s0 =>
if d='1' then
state<=s1;
else
state<=s0;
end if;

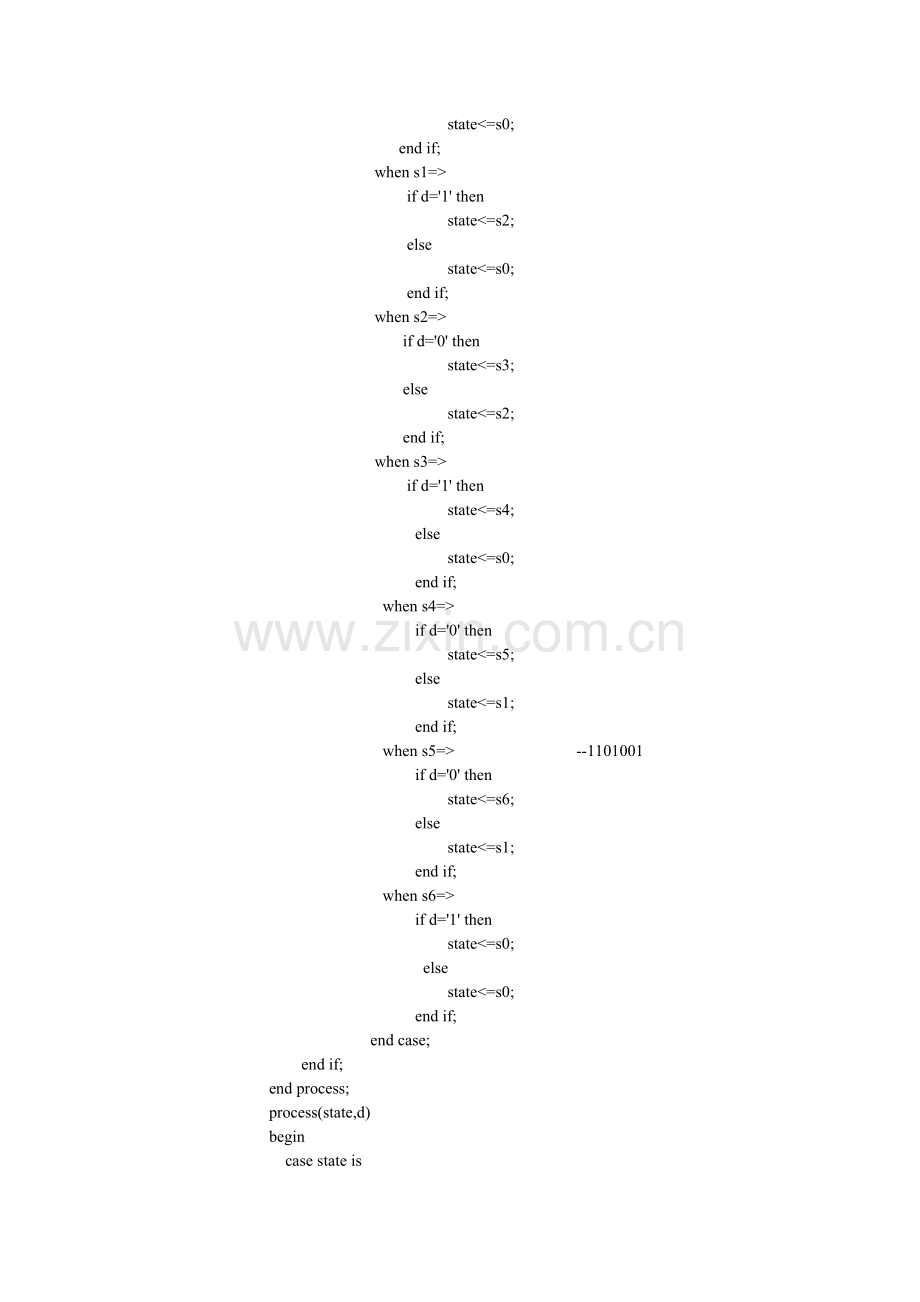

when s1=>
if d='1' then
state<=s2;
else
state<=s0;
end if;
when s2=>
if d='0' then
state<=s3;
else
state<=s2;
end if;
when s3=>
if d='1' then
state<=s4;
else
state<=s0;
end if;
when s4=>
if d='0' then
state<=s5;
else
state<=s1;
end if;
when s5=> --1101001
if d='0' then
state<=s6;
else
state<=s1;
end if;
when s6=>
if d='1' then
state<=s0;
else
state<=s0;
end if;
end case;
end if;
end process;
process(state,d)
begin
case state is
when s6=>
if d='1' then
z<='1';
else
z<='0';
end if;
when others=>
z<='0';
end case;
end process;
end arc;
保存文件并编译,选择菜单File→New,选择Vector Waveform File新建波形图,添加节点,参数设置为:End Time=2us, Grip size=50ns。所完成的波形图如下图:
波形解释:rst为复位端,高电平有效,返回最初状态;clk为时钟信号输入端口;,state。s0~s6表示mealy机中各步状态;z表示检测序列为“1101001”时,表示输出高电平。
保存波形文件,并在settings中选择functional功能仿真,绘制网格,仿真可得出如图波形:
根据mealy状态表和序列检测器相应功能验证,当rst=‘1’时,不管当前状态为何,都将被初始为最初态s0;当输入d端依次输入“1101001”时,当检测到最后一位输入正确的同时,z端马上跳为高电平,表示所检测序列正确。其他可看出,当处于时钟上升沿时,state中各状态依照输入数据依次跳变。最后mealy机成功检测出相应序列,设计成功。
已知序列检测器的Mealy机状态表为:
现 态
(present_state)
次态 / 输出(next_state / cout)
cin=0
cin=1
S0
S0 / 0
S1 / 0
S1
S0 / 0
S2 / 0
S2
S0 / 0
S3 / 0
S3
S4 / 0
S3 / 0
S4
S5 / 0
S1 / 0
S5
S0 / 0
S6 / 0
S6
S0 / 1
S2 / 0
同样可依次对照上述仿真图形,显然上述序列检测器mealy机功能设计正确。
2. 序列检测器moore机
选择File→New,弹出新建文本对话框,在该对话框中 选择VHDL File并单击OK按钮,进入文本编辑窗口,输入VHDL代码。
library ieee;
use ieee.std_logic_1164.all;
entity moore is
port(clk,rst,d: in std_logic;
z: out std_logic);
end moore;
architecture arc of moore is --moore: 输出只和当前状态有关;
type state_type is(s0,s1,s2,s3,s4,s5,s6,s7);
signal state:state_type;
begin
process(clk,rst)
begin
if rst= '1' then --1101001
state<=s0;
elsif(clk'event and clk='1') then
case state is --1101001
when s0 =>
if d='1' then
state<=s1;
else
state<=s0;
end if;
when s1=>
if d='1' then
state<=s2;
else
state<=s0;
end if;
when s2=>
if d='0' then
state<=s3;
else
state<=s2;
end if;
when s3=>
if d='1' then
state<=s4;
else
state<=s0;
end if;
when s4=>
if d='0' then
state<=s5;
else
state<=s1;
end if;
when s5=> --1101001
if d='0' then
state<=s6;
else
state<=s1;
end if;
when s6=>
if d='1' then
state<=s7;
else
state<=s0;
end if;
when s7=>
if d='1' then
state<=s1;
else
state<=s0;
end if;
end case;
end if;
end process;
process(state,d)
begin
case state is
when s6=>
if d='1' then
z<='1';
else
z<='0';
end if;
when others=>
z<='0';
end case;
end process;
end arc;
可看出,moore机的设计和mealy机上大体相同,只有在状态的传递上有细微区别。
保存文件并编译,选择菜单File→New,选择Vector Waveform File新建波形图,添加节点,参数设置为:End Time=3us, Grip size=50ns。所完成的波形图如下图:
图中各端口设置功能同mealy机。
保存波形文件,并在settings中选择functional功能仿真,绘制网格,仿真可得出如图波形:
仿真波形分析:
由于设计的moore状态机检测序列功能相同,与mealy不同在于当状态跳变判断s7时,z端才跳变为高电平。根据刚刚对mealy机的仿真分析和下表的状态值变化显然可知,moore机实现了检测序列“1101001”的功能,设计成功。
已知序列检测器的Mealy机状态表为:
现 态
(present_state)
次态
输出
z
d=0
d=1
S0
S0
S1
0
S1
S0
S2
0
S2
S0
S3
0
S3
S4
S3
0
S4
S5
S1
0
S5
S0
S6
0
S6
S0
S7
0
S7
s0
s1
1
四、 总结
本节实验中,通过对用VHDL语言对mealy状态机和moore状态机进行设计,更加熟练了使用VHDL语言对元件的设计。也通过用不同的状态机设计序列检测器,而对两种状态机的区别有了更深刻的了解。Moore状态机输出只和当前状态有关,而mealy机输出和当前状态和输入信号有关,由于moore机没有组合逻辑,所以moore机的状态会多一些。也对序列检测器的实现使得我对序列检测器的作用和功能了之于心。一开始没有弄清moore机和mealy机的区别,导致后来写moore机的时候出现了停滞,不过在弄清他们的区别时候,写出moore机就没什么问题了。
不已然,已经到了数字逻辑的最后一个实验了,回想做实验时,有苦有乐,从开始的对VHDL语言的一窍不通,到现在可以用它设计简单的元件并实现功能,实验中我收获了许多,实验对我成长的帮助必不可少。虽然马上就要结束实验,不过还有许多VHDL语言的奥妙在可以发挥它的地方等待着我们去探索,我也会继续探索VHDL语言,用它来实现更多好玩好用的东西。
2013/12/23
