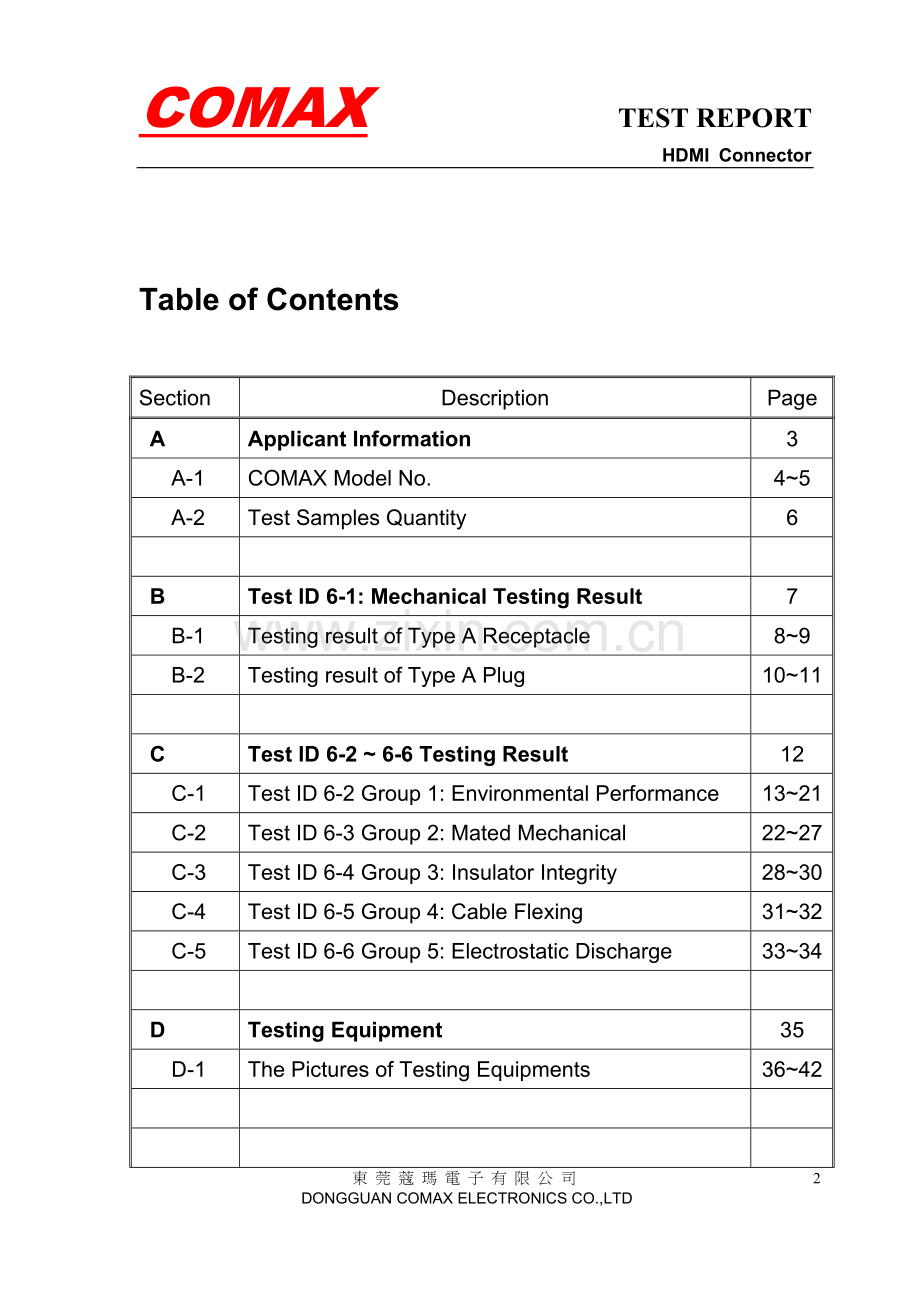

COMAX TEST REPORT HDMI Connector 測試報告 TEST REPORT High-Definition Multimedia Interface Table of Contents Section Description Page A Applicant Information 3 A-1 COMAX Model No. 4~5 A-2 Test Samples Quantity 6 B Test ID 6-1: Mechanical Testing Result 7 B-1 Testing result of Type A Receptacle 8~9 B-2 Testing result of Type A Plug 10~11 C Test ID 6-2 ~ 6-6 Testing Result 12 C-1 Test ID 6-2 Group 1: Environmental Performance 13~21 C-2 Test ID 6-3 Group 2: Mated Mechanical 22~27 C-3 Test ID 6-4 Group 3: Insulator Integrity 28~30 C-4 Test ID 6-5 Group 4: Cable Flexing 31~32 C-5 Test ID 6-6 Group 5: Electrostatic Discharge 33~34 D Testing Equipment 35 D-1 The Pictures of Testing Equipments 36~42 A. Applicant Information Applicant : COMAX TECHNOLOGY INC. Web Site : Applicant Address Taiwan: 12F, No. 700, Jung-Jeng Road, Jung-He City, Taipei 235, Taiwan, R.O.C Tel: +886-2-8227-3929 Fax: +886-2-8227-3896 Guang Dong: No. 2, Industrial District (Area), DiChongVillage, Gao-Bu Town, Dong Guan City, Guang Dong Province, China Tel: +86-769-8739069 ~77 Fax: +86-769-8739048 Jiang Su: No. 999, Kun Chang Road, Shipai Town, Kun Shan City, Jiang Su Province, China Tel: +86-512-57881051 ~3 Fax: +86-512-57881252 Commodity : HDMI connector & Plug - A type Test Lab : COMAX DG Factory Date of Testing : May 20, 2006~June 10, 2006 Measure Environment : 25±5℃, 70±5%R.H. Dept. of Supervisor : Victor Zhou A-1. COMAX Model No. CD012xxxxxx-G Series a. HDMI Receptacle & Plug Connector Item Description P/N Photo 1 19 Pin Type A SMT R/A Receptacle type 1 with screw hole CD012A1AA 2 19 Pin Type A Receptacle Type2 without screw hole CD012A1BA 3 19 Pin Type A SMT R/A Receptacle type 3 shell tail with Dimple CD012A1CA 4 19 Pin Type A SMT Right Angle type4 with saw tooth Reverse CD012A1DA 5 19 Pin Type A DIP Right Angle type2 with saw tooth Reverse CD012C1AA 6 HDMI 19 Pin Type A Plug Solder Type 1 Connector CD012100A b. HDMI Cable Item Description P/N Photo 1 HDMI Cable HDMI type A to HDMI type A 221401 2 HDMI Cable HDMI type A to DVI-D single link 221402 A-2. Test Samples Quantity Description The Number of Samples Required Test ID Test ID 6-1 Test ID 6-2 Test ID 6-3 Test ID 6-4 Test ID 6-5 Test ID 6-6 Backup Total Receptacle 9 1 3 13 Plug 9 3 12 Receptacle assemblies t printed circuit board 6 2 2 3 13 Cable assemblies with a plug assembled to one end, 50.8mm long 6 2 2 3 13 Cable assemblies with a plug assembled to one end, 30cm long (Cable peel off: 5cm) 1 2 3 Cable assemblies:100cm 2 2 4 Total 18 12 4 4 2 2 16 58 B. Test ID 6-1: Mechanical Testing Result According to Test ID 6-1: Connector Mechanical Specification Type A – Receptacle/ Plug Item Description Requirement Pass/Fail Result of Measurement 1 Type A - Receptacle As Test ID 6-1 Pass See Page8 ~ 9 2 Type A - Plug As Test ID 6-1 Pass See Page 10 ~ 11 Note: Page 8~9 is the testing result of Type A Receptacle. Page 10~11 is the testing result of Type A Plug. B-1. Testing result of Type A Receptacle Requirement Pass/Fail Result of measurement 1 14 +0.05/-0.04 Pass 14.028 2 10.8 ± 0.1 Pass 10.730 3 0.1 Pass 0.08 4 9.4 +0.05/-0.1 Pass 9.321 5 0.1 Pass 0.08 6 9.85 +0.1/-0 Pass 9.888 7 0.1 Pass 0.11 8 12.05 +0.1/-0 Pass 12.092 9 0.1 Pass 0.94 10 3 +0.1/-0 Pass 3.018 11 1.25 +0/-0.1 Pass 1.175 12 MIN. R0.9 Pass 1.090 13 MAX. R0.5 Pass 0.359 14 4.55+0.05/-0.04 Pass 4.570 15 MAX. R0.5 Pass 0.033 A1 4.1 ± 0.15 Pass 3.978 B1 4.1 ± 0.15 Pass 3.991 C1 0.06 ±0.03 Pass 0.084 C2 0.45 +0.1/-0.05 Pass 0.427 C3 0.1 Pass 0.11 Requirement Pass/Fail Result of measurement D1 6.8 ± 0.2 Pass 6.906 D2 4.8 ± 0.1 Pass 4.819 D3 MAX. R0.3 Pass 0.287 D4 0.9 ± 0.05 Pass 0.898 D5 0.08 M Pass 0.07 D6 Spring property for locking Pass Yes E1 MIN. 0.06 Pass 0.097 F1 1 ± 0.1 Pass 0.941 F2 0.35 +0.1/-0.05 Pass 0.334 B-2. Testing result of Type A Plug Requirement Pass/Fail Result of measurement 1 13.9+0.04/-0.05 Pass 13.915 2 11.45+0.1/-0.05 Pass 11.502 3 9.45 +0/-0.1 Pass 9.375 4 0.1 Pass 0.09 5 MIN. 9.5 Pass 9.636 6 0.1 Pass 0.10 7 11.65 +0/-0.1 Pass 11.627 8 0.1 Pass 0.08 9 4.45+0.04/-0.05 Pass 4.427 10 MAX. 2.8 Pass 2.668 11 MIN. 0.7 Pass 0.711 12 MIN. 1.3 Pass 1.353 13 MAX. R0.4 Pass 0.389 14 MIN. R0.5 Pass 0.509 15 MIN. R0.5 Pass 0.603 16 1.3 +0.1/-0.05 Pass 1.270 17 0.05 M Pass 0.06 18 MIN. R 0.5 Pass 0.656 21 MIN. 4.9 Pass 5.128 22 2.55 ± 0.2 Pass 2.557 23 1.55 ± 0.2 Pass 1.644 24 C0.05 ± 0.05 Pass C 25 MIN. 7.2 Pass 7.371 26 0.3 ± 0.05 Pass 0.301 27 MAX. 3.5 Pass 2.854 28 MAX. 3.5 Pass 2.666 Requirement Pass/Fail Result of measurement B1 MAX. 3.5 Pass 2.897 B2 MAX. 3.5 Pass 2.888 C1 0.3 ± 0.05 Pass 0.297 C2 0.1 Pass 0.09 D1 MAX 1° Pass 0.91° D2 1.4 +0.2/-0 Pass 1.513 D3 0.1 Pass 0.11 D4 4 ± 0.1 Pass 4.040 D5 1.4 +0.2/-0 Pass 1.489 E1 1 ± 0.1 Pass 0.981 E2 R1.5 ± 0.2 Pass 1.611 E3 0.6 ± 0.1 Pass 0.532 C. Test ID 6-2 ~6-6 Testing Result Test ID Pass Fail Comment 6-2 GROUP 1: Environmental Test Pass 6-3 GROUP 2: Mated Mechanical Test Pass 6-4 GROUP 3: Insulator Integrity Test Pass 6-5 GROUP 4: Cable Flexing Test Pass 6-6 GROUP 5: Electrostatic Test Pass C-1. Test ID 6-2 Group 1: Environmental Performance C-1-1. Testing Procedure 1.Contact and Shell Resistance 2.1/2 Samples Durability 100 Cycles 1/2 Samples as Received 3. Contact and Shell Resistance 4. Thermal Shock (ANSI/EIA 364-32) 5. Contact and Shell Resistance 6. Thermal Aging (ANSI/EIA 364-17) 7. Contact and Shell Resistance 8. Humidity (cyclic) condition B (ANSI/EIA 364-32) 9. Contact and Shell Resistance C-1-2. Testing Conditions According to High-Definition Multimedia Interface specifications Version 1.2a and ANSI / EIA -364 standard 1. Contact and Shell Resistance Samples condition: Mating Contact: Measured by dry circuit 20mvolts maximum, 10mA Shell: Measured by open circuit 5volts maximum, 100mA 2. Durability Samples condition: Mating Cycle times: 100 cycles Rate: 100±50 cycles per hour 3. Contact and Shell Resistance Samples condition: Mating Contact: Measured by dry circuit 20mvolts maximum, 10mA Shell: Measured by open circuit 5volts maximum, 100mA 4. Thermal Shock Cycles: 10 cycles Temperature and time: -55°C for 30 minutes +85°C for 30 minutes 5. Contact and Shell Resistance Samples condition: Mating Contact: measured by dry circuit 20mvolts maximum, 10mA Shell: measured by open circuit 5volts maximum, 100mA 6. Thermal Aging Samples condition: Mating Temperature and time: +105 ± 2°C for 250 hours 7. Contact and Shell Resistance Samples condition: Mating Contact: measured by dry circuit 20mvolts maximum, 10mA Shell: measured by open circuit 5volts maximum, 100mA 8. Humidity (Condition B) Samples condition: Unmated Temperature: +25 to +85℃ Relative humidity: 80 to 95% Duration: 4 cycles (96 hours) Note: Upon completion of the test, specimens shall be conditioned at ambient room condition for 24 hours, 9. Contact and Shell Resistance Samples condition: Mating Contact: measured by dry circuit 20mvolts maximum, 10mA Shell: measured by open circuit 5volts maximum, 100mA C-1-3. Testing Report 1. Contact and Shell Resistance Item Sample Coding Contact Resistance Requirement 10mΩ max.(Target design value) 1-1 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 14.75 14.86 14.57 15.18 14.91 15.43 15.22 14.62 14.93 15.74 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 15.16 14.71 14.62 15.43 15.34 14.95 14.55 14.83 15.52 5.23 1-2 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 14.52 14.91 15.44 15.65 14.56 14.88 15.56 14.92 15.93 14.84 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 14.92 15.64 15.74 14.83 14.66 14.78 15.91 15.47 14.96 5.54 1-3 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 14.61 14.72 14.93 15.32 15.47 15.56 14.56 14.78 14.75 14.82 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 15.26 15.43 14.72 14.53 15.14 15.65 15.35 14.91 14.78 4.89 1-4 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 15.11 14.29 14.83 14.74 15.94 15.22 15.16 14.73 14.52 14.92 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 14.71 14.52 14.71 15.22 15.41 15.63 14.94 14.55 14.65 4.97 　 1-5 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 14.91 14.72 14.83 15.44 15.14 15.71 14.92 14.83 14.64 15.35 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 14.61 14.98 15.49 15.74 15.64 14.53 14.83 14.59 15.23 5.65 　 1-6 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 15.23 15.75 14.76 14.97 15.46 15.13 15.63 15.73 14.88 14.71 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 14.92 14.83 15.44 15.15 14.96 14.63 14.83 15.79 15.10 5.40 2. Durability There was no evidence of physical damage to the test samples as tested. Test result and data, see the fig.1 below: Fig.1 Durability 3. Contact and Shell Resistance Item Sample Coding Contact Resistance Requirement ∆ R 30mΩ max. for Contact ∆ R 50mΩ max. for Shell 1-1 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.12 0.33 0.32 0.23 0.22 0.11 0.33 0.34 0.25 0.25 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.23 0.24 0.17 0.27 0.38 0.36 0.20 0.18 0.27 0.28 1-2 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.18 0.37 0.27 0.15 0.25 0.34 0.14 0.35 0.16 0.56 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.27 0.17 0.28 0.48 0.28 0.22 0.25 0.33 0.44 0.36 1-3 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.26 0.25 0.46 0.28 0.29 0.11 0.33 0.42 0.52 0.33 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.34 0.35 0.26 0.24 0.36 0.27 0.47 0.48 0.25 0.19 4. Thermal Shock There was no evidence of physical damage to the test samples as tested. 5. Contact and Shell Resistance Item Sample Coding Contact Resistance Requirement ∆ R 30mΩ max. for Contact & ∆ R 50mΩ max. for Shell 1-1 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.32 0.42 0.42 0.48 0.45 0.25 0.52 0.63 0.49 0.31 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.32 0.48 0.84 0.37 0.52 0.53 0.41 0.31 0.54 0.54 1-2 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.45 0.63 0.54 0.23 0.54 0.53 0.45 0.58 0.47 0.86 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.56 0.31 0.47 0.68 0.64 1.50 0.69 0.54 0.63 0.47 1-3 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.54 0.53 0.64 0.54 0.41 0.36 0.84 0.65 0.73 0.71 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.56 0.51 0.54 0.45 0.63 0.34 0.74 0.53 0.65 0.47 　　　　　　　　　　　 1-4 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.24 0.25 0.18 0.45 0.36 0.32 0.22 0.25 0.39 0.37 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.25 0.36 0.28 0.39 0.25 0.34 0.47 0.35 0.36 0.14 　 1-5 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.35 0.25 0.48 0.68 0.34 0.25 0.28 0.47 0.36 0.51 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.34 0.45 0.25 0.26 0.25 0.28 0.36 0.47 038 0.28 　 1-6 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.14 0.25 0.25 0.28 0.26 0.39 0.27 0.31 0.14 0.25 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.24 0.14 0.21 0.38 0.37 0.28 0.45 0.23 0.34 0.25 6. Thermal Aging There was no evidence of physical damage to the test samples as tested. 7. Contact and Shell Resistance Item Sample Coding Contact Resistance Requirement ∆ R 30mΩ max. for Contact & ∆ R 50mΩ max. for Shell 1-1 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.45 0.47 0.89 1.48 0.25 0.89 0.52 0.54 0.23 0.54 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.54 0.41 0.36 0.58 1.52 0.38 0.96 0.29 0.38 0.48 1-2 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.58 0.47 0.86 0.22 0.14 0.58 0.95 1.58 0.48 0.86 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.79 0.50 0.80 0.40 0.37 1.50 0.69 0.54 0.49 0.50 1-3 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.53 0.65 0.47 0.56 0.51 0.27 0.48 0.38 0.98 0.12 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.89 1.51 0.78 0.45 0.63 0.46 0.36 0.43 0.27 0.80 1-4 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.29 0.11 0.33 0.42 0.52 0.45 0.22 1.25 0.29 0.56 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.34 0.25 0.28 0.45 0.25 0.26 0.25 0.28 0.36 0.57 1-5 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.35 0.25 0.48 0.68 0.34 0.25 0.28 0.47 0.36 0.51 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.34 0.45 0.25 0.26 0.25 0.28 0.36 0.47 038 0.28 1-6 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.44 0.67 0.23 0.19 0.45 0.32 1.27 0.89 0.36 0.57 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.29 0.35 0.36 0.17 0.50 0.28 0.45 1.23 0.34 0.15 8. Humidity (Condition B) There was no evidence of physical damage to the test samples as tested. 9. Contact and Shell Resistance Item Sample Coding Contact Resistance Requirement ∆ R 30mΩ max. for Contact & ∆ R 50mΩ max. for Shell 1-1 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 1.48 0.77 0.19 1.10 0.27 0.15 1.52 0.57 0.28 0.98 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.17 0.20 1.46 0.28 1.38 1.46 0.26 0.47 0.88 0.40 　　　　　　　　　　　 1-2 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.63 0.46 0.36 0.43 0.27 0.80 0.40 0.37 1.50 0.69 P11 P12 P13 P14 P15 P16 P17 P18 P19 Shell 0.59 0.54 0.29 0.11 0.33 0.29 0.45 0.22 1.25 0.29 　　　　　　　　　　　 1-3 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 0.45 1.25 0.46 2.25 0.28 0.36 0.57 0.45 0.22 1.25
