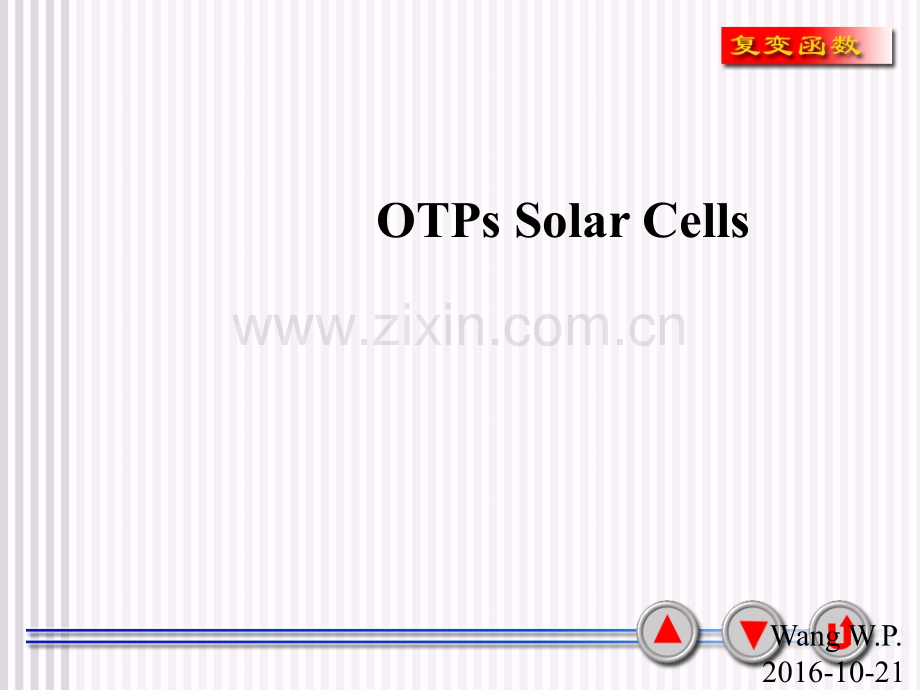

钙钛矿太阳能电池制作过程(图).ppt

OTPs Solar Cells Wang W.P.2016-10-211.视频实验整理（湿度影响，材料PbCl2+CH3NH3I）相对湿度：30%相对湿度：60%Processing in an environment with a humidity of 30-40%rh results in films having a bright yellow colour post spin coating.Placing these films on a 90C hotplate initially maintains this film colour and after 90-120 minutes,a perovskite film will be formed with a dark brown/grey colourIf,instead,the humidity of the environment is too high(40%rh)then the film colour will appear orange/brown after the 30 second spin coating stage.Although the film will revert back to a bright yellow upon placing on a 90C hotplate and appear a dark brown/grey after the thermal heating stage,the films will provide poor device performance.2.视频实验整理（制作过程，ITO/PEDOT:PSS/CH3NH3PbCl2I/PCBM/Al）准备PEDOT:PSSITO超声清洗coat PEDOT:PSS测量湿度 40%PbCl3:MAI=1:3旋涂perovskite3.视频实验整理（制作过程，ITO/PEDOT:PSS/CH3NH3PbCl2I/PCBM/Al）用棉签擦拭两端烘干Glove-box containing spin-coater and thermal evaporator4.视频实验整理（制作过程，ITO/PEDOT:PSS/CH3NH3PbCl2I/PCBM/Al）30min 烘干完成旋涂PCBM擦拭两端以环氧树脂封装5.视频实验整理（制作过程，ITO/PEDOT:PSS/CH3NH3PbCl2I/PCBM/Al）蒸镀电极Ca/Al紫外烘烤擦拭两端以环氧树脂封装6.视频实验整理（制作过程，ITO/PEDOT:PSS/CH3NH3PbCl2I/PCBM/Al）蒸镀电极Al测试7.视频实验整理（制作过程，ITO/PEDOT:PSS/CH3NH3PbCl2I/PCBM/Al）3.1 Perovskite PV-Driven CO Generation from CO2CO is the product that stores the largest amount of energy per moleculeChem.Rev.115,1288812935(2015)Au is one of the best catalysts to make CO from electrochemical CO2 reduction with high Faradic efficiency at low overpotential.Oxygen evolution anode uses iridium oxide(IrO2):high activity,stability against dissolution.Maximize the Faradic efficiencyAdjusted the area of the Au electrode6.5%solar-to-CO conversion efficiencyThank you
