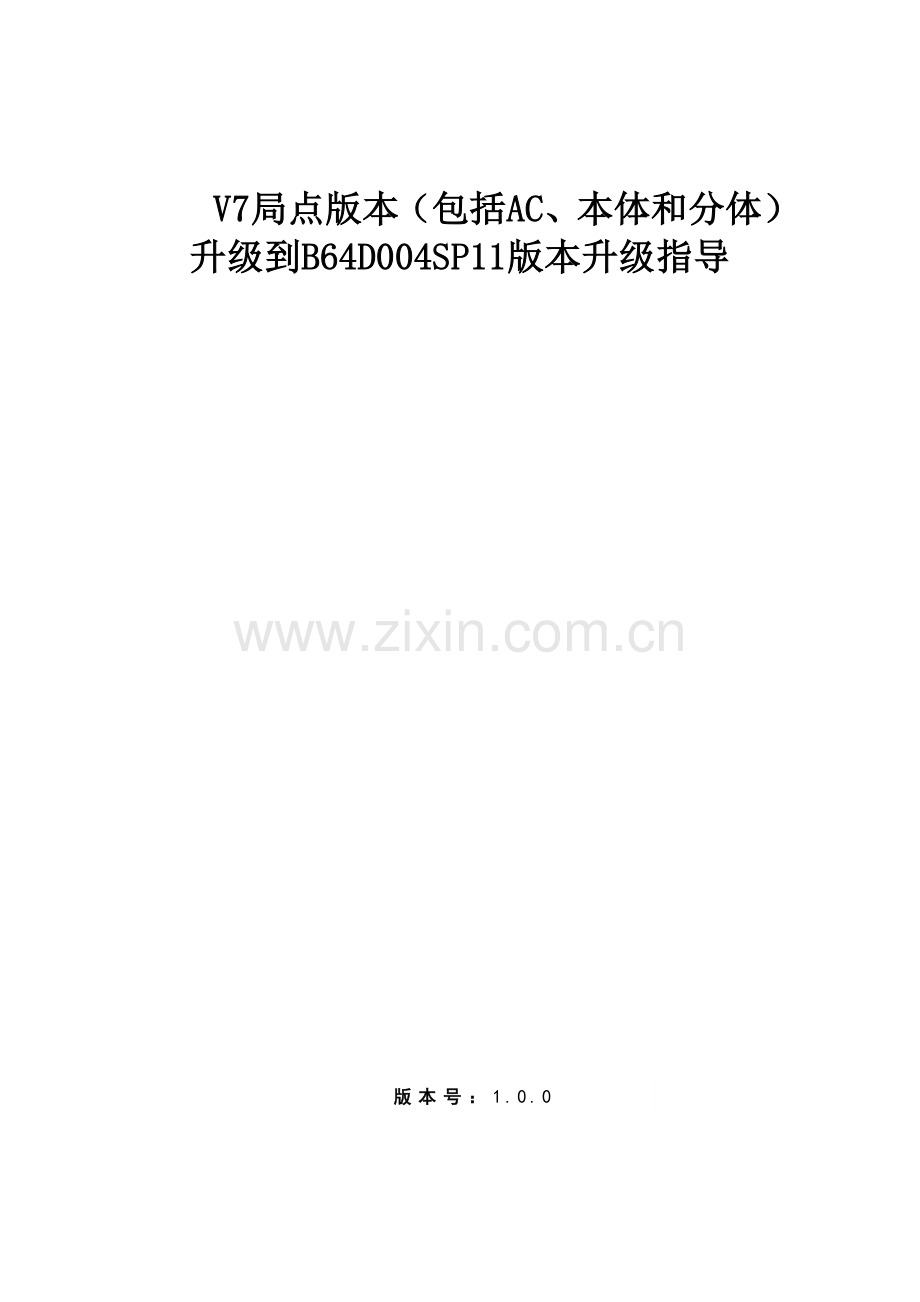

V7局点版本（包括AC、本体和分体）升级到B64D004SP11版本升级指导

版本号：1.0.0

目　　录
1. 范围 1
1.1. 总体测试示意图 1
2. 测试设备以及软件列表 1
2.1. 测试设备列表 1
3. 使用设备版本信息 1
4. 升级步骤 4
5. 注意事项 10

I
1. 范围
本文档用于指导V7局点版本（包括AC、本体和分体）升级到B64D004SP11版本。
1.1. 总体测试示意图
测试环境如图1-1所示。
AC---------Switch-------WT1020（若干）-------WTU430（若干）
图1-1 测试组网图
2. 测试设备以及软件列表
2.1. 测试设备列表
表5-1 测试辅助设备列表
设备名称
数量
单位
备注
AC
1
台
WX5510E
WT1020
若干
台

WTU430
若干
台

交换机
1
台

3. 使用设备版本信息
初始版本：
AC版本：
[H3C]dis version
H3C Comware Software, Version 7.1.064, Demo 5104
Copyright (c) 2004-2015 Hangzhou H3C Tech. Co., Ltd. All rights reserved.
H3C WX5510E uptime is 0 weeks, 0 days, 0 hours, 41 minutes
Last reboot reason : User soft reboot

Boot image: cfa0:/wx5510-cmw710-boot-d5104.bin
Boot image version: 7.1.064, Demo 5104
Compiled Jun 04 2015 15:26:02
System image: cfa0:/wx5510-cmw710-system-d5104.bin
System image version: 7.1.064, Demo 5104
Compiled Jun 04 2015 15:26:02

[H3C]probe
[H3C-probe]display system internal version
H3C WX5510E V500R001B64D003
Comware V700R001B64D003
[H3C-probe]

本体WT1020版本：
[H3C]dis version
H3C Comware Software, Version 7.1.064, Alpha 2102
Copyright (c) 2004-2015 Hangzhou H3C Tech. Co., Ltd. All rights reserved.
H3C WT1020 uptime is 0 weeks, 0 days, 0 hours, 7 minutes
Last reboot reason : User soft reboot

Boot image: flash:/wt1020-cmw710-boot-a2102.bin
Boot image version: 7.1.064, Alpha 2102
Compiled Jun 15 2015 18:44:55
System image: flash:/wt1020-cmw710-system-a2102.bin
System image version: 7.1.064, Alpha 2102
Compiled Jun 15 2015 18:44:55

[H3C]probe
[H3C-probe]display system internal version
H3C WT1020 V200R001B64D003
Comware V700R001B64D003
[H3C-probe]

分体WTU430版本：
[H3C]display version
H3C Comware Software, Version 7.1.064, Beta 2104
Copyright (c) 2004-2015 Hangzhou H3C Tech. Co., Ltd. All rights reserved.
WTU430 uptime is 0 weeks, 0 days, 0 hours, 1 minute
Last reboot reason : Memory exhausted reboot

Boot image: flash:/wa4300s-boot.bin
Boot image version: 7.1.064, Beta 2104
Compiled Jun 15 2015 18:42:00
System image: flash:/wa4300s-system.bin
System image version: 7.1.064, Beta 2104
Compiled Jun 15 2015 18:42:00

[H3C]probe
[H3C-probe]display system internal version
WTU430 V200R001B64D003
Comware V700R001B64D003
[H3C-probe]

升级后版本：
AC版本：
[H3C]display version
H3C Comware Software, Version 7.1.064, Customer 5107P11
Copyright (c) 2004-2015 Hangzhou H3C Tech. Co., Ltd. All rights reserved.
H3C WX5510E uptime is 0 weeks, 0 days, 1 hour, 20 minutes
Last reboot reason : User soft reboot

Boot image: cfa0:/wx5510-cmw710-boot-e5107p11.bin
Boot image version: 7.1.064, Customer 5107P11
Compiled Aug 04 2015 18:40:33
System image: cfa0:/wx5510-cmw710-system-e5107p11.bin
System image version: 7.1.064, Customer 5107P11
Compiled Aug 04 2015 18:40:33

[H3C]probe
[H3C-probe]display system internal version
H3C WX5510E V500R001B64D004SP11
Comware V700R001B64D004
[H3C-probe]

本体WT1020版本：
[H3C]display version
H3C Comware Software, Version 7.1.064, ESS 2107P11
Copyright (c) 2004-2015 Hangzhou H3C Tech. Co., Ltd. All rights reserved.
H3C WT1020 uptime is 0 weeks, 0 days, 0 hours, 2 minutes
Last reboot reason : Power on

Boot image: flash:/wt1020-boot.bin
Boot image version: 7.1.064, ESS 2107P11
Compiled Aug 04 2015 18:40:33
System image: flash:/wt1020-system.bin
System image version: 7.1.064, ESS 2107P11
Compiled Aug 04 2015 18:40:33

[H3C]probe
[H3C-probe]display system internal version
H3C WT1020 V200R001B64D004SP11
Comware V700R001B64D004
[H3C-probe]

分体WTU430版本：
[H3C]display version
H3C Comware Software, Version 7.1.064, ESS 2107P11
Copyright (c) 2004-2015 Hangzhou H3C Tech. Co., Ltd. All rights reserved.
WTU430 uptime is 0 weeks, 0 days, 0 hours, 15 minutes
Last reboot reason : User soft reboot

Boot image: flash:/wa4300s-boot.bin
Boot image version: 7.1.064, ESS 2107P11
Compiled Aug 04 2015 18:40:33
System image: flash:/wa4300s-system.bin
System image version: 7.1.064, ESS 2107P11
Compiled Aug 04 2015 18:40:33

[H3C-probe]display system internal version
WTU430 V200R001B64D004SP11
Comware V700R001B64D004
[H3C-probe]

4. 升级步骤
1. B64D004SP11的AC版本中打包了AP版本（wa4300s.ipe/wt1020.ipe/wa4300.ipe/wa2610.ipe），升级前确保AC的cfa0:下不存在相同文件名的AP版本文件；

2. 将所有WTU430加入到AP-Group，并关闭版本升级功能
#配置WTU430和WT1020，使之与AC关联；
[H3C]display wlan ap all
Total number of APs: 2
Total number of connected APs: 2
Total number of connected configured APs: 2
Total number of connected auto APs: 0
Total number of connected anchor APs: 0
Maximum AP capacity: 356
Remaining AP capacity: 354

AP information
State : I = Idle, J = Join, JA = JoinAck, IL = ImageLoad
C = Config, DC = DataCheck, R = Run, M = Master, B = Backup

AP name AP ID State Model Serial ID
--------------------------------------------------------------------------------
wt1020 1 R/M WT1020 DPPMWWB123456
wtu430 2 R/M WTU430 219801A0SS9154G00006

[H3C]

# 配置ap-group，并将所有WTU430加入到ap-group（根据Serial-id添加）
[H3C]wlan ap-group ag
[H3C-wlan-ap-group-ag]serial-id 219801A0SS9154G00006
[H3C-wlan-ap-group-ag].....
# 关闭AP版本升级功能
[H3C-wlan-ap-group-ag]firmware-upgrade disable

3. 通过tftp或ftp，将AC版本上传到AC；
<H3C>tftp 70.70.1.10 get wx5510.ipe
Press CTRL+C to abort.
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 175M 100 173M 0 0 1001k 0 0:02:57 0:02:57 --:--:-- 962k
Writing file...Done.
<H3C>dir wx5510.ipe
Directory of cfa0:
0 -rw- 184257536 Aug 12 2015 15:01:42 wx5510.ipe
