T5灯管和LED灯带的属性.doc

规格
A
B
B
C
Ø
Max(mm)
Max(mm)
Min(mm)
Max(mm)
Max(mm)
6W
212
219.2
216.8
226.2
16
8W
288
295
292.7
302.2
16
13W
516
523
520.7
530.6
16
14W
549
556.1
553.7
563.2
16
21W
849
856.1
835.7
863.2
16
28W
1149
1156.1
1153.7
1163.2
16
35W
1449
1456.1
1453.7
1463.2
16

“T"，代表灯管的直径。每一个“T”就是1/8英寸。一英寸等于25.4毫米。那么T5灯管的直径就是16mm。其余的数字对应如下：

T12 直径 38.1 mm

T10 直径 31.8 mm

T8 直径 25.4 mm

T5 直径 16 mm

T4 直径 12.7 mm

T3.5 直径 11.1 mm

T2 直径 6.4 mm

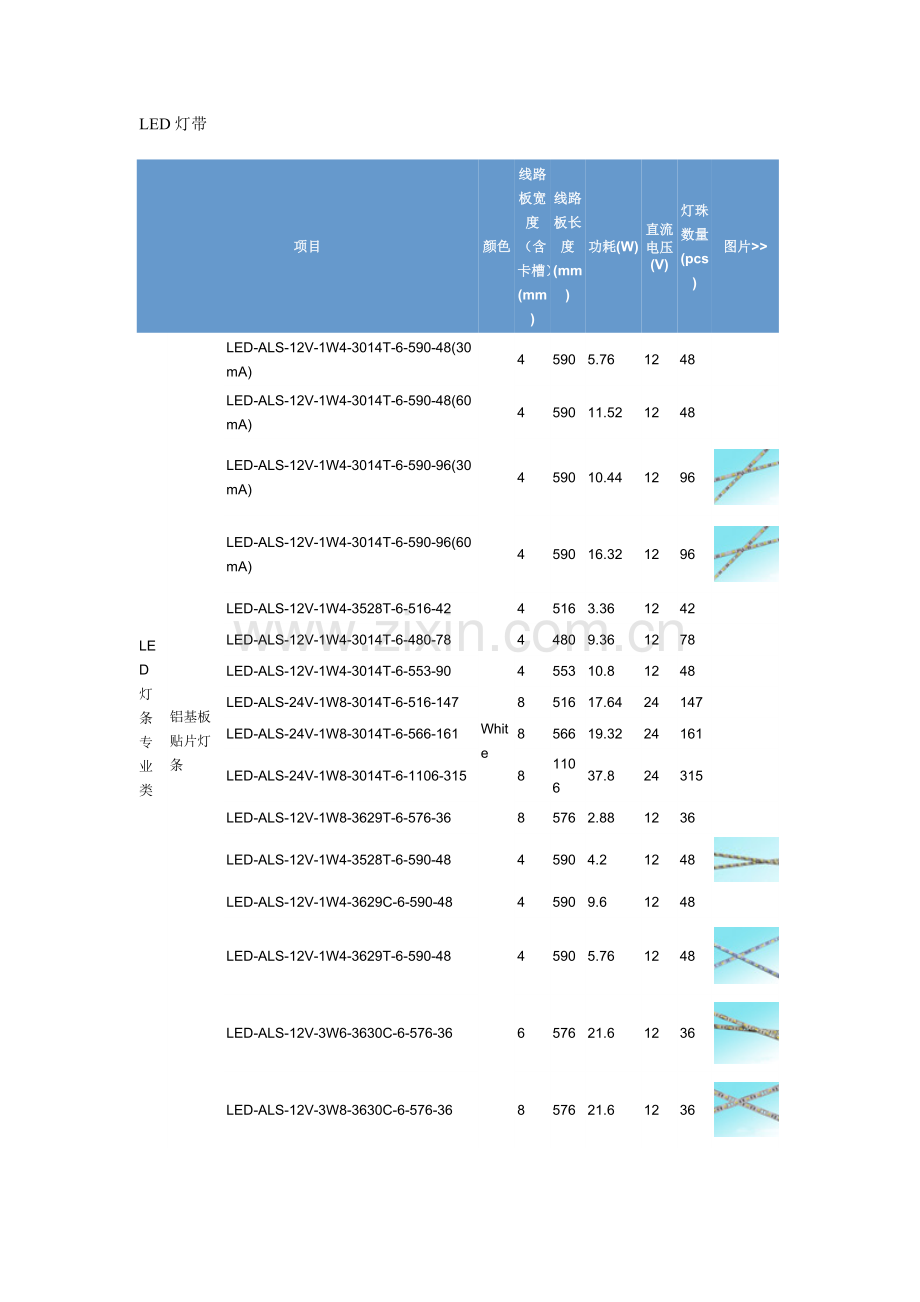

LED灯带

项目
颜色
线路板宽度（含卡槽） (mm)
线路板长度 (mm)
功耗(W)
直流电压(V)
灯珠数量(pcs)
图片>>

LED 灯条专业类

铝基板贴片灯条
LED-ALS-12V-1W4-3014T-6-590-48(30mA)
White
4
590
5.76
12
48

LED-ALS-12V-1W4-3014T-6-590-48(60mA)
4
590
11.52
12
48

LED-ALS-12V-1W4-3014T-6-590-96(30mA)
4
590
10.44
12
96

LED-ALS-12V-1W4-3014T-6-590-96(60mA)
4
590
16.32
12
96

LED-ALS-12V-1W4-3528T-6-516-42
4
516
3.36
12
42

LED-ALS-12V-1W4-3014T-6-480-78
4
480
9.36
12
78

LED-ALS-12V-1W4-3014T-6-553-90
4
553
10.8
12
48

LED-ALS-24V-1W8-3014T-6-516-147
8
516
17.64
24
147

LED-ALS-24V-1W8-3014T-6-566-161
8
566
19.32
24
161

LED-ALS-24V-1W8-3014T-6-1106-315
8
1106
37.8
24
315

LED-ALS-12V-1W8-3629T-6-576-36
8
576
2.88
12
36

LED-ALS-12V-1W4-3528T-6-590-48
4
590
4.2
12
48

LED-ALS-12V-1W4-3629C-6-590-48
4
590
9.6
12
48

LED-ALS-12V-1W4-3629T-6-590-48
4
590
5.76
12
48

LED-ALS-12V-3W6-3630C-6-576-36
6
576
21.6
12
36

LED-ALS-12V-3W8-3630C-6-576-36
8
576
21.6
12
36

LED-ALS-24V-1W8-3014T-6-1180-336(30mA)
8
1180
34.56
24
336

LED-ALS-24V-1W8-3014T-6-1180-336(60mA)
8
1180
80.64
24
336

LED-ALS-24V-1W6-3014T-6-1180-245
6
1180
19.87
24
245

LED-ALS-24V-1W6-3014T-583-98
6
583
9.84
24
98

SMD
灯条
LED-PLS-12V-3W6-5050T-6-400-30
白光
6
400
7.2
12
30

LED-PLS-24V-1W25-3629T-6-400-126
25
400
9.6
24
126

LED-PLS-24V-1W5-3528T-6-1000-102
5
1000
7.68
24
102

贴片软灯条
LED-FLS-12V-1W4-3014T-6-500-60
白光
4
500
7.2
12
60

LED-FLS-12V-1W3-3528T-6-480-48
3
480
3.84
12
48

LED-FLS-12V-1W3-3014T-6-500-48
3
500
5.76
12
48

LED-FLS-12V-1W4-3014T-6-580-60(30mA)
4
580
7.2
12
60

LED-FLS-12V-1W4-3014T-6-580-60(60mA)
4
580
14.4
12
60

LED-FLS-12V-1W4-3014T-6-500-30
4
500
3.6
12
30

LED-FLS-12V-1W4-3528T-6-500-30
4
500
2.4
12
30

LED-FLS-12V-1W4-3629T-6-580-60
4
580
7.2
12
60

LED-FLS-24V-1W3-3014T-6-500-48
3
500
5.76
24
48

LED-FLS-24V-3W5-3528T-6-500-60
5
500
14.4
24
60

LED-FLS-24V-1W5-3014T-6-500-60
5
500
13.2
24
60

LED-FLS-24V-1W8-3528T-6-500-30
8
500
2.4
24
30

LED-FLS-24V-1W10-5050T-6-500-30
10
500
7.2
24
30

LED-FLS-24V-1W10-5050RGB-500-15
10
500
3.6
24
15

LED-FLS-24V-1W10-5050RGB-500-30
10
500
7.2
24
30

LED-FLS-24V-3B10-5050-5000-300
10
5000
30
24
300

LED 灯条专业类　
恒流
LED-ALS-1.5A-1W6-3014T-539-130
白光
6
539
23.47
16.76
130

LED 灯条专业类
Edgemax 铝基板灯条
EDGEMAX-LED-ALS-24V-W23-360-5
白光
23
360
8.4/9.6
24
5

EDGEMAX-LED-ALS-24V-W23-300-5
23
300
8.4/9.6
24
5

EDGEMAX-LED-ALS-24V-W23-470-9
23
470
12.6/14.4
12/24
9

防水Edgemax 铝基板灯条
EDGEMAX-LED-WALS-12V-W43-36-3
43
36
4.2/4.8
12
3

EDGEMAX-LED-WALS-24V-W28-324-5
28
324
8.4/9.6
24
5

EDGEMAX-LED-WALS-24V-W28-382-5
28
382
8.4/9.6
24
5

EDGEMAX-LED-WALS-24V-W28-494-9
28
382
12.6/14.4
24
9

柜台灯条
SMD 灯条
AF71 柜台灯
白光
9
1000
7.68
24
102

SMD 贴片灯条
LED-FLS-12V-1W5-3528T-6-5000-600
白光
5
5000
48
12
600

LED-FLS-12V-1W8-3528T-5000-300
8
5000
24
12
300

LED-FLS-12V-1W10-3528T-5000-300(暖白)
10
5000
24
12
300

LED-FLS-12V-1W10-3528T-5000-300(冷白)
10
5000
24
12
300

LED-FLS-24V-3W10-5050-5000-300
(暖白)
10
5000
72
24
300

LED-FLS-24V-3W10-5050-5000-300
(冷白)
10
5000
72
24
300

LED-FLS-12V-3W10-RGB-5050T-5000-150
10
5000
72
12
300

LED-FLS-12V-3W10-RGB-5050T-5000-300
10
5000
36
12
300

防水贴片软灯条
LED-WFLS-12V-1W8-3528T-5000-300
白光
8
5000
72
12
300

LED-WFLS-12V-1W10-3528T-5000-300(暖白)
10
5000
24
12
300

LED-WFLS-12V-1W10-3528T-5000-300(冷白)
10
5000
24
12
300

LED-WFLS-24V-3W10-5050-5000-300(暖白)
10
5000
72
24
300

LED-WFLS-24V-3W10-5050-5000-300(冷白)
10
5000
72
24
300

LED-WFLS-12V-3W10-RGB-5050T-5000-150
RGB
10
5000
36
12
150

LED-WFLS-12V-3W10-RGB-5050T-5000-300
10
5000
72
12
300
