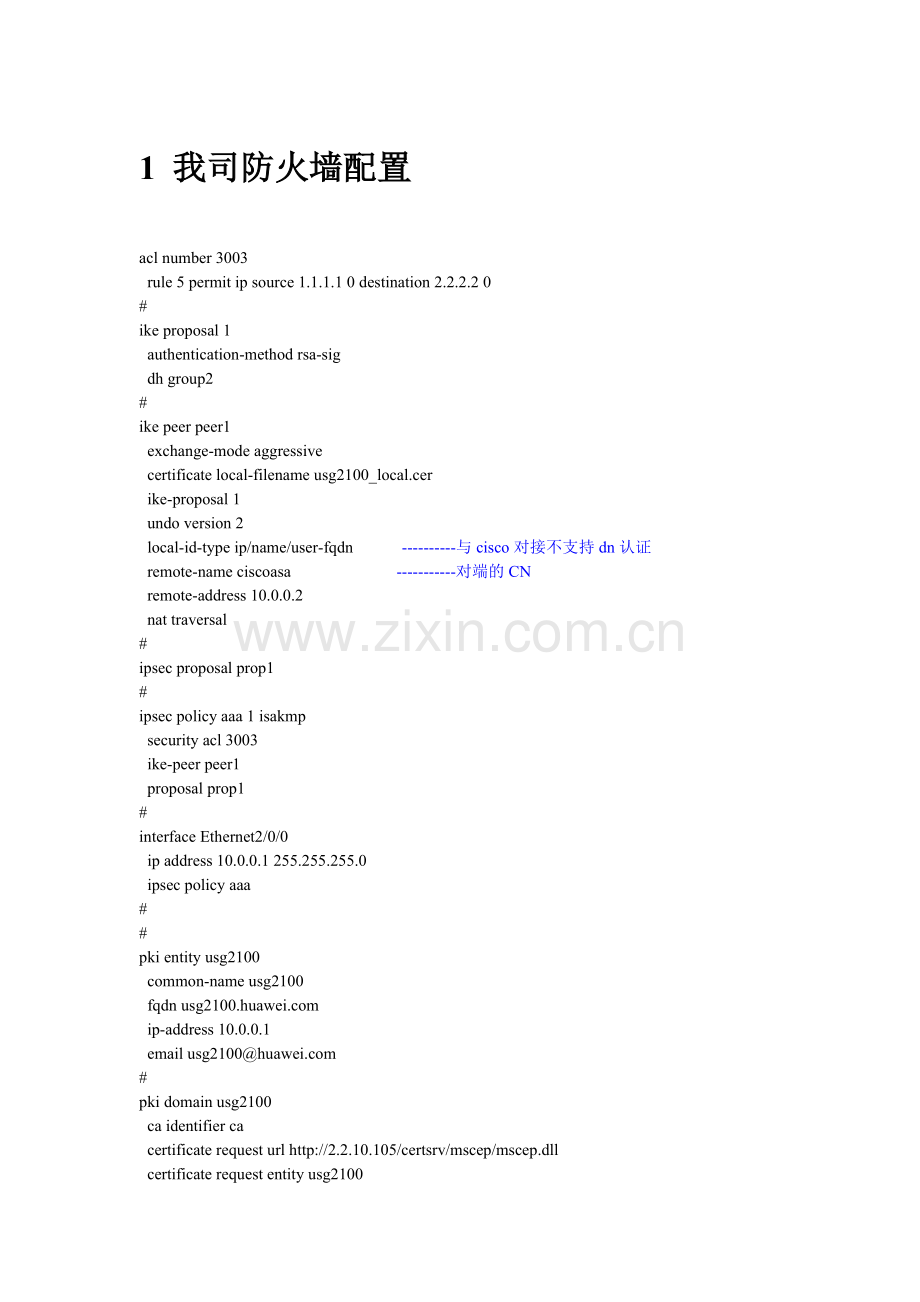

我司防火墙与cisco asa 5510对接配置指导.doc

1 我司防火墙配置

acl number 3003
rule 5 permit ip source 1.1.1.1 0 destination 2.2.2.2 0
#
ike proposal 1
authentication-method rsa-sig
dh group2
#
ike peer peer1
exchange-mode aggressive
certificate local-filename usg2100_local.cer
ike-proposal 1
undo version 2
local-id-type ip/name/user-fqdn ----------与cisco对接不支持dn认证
remote-name ciscoasa -----------对端的CN
remote-address 10.0.0.2
nat traversal
#
ipsec proposal prop1
#
ipsec policy aaa 1 isakmp
security acl 3003
ike-peer peer1
proposal prop1
#
interface Ethernet2/0/0
ip address 10.0.0.1 255.255.255.0
ipsec policy aaa
#
#
pki entity usg2100
common-name usg2100
fqdn
ip-address 10.0.0.1
email usg2100@
#
pki domain usg2100
ca identifier ca
certificate request url http://2.2.10.105/certsrv/mscep/mscep.dll
certificate request entity usg2100
crl scep
certificate request polling interval 2
crl update-period 1
crl auto-update enable
crl url http://2.2.10.105/certsrv/mscep/mscep.dll
#
2 CISCO配置
2.1 设备型号
Hardware: ASA5510, 256 MB RAM, CPU Pentium 4 Celeron 1600 MHz
Cisco Adaptive Security Appliance Software Version 8.4(1)
版本不同将导致配置略有差别。

2.2 配置数字证书（离线方式）
2.2.1 创建密钥对;
系统有默认的rsa密钥对，名字为Default-RSA-Key；再次创建将覆盖默认密钥对
ciscoasa(config)# crypto key generate rsa
WARNING: You have a RSA keypair already defined named <Default-RSA-Key>.

Do you really want to replace them? [yes/no]: y
Keypair generation process begin. Please wait...

2.2.2 申请CA证书
创建trustpoint
ciscoasa(config)# crypto ca trustpoint ASDM_TrustPoint1 --进入视图
ciscoasa(config-ca-trustpoint)# subject-name CN=ciscoasa --配置主题
ciscoasa(config-ca-trustpoint)# enrollment terminal --离线方式，命令行输入整数
离线申请ca证书
ciscoasa(config)# crypto ca authenticate ASDM_TrustPoint1
Enter the base 64 encoded CA certificate.
End with the word "quit" on a line by itself ---粘贴base64格式ca证书到命令行
-----BEGIN CERTIFICATE-----

MIIDajCCAlKgAwIBAgIQC1AATG77kIpMGLCMyhkkjDANBgkqhkiG9w0BAQUFADAR

MQ8wDQYDVQQDEwZjYS1kdHQwHhcNMTIwMzA2MTkxNDM0WhcNMTcwMzA2MTkyNDA1

WjARMQ8wDQYDVQQDEwZjYS1kdHQwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEK

AoIBAQCHOE1I0bgaF4WfHZErjaf8Et96xHaZuQxA3DPwO6jIDbXiBdSM4z+OYY+f

zz/M1zN/3M1O3az24hEiGnr1hOch4q0Ie466hjV9rB8znbcIN5NAUhBClcAbe+en

Fz1uWjy7e6lRQo+h8E8Z3kyciOX7qQ9km4YI1bOfVnTzff87AGAOunLMkPnj3QHH

852XGz87195OF6n+lc5wK2QLW6hVWoocBwlAZ0J16brXON7CXfBH+wBUn+C+gTMq

zQQyDvZIe3IfHkbGm4Cbtn669BJrXg1f+y19QPeiEjOMi+8UHYPctPJE93stWvVv

lhJ2CuSVvTcaXb/iycBk4EJX5HzXAgMBAAGjgb0wgbowCwYDVR0PBAQDAgGGMA8G

A1UdEwEB/wQFMAMBAf8wHQYDVR0OBBYEFFLzw1X1qS/+ZN/fjwGnX9bHwzCFMGkG

A1UdHwRiMGAwXqBcoFqGKmh0dHA6Ly9odWF3ZWktY2Fyb290L0NlcnRFbnJvbGwv

Y2EtZHR0LmNybIYsZmlsZTovL1xcaHVhd2VpLWNhcm9vdFxDZXJ0RW5yb2xsXGNh

LWR0dC5jcmwwEAYJKwYBBAGCNxUBBAMCAQAwDQYJKoZIhvcNAQEFBQADggEBAIb2

J/pmMW63167PznbHxqwhcNKh/9JljeYfED3o9uqkALd1U02A/Bx6gl3DxAHhatqr

5Tc4sI7BJPOhKRs0cUDnveT4Oq+riED/OZ+pT4q1BUQHVTkqtdshOagvVwPXw9nI

QcoduaJ7gSDX3tEpxMhGXi4vBvR8h4PL9ZqVCqJlQoiB/aj0ZIkqAGolIlfFW+iP

Ees61qj4sRv19Wt0RHFwQmX1l3ECfM4j3c2g7VZYU7CudIQkoUUtZf2tEWvrzJ6k

eFcl2zbXL833RrD6aBdQttfB989juvsorSO9tjf066s6ljzyZB/HEFeczC/tyKzU

IzcNfkOqXIId5+jc7K8=

-----END CERTIFICATE-----
quit

INFO: Certificate has the following attributes:
Fingerprint: 2ba54dac 447a907b 933e1208 d00e1415
Do you accept this certificate? [yes/no]: y

Trustpoint CA certificate accepted.

% Certificate successfully imported
注：离线方式时，如果是证书链方式，创建新的trustpoint，逐级导入CA证书。每个trustpoint对应一个CA证书。
2.2.3 申请本地证书
ciscoasa(config)# crypto ca enroll ASDM_TrustPoint1
% Start certificate enrollment ..
% The subject name in the certificate will be: CN=ciscoasa

% The fully-qualified domain name in the certificate will be: ciscoasa

% Include the device serial number in the subject name? [yes/no]: yes

% The serial number in the certificate will be: JMX1350L0F5

Display Certificate Request to terminal? [yes/no]: yes
Certificate Request follows:
-----BEGIN CERTIFICATE REQUEST-----
MIIBtjCCAR8CAQAwQDERMA8GA1UEAxMIY2lzY29hc2ExKzASBgNVBAUTC0pNWDEz
NTBMMEY1MBUGCSqGSIb3DQEJAhYIY2lzY29hc2EwgZ8wDQYJKoZIhvcNAQEBBQAD
gY0AMIGJAoGBAKhPgtFx1JRLaBxniWbmNH0iyiKyop+qSIIreAzIeDeDYjmaHxzv
fXEa4nJ/ph1xSzdOUpIdoKvMmKrOim1bUOEMLrZKQv4zrnX1xDHpUgSqNoZ0lpxi
g9vI+Pt/HY2LXPYoMQwPiRqKvVhAajbRuJ1PN3mPMHlLyPMgL3jXS0fBAgMBAAGg
NjA0BgkqhkiG9w0BCQ4xJzAlMA4GA1UdDwEB/wQEAwIFoDATBgNVHREEDDAKgghj
aXNjb2FzYTANBgkqhkiG9w0BAQUFAAOBgQBMXsz51KzQpI8AERyRBfeU3o7QOip+
Fe7+s/h4y0KcC//6q6HYBNgZ0/1K6v/CdDVLH+Ukjv6jwz/+1cNx76eAurRMWcm1
JC0mCMQm+dWz4DAgmN1MffVsOuySv89xYalmu9DZoWEx4CKG/MaN2dx4s/J7zuSQ
Ht8UWbd1EFCV2A==
-----END CERTIFICATE REQUEST-----

Redisplay enrollment request? [yes/no]: n
2.2.4 导入本地证书
ciscoasa(config)# crypto ca import ASDM_TrustPoint1 certificate

% The fully-qualified domain name in the certificate will be: ciscoasa

Enter the base 64 encoded certificate.
End with the word "quit" on a line by itself

-----BEGIN CERTIFICATE-----

MIIDyjCCArKgAwIBAgIKYSkadgAAAAAADzANBgkqhkiG9w0BAQUFADARMQ8wDQYD

VQQDEwZjYS1kdHQwHhcNMTIwMzI5MTgzMzI3WhcNMTMwMzI5MTg0MzI3WjBCMRQw

EgYDVQQFEwtKTVgxMzUwTDBGNTEXMBUGCSqGSIb3DQEJAhMIY2lzY29hc2ExETAP

BgNVBAMTCGNpc2NvYXNhMIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQCoT4LR

cdSUS2gcZ4lm5jR9IsoisqKfqkiCK3gMyHg3g2I5mh8c731xGuJyf6YdcUs3TlKS

HaCrzJiqzoptW1DhDC62SkL+M6519cQx6VIEqjaGdJacYoPbyPj7fx2Ni1z2KDEM

D4kair1YQGo20bidTzd5jzB5S8jzIC9410tHwQIDAQABo4IBdTCCAXEwDgYDVR0P

AQH/BAQDAgWgMBMGA1UdEQQMMAqCCGNpc2NvYXNhMB0GA1UdDgQWBBQj50rOJtog

z/oY4KCGMfLHjgM1LzAfBgNVHSMEGDAWgBRS88NV9akv/mTf348Bp1/Wx8MwhTBp

BgNVHR8EYjBgMF6gXKBahipodHRwOi8vaHVhd2VpLWNhcm9vdC9DZXJ0RW5yb2xs

L2NhLWR0dC5jcmyGLGZpbGU6Ly9cXGh1YXdlaS1jYXJvb3RcQ2VydEVucm9sbFxj

YS1kdHQuY3JsMIGeBggrBgEFBQcBAQSBkTCBjjBEBggrBgEFBQcwAoY4aHR0cDov

L2h1YXdlaS1jYXJvb3QvQ2VydEVucm9sbC9odWF3ZWktY2Fyb290X2NhLWR0dC5j

cnQwRgYIKwYBBQUHMAKGOmZpbGU6Ly9cXGh1YXdlaS1jYXJvb3RcQ2VydEVucm9s

bFxodWF3ZWktY2Fyb290X2NhLWR0dC5jcnQwDQYJKoZIhvcNAQEFBQADggEBAHuX

xz3X7fcwx1dNHnONNt+GvO6ccjgJGNP7sMMRiOqTxqaVlqKNluxyzmZVHKJwuaxM
