GDL系列立式多级管道离心泵安装尺寸图及价格.doc

资源描述

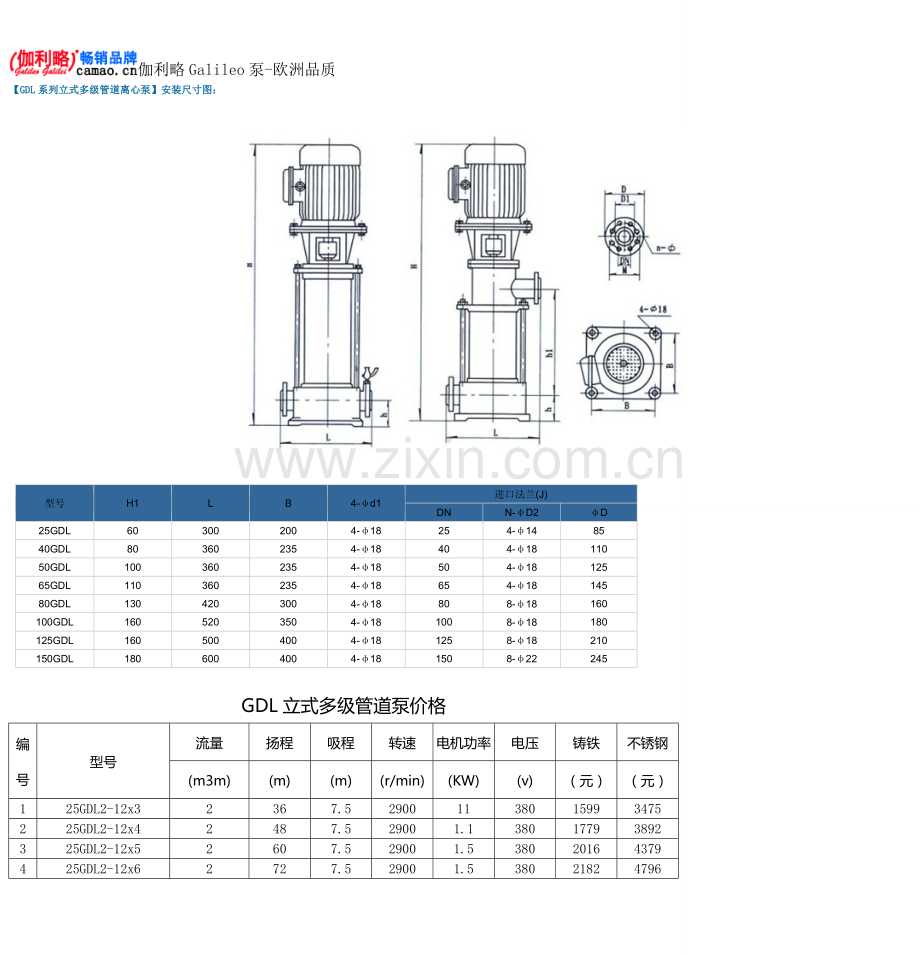

伽利略Galileo泵-欧洲品质【GDL系列立式多级管道离心泵】安装尺寸图：型号 H1 L B 4-φd1 进口法兰(J) DN N-φD2 φD 25GDL 60 300 200 4-φ18 25 4-φ14 85 40GDL 80 360 235 4-φ18 40 4-φ18 110 50GDL 100 360 235 4-φ18 50 4-φ18 125 65GDL 110 360 235 4-φ18 65 4-φ18 145 80GDL 130 420 300 4-φ18 80 8-φ18 160 100GDL 160 520 350 4-φ18 100 8-φ18 180 125GDL 160 500 400 4-φ18 125 8-φ18 210 150GDL 180 600 400 4-φ18 150 8-φ22 245 GDL立式多级管道泵价格编号型号流量扬程吸程转速电机功率电压铸铁不锈钢 (m3m) (m) (m) (r/min) (KW) (v) （元）（元） 1 25GDL2-12x3 2 36 7.5 2900 11 380 1599 3475 2 25GDL2-12x4 2 48 7.5 2900 1.1 380 1779 3892 3 25GDL2-12x5 2 60 7.5 2900 1.5 380 2016 4379 4 25GDL2-12x6 2 72 7.5 2900 1.5 380 2182 4796 5 250DL2-12x7 2 84 7.5 2900 2.2 380 2419 5282 6 25GDL2-12x8 2 96 7.5 2900 2.2 380 2599 5699 7 25GDL2-12x9 2 108 7.5 2900 2.2 380 2780 6116 8 25GDL2-12xl0 2 120 7.5 2900 3 380 3211 6811 9 25GDL2-12x11 2 132 7.5 2900 3 380 3406 7298 10 25GDL2-12x12 2 144 7.5 2900 3 380 3572 7784 11 25GDL2-12x13 2 156 7.5 2900 4 380 3920 12 25GDL2-12x14 2 168 7.5 2900 4 380 4087 13 25GDL2-12x15 2 180 7.5 2900 4 380 4253 14 25GDL4-11x3 4 33 7.5 2900 1.1 380 1626 3545 15 25GDL4-11x4 4 44 7.5 2900 1.5 380 1849 4031 16 25GDL4-11x5 4 55 7.5 2900 2.2 380 2085 4518 17 25GDL4-11x6 4 66 7.5 2900 22 380 2252 4935 18 25GDL4-11x7 4 77 7.5 2900 3 380 2641 5630 19 25GDL4-11×8 4 88 7.5 2900 3 380 2808 6116 20 25GDL4-11×9 4 99 7.5 2900 3 380 2989 6603 21 25GDL4-11x10 4 110 7.5 2900 4 380 3364 7298 22 25GDL4-11x11 4 121 7.5 2900 4 380 3545 7784 23 25GDL4-11x12 4 132 7.5 2900 4 380 3739 8340 24 25GDL4-11x13 4 143 7.5 2900 4 380 3962 25 25GDL4-11x14 4 154 7.5 2900 5.5 380 4601 26 25GDL4-11x15 4 165 7.5 2900 5.5 380 4782 27 40GDL6-12x3 6 36 7.5 2900 1.5 380 1793 3892 型号流量扬程吸程转速电机功率电压铸铁不锈钢 (m3m) (m) (m) (r/min) (KW) (v) （元）（元） 28 40GDL6-12x4 6 48 7.5 2900 2.2 380 2043 4448 29 40GDL6-12x5 6 60 7.5 2900 2.2 380 2252 4935 30 40GDL6-12x6 6 72 7.5 2900 3 380 2641 5699 31 40GDL6-12x7 6 84 7.5 2900 3 380 2850 6047 32 40GDL6-12x8 6 96 7.5 2900 4 380 3169 6811 33 40GDL6-12x9 6 108 7.5 2900 4 380 3378 7367 34 40GDL6-12x10 6 120 7.5 2900 4 380 3572 7923 35 40GDL6-12x11 6 132 7.5 2900 5.5 380 4226 8966 36 40GDL6-12x12 6 144 7.5 2900 5.5 380 4490 9661 37 40GDL6-12x13 6 156 7.5 2900 7.5 380 3433 38 40GDL6-12x14 6 168 7.5 2900 7.5 380 5018 39 40GDL6-12x15 6 180 7.5 2900 7.5 380 5213 40 50GDL6-15x2 12 30 7.5 2900 2.2 380 2349 5143 41 50GDL6-15x3 12 45 7.5 2900 3 380 2794 5977 42 50GDL6-15x4 12 60 7.5 2900 4 380 3155 6742 43 50GDL12-15x5 12 75 7 2900 5.5 380 3572 7715 44 50GDL12-15x6 12 90 7 2900 5.5 380 3795 8340 45 50GDL12-15x7 12 105 7 2900 7.5 380 4087 9105 46 50GDL12-15x8 12 120 7 2900 7.5 380 4309 9800 47 50GDL12-15x9 12 135 7 2900 11 380 5463 11537 48 50GDL12-15xl0 12 150 7 2900 11 380 5685 12302 49 50GDL18-15x2 18 30 7 2900 3 380 2488 5421 50 50GDL18-15x3 18 45 7 2900 4 380 2850 6186 51 50GDL18-15x4 18 60 7 2900 5.5 380 3419 7298 52 50GDL18-15x5 18 75 7 2900 7.5 380 3697 8132 53 50GDL18-15x6 18 90 7 2900 7.5 380 3934 8896 54 50GDL18-15x7 18 105 7 2900 11 380 5074 10703 55 50GDL18-15x8 18 120 7 2900 11 380 5296 11468 型号流量扬程吸程转速电机功率电压铸铁不锈钢 (m3m) (m) (m) (r/min) (KW) (v) （元）（元） 56 50GDL18-15x9 18 135 7 2900 15 380 5657 12371 57 50GDL18-15x10 18 150 7 2900 15 380 5880 13275 58 65GDL24-12x2 24 24 6 2900 3 380 2641 5699 59 65GDL24-12x3 24 36 6 2900 4 380 3044 6603 60 65GDL24-12x4 24 48 6 2900 5.5 380 3642 7784 61 65GDL24-12x5 24 60 6 2900 7.5 380 4031 8757 62 65GDL24-12x6 24 72 6 2900 7.5 380 4295 9591 63 65GDL24-12x7 24 84 6 2900 11 380 5491 11676 64 65GDL24-12x8 24 96 6 2900 11 380 5769 12580 65 65GDL24-12x9 24 108 6 2900 15 380 6144 13414 66 65GDL24-12x10 24 120 6 2900 15 380 6408 14317 67 65GDL24-12x11 24 132 6 2900 15 380 6881 15221 68 65GDL24-12x12 24 144 6 2900 18.5 380 7395 16124 69 80GDL36-12x2 36 24 5.5 2900 4 380 3239 6881 70 80GDL36-12x3 36 36 5.5 2900 5.5 380 3836 8132 71 80GDL36-12x4 36 48 5.5 2900 7.5 380 4212 9174 72 80GDL36-12x5 36 60 5.5 2900 11 380 5435 11537 73 80GDL36-12x6 36 72 5.5 2900 11 380 5741 12510 74 80GDL36-12x7 36 84 5.5 2900 15 380 6199 13553 75 80GDL36-12x8 36 96 5.5 2900 15 380 6477 14526 76 80GDL36-12x9 36 108 5.5 2900 18.5 380 6978 15707 77 80GDL36-12x10 36 120 5.5 2900 18.5 380 7298 16680 78 80GDL54-14x2 54 28 5 2900 7.5 380 3767 7993 79 80GDL54-14x3 54 42 5 2900 11 380 5018 10564 80 80GDL54-14x4 54 56 5 2900 15 380 5435 11815 81 80GDL54-14x5 54 70 5 2900 18.5 380 5949 13136 82 80GDL54-14x6 54 84 5 2900 18.5 380 6255 14248 83 80GDL54-14x7 54 98 5 2900 22 380 7131 15846 型号流量扬程吸程转速电机功率电压铸铁不锈钢 (m3m) (m) (m) (r/min) (KW) (v) （元）（元） 84 80GDL54-14x8 54 112 5 2900 30 380 8854 18501 85 80GDL54-14x9 54 126 5 2900 30 380 9244 19599 86 80GDL54-14x10 54 140 5 2900 37 380 9939 21350 87 100GDL72-14x2 72 28 45 2900 11 380 5671 10842 88 100GDL72-14x3 72 42 45 2900 15 380 6213 12232 89 100GDL72-14x4 72 56 45 2900 185 380 7200 13900 90 100GDL72-14x5 72 70 45 2900 22 380 8785 15985 91 100GDL72-14x6 72 84 45 2900 30 380 9188 19460 92 100GDL72-14x7 72 98 45 2900 30 380 9188 21545 93 100GDL72-14x8 72 112 45 2900 37 380 10300 24353 94 100GDL72-14x9 72 126 45 2900 37 380 10773 26452 95 100GDL72-14xl。 72 140 45 2900 45 380 12580 30094 96 125GDL100-20x2 100 40 4 2900 185 380 8771 97 125GDL100-20x3 100 60 4 2900 30 380 10953 98 125GDL100-20x4 100 80 4 2900 37 380 12079 99 125GDL100-20x5 100 100 4 2900 45 380 14095 100 125GDL100-20x6 100 120 4 2900 55 380 16138 101 125GDL100-20x7 100 140 4 2900 75 380 19224 102 125GDL100-20x8 100 160 4 2900 75 380 19877 103 125GDL100-20x9 100 180 4 2900 75 380 20544 104 125GDL100-20xl0 100 200 4 2900 90 380 24297 105 150GDL160-20x2 160 40 4 2900 30 380 11092 106 150GDL160-20x3 160 60 4 2900 37 380 12149 107 150GDL160-20x4 160 80 4 2900 55 380 15846 108 150GDL160-20x5 160 100 4 2900 75 380 18946 109 150GDL160-20x6 160 120 4 2900 75 380 19460 110 150GDL160-20x7 160 140 4 2900 90 380 22852 111 150GDL160-20x8 160 160 4 2900 110 380 26410 型号流量扬程吸程转速电机功率电压铸铁不锈钢 (m3m) (m) (m) (r/min) (KW) (v) （元）（元） 112 150GDL160-20x9 160 180 4 2900 110 380 29190 113 150GDL160-20xl0 160 200 4 2900 132 380 37530
