公司人事考勤工资管理系统及消费防盗系统方案需求分析.pptx

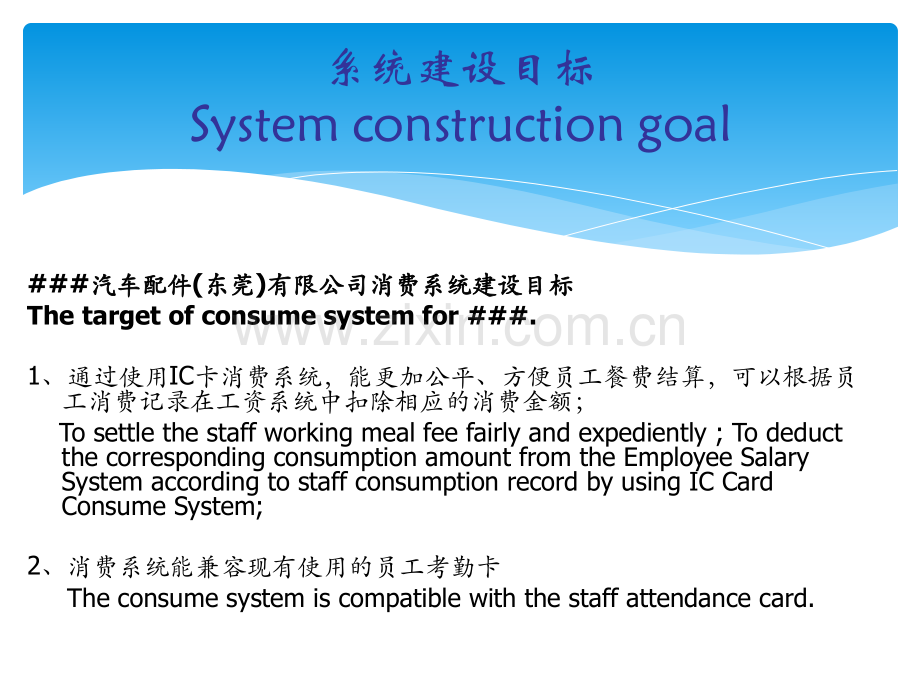

某公司消费系统 consumption system#汽车配件汽车配件(东莞东莞)有限公司消费系统建设目标有限公司消费系统建设目标 The target of consume system for#.1、通过使用IC卡消费系统，能更加公平、方便员工餐费结算，可以根据员工消费记录在工资系统中扣除相应的消费金额；To settle the staff working meal fee fairly and expediently;To deduct the corresponding consumption amount from the Employee Salary System according to staff consumption record by using IC Card Consume System;2、消费系统能兼容现有使用的员工考勤卡 The consume system is compatible with the staff attendance card.系统建设目标System construction goal消费模式消费模式计次消费，无需充值。Consumption Mode:record for frequency without prepaid消费窗口设置消费窗口设置:设置A、B两个消费窗口。Consumption Window Setting:A and B消费机设置消费机设置:每个消费窗口设置一台消费机Consumption Equipment setting:1 for 1 window.消费时段设置：消费时段设置：每天设置早（6:30：00-9：00）、中（11：00-13：00）、晚（17：00-19：00）、夜宵（23：00-23：59，不能跨零点）4个消费时段，每个消费时段只能打卡一次，不在消费时段内刷卡报警。Spending time Settings:Set up every day breakfast (at 6:30:00-9:00),lunch(at 11:00-13:00),dinner(at 17:00-19:00),food taken late at night(at 23:00-23:59),cannot cross zero 4 consumption time,every time consumption only clock in once,not to pay by credit card consumption period report to the police.非法卡提示非法卡提示:所有没有消费权限的卡去食堂就餐时，消费机会提示非法卡，并发出异常声音。Illegal card tips：All the no access card to the canteen,consumption opportunity illegal card,and abnormal sound.消费数据查询、金额结算：消费数据查询、金额结算：系统支持随时查询消费数据明细，自动统计每个员工的消费次数，结合餐费标准计算实际消费金额并可以直接在工资系统内自动扣除，同时也可以随时输出各类消费报表。Consumption data query and amount and settlement:System support query consumption data details at any time,automatic statistics and the consumption of each employee number combination meal standard to calculate the real consumption amount and can be directly in the salary deducted automatically from the system,at the same time also can output various consumer reports at any time.消费系统简介Consumption system introduction消费流程说明Consumption process instructions否NHR系统服务器系统服务器HR system serverA消费机 Machine AB消费机 Machine B刷卡消费 Pay by card判断是否非法卡Determine whether illegal card下载消费名单 Download the list of consumption报警提示PRE是Y正常消费Normality consumption 读取消费数据 Read the consumption date消费数据纳入员工工资结算Consumption data included in employee wages and settlement消费报表消费报表范例范例1 1Consumer Consumer reports reports Example 1Example 1消费个人汇总表消费个人汇总表Personal consumption summary table消费报表消费报表范例范例2 2Consumer Consumer reports reports Example 2Example 2消费个人汇总表消费个人汇总表Personal consumption summary tablen功能参数功能参数Function parameters：n数码管和液晶双重显示，操作方便，显示直观；数码管和液晶双重显示，操作方便，显示直观；nDigital control and LCD dual display for easy operation and Digital control and LCD dual display for easy operation and intuitive display;intuitive display;n有定值、不定值、编号菜单等多种消费模式，方便消费操作有定值、不定值、编号菜单等多种消费模式，方便消费操作n There are several modes of consumption value,undefined,number There are several modes of consumption value,undefined,number menus,etc.,to facilitate consumer operations.menus,etc.,to facilitate consumer operations.n最大消费限额和每天消费次数限制，提高用户卡安全度；最大消费限额和每天消费次数限制，提高用户卡安全度；nThe maximum number of daily spending limit and restrict The maximum number of daily spending limit and restrict consumption,improve user card safety;consumption,improve user card safety;n系统发卡量大，可达系统发卡量大，可达100100万万 nSystem of issuing large,up to 100 millionSystem of issuing large,up to 100 millionn记录存储容量大，最大可存储记录存储容量大，最大可存储4 4万条；万条；nMemory capacityMemory capacity：The maximum number can save 40000 largest The maximum number can save 40000 largest consumption dataconsumption data；n内置备用电池，可工作内置备用电池，可工作6868小时；小时；n Built-in backup battery,can work for 6-8 hours;Built-in backup battery,can work for 6-8 hours;n支持支持Mifare ONEMifare ONE和和Mifare LightMifare Light两种卡，支持密码操作两种卡，支持密码操作n The card type The card type：MifareONE card and Mifare Light card,Support MifareONE card and Mifare Light card,Support for cryptographic operationsfor cryptographic operationsn可以设置多达可以设置多达4 4段的消费时间段，非消费时段打卡无效；段的消费时间段，非消费时段打卡无效；n You can set up to four segments of the consumer time,non-You can set up to four segments of the consumer time,non-consumption time clock is invalid;consumption time clock is invalid;消费系统相关硬件Consumption system related hardwareQET-2009消费机性能参数性能参数performance parameter：n电源power supply：电压voltage AC220V；功率power 5W；n工作环境work environment：温度temperature：0 70；湿度humidity：10%90%；n读卡类型The card type：MifareONE card and Mifare Light card n工作频率Working frequency：13.56MHz n读写距离 Opeartting Distance：25mm；n读写时间Read-write waiting time：=1秒 secondn存储容量:最大可保存4万条消费数据nMemory capacity：The maximum number can save 40000 largest consumption data；n黑、白名单管理数量The number of black and white list management：34000Pcsn通讯方式Communication mode：TCP/IP；消费系统相关硬件Consumption system related hardwareQET-2009消费机功能特点指纹容量：8000枚记录容量：200000条算法：ZKFingerVX9.0/10.0高速双引擎指纹识别算法硬件平台：ZEM510操作系统：Linux通讯方式：RS232、RS485、TCP/IP、USBDevice、USBHost考勤速度：=2秒误判率：=0.0001%拒绝率：=0.01%LED：红、绿LCD：3.5寸6万5千色高清彩屏采集器：中控新款超强膜指纹仪使用温度：0-45使用湿度：20%-80%语言选择：简体中文尺寸：190*140*46（mm）FeaturesFingerprintcapacity:8,000RecordCapacity:200,000Algorithm:ZKFingerVX9.0/10.0high-speedtwin-enginefingerprintrecognitionalgorithmHardwareplatform:ZEM510OperatingSystem:LinuxCommunication:RS232,RS485,TCP/IP,USBDevice,USBHostAttendancespeed:=2secondsFAR:=0.0001%Rejectionrate:=0.01%LED:red,greenLCD:3.5-inch65Kcolorhigh-definitioncolorscreenCollector:newsuperfilmfingerprintdevicecontrolOperatingtemperature:0-45Humidity:20%-80%Language:SimplifiedChineseSize:190*140*46(mm)指纹考勤相关硬件Fingerprintattendancerelatedhardware功能特点ZKFingerVX9.0/10.0高速双引擎识别算法在系统可靠性、准确性、识别速度都有明显提高，可以在2秒内处理3000枚好坏指纹均匀分布的指纹；内置强大美国Intel32位嵌入式指纹识别模块(ZEM510)，很容易集成到各种系统中；基于主板的嵌入开发系统（EDK）是一个多功能的通用嵌入式Linux脱机指纹产品开发平台，能够满足大多数基于指纹的嵌入式市场需求；新加指纹增强模，全面提升指纹识别质量；支持射频卡等卡类设备输入和输出，可配置ID卡、Mifare卡多种方式考勤；能够实现休眠模式功能、软件控制关机，设置定时开机；采集器“增强膜”，提高图像质量，接受干、湿手指，支持手指360度识别，易用性能良好，主板设计长时间24小时不间断运行。FeaturesZKFinger VX9.0/10.0-speed twin-engine recognition algorithms have significantly improved system reliability,accuracy,recognition speed,can handle 3,000 fingerprint fingerprint bad uniformly distributed within two seconds;Built-strong U.S.Intel32 bit embedded fingerprint identification module(ZEM510),it is easy to integrate with various systems;Based on embedded development system(EDK)is a versatile product line fingerprint common embedded Linux development platform that can meet most of the fingerprint-based embedded market demand;Added fingerprint enhancement mode,to enhance the quality of fingerprint identification;support RF card device input and output,configurable ID card,Mifare card attendance in many ways;Sleep mode function enables the software controlled shutdown,set the start time;Collector enhanced membrane,improve image quality,accepts dry,wet fingers,support finger 360 degree identification,easy to use good performance motherboard designed to run 24 hours a day for a long time.指纹考勤相关硬件Fingerprintattendancerelatedhardware说明：所有消费，指纹设备均采用TCP/IP通信方式，数据直接读入到HR系统服务器；PS:All the Consumptionand Fingerprint system will adopt TCP/IP model,all the data will be read by HR System directly.系统硬件架构Hard System Structure服务器：使用现有HR系统服务器即可；Server:UsingtheexistingHRsystemserver网络及电源：每个消费设备终端均需要配置公司内网端口及220V电源插座Networkandpower:Eachconsumerdevicesterminalneedtoconfigurethenetworkportand220vpowersocket.指纹机：指纹机标配无后备电源，断电无法工作，需后备电源则需另外加装，指纹机安装位置不能有太阳直射。Fingerprint:fingerprintmachinecomesstandardwithnoback-uppower,powerdoesnotwork,youneedtoinstalladditionalbackuppowerneeds,fingerprintmachineinstallationlocationcannothavedirectsunlight.系统运行环境Operating system environment1、指纹打卡相对较慢(Ic打卡一个所需0.5秒，指纹打卡所需34秒)，其数据容量较大，相同的容量要IC卡存量比指纹存量要多。2、指纹打卡成本相对高过于IC卡，IC卡需要4台机，指纹打卡机可能需要810台。3、指纹打卡在食堂的环境下最容易出现故障，尤其是潮湿天气，必将势得其反。4、指纹打卡在手指干燥、指纹不干净、指纹处脱皮及天气寒冷容易出现感应失灵。5、新员工入职需用录指纹，相对比较麻烦。综上所述，指纹卡仅是方便于Office的上下班的打卡，工厂及食堂就餐不建议指纹卡。1.ComparedwithpunchingonIDcard,fingerprintpunchingneedmorehugedatabasetosupporttheinvisualoperationthantheidentityinformationstored,moreover,punchingwithfingerprintisslowerinpractice.2.FingerprintcostthaninICcard，ICcardsrequirefourmachines,fingerprintpunchcardmachinesmayrequire8to10units3.undersomeunusualcircumstancessuchasstaffcanteen,thereishumidandoilyforfingerprintpunchdevicetoworkwell.Especiallyonwetdays,punchdevicewillnotworknormally.4.sensingsystemmaybeoutofworkwhenworkersfingersarenotingoodcondition,suchaswinkled,dirty.5.theregistrationfornewworkerswillbetroublesomeinthatthedatabaseupdatecannotcatchonimmediately.Aboveall,punchdevicesarejustavailableforpunchinginandout.Inindustriesandstaffcanteen,thosedevicesshouldntbeadapted.分析指纹卡与IC卡之利弊ToanalyzetheadvantagesanddisadvantagesoffingerprintcardandICcard某某公司某某公司防盗报警系统（操作显示键盘）防盗报警系统（操作显示键盘）Burglar alarm system(operate according to the keyboard)#汽车配件汽车配件(东莞东莞)有限公司防盗报警系统（操作显示键盘）建有限公司防盗报警系统（操作显示键盘）建设目标：设目标：GCN Security alarm system(operation display keyboard)construction goal 通过键盘指示灯的信号来反应防区的状况，如有异常（某扇门通过键盘指示灯的信号来反应防区的状况，如有异常（某扇门被打开）键盘会显示有颜色的灯来反应防区号（对应门号）被打开）键盘会显示有颜色的灯来反应防区号（对应门号）Signal through the keyboard lights to reflect the status of the zone,if unusual(a door is opened)keyboard will display a colored light to the reaction zone number(corresponding to the Gate)系统建设目标System construction goalHR需时时防控防盗状态，一旦人员非法进入楼顶，防盗状态设备将立即出现异常提醒，但HR人员上班时为周一至周五8：00AM-17：30PM，故需要把防盗状态设备一分为二，一旦人员非法进入楼顶，上班期间HR人员及保安室第一时间同时知道，HR休息时间，保安室也需要第一时间了解状况并通知HR。HRtheftpreventionneedtoalwaysstatethatonceillegallyenteringtheroof,securitystatusofthedevicewillappearimmediatelyremindedexception,buttheHRstafftoworkfromMondaytoFriday8:00AM-17:30PM,andthereforeneedtobeasub-theftdevicestatustwo,oncetheofficersillegallyenteredtheroof,HRpersonnelandthesecurityroomtoworkthefirsttimeduringthesametimeknow,HRrest,securityroomalsoneedstimetounderstandthesituationfirstandinformedHR。说明PS系统硬件架构Hard System Structure
