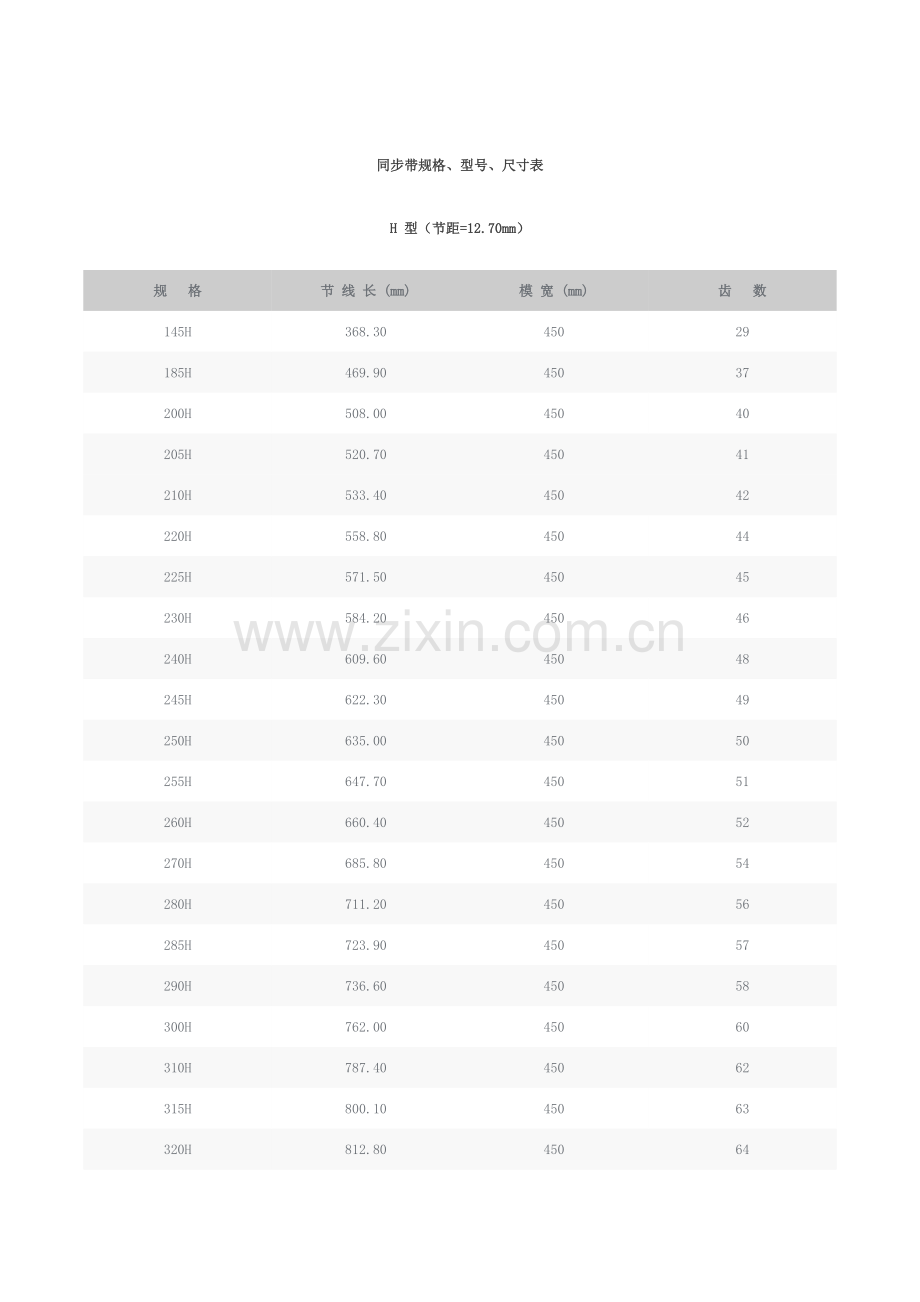

同步带规格、型号、尺寸表
H 型（节距=12.70mm）
规  格
节 线 长 (mm)
模 宽 (mm)
齿  数
145H
368.30
450
29
185H
469.90
450
37
200H
508.00
450
40
205H
520.70
450
41
210H
533.40
450
42
220H
558.80
450
44
225H
571.50
450
45
230H
584.20
450
46
240H
609.60
450
48
245H
622.30
450
49
250H
635.00
450
50
255H
647.70
450
51
260H
660.40
450
52
270H
685.80
450
54
280H
711.20
450
56
285H
723.90
450
57
290H
736.60
450
58
300H
762.00
450
60
310H
787.40
450
62
315H
800.10
450
63
320H
812.80
450
64
325H
825.50
450
65
330H
838.20
450
66
335H
850.90
450
67
340H
863.60
450
68
345H
876.30
450
69
350H
889.00
450
70
355H
910.70
450
71
360H
914.40
450
72
365H
927.10
450
73
370H
939.80
200
74
375H
952.50
450
75
380H
965.20
450
76
390H
990.60
450
78
395H
1003.30
210
79
400H
1016.00
450
80
405H
1028.70
450
81
410H
1041.40
450
82
420H
1066.80
450
84
425H
1079.50
450
85
430H
1092.20
450
86
440H
1117.60
450
88
445H
1130.30
200
89
450H
1143.00
450
90
455H
1155.70
450
91
460H
1168.40
450
92
465H
1181.10
450
93
470H
1193.80
250
94
480H
1219.20
450
96
485H
1231.90
450
97
490H
1244.60
450
98
500H
1270.00
450
100
510H
1295.40
450
102
515H
1308.10
450
103
520H
1320.80
180
104
525H
1333.50
200
105
530H
1346.20
450
106
540H
1371.60
450
108
550H
1397.00
450
110
560H
1422.40
450
112
565H
1435.10
200
113
570H
1447.80
450
114
580H
1473.20
450
116
585H
1485.90
450
117
590H
1498.60
450
118
600H
1524.00
450
120
605H
1536.70
200
121
625H
1587.50
450
125
630H
1600.20
450
126
640H
1625.60
450
128
650H
1651.00
450
130
660H
1676.40
450
132
670H
1701.80
450
134
680H
1727.20
180
136
690H
1752.60
450
138
695H
1765.30
450
139
700H
1778.00
450
140
710H
1803.40
200
142
720H
1828.80
450
144
725H
1841.50
450
145
730H
1854.20
450
146
740H
1879.60
450
148
750H
1905.00
450
150
770H
1955.80
450
154
775H
1968.50
450
155
785H
1993.90
200
157
800H
2032.00
450
160
810H
2057.40
200
162
820H
2082.80
450
164
830H
2108.20
450
166
840H
2133.60
220
168
850H
2159.00
450
170
860H
2184.40
250
172
880H
2235.20
200
176
900H
2286.00
450
180
930H
2362.20
450
186
950H
2413.00
450
190
960H
2438.40
450
192
980H
2489.20
450
196
985H
2501.90
450
197
1000H
2540.00
450
200
1020H
2590.80
200
204
1050H
2667.00
450
210
1085H
2755.90
250
217
1100H
2794.00
450
220
1120H
2844.80
450
224
1130H
2870.20
200
226
1140H
2895.60
200
228
1150H
2921.00
450
230
1170H
2941.80
450
234
1175H
2984.50
450
235
1200H
3048.00
450
240
1250H
3175.00
450
250
1260H
3200.40
450
252
1270H
3225.80
250
254
1325H
3365.50
450
265
1350H
3429.00
450
270
1360H
3454.40
440
272
1380H
3505.20
450
276
1400H
3556.00
440
280
1440H
3657.00
430
288
1450H
3683.00
250
290
1500H
3810.00
440
300
1510H
3835.40
440
302
1535H
3898.90
440
307
1550H
3937.00
440
310
1560H
3962.40
440
312
1600H
4064.00
440
320
1630H
4140.20
440
326
1660H
4216.40
440
332
1680H
4267.20
440
336
1700H
4318.00
440
340
1765H
4483.10
440
353
1855H
4711.70
250
371
2023H
5105.40
430
402
2100H
5334.00
430
420
2200H
5588.00
240
440
2360H
5994.40
440
472
2500H
6350.00
440
500
2680H
6807.20
440
536
