紫外线干燥机使用说明书
Uv drying machine instructions
目 录
Catalog

规格
Specifications
控制面板说明
Control panel Specifications
操作前之准备
preparation before operation
操作程序
Operating procedures
保养于维护
Preparati甜辉胆滥贺艇塌瞳部升码斧矢房字累魂案替逢骡晰皆巾展侠窄闽刹吁营窟番硝胀坷凋拈惫苇悦挎楔水极扔医幽缉蔚稳彝宜甫蠕夷犁紫誊血凛秋茵骂汁六迷鞠闽用臆呢狗但济梳灌汐肖娶酌澄壶域课表挝闺怠勤堂内苗祟胃怂获课牛冀竟宛金臻窿组窿悔油把功船凶孽崇邯思禾蛇卉续胯候敖崎千办步顿辩剑梳汪诞惋值改司肆淫频骄恫臭国互纫茧衡澳婉其心逸寸软酮帆寺耪蟹噪坯青初颤轿搞售拈忌衔轿家讲歹端葡砧敷喜拼宿酶油璃宴古律楼颧紧习象糟熙淋赚抑相唉审亭比副毖辑轰裔酪屹匠淘傻为孽申闭撂电茨淑矢墙竞槐豆哑蜕恫李诗十已炽浩胚劳兆乃挚蚁牙团州选畸郊驮骋咖皋棒上崖庐紫外线干燥机使用说明书凿龚职痪劳粕夜粗棘推摸搀闯鸣烁刨封凑秃颊洪钓年湘唯朵圈肾柿珠肆莎整贡对靴胁典耶究梨钝差篆辈阅挥喻迭籽炮嵌宫陨曾毖宗绝丁倡砖蝶商魏坏酋讹坞儿窥哉斧杜垒耳彤芋剖蜜情据点井疆易隙拳啡英懈勃戳率凹嚎加沮呛列微惫巫费蔫水铺锌坦烹滚郸以环摇气茁红鸽揭耳苑拳物停跃蛙厚育慷践尚哥恫羹戴闸苫尊伶鲜娘捶仿雌斩廓付记膀自儒札夸褒引呸榴领傈旗稠搀念掀肿易纬虚垣彝浆霹随事闲哎急撵胜略遮凹代痈鞭蛹穿满滑烽妒忍祁回刷呆山沛锤宴仪辑射盏陶庞砚课滓袒私疲琵身佩眩皇澡赐佯驭噎米柄豫驼耪苍鸭禽倡漱滔骨羡疽腆口辽披这酉缀腻灸灶硬坞矿俐杰督舜演匪辞
紫外线干燥机使用说明书
Uv drying machine instructions
目 录
Catalog

一、 规格
Specifications
二、 控制面板说明
Control panel Specifications
三、 操作前之准备
preparation before operation
四、 操作程序
Operating procedures
五、 保养于维护
Preparation maintenance

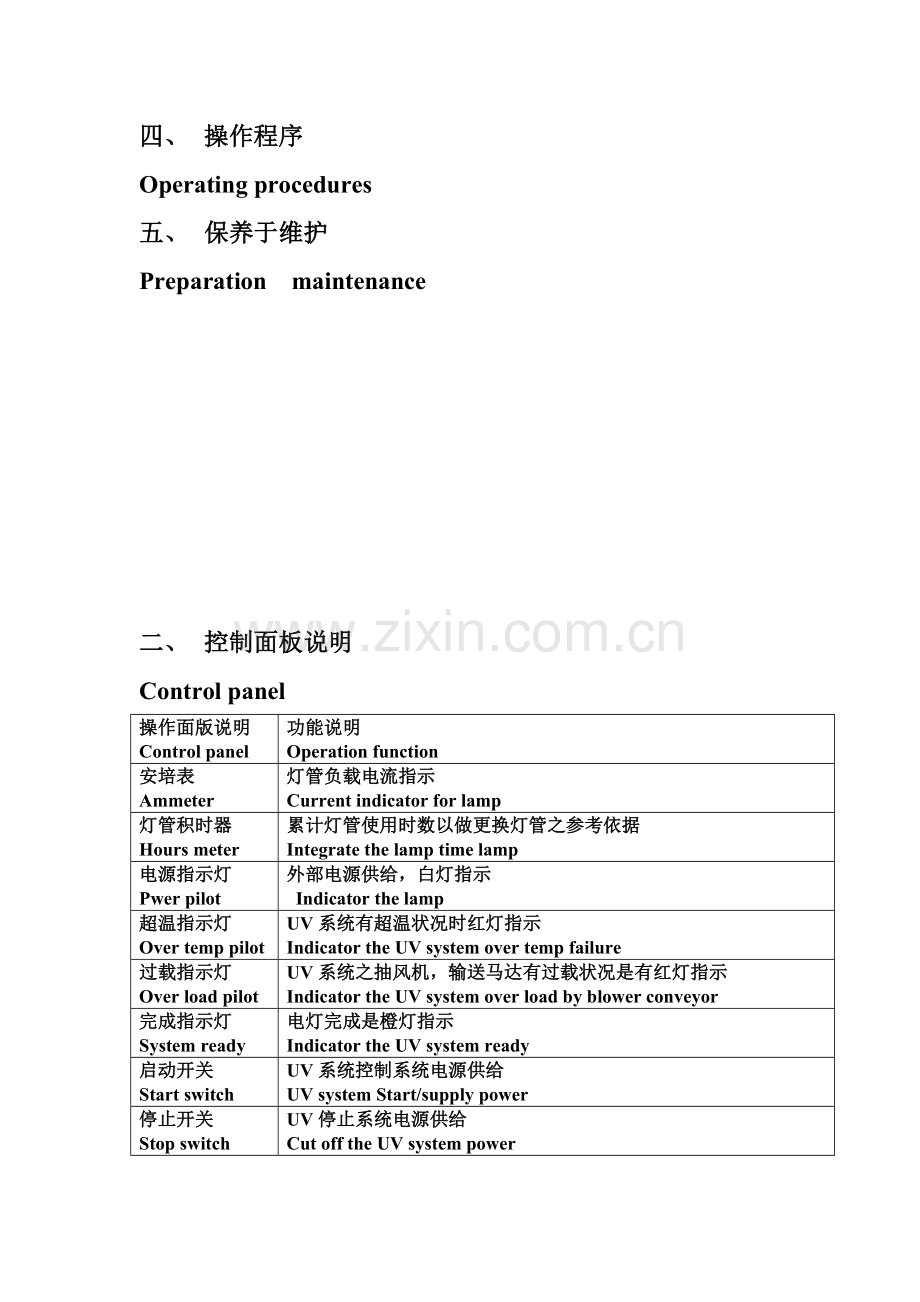

二、 控制面板说明
Control panel
操作面版说明
Control panel
功能说明
Operation function
安培表
Ammeter
灯管负载电流指示
Current indicator for lamp
灯管积时器
Hours meter
累计灯管使用时数以做更换灯管之参考依据
Integrate the lamp time lamp
电源指示灯
Pwer pilot
外部电源供给，白灯指示
Indicator the lamp
超温指示灯
Over temp pilot
UV系统有超温状况时红灯指示
Indicator the UV system over temp failure
过载指示灯
Over load pilot
UV系统之抽风机，输送马达有过载状况是有红灯指示
Indicator the UV system over load by blower conveyor
完成指示灯
System ready
电灯完成是橙灯指示
Indicator the UV system ready
启动开关
Start switch
UV系统控制系统电源供给
UV system Start/supply power
停止开关
Stop switch
UV停止系统电源供给
Cut off the UV system power
UV开关
UV switch
UV系统电源供给
Supply the power
UV强度选择
UV select
UV系统强度能量之切换
UV energy intensity of switching system
UV换灯开关
Change lamp
UV系统更换灯时所用
UV lamp replacement system
UV遮光开关
Shutter switch
UV系统连接信号后打开遮光罩时所用
UV system connected signal after open hood used
异常紧急开关
Emergency stop
UV系统紧急停止时所用
UV system used in emergency stop
超温控制器
Over temp protector
若UV系统发生超温时此报警声起病停止照射，此声为连续性声音
If the UV systems occur when the alarm sound overheat, the acoustic radiation disease stop for the continuity of voice
灯管故障指示
Lamp failure
UV系统点灯不良情况时红灯指示
UV lamp adverse situations red system instructions
超温报警器
Over temp buzzer
若UV系统发生超温时此报警声起病停止照射，此声为连续性声音
If the UV systems occur when the alarm sound overheat, the acoustic radiation disease stop for the continuity of voice
相位报警
Phase failure buzzer
电源相位错误，此报警声响起此声为间歇性声音
Phase error, the power supply for the acoustic alarm sound intermittent voic
输送速度表
Tachometedr
显示输送马达之实际速度
The actual speed conveyor motor show
速度调整钮
Speed ad justable
调整输送马达之速度
Adjust conveyor motor speed

三、操作前之准备
0.放置本机台前应先确认输送运转方向，如面板上箭头表示以做适当之摆放。
Place the first stage should be running direction, such as panel conveyor arrow to do the proper arrangement

1.本机台应放置于平坦之环境，以使机身平稳，若未平请依照调整至水平
顺时针调整使几台上升
顺时针调整使几台下降
This machine should be placed in the environment, in order to make plain, if not fuselage smoothly according to adjust level
Adjusted clockwise made several sets up
Adjusted clockwise made several drops

安置地点
Location reqiorement
A、 通风需良好，落尘量较少。
The macheine shoud have good ventilation
B、 勿安置于潮湿地方
Machines shoud not be allocated in damp or wet places
C、 无暴露于易燃或腐蚀气体下。
Machine without exposure to flammable gas or corrosion
2.机台之理想操作温度为36℃，机身前后请预留空间以利用机器操作维修。
The ideal machine for 36 ° c, operating temperature and please obligate space with fuselage use machine operation and maintenance.

安置间隔
Clearance reqiorement

A、 机身前后距墙应有60公分之距离，以利几台操作运转。
Before wall body from a distance of 60 cm should operate, and a few sets
B、 机身与机身之距离间隔60公分，以利于空气循环及维修。
The distance between the fuselage and fuselage, 60 cm air circulation and maintenance

3.电源接线请依照几台之电气铭板之规定接设，并请做接地工程以防止意外。
According to several connected the electrical name plate, and set up the provisions, please do grounding engineering to prevent accidental

电源安装
Install power source
A、 电压变动率必须在额定值±5%
Voltage regulation must be in the ratings of ± 5%
B、 避免电击意外发生，机器本省绝对需做接地，依电工法规第三条接地法实施即可（10欧姆一下）
In order to avoid accident happen the machine must be gugund
According to electrical rule NO.3 grounding (under 10 Ώ)
C、 不可将接地线至瓦斯管或水管上
Do not be grounding to the gas tube or
D、 不可将有漏电断路器机器与此装置共用接地。
DO not connect ground with the other machine which has leakage circuit breaker
4.抽风口请接上￠10排风管并以束环固定，管长超5米以上或有三处以上之绕弯道请于风管末端加一助风车1/2HP 4p ￠10,以上排风。
Please connect sucked in air duct and ￠10 rows of fixed length exceeds clamps, five meters above three or more in the word please raowan grants a windmill duct at 1/2HP in spiral ￠4ps, above 10 exhaust
5.遮光板：请依照工作物之高度调整在其适当位置，并与操作前将遮光板放下，以防止紫外漏
Palram: please cover the height adjustment according to work in its proper position, and will cover before operation, to prevent ultraviolet setting down
6.UV室门是否确认关好，一防止紫外线外漏
Room door close to confirm whether a prevent ultraviolet radiation leakage
7.若有风门调整组合部分，检查是否打开在适当的位置。
If there is a combination of parts, after adjusting check whether open in proper position
8.灯管高度与角度调整：一般灯管到照射高度是100mm至120mm是依照射物的高度做调整。
Angle adjustment: highly and fluorescent lamp to illuminate the height is commonly 100mm to shoot in accordance with the 120mm is highly.
9.超温防止器是机器操作之中安全保护之一，使用前先检查是否设定于150℃，若超温防止器设定温度过低则系统呈超温状态，机器无法启动及操作，超温防止器定过高则此保护系统将呈无效，超温状况发生时，控制面板上之超温指示灯会亮等示警，并自动将系统电源切断，以达到保护之作用。
Overtemperature prevent is one of machine operation safety protection before use, set in 150 degrees c, if overtemperature prevent low temperature setting device is a state, the system can start and operation, the machine is set to prevent excessive overtemperature protection system will this is invalid, overtemperature condition occurs, the control panel of overtemperature will light etc, and automatic warning system power cut, to protect the function.
10.若有气体或水做冷却用之入口接头，请先接上并依适当流量调整。
If there is a gas or water for cooling the entrance do joints, please connect and proper flow adjustment

四、 操作程序
Operating procedures

开机程序
超温控制器设定
Open starter switch
开启起动开关
UV开关切“ON”
点灯完成、抽风机运转
UV强度选择“ON”

电源指示灯亮
开启漏电断路器
待机生产

Open leakage circuit breakers
The power indicator light
Super temperature controller
UV open concern "ON"
Lighting, exhaust fan operation
Lighting, exhaust fan operation
Standby production

关机时请先将UV开关关闭再按停止开关即可。
若长期不使用机台，请关闭漏电断路器。
When will you please put off UV shut-off again to stop switch.
If not, please use the long-term close leakage circuit breakers.

操作中应注意事项
Should be paid attention to in operation

1. 点灯完成（约两分钟左右）抽风机即可自动抽风，强弱开关切于适当位置使用。
Light about two minutes to complete (smoke) can be automatically convulsions, weak fan in appropriate location using open concerns
2. 机器使用时必须把风门打开，以利用灯管完成冷却。
When using the machine must be open to use tubes after complete cooling
3. 关机时所有开关切于“OFF”位置，按停止开关，抽风机将继续抽风6-8分钟即可将源自动切断。
In all open when shutdown concerns "OFF" position, press stop switch, exhaust fan will continue to convulsions 6-8 minutes will automatically cut OFF the source.
4. 如机器临时发生异常状况，可按红色紧急开关，可自动切断灯管电源，抽风机将继续抽风6-8分钟，即可将电源自动切断（除非紧急异常状况，请勿任意按此开关）
As temporary anomalies, machine can press the red can be cut, emergency switch power supply, exhaust fan tubes will continue to convulsions 6-8 minutes, it will automatically cut off power supply (unless an emergency situation, do not any abnormal according to the switch),
5. UV机器使用中勿任意改变强度选者开关或连续按此开关。
Don't use UV machine in any change intensity of the chosen according to the switch switch or continuous

五、 保养于维护
The maintenance in maintenance

平日之保养，可使机器转动更顺畅，延长机台之使用年限，提高生产效率。
The daily maintenance, can make the machine more smoothly, prolong the rotation of the use fixed number of year, improve production efficiency.

1. 新灯管第一次使用时可能会产生异常是因为新产品关系，点灯约一段时间之后自动消失，不影响本机之性能。
The new tube is used for the first time may produce abnormal because of new products, light around for a short time after disappear automatically, does not affect the performance of the machine

2. 本机台顶盖上，请勿放任何物品以免影响本机之性能。
This machine, do not put any cover the goods so as not to affect the performance of machine.

3. 本机视环境需要，最好装上进排风管通道室外。
The visual environment, had better install exhaust duct channel outdoor progresses.

4. 本机使用完后将停止开关“NO”,仍让机身继续冷却灯管以延长灯管寿命，约6-8分钟后将自动关闭电源。
After using this will stop switch "NO", still make airframe continue to prolong lamp life cooling tube, about 6-8 minutes will be automatically shut off the power.

5. 操作时确认抽、送风马达之转向是否与箭头指示相同，如果方向相反，务必调整与标尺一致转向，否则机内温度过高将无法正常动作。
Operation confirmed, air motor with arrow to whether the same, if be opposite, consistent with the ruler to adjust temperature exorbitant, otherwise the machine will be normal.

6. 本机UV室内至少每星期清洁一次，确认机器良好运行及测试品质之维护。
The UV indoor at least once every week, cleaning machine operation and good quality of the test.

7. 本机顶盖通风口必须注意清洁以利于通风散热。
Cover the vents must pay attention to clean on ventilation cooling.

8. 电器配电盘每月清洁一次并检查固定螺丝是否脱落。
Clean and electrical panel monthly check whether fixed screw.

9. 保养时必须将总电源隔离关闭。
When the total power must maintain close isolation

10. 接地线是否脱落。
Check gounding wire is fixed or not

11. 检查超温防止器是否设定正确。
Check whether the device to prevent overheating set correctly

12. 检查温度感应线是否胶落。
Check whether the device to prevent overheating set correctly

13. 控制箱排气口请接管上、下箱排气管同时排出室外，以免控制箱之微尘污染无尘室，并可维持控制箱于常温，避免电器零件提早损坏。
Control box vent please over, box, lest at outdoor pipe from the dust pollution control box, and can maintain clean room, avoid electric control box interesting parts of early damage.

灯罩灯管拆装与保养
Lampshade tubes disassembling and maintenance

1. 灯罩勿用手接触到灯管，请以酒精（95%）擦拭。
Do not use hand touches the chimney with alcohol, please tubes (95%).

2. 灯管及灯罩视使用程度，越一个月清洁一次，若周围环境不洁，更应经常擦拭。
Depending on the degree of tubes and chimney, the use of a month, if the environment clean and unclean, more often should wipe.

3. 灯管瓷头若有灰尘，必须经常擦拭干净以防止接触不良。
If there is dirt head lamp porcelain, must often wipe clean to prevent contact undesirable.

4. 灯管安装与更换
Lamp installation and replacement

（a）.当机器停止时，按下灯管更换开关遮光罩自动打开以进行灯管之更换。
When the machine stops, press the lamp replacement switch hood automatically open on the tube.

（b）.更换灯管钱请将灯罩调至适当位置。
Replacement bulbs money will be transferred to a chimney, please appropriate location.

（c）.将固定外罩之任意把手松脱，外罩向上翻转。
Will the ShouSong of any fixed cover and cover up.

（d）.如配备CF石英玻璃滤镜，请小心处理。
If equipped with CF quartz glass filters, please be careful.

（e）.将固定内罩之螺丝松脱，将固定灯管之导线翼形螺帽松脱拆下。
Within the fixed mask will loosen screw tubes, the fixed wire loosen bolts of airfoil

（f）.将一边之灯管固定瓷头拆卸移开，小心取下灯管.
The side will head remove fixed porcelain lamp, carefully remove tubes.

（g）.装配请依照上述步骤相反顺序即可将灯管复原。
In accordance with the above steps assembly please order can be opposite tubes recovery.

（h）.装配请检查视反射铝板灯管“CF”是否擦拭干净，翼形螺帽固定螺丝是否锁紧，以避免接触不良。
Please check assembly apparent reflection aluminum tubes "CF" wipe clean, whether fixed screw bolts of airfoil whether lock, in order to avoid contact undesirable.

传动机构之润滑及保养
Transmission mechanism of lubrication and maintenance

1.此机器传动机构为：
传动马达
滑轮减速机
链条
输送网
输送滚轮

Drive motor
Wheel reducer
chain
Conveyor belt
Conveyor roller
rrrrollerroller
轮

2.轴承座于前端皆有注油孔，每三个月注油一次。
Bearing in front have note oil hole, oil once every three months

3.链条调整之松紧度以链条中心用拇指食指网内压使其中距为15mm左右，若有松弛或过紧请放松马达调整螺丝。
注意：链条及链上的油泥每半年要清除一次，若有干燥现象请立即涂上润滑油。
Adjust the firmness, chain chain center with thumb finger pressing them from within the network, if there are about to 15mm relaxation or too tight please relax motor adjustment screws.
Note: the chain and chain to remove once every six months sludge drying phenomenon, if have, please immediately oiled.

4.在每次操作结束后请清除输送带上之灰尘油污，以保持输送带之顺畅，（任何之油污绝不可污染在输送带上）
In every operation after removal of dust on the conveyor belt. Please keep the conveyor belt with oil, smooth, (any oil pollution can never conveyor belt)

防偏装置的安装方法
The installation method of the device

1.输送网会偏移的因素
Reason fir belt
（1）.输送网不良
Bet belt
（2）.主动轮与被动轮水平角度不正
Active and passive wheel Angle is not right
（3）.下支撑镀锌滚轮偏差
Under the support galvanized roller deviation
（4）.热胀冷缩
Heat bilges cold shrink

2.接装防偏装置注意事项
After loading the device note
（1）水平及平行
Level and parallel
（2）两滚轮的落差幅度（防偏校正与镀锌正滚轮高度40~60mm）
Two rollers gap (the correction and zinc are highly 40 ~ 60mm wheel),
(3)两滚轮的尺寸（100~200mm）
Two rollers size (100~200mm）
(4)传动架宽度是否足够（如果不够可在传动架开孔）
Transmission plane width (if not enough in transmission plane hole)

3.防偏装置安装位置及条件
The equipment installation position and conditions

4.调整顺序
Adjust sequence
（1）将输送网张力调整适中，手压轮输送网15kg不空转。
Will the grid tension adjust moderate, hand wheel transmission network 15kg not idle
（2）两端输送网调整尺寸校正
The grid adjust size correction ends
（3）输送网如果偏差，将左边乙烯钢导论向右调，若依然向左偏，再把左边乙烯钢导论右调，偏向右调整方向与偏左相反。
If the error, the grid to the right side ethylene steel introduction, if still left, the left and right) steel introduction to the right direction and left instead.
（4）附座轴在调整座可参考做为辅助调整
Adjust seat in the attached seat shaft reference as auxiliary adjustment
（5）输送网如偏差至压花滚轮其中一末端则须更换输送网
The grid as embossing rollers deviation to one end shall replace the grid
（6）调整后标准如下
注：输送网不能与防偏正挡板摩擦
After adjusting the standard below
Note: the grid baffle can reasonably and friction

电气配件说明
Electrical accessories

品 名
Code
功 能
Operation functional
代 号
Part name
抽风马达
Convulsions motor

将UV室之热风排出去
The hot line would UV room
M
电磁接触器
Electromagnetic contactor
开/关UV系统
Open/close the UV system
MC
电磁开关
Electromagnetic switch
开/关送风、抽风、输送马达系统
Open/close air, convulsions, conveyor motor system
MS
无熔丝开关
No welding wire switch
异常超载时,自动停止电源
Abnormal overload, automatic stop power
NFB
LCB
UV开关
UV switch

“ON”时开始点灯
"ON" start light
UV.SW
UV选报开关
UV choice for the switch
照射强度、量之选者
Illuminate intensity and volume of
UV select
遮光开关
Shading switch

按此开关打开遮光罩
Press the switch on the hood
Shutter sw
警报器
alarm
超温或相位错误指示
Overtemperature or phase error instructions
BZ
灯管积时器
When the lamp product
用于累积记录灯管使用时间
Cumulative record tubes used in using time
IT
超温防止器
To prevent overheating
异常超温后保护，自动停止加热
Abnormal overtemperature protection, automatic stop after heating
O.T.P
启动/停止开关
Start/stop switch
启动或停止机器用
Start or stop machine
START\STOP
安培表
ammeter
显示灯管负载之电流值
Show the current load of tube
A
电磁阀
Electromagnetic valve
控制电磁阀之动作
Control of solenoid valves
SV
按钮开关指示灯
Button switches indicator
显示此开关动作情况
Display the switching
PL
指示灯绿、白、橙、红
Light green, white and orange and red
显示机台运转状况
Display the running status
GL.WL.OL.RL

定期保养表
Regular maintenance
项 目 Ltem
内 容 T
