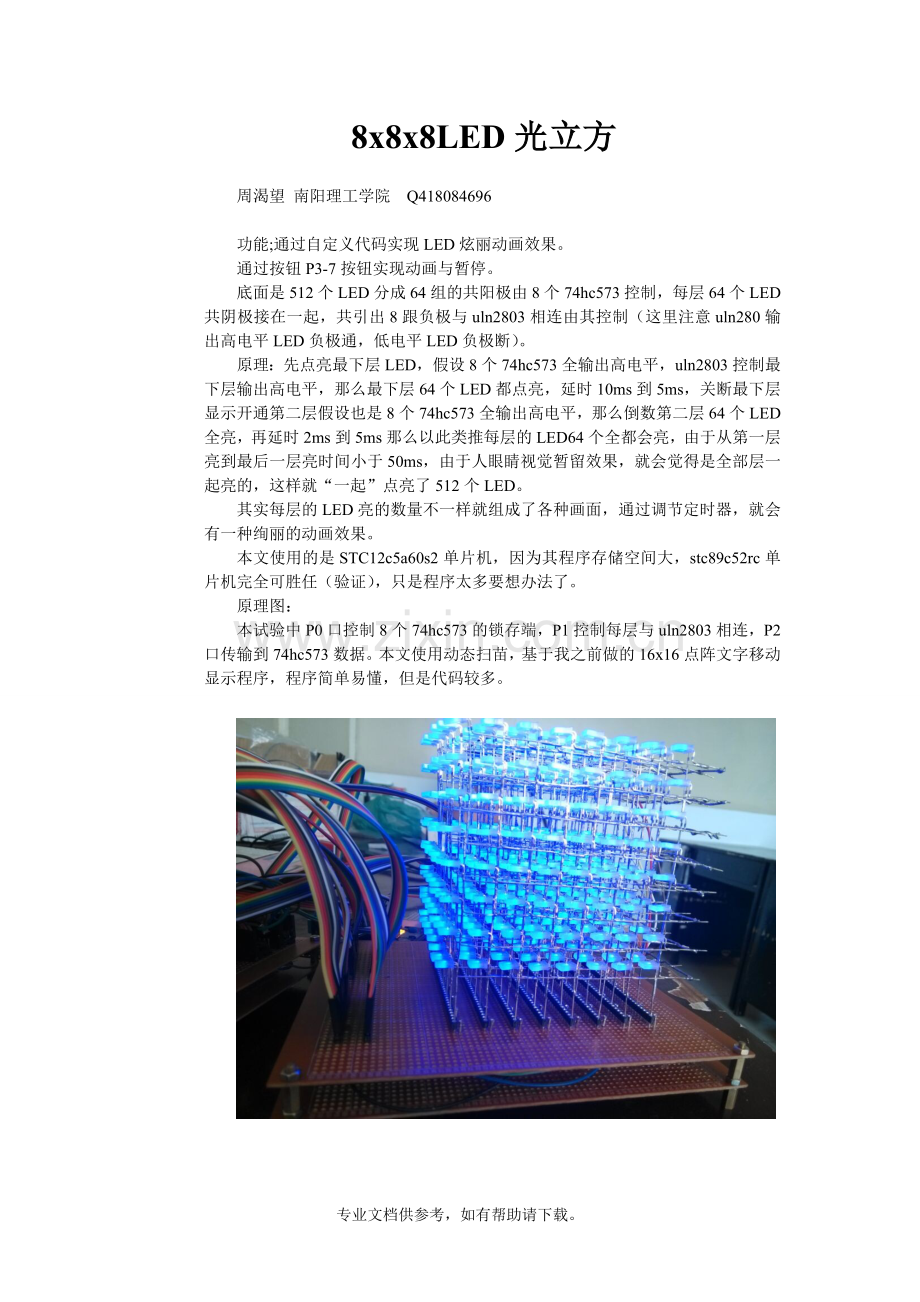

8x8x8LED光立方

周渴望 南阳理工学院 Q418084696

功能;通过自定义代码实现LED炫丽动画效果。
通过按钮P3-7按钮实现动画与暂停。
底面是512个LED分成64组的共阳极由8个74hc573控制，每层64个LED共阴极接在一起，共引出8跟负极与uln2803相连由其控制（这里注意uln280输出高电平LED负极通，低电平LED负极断）。
原理：先点亮最下层LED，假设8个74hc573全输出高电平，uln2803控制最下层输出高电平，那么最下层64个LED都点亮，延时10ms到5ms，关断最下层显示开通第二层假设也是8个74hc573全输出高电平，那么倒数第二层64个LED全亮，再延时2ms到5ms那么以此类推每层的LED64个全都会亮，由于从第一层亮到最后一层亮时间小于50ms，由于人眼睛视觉暂留效果，就会觉得是全部层一起亮的，这样就“一起”点亮了512个LED。
其实每层的LED亮的数量不一样就组成了各种画面，通过调节定时器，就会有一种绚丽的动画效果。
本文使用的是STC12c5a60s2单片机，因为其程序存储空间大，stc89c52rc单片机完全可胜任（验证），只是程序太多要想办法了。

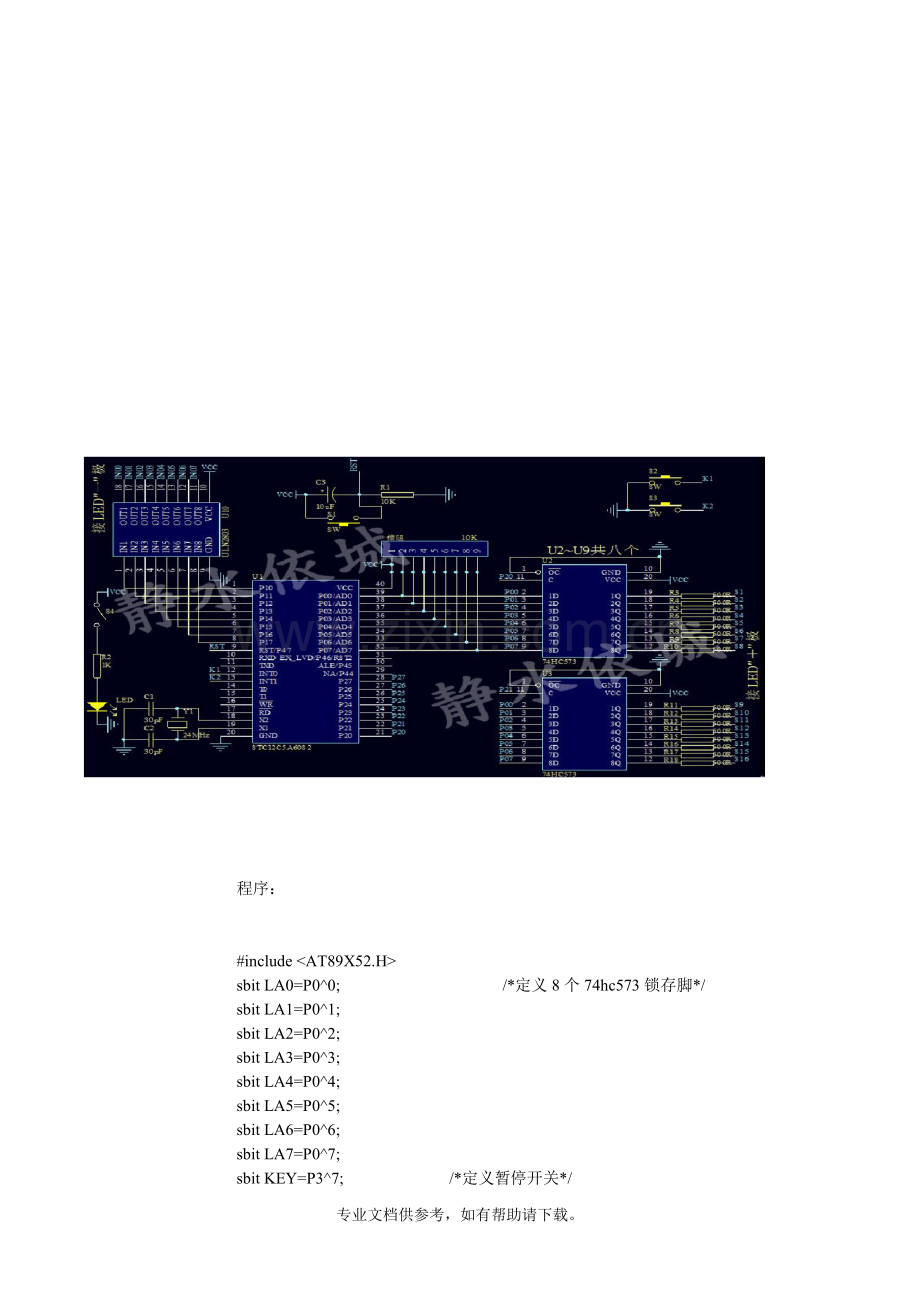

原理图：
本试验中P0口控制8个74hc573的锁存端，P1控制每层与uln2803相连，P2口传输到74hc573数据。本文使用动态扫苗，基于我之前做的16x16点阵文字移动显示程序，程序简单易懂，但是代码较多。

程序：

#include <AT89X52.H>
sbit LA0=P0^0; /*定义8个74hc573锁存脚*/
sbit LA1=P0^1;
sbit LA2=P0^2;
sbit LA3=P0^3;
sbit LA4=P0^4;
sbit LA5=P0^5;
sbit LA6=P0^6;
sbit LA7=P0^7;
sbit KEY=P3^7; /*定义暂停开关*/
void KEYKONG(); /*按钮程序*/
unsigned char code ceng[]={0x01,0x02,0x04,0x08,0x10,0x20,0x40,0x80}; /*8层控制代码每次亮一层*/
unsigned char code di[1224][8]={
{0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff},
{0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff}, /*动画代码，纵向扫描*/
{0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff},
{0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff},
{0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff},
{0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff},
{0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff},
{0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*3 1*/
{0x00,0x00,0x00,0x00,0x38,0x38,0x38,0x38},
{0x00,0x00,0x00,0x00,0x44,0x44,0x44,0x44},
{0x00,0x00,0x00,0x00,0x04,0x04,0x04,0x04},
{0x00,0x00,0x00,0x00,0x3c,0x3c,0x3c,0x3c},
{0x00,0x00,0x00,0x00,0x04,0x04,0x04,0x04},
{0x00,0x00,0x00,0x00,0x44,0x44,0x44,0x44},
{0x00,0x00,0x00,0x00,0x38,0x38,0x38,0x38},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*3 2*/
{0x38,0x38,0x38,0x38,0x38,0x38,0x38,0x38},
{0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44},
{0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04},
{0x3c,0x3c,0x3c,0x3c,0x3c,0x3c,0x3c,0x3c},
{0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04},
{0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44},
{0x38,0x38,0x38,0x38,0x38,0x38,0x38,0x38},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*3 3*/
{0x38,0x38,0x38,0x38,0x00,0x00,0x00,0x00},
{0x44,0x44,0x44,0x44,0x00,0x00,0x00,0x00},
{0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00},
{0x3c,0x3c,0x3c,0x3c,0x00,0x00,0x00,0x00},
{0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00},
{0x44,0x44,0x44,0x44,0x00,0x00,0x00,0x00},
{0x38,0x38,0x38,0x38,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*3 4*/
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x3c,0x3c,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*3 4*/
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x3c,0x3c,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*3 4*/
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x3c,0x3c,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*3 4*/
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x3c,0x3c,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x7c,0x7c,0x7c,0x7c}, /*2 1*/
{0x00,0x00,0x00,0x00,0x20,0x20,0x20,0x20},
{0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10},
{0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x08},
{0x00,0x00,0x00,0x00,0x04,0x04,0x04,0x04},
{0x00,0x00,0x00,0x00,0x04,0x04,0x04,0x04},
{0x00,0x00,0x00,0x00,0x44,0x44,0x44,0x44},
{0x00,0x00,0x00,0x00,0x38,0x38,0x38,0x38},

{0x7c,0x7c,0x7c,0x7c,0x7c,0x7c,0x7c,0x7c}, /*2 2*/
{0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08},
{0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04},
{0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04},
{0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44},
{0x38,0x38,0x38,0x38,0x38,0x38,0x38,0x38},

{0x7c,0x7c,0x7c,0x7c,0x00,0x00,0x00,0x00}, /*2 3*/
{0x20,0x20,0x20,0x20,0x00,0x00,0x00,0x00},
{0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00},
{0x08,0x08,0x08,0x08,0x00,0x00,0x00,0x00},
{0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00},
{0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00},
{0x44,0x44,0x44,0x44,0x00,0x00,0x00,0x00},
{0x38,0x38,0x38,0x38,0x00,0x00,0x00,0x00},

{0x7c,0x7c,0x00,0x00,0x00,0x00,0x00,0x00}, /*2 4*/
{0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},

{0x7c,0x7c,0x00,0x00,0x00,0x00,0x00,0x00}, /*2 4*/
{0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},

{0x7c,0x7c,0x00,0x00,0x00,0x00,0x00,0x00}, /*2 4*/
{0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},

{0x7c,0x7c,0x00,0x00,0x00,0x00,0x00,0x00}, /*2 4*/
{0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00},
{0x44,0x44,0x00,0x00,0x00,0x00,0x00,0x00},
{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x38,0x38,0x38,0x38}, /*1 1*/
{0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10},
{0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10},
{0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10},
{0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10},
{0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10},
{0x00,0x00,0x00,0x00,0x30,0x30,0x30,0x30},
{0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10},

{0x38,0x38,0x38,0x38,0x38,0x38,0x38,0x38}, /*1 2*/
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x30},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},

{0x38,0x38,0x38,0x38,0x00,0x00,0x00,0x00}, /*1 3*/
{0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00},
{0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00},
{0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00},
{0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00},
{0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00},
{0x30,0x30,0x30,0x30,0x00,0x00,0x00,0x00},
{0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00},

{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00}, /*1 4*/
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x30,0x30,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},

{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00}, /*1 4*/
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x30,0x30,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},

{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00}, /*1 4*/
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x30,0x30,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},

{0x38,0x38,0x00,0x00,0x00,0x00,0x00,0x00}, /*1 4*/
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},
{0x30,0x30,0x00,0x00,0x00,0x00,0x00,0x00},
{0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF}, /*再斜1*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00},
{0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00},
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},
{0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00},
{0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*横中面5*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

{0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*再斜2*/
{0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF},

{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00}, /*由左往右4*/
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF}, /*再斜1*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00},
{0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00},
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},
{0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00},
{0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*横中面5*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

{0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*再斜2*/
{0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF},

{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00}, /*由左往右4*/
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF}, /*再斜1*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00},
{0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00},
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},
{0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00},
{0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*横中面5*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

{0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*再斜2*/
{0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF},

{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00}, /*由左往右4*/
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF}, /*再斜1*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00},
{0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00},
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00},
{0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},
{0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00},
{0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*横中面5*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},

{0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01}, /*内斜1*/
{0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02},
{0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04},
{0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20},
{0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40},
{0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},

{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10}, /*竖一中面4*/
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},
