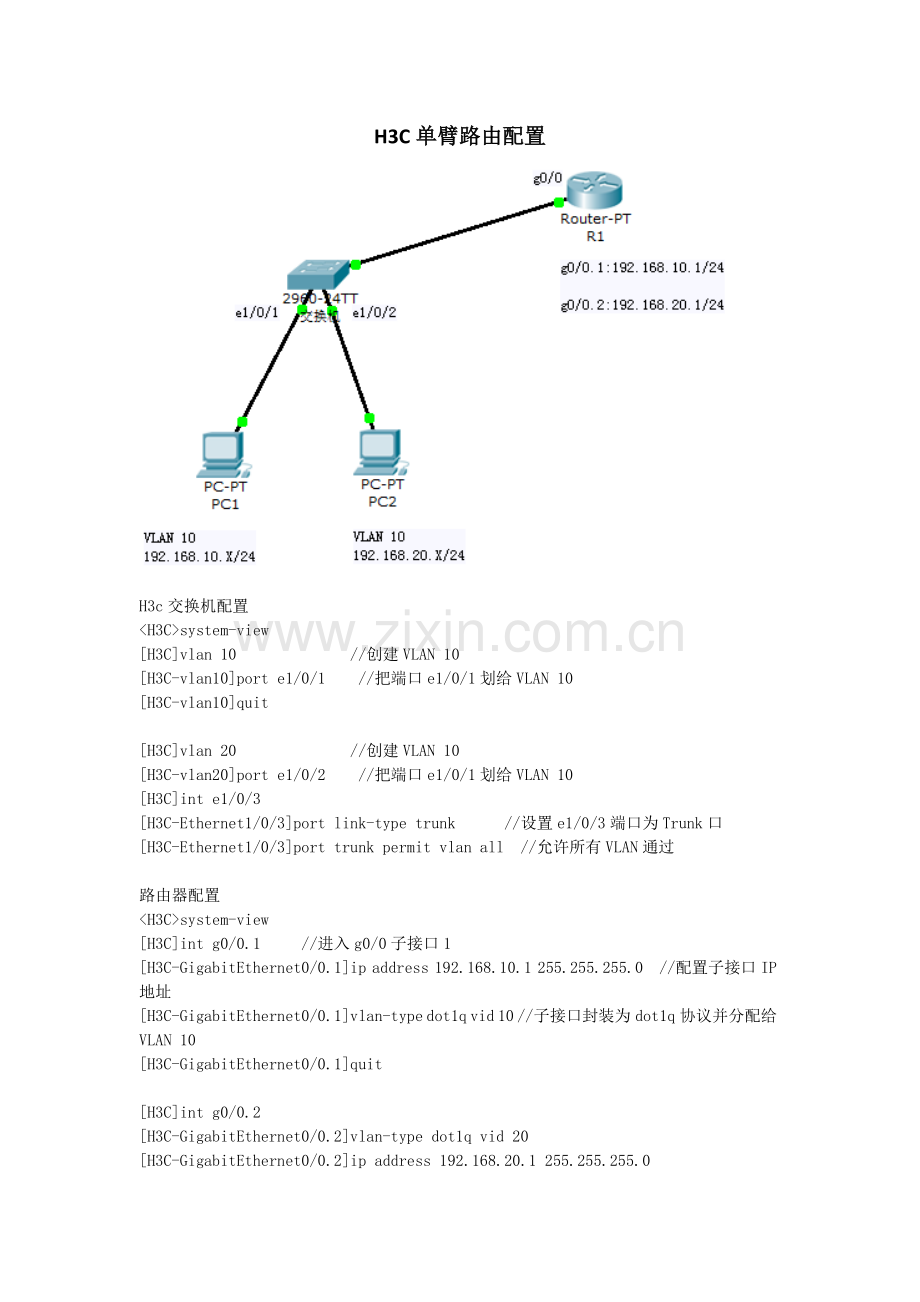

H3C单臂路由配置

H3c交换机配置
<H3C>system-view
[H3C]vlan 10 //创建VLAN 10
[H3C-vlan10]port e1/0/1 //把端口e1/0/1划给VLAN 10
[H3C-vlan10]quit

[H3C]vlan 20 //创建VLAN 10
[H3C-vlan20]port e1/0/2 //把端口e1/0/1划给VLAN 10
[H3C]int e1/0/3
[H3C-Ethernet1/0/3]port link-type trunk //设置e1/0/3端口为Trunk口
[H3C-Ethernet1/0/3]port trunk permit vlan all //允许所有VLAN通过

路由器配置
<H3C>system-view
[H3C]int g0/0.1 //进入g0/0子接口1
[H3C-GigabitEthernet0/0.1]ip address 192.168.10.1 255.255.255.0 //配置子接口IP地址
[H3C-GigabitEthernet0/0.1]vlan-type dot1q vid 10 //子接口封装为dot1q协议并分配给VLAN 10
[H3C-GigabitEthernet0/0.1]quit

[H3C]int g0/0.2
[H3C-GigabitEthernet0/0.2]vlan-type dot1q vid 20

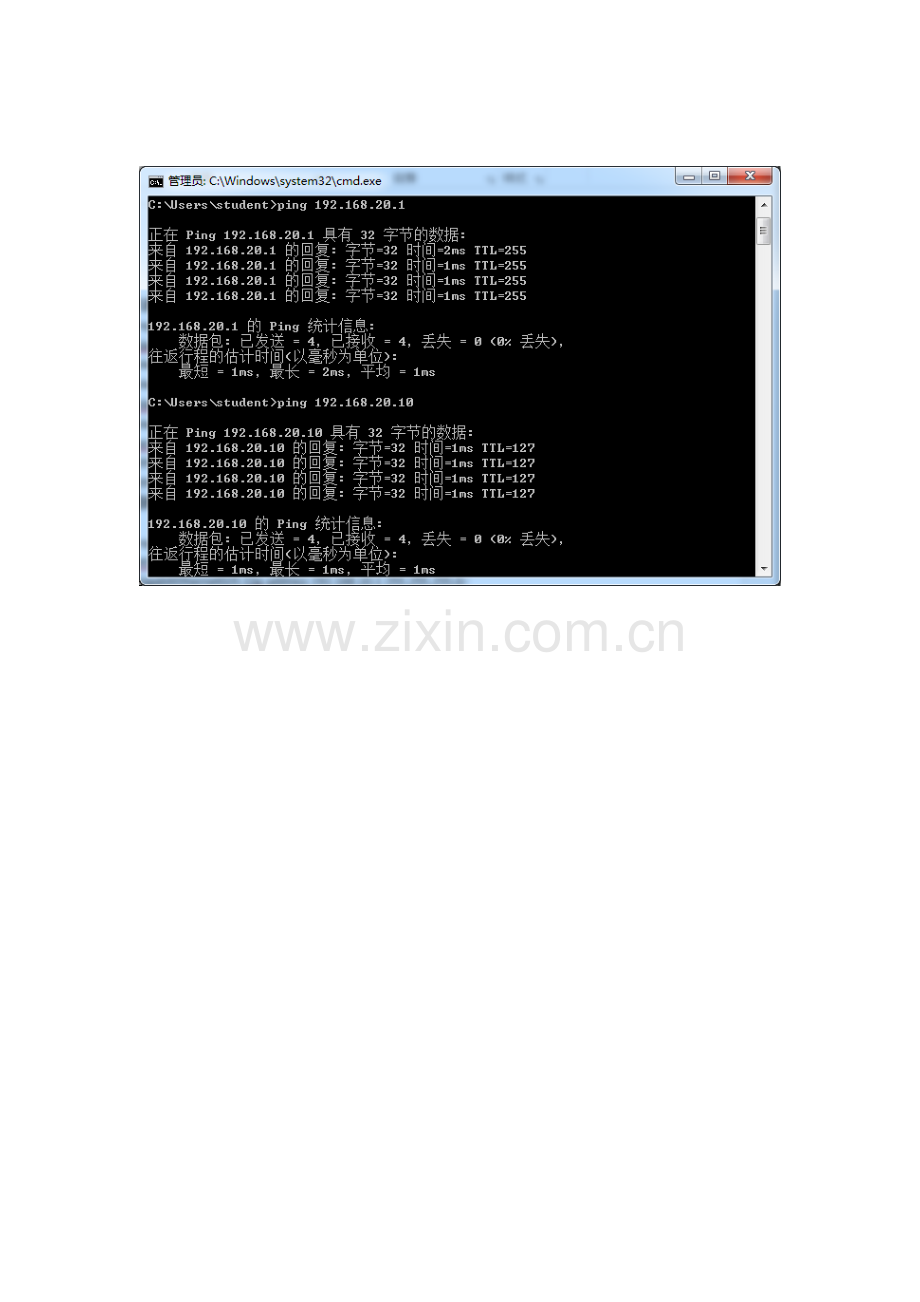

[H3C-GigabitEthernet0/0.2]ip address 192.168.20.1 255.255.255.0
