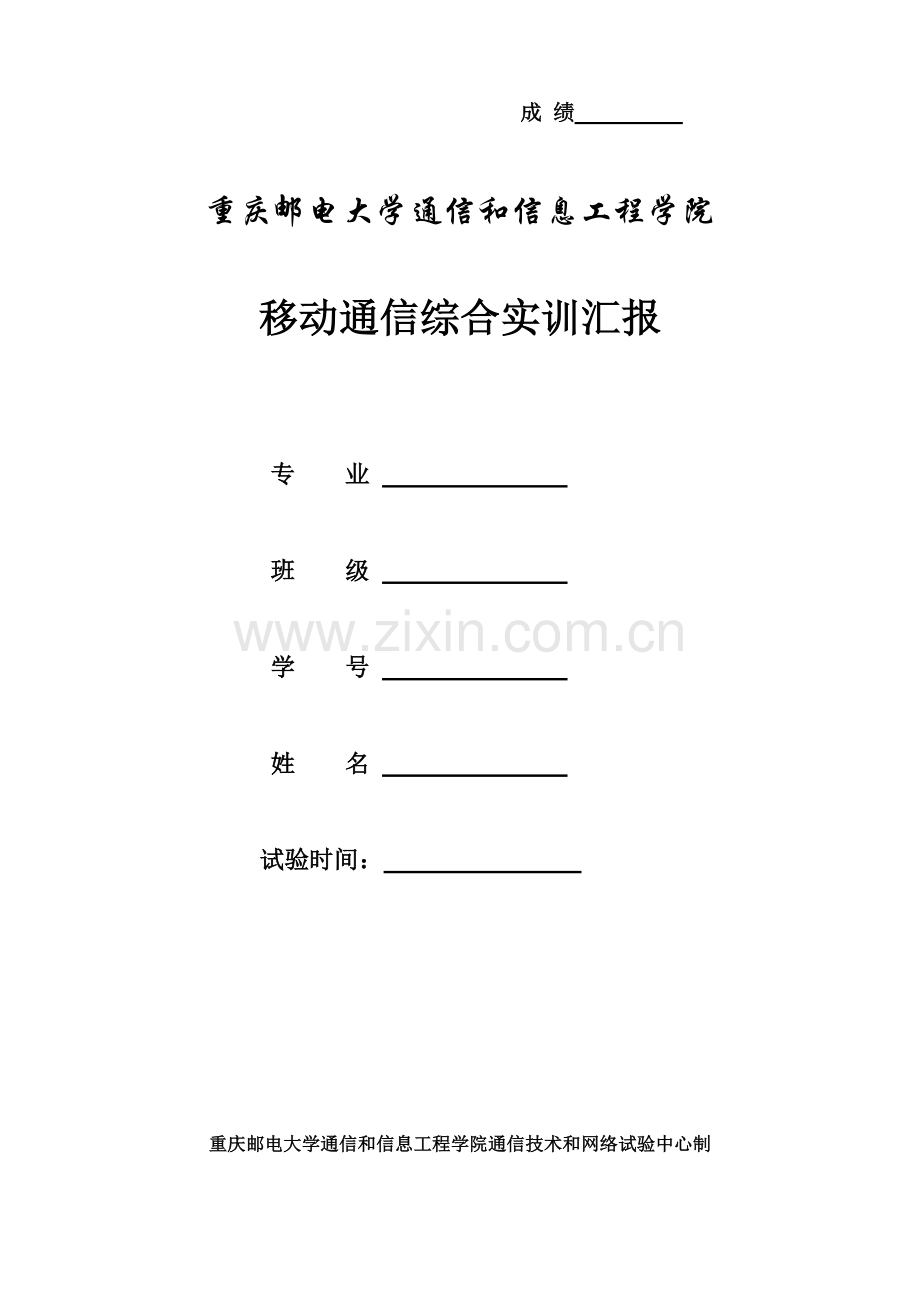

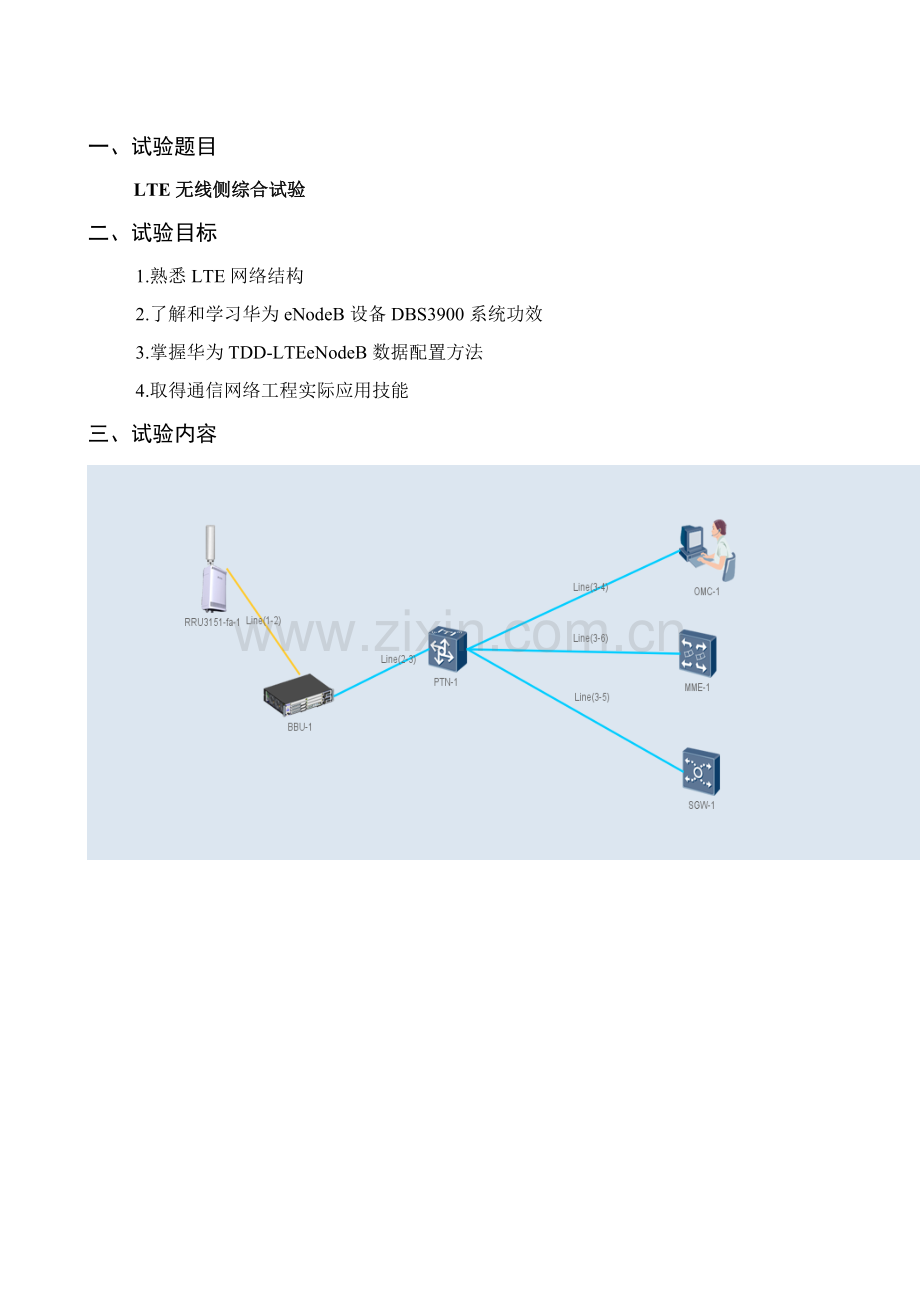

成绩重庆邮电大学通信和信息工程学院移动通信综合实训汇报专业班级学号姓名试验时间：重庆邮电大学通信和信息工程学院通信技术和网络试验中心制一、试验题目 LTE无线侧综合试验二、试验目标 1.熟悉LTE网络结构 2.了解和学习华为eNodeB设备DBS3900系统功效 3.掌握华为TDD-LTEeNodeB数据配置方法 4.取得通信网络工程实际应用技能三、试验内容数据脚本： MOD ENODEB: ENODEBID=101, NAME="cytx", ENBTYPE=DBS3900_LTE, LOCATION="cyyfl", PROTOCOL=CPRI; LST ENODEB:; ADD CNOPERATOR: CnOperatorId=1, CnOperatorName="cytx", CnOperatorType=CNOPERATOR_PRIMARY, Mcc="460", Mnc="02"; ADD CNOPERATORTA: TrackingAreaId=1, CnOperatorId=1, Tac=100; ADD BRD: CN=0, SRN=0, SN=6, BT=UMPT; ADD BRD: CN=0, SRN=0, SN=18, BT=UPEU; ADD BRD: CN=0, SRN=0, SN=19, BT=UPEU; ADD BRD: CN=0, SRN=0, SN=2, BT=LBBP, WM=TDD; ADD BRD: CN=0, SRN=0, SN=16, BT=FAN; DSP BRD:; ADD RRUCHAIN: RCN=0, TT=CHAIN, AT=LOCALPORT, HCN=0, HSRN=0, HSN=2, HPN=0, CR=9.8; ADD RRU: CN=0, SRN=60, SN=0, TP=TRUNK, RCN=0, PS=0, RT=MRRU, RN="xinke", ALMPROCSW=ON, ALMPROCTHRHLD=30, ALMTHRHLD=20, RS=TDL, RXNUM=1, TXNUM=1; ADD GPS: GN=0, CN=0, SRN=0, SN=6, CABLETYPE=COAXIAL, CABLE_LEN=20, MODE=GPS, PRI=4; SET CLKMODE: MODE=AUTO; SET CLKSYNCMODE: CLKSYNCMODE=TIME; ADD ETHPORT: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, PN=0, PA=COPPER, MTU=1500, SPEED=100M, ARPPROXY=DISABLE, FC=CLOSE, FERAT=10, FERDT=8, DUPLEX=FULL; ADD DEVIP: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, PT=ETH, PN=0, IP="110.110.110.3", MASK="255.255.255.0"; ADD IPRT: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, DSTIP="134.134.134.10", DSTMASK="255.255.255.0", RTTYPE=NEXTHOP, NEXTHOP="110.110.110.1", PREF=60, DESCRI="TO MME"; ADD IPRT: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, DSTIP="135.135.135.10", DSTMASK="255.255.255.0", RTTYPE=NEXTHOP, NEXTHOP="110.110.110.1", PREF=60, DESCRI="TO SGW"; ADD IPRT: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, DSTIP="172.100.100.16", DSTMASK="255.255.255.0", RTTYPE=NEXTHOP, NEXTHOP="110.110.110.1", PREF=60, DESCRI="TO OMC"; LST IPRT:; ADD S1SIGIP: CN=0, SRN=0, SN=6, S1SIGIPID="TO MME", LOCIP="110.110.110.3", LOCIPSECFLAG=DISABLE, SECLOCIP="0.0.0.0", SECLOCIPSECFLAG=DISABLE, LOCPORT=3000, RTOMIN=1000, RTOMAX=3000, RTOINIT=1000, RTOALPHA=12, RTOBETA=25, HBINTER=5000, MAXASSOCRETR=10, MAXPATHRETR=5, CHKSUMTX=DISABLE, CHKSUMRX=DISABLE, CHKSUMTYPE=CRC32, SWITCHBACKFLAG=ENABLE, SWITCHBACKHBNUM=10, TSACK=200, CNOPERATORID=1; ADD MME: MMEID=0, FIRSTSIGIP="134.134.134.10", FIRSTIPSECFLAG=DISABLE, SECSIGIP="0.0.0.0", SECIPSECFLAG=DISABLE, LOCPORT=3000, CNOPERATORID=1, MMERELEASE=Release_R8; ADD S1SERVIP: CN=0, SRN=0, SN=6, S1SERVIPID="TO SGW", S1SERVIP="110.110.110.3", IPSECFLAG=DISABLE, PATHCHK=DISABLE, CNOPERATORID=1; ADD SGW: SGWID=0, SERVIP1="135.135.135.10", SERVIP1IPSECFLAG=DISABLE, SERVIP2="0.0.0.0", SERVIP2IPSECFLAG=DISABLE, SERVIP3="0.0.0.0", SERVIP3IPSECFLAG=DISABLE, SERVIP4="0.0.0.0", SERVIP4IPSECFLAG=DISABLE, CNOPERATORID=1; ADD OMCH: FLAG=MASTER, IP="110.110.110.3", MASK="255.255.255.0", PEERIP="172.100.100.16", PEERMASK="255.255.255.0", BEAR=IPV4, CN=0, SRN=0, SN=6, SBT=BASE_BOARD, BRT=NO; ADD VLANMAP: NEXTHOPIP="110.110.110.1", MASK="255.255.255.0", VLANMODE=SINGLEVLAN, VLANID=100, SETPRIO=DISABLE; ADD SECTOR: SECN=0, GCDF=DEG, LONGITUDE=0, LATITUDE=0, SECM=NormalMIMO, ANTM=1T1R, COMBM=COMBTYPE_SINGLE_RRU, SECTORNAME="SHANQU", ALTITUDE=25, UNCERTSEMIMAJOR=3, UNCERTSEMIMINOR=3, ORIENTOFMAJORAXIS=0, UNCERTALTITUDE=3, CONFIDENCE=0, OMNIFLAG=FALSE, CN1=0, SRN1=60, SN1=0, PN1=R0A; ADD CELL: LocalCellId=0, CellName="CYTX", SectorId=0, CsgInd=BOOLEAN_FALSE, UlCyclicPrefix=NORMAL_CP, DlCyclicPrefix=NORMAL_CP, FreqBand=39, UlEarfcnCfgInd=NOT_CFG, DlEarfcn=38250, UlBandWidth=CELL_BW_N100, DlBandWidth=CELL_BW_N100, CellId=0, PhyCellId=99, AdditionalSpectrumEmission=1, FddTddInd=CELL_TDD, SubframeAssignment=SA2, SpecialSubframePatterns=SSP5, CellSpecificOffset=dB0, QoffsetFreq=dB0, RootSequenceIdx=1, HighSpeedFlag=LOW_SPEED, PreambleFmt=0, CellRadius=10000, CustomizedBandWidthCfgInd=NOT_CFG, EmergencyAreaIdCfgInd=NOT_CFG, UePowerMaxCfgInd=NOT_CFG, MultiRruCellFlag=BOOLEAN_FALSE, CPRICompression=NO_COMPRESSION; ADD CELLOP: LocalCellId=0, TrackingAreaId=1, CellReservedForOp=CELL_NOT_RESERVED_FOR_OP, OpUlRbUsedRatio=25, OpDlRbUsedRatio=25; ACT CELL: LocalCellId=0; 第二次数据：数据脚本： MOD ENODEB: ENODEBID=101, NAME="CYTX", ENBTYPE=DBS3900_LTE, LOCATION="CYYFL", PROTOCOL=CPRI; LST ENODEB:; ADD CNOPERATOR: CnOperatorId=1, CnOperatorName="CYTX", CnOperatorType=CNOPERATOR_PRIMARY, Mcc="460", Mnc="04"; DD CNOPERATORTA: TrackingAreaId=0, CnOperatorId=1, Tac=123; ADD BRD: CN=0, SRN=0, SN=6, BT=UMPT; ADD BRD: CN=0, SRN=0, SN=2, BT=LBBP, WM=TDD; ADD BRD: CN=0, SRN=0, SN=16, BT=FAN; ADD BRD: CN=0, SRN=0, SN=18, BT=UPEU; ADD BRD: CN=0, SRN=0, SN=19, BT=UPEU; ADD RRUCHAIN: RCN=0, TT=CHAIN, AT=LOCALPORT, HCN=0, HSRN=0, HSN=2, HPN=0, CR=9.8; ADD RRU: CN=0, SRN=60, SN=0, TP=TRUNK, RCN=0, PS=0, RT=MRRU, RN="YFRRU", ALMPROCSW=ON, ALMPROCTHRHLD=30, ALMTHRHLD=20, RS=TDL, RXNUM=8, TXNUM=8; ADD GPS: GN=0, CN=0, SRN=0, SN=6, CABLETYPE=COAXIAL, CABLE_LEN=20, MODE=GPS, PRI=4; SET CLKMODE: MODE=AUTO; SET CLKSYNCMODE: CLKSYNCMODE=TIME; ADD ETHPORT: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, PN=1, PA=FIBER, MTU=1500, SPEED=100M, ARPPROXY=DISABLE, FC=CLOSE, FERAT=10, FERDT=8, DUPLEX=FULL; ADD DEVIP: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, PT=ETH, PN=1, IP="110.110.110.3", MASK="255.255.255.0"; ADD IPRT: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, DSTIP="134.134.134.10", DSTMASK="255.255.255.0", RTTYPE=NEXTHOP, NEXTHOP="110.110.110.1", PREF=60, DESCRI="TO MME"; ADD IPRT: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, DSTIP="135.135.135.10", DSTMASK="255.255.255.0", RTTYPE=NEXTHOP, NEXTHOP="110.110.110.1", PREF=60, DESCRI="TO SGW"; ADD IPRT: CN=0, SRN=0, SN=6, SBT=BASE_BOARD, DSTIP="172.100.100.16", DSTMASK="255.255.255.0", RTTYPE=NEXTHOP, NEXTHOP="110.110.110.1", PREF=60, DESCRI="TO OMC"; ADD S1SIGIP: CN=0, SRN=0, SN=6, S1SIGIPID="TO MME", LOCIP="110.110.110.3", LOCIPSECFLAG=DISABLE, SECLOCIP="0.0.0.0", SECLOCIPSECFLAG=DISABLE, LOCPORT=2900, RTOMIN=1000, RTOMAX=3000, RTOINIT=1000, RTOALPHA=12, RTOBETA=25, HBINTER=5000, MAXASSOCRETR=10, MAXPATHRETR=5, CHKSUMTX=DISABLE, CHKSUMRX=DISABLE, CHKSUMTYPE=CRC32, SWITCHBACKFLAG=ENABLE, SWITCHBACKHBNUM=10, TSACK=200, CNOPERATORID=1; ADD MME: MMEID=0, FIRSTSIGIP="134.134.134.10", FIRSTIPSECFLAG=DISABLE, SECSIGIP="0.0.0.0", SECIPSECFLAG=DISABLE, LOCPORT=2900, CNOPERATORID=1, MMERELEASE=Release_R8; ADD S1SERVIP: CN=0, SRN=0, SN=6, S1SERVIPID="TO SGW", S1SERVIP="110.110.110.3", IPSECFLAG=DISABLE, PATHCHK=DISABLE, CNOPERATORID=1; ADD SGW: SGWID=0, SERVIP1="135.135.135.10", SERVIP1IPSECFLAG=DISABLE, SERVIP2="0.0.0.0", SERVIP2IPSECFLAG=DISABLE, SERVIP3="0.0.0.0", SERVIP3IPSECFLAG=DISABLE, SERVIP4="0.0.0.0", SERVIP4IPSECFLAG=DISABLE, CNOPERATORID=1; ADD OMCH: FLAG=MASTER, IP="110.110.110.3", MASK="255.255.255.0", PEERIP="172.100.100.16", PEERMASK="255.255.255.0", BEAR=IPV4, CN=0, SRN=0, SN=6, SBT=BASE_BOARD, BRT=NO; ADD VLANMAP: NEXTHOPIP="110.110.110.1", MASK="255.255.255.0", VLANMODE=SINGLEVLAN, VLANID=100, SETPRIO=DISABLE; MOD VLANMAP: NEXTHOPIP="110.110.110.1", MASK="255.255.255.0", VLANMODE=SINGLEVLAN, VLANID=1011, SETPRIO=DISABLE; ADD SECTOR: SECN=0, GCDF=DEG, LONGITUDE=0, LATITUDE=0, SECM=NormalMIMO, ANTM=8T8R, COMBM=COMBTYPE_SINGLE_RRU, SECTORNAME="SEC1", ALTITUDE=25, UNCERTSEMIMAJOR=3, UNCERTSEMIMINOR=3, ORIENTOFMAJORAXIS=0, UNCERTALTITUDE=3, CONFIDENCE=0, OMNIFLAG=FALSE, CN1=0, SRN1=60, SN1=0, PN1=R0A, CN2=0, SRN2=60, SN2=0, PN2=R0B, CN3=0, SRN3=60, SN3=0, PN3=R0C, CN4=0, SRN4=60, SN4=0, PN4=R0D, CN5=0, SRN5=60, SN5=0, PN5=R0E, CN6=0, SRN6=60, SN6=0, PN6=R0F, CN7=0, SRN7=60, SN7=0, PN7=R0G, CN8=0, SRN8=60, SN8=0, PN8=R0H; ADD CELL: LocalCellId=0, CellName="CYTX_TEST_01", SectorId=0, CsgInd=BOOLEAN_FALSE, UlCyclicPrefix=NORMAL_CP, DlCyclicPrefix=NORMAL_CP, FreqBand=39, UlEarfcnCfgInd=NOT_CFG, DlEarfcn=38350, UlBandWidth=CELL_BW_N100, DlBandWidth=CELL_BW_N100, CellId=0, PhyCellId=112, AdditionalSpectrumEmission=1, FddTddInd=CELL_TDD, SubframeAssignment=SA0, SpecialSubframePatterns=SSP5, CellSpecificOffset=dB0, QoffsetFreq=dB0, RootSequenceIdx=156, HighSpeedFlag=LOW_SPEED, PreambleFmt=0, CellRadius=10000, CustomizedBandWidthCfgInd=NOT_CFG, EmergencyAreaIdCfgInd=NOT_CFG, UePowerMaxCfgInd=NOT_CFG, MultiRruCellFlag=BOOLEAN_FALSE, CPRICompression=NO_COMPRESSION; ADD CELLOP: LocalCellId=0, TrackingAreaId=0, CellReservedForOp=CELL_NOT_RESERVED_FOR_OP, OpUlRbUsedRatio=25, OpDlRbUsedRatio=25; ACT CELL: LocalCellId=0; 四、故障处理及分析 1、首先要了解清楚各单板功效及其接口，注意是电接口还是光接口，这些要从所给实训数据表中分析清楚，另外在单板中添加IP地址和子网掩码也要注意是在电接口端口还是光接口端口，而且在光接口时GE2IP地址也要配置，第一次试验问题就出在这儿，还好最终我最终发觉了。另外，在处理连线时候也要选对线接口。2、通道和端口号要正确配置。3.注意在画好图表以后一定要先保留，注意导入数据时要把数据初始化。五、实习收获和体会首先，接触到比较新LTE平台我很快乐。经过此次学习我知道了LTE指是无线侧网络改善，更深入地了解了LTE网络结构和各个网元功效。经过此次实训了解了LTE基站开通注意事项，真实地了解了TDD-LTE和FDD-LTE基站区分。在试验过程中部分操作和注意事项，如要熟悉部分基础网络架构及部分单板，其次就是绘制拓扑图一定要按脚本文件选择适宜设备，另外绘制好以后要先保留，连线和接口也要选对，这些全部是配置前准备，最终在配置过程中要先配置传输数据，然后是基础数据无线数据，在实际操作中也一定要记得按实际设备来补充脚本，方便正确导入到拓扑图等，对以后工作实践有很大帮助。而且，经过测试中我们所犯错误中我深刻体会到，值实际工程中，我们数据配置一定得和设备相结合。总而言之，此次实训我收获很大，也感到很兴奋，这次实训将为我以后工作和深入学习打下坚实基础。
