机械制造与自动化毕业设计建筑模型设计与加工.doc

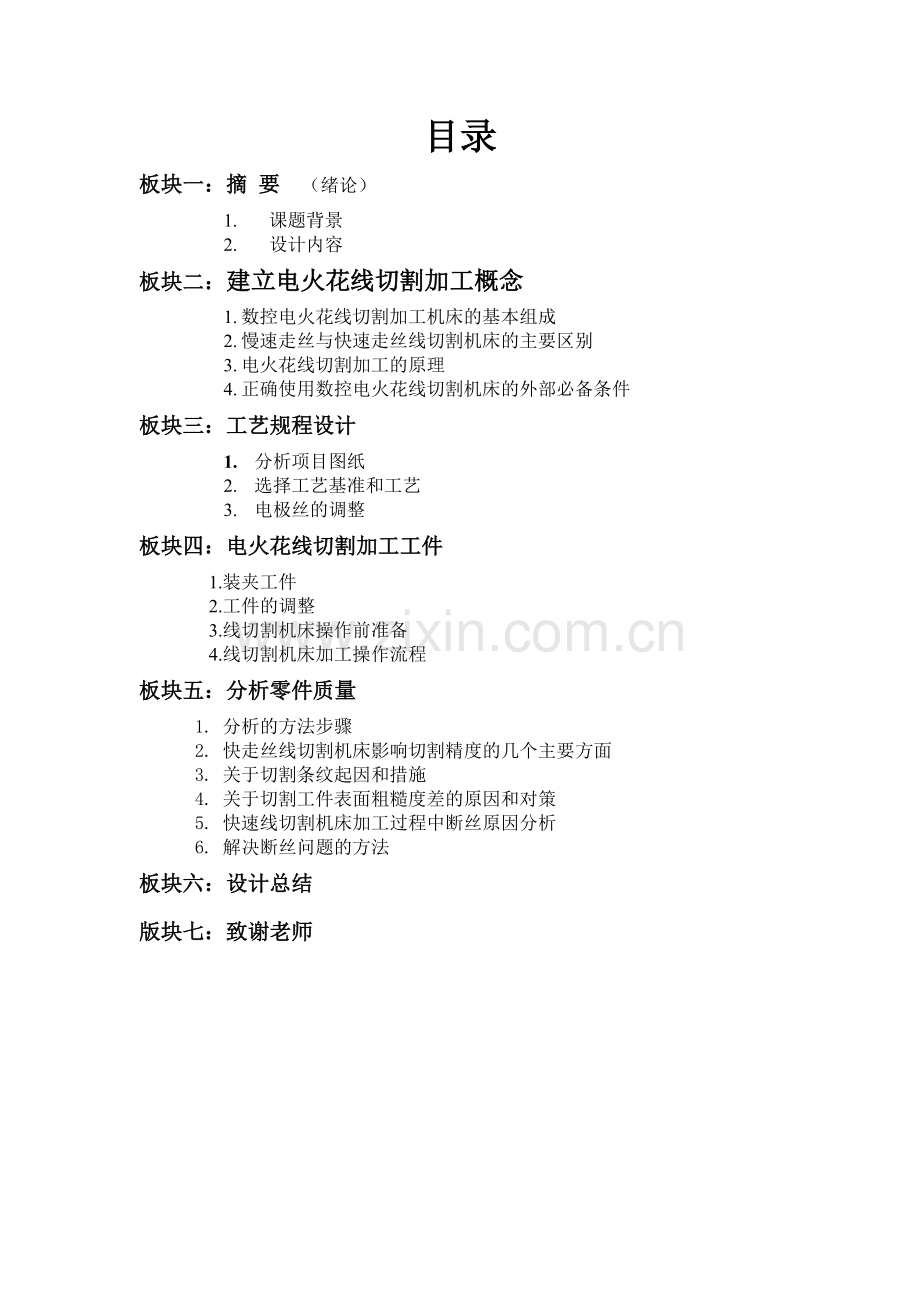

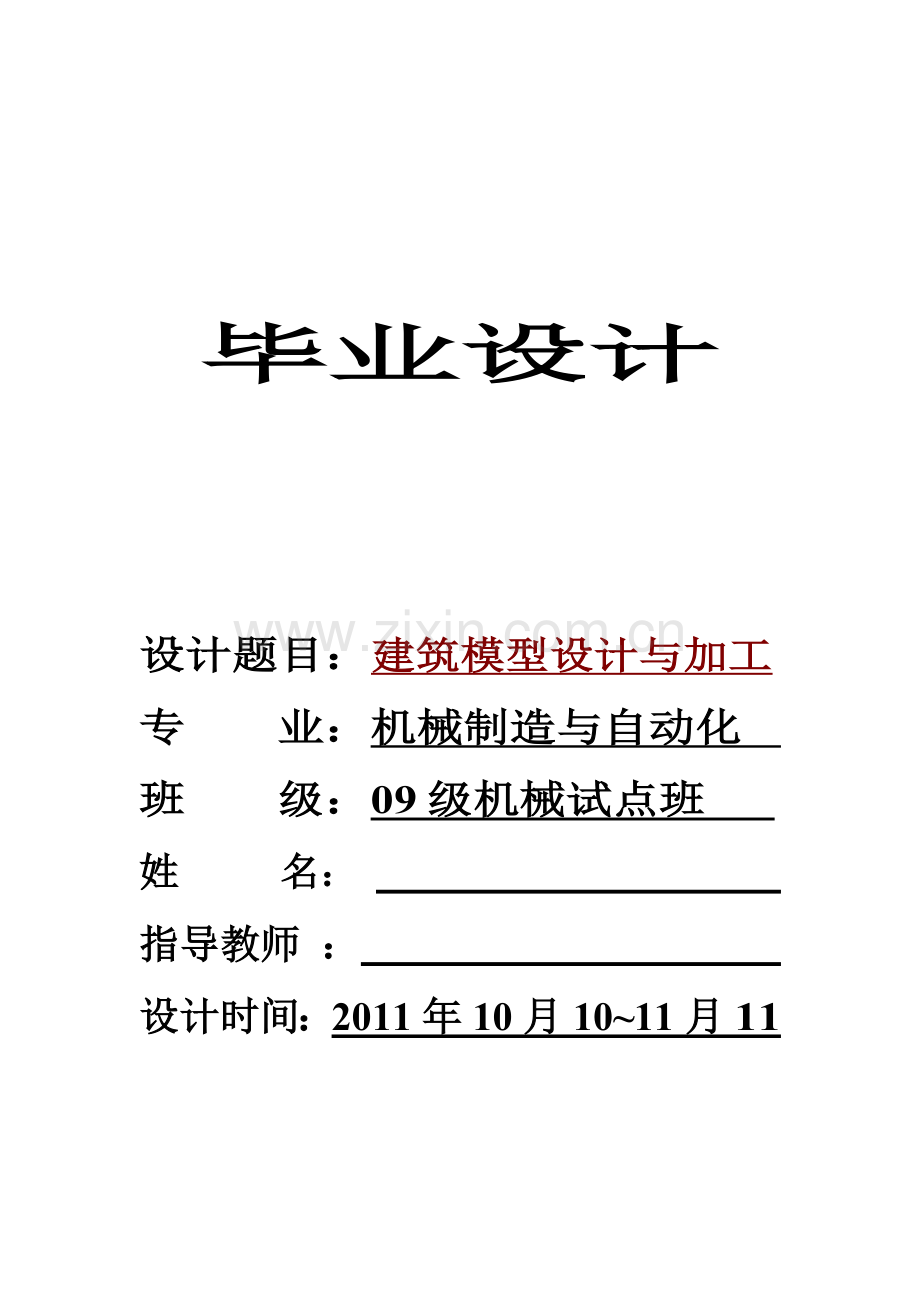

毕业设计设计题目：建筑模型设计与加工专 业：机械制造与自动化 班 级：09级机械试点班 姓 名： 指导教师 ： 设计时间：2011年10月1011月11 目录板块一：摘 要 （绪论）1. 课题背景2. 设计内容板块二：建立电火花线切割加工概念1. 数控电火花线切割加工机床的基本组成2. 慢速走丝与快速走丝线切割机床的主要区别3. 电火花线切割加工的原理4. 正确使用数控电火花线切割机床的外部必备条件板块三：工艺规程设计1. 分析项目图纸2. 选择工艺基准和工艺3. 电极丝的调整板块四：电火花线切割加工工件1. 装夹工件2. 工件的调整3. 线切割机床操作前准备4. 线切割机床加工操作流程板块五：分析零件质量1. 分析的方法步骤2. 快走丝线切割机床影响切割精度的几个主要方面3. 关于切割条纹起因和措施4. 关于切割工件表面粗糙度差的原因和对策5. 快速线切割机床加工过程中断丝原因分析6. 解决断丝问题的方法板块六：设计总结版块七：致谢老师板块一：摘要绪论制造业是国家经济发展的基础和支柱，制造技术是制造业赖以发展的支撑，是发展竞争优势的有力武器。21世纪是以知识经济和信息社会为特征的时代，制造业正面临着知识、信息、环境和资源的严重挑战，因此，制造业必须使用新技术、新材料和新工艺来满足不断变化的市场需求。本项目我们就通过完成压块零件的加工来学习一门新技术电火花线切割加工。对于快走丝线切割，电极丝的损耗也是一项重要的指标，要降低电极丝的损耗首先必须减少放电过程中离子对电极丝的轰击作用，并尽量减少电极丝对放电能量的吸收，这就需电极丝表面能快速汽化，使电极丝表面在得到冷却的同时把热能释放回放电通道内，形成汽化压力，从而提高对蚀除产物的排除能力，因此只有保持极间均匀冷却作用才可使工作介质在电极丝表面形成一层吸附膜，以减缓正离子对电极丝有轰击作用，同时通过工作介质自身的挥发带走大量的热量，以降低电极丝的损耗并提高其耐用度。课题背景由于大学三年即将毕业，为了检验我们在校期间的学习成果，学院交给我们一项设计任务，希望我们提高自身的操作水平，增长实践经验，为了以后更好的在社会上发展打下了基础。设计内容运用数控线切割机床，做一个工艺品（两个三层塔，中间有两个桥连接，两边各有一个桥），使我们掌握数控线切割机床，并达到熟练应用。板块二：建立电火花线切割加工概念数控电火花线切割加工机床的基本组成数控电火花线切割加工机床可分为机床主机和控制柜两大部分。（1） 控制柜：控制柜中装有控制系统和自动编程系统，能在控制柜中进行自动编程和对机床坐标工作台的运动进行数字控制。（2） 机床主机：机床主机主要包括坐标工作台、运丝机构、丝架、冷却系统和床身五个部分。慢速走丝与快速走丝线切割机床的主要区别电火花线切割加工原理电火花切割时，电极丝和工件之间进行脉冲放电。电极丝接脉冲电源的负极，工件接脉冲电源的正极。当接受一脉冲电压时，在电极丝和工件之间产生一次火花放电，在放电通道的中心瞬时温度可高达10000以上，高温使工件金属融化，甚至有少量气化，高温也使电极丝和工件之间的工作液部分产生气化，这些气化后的工作液和金属蒸汽瞬间迅速膨胀，并具有爆炸的特性。这种热膨胀和局部微爆炸抛出融化和气化的金属材料而实现对工件材料进行电蚀切割加工。数控快走丝线切割机床的参数及工艺水平产品型号CTW320TB工作台尺寸mm630440XY工作台行程mm40320最大切削厚度mm300最大切削锥度/h=100mm30电极丝速度m/sec1.711.8加工精度mm小于等于0.015最佳表面粗糙度Ra/umRa小于等于2.5重复定位精度(mm)0.02最大切学速度mm2/min大于等于100正确使用数控电火花线切割机床的外部必备条件电源外接电源为三相50HZ380V。加工时的电压波动绝对值10一般需自备稳压电源。工作液必须使用线切割机床专用工作液工作环境机床工作环境需无尘、干燥，无震动、无腐蚀、无大功率电器设备干扰，光线充足，通风良好，室内温度应控制在5C-35C范围内。板块三：工艺规程设计分析项目绘出以下图纸,产生3B代码： 程序B124B837B837GYL2B14311B0B14311GXL1B7155B15723B15723GYL2B7156B15723B15723GYL3B124B837B837GYL4DDB0B4367B4367GYL2B53648B0B53648GXL1B0B5000B5000GYL2B9800B0B9800GXL1B0B5000B5000GYL4B22731B0B22731GXL1B0B2500B2500GYL4B2700B0B2700GXL1B0B52200B52200GYL2B2700B0B2700GXL3B0B2500B2500GYL4B22731B0B22731GXL3B0B5000B5000GYL4B9800B0B9800GXL3B0B5000B5000GYL2B53969B0B53969GXL3B0B5000B5000GYL4B9800B0B9800GXL3B0B5000B5000GYL2B5200B0B5200GXL3B0B47200B47200GYL4B5200B0B5200GXL1B0B5000B5000GYL2B9800B0B9800GXL1B0B5000B5000GYL4B321B0B321GXL1B0B4367B4367GYL4DDB0B3170B3170GYL2B40051B0B40051GXL1B0B5000B5000GYL2B9800B0B9800GXL1B0B5000B5000GYL4B12500B0B12500GXL1B0B2500B2500GYL4B2700B0B2700GXL1B0B52200B52200GYL2B2700B0B2700GXL3B0B2500B2500GYL4B12500B0B12500GXL3B0B5000B5000GYL4B9800B0B9800GXL3B0B5000B5000GYL2B40200B0B40200GXL3B0B5000B5000GYL4B9800B0B9800GXL3B0B5000B5000GYL2B12500B0B12500GXL3B0B2500B2500GYL2B2700B0B2700GXL3B0B52200B52200GYL4B2700B0B2700GXL1B0B2500B2500GYL2B12500B0B12500GXL1B0B5000B5000GYL2B9800B0B9800GXL1B0B5000B5000GYL4B149B0B149GXL1B0B3170B3170GYL4DD1. B184B1324B1324GYL12. B0B5000B5000GYL23. B39800B0B39800GXL14. B0B5000B5000GYL45. B10200B0B10200GXL16. B0B5000B5000GYL27. B15000B0B15000GXL18. B0B5200B5200GYL29. B90200B0B90200GXL310. B0B5200B5200GYL411. B15000B0B15000GXL112. B0B5000B5000GYL413. B10200B0B10200GXL114. B184B1324B1324GYL315. DDB171B2080B2080GYL3B0B5000B5000GYL4B15000B0B15000GXL3B0B10237B10237GYL4B45100B141006B90200GXSR2B0B10237B10237GYL2B15000B0B15000GXL3B0B5000B5000GYL2B10200B0B10200GXL3B0B5000B5000GYL4B39800B0B39800GXL3B0B5000B5000GYL2B10200B0B10200GXL3B171B2080B2080GYL1DDB11045B0B11045GXL3B0B149B149GYL2B26700B0B26700GXL3B0B8000B8000GYL4B9800B0B9800GXL3B0B1800B1800GYL2B9500B0B9500GXL1B0B6200B6200GYL2B36200B0B36200GXL3B0B36200B36200GYL4B6200B0B6200GXL1B0B9500B9500GYL2B1800B0B1800GXL1B0B9800B9800GYL4B8000B0B8000GXL3B0B26700B26700GYL4B36200B0B36200GXL1B0B6200B6200GYL2B9500B0B9500GXL3B0B1800B1800GYL2B9800B0B9800GXL1B0B8000B8000GYL4B26700B0B26700GXL1B0B26700B26700GYL2B8000B0B8000GXL3B0B9800B9800GYL2B1800B0B1800GXL1B0B9500B9500GYL4B6200B0B6200GXL1B0B36051B36051GYL2B11045B0B11045GXL1DDB4B2245B2245GYL2B0B5000B5000GYL2B12500B0B12500GXL1B0B13317B13317GYL2B17600B38785B38785GYL2B17600B38745B38745GYL3B0B13357B13357GYL4B12500B0B12500GXL1B0B5000B5000GYL4B10200B0B10200GXL1B4B2245B2245GYL4DDB2400B0B2400GXL3B0B11715B11715GYL2B6400B3715B4800GXSR2B0B7025B7025GYL4B3200B0B3200GXL1B0B7025B7025GYL2B1600B7225B3510GYSR1B0B16615B16615GYL4B4800B0B4800GXL3B0B9800B9800GYL2B4700B0B4700GXL1B0B3200B3200GYL2B12600B0B12600GXL3B0B3200B3200GYL4B4700B0B4700GXL1B0B9800B9800GYL4B4800B0B4800GXL3B0B4900B4900GYL2B2400B0B2400GXL1DDB0B692B692GYL2B103B0B103GXL1B0B3660B3660GYL2B8880B0B8880GXL3B0B920B920GYSR3B0B8000B8000GYL2B920B0B920GXSR2B8000B0B8000GXL1B0B920B920GYSR1B0B12580B12580GYL4B47160B0B47160GXL1B0B12580B12580GYL2B920B0B920GXSR2B8000B0B8000GXL1B0B920B920GYSR1B0B8000B8000GYL4B920B0B920GXSR4B8880B0B8880GXL3B0B3660B3660GYL4B11860B0B11860GXL1B0B2080B1208GXNR4B26189B36693B37782GXNR4B1208B1693B1208GXNR1B11861B1B11861GXL2B0B3660B3660GYL4B8880B0B8880GXL1B0B920B920GYSR1B0B8000B8000GYL4B920B0B920GXSR4B8000B0B8000GXL3B0B920B920GYSR3B0B12580B12580GYL2B47160B0B47160GXL3B0B12580B12580GYL4B920B0B920GXSR4B8000B0B8000GXL3B0B920B920GYSR3B0B8000B8000GYL2B920B0B920GXSR2B8880B0B8880GXL1B0B3660B3660GYL2B10880B0B10880GXL3B0B1080B1080GYNR2B0B72000B72000GYL4B1080B0B1080GXNR3B10777B0B10777GXL1B0B692B692GYL4DDB985B985B985GYL3B567B567B567GYL2B71B71B83GXNR1B1882B236B1882GXL3B12B99B119GYNR2B236B1175B1175GYL4B98B20B66GXNR3B705B236B705GXL4B32B95B103GXNR3B456B456B456GYL1B408B316B408GXL4B9B347B347GYL4B699B769B769GYL3B1617B202B1617GXL2B919B690B919GXL2B60B80B105GXNR1B1368B684B1368GXL3B2543B1156B2543GXL2B41B91B52GXNR1B2117B235B2117GXL3B11B99B54GYNR2B409B818B818GYL3B556B557B557GYL2B414B829B829GYL1B1595B228B1595GXL1B14B99B115GXNR4B236B235B236GXL2B71B71B71GXNR1B2351B0B2351GXL3B0B100B71GXNR2B1118B1117B1118GXL3B592B395B592GXL2B0B375B375GYL2B654B655B655GYL1B1146B229B1146GXL1B20B98B109GXNR4B235B236B236GYL2B71B71B71GXNR1B3056B1B3056GXL3B0B100B45GYNR2B470B705B705GYL3B83B55B46GXNR2B136B137B137GYL4B281B141B281GXL3B615B614B615GXL2B222B886B886GYL1B97B24B88GXNR4B2862B441B2862GXL2B67B66B67GXL1B3709B0B3709GXL1B5152B1171B5152GXL4B2578B1171B2578GXL4B41B91B21GXNR3B1176B236B1176GXL4B20B98B75GXNR3B706B471B706GXL1B55B83B83GYNR4B0B705B705GYL2B100B0B68GXNR1B1411B471B1411GXL2B32B95B60GYNR1B235B471B471GYL3B89B45B56GXNR2B285B190B285GXL4B44B33B44GXL3B634B390B634GXL2B65B392B392GYL2B1336B732B1336GXL1B1031B129B1031GXL4B1633B700B1633GXL4B39B92B90GXNR3B1177B706B1177GXL1B51B86B10GXNR4B944B722B944GXL1B860B172B860GXL4B537B395B537GXL4B59B81B67GYNR3B823B1360B1360GYL1B592B0B592GXL1B971B1546B1546GYL4B85B53B92GXNR3B1946B130B1946GXL1B502B323B502GXL4B1176B705B1176GXL4B51B86B122GXNR3B680B679B680GXL1B1903B191B1903GXL1B907B712B907GXL4B140B490B490GYL3B582B364B582GXL3B93B78B93GXL2B382B382B382GYL1B71B71B97GXNR4B706B235B706GXL2B32B95B83GXNR1B1176B706B1176GXL3B51B86B118GYNR2B235B705B705GYL4B95B32B75GXNR3B1176B235B1176GXL4B20B98B61GXNR3B2577B1171B2577GXL1B4215B937B4215GXL1B3710B232B3710GXL1B83B83B83GYL4B1483B424B1483GXL3B27B96B151GYNR2B436B653B653GYL4B588B979B979GYL3B619B1033B1033GYL2B86B51B80GXNR1B3762B235B3762GXL2B6B100B77GXNR1B235B235B235GYL3B71B71B117GXNR2B1828B228B1828GXL4B424B848B848GYL4B371B742B742GYL3B845B1268B1268GYL2B83B55B72GXNR1B2116B235B2116GXL2B11B99B48GXNR1B1176B470B1176GXL3B37B93B152GXNR2B2047B228B2047GXL4B202B804B804GYL4B553B369B553GXL3B420B839B839GYL2B89B45B75GXNR1B1646B236B1646GXL2B14B99B55GXNR1B2097B932B2097GXL3B1601B0B1601GXL3B919B460B919GXL2B45B89B105GXNR1B905B679B905GXL3B1618B320B1618GXL2B281B712B712GYL2B518B596B596GYL1B108B108B108GYL4B203B406B406GYL3B89B45B131GXNR2B1175B235B1175GXL1B20B98B74GYNR4B236B940B940GYL1B97B24B32GXNR4B471B471B471GYL2B71B71B85GXNR1B1645B235B1645GXL3B14B99B44GYNR2B941B1411B1411GYL3B83B55B75GYNR2B235B1175B1175GYL4B98B20B47GXNR3B1031B615B1031GXL4B51B86B23GXNR3B212B62B212GXL4B247B458B458GYL3B754B165B754GXL3B21B98B55GYNR2B451B960B960GYL3B592B124B592GXL3B643B1064B1064GYL2B86B52B16GXNR1B836B810B836GXL2B1053B1039B1053GXL1B70B71B85GYNR4B235B1647B1647GYL2B99B14B28GXNR1B139B138B139GXL2B986B986B986GYL1DD内部文字程序B6B93B93GYL2B4083B0B4083GXL3B33B90B90GYL3B99B19B99GXL3B280B11B280GXL2B461B12B461GXL3B67B5B67GXL3B542B57B542GXL3B203B37B203GXL3B290B86B290GXL3B326B109B326GXL3B178B58B178GXL3B864B341B864GXL3B119B29B119GXL2B168B194B194GYL2B192B301B301GYL2B111B290B290GYL3B323B621B621GYL3B365B524B524GYL3B262B292B292GYL3B88B152B152GYL1B209B342B342GYL1B275B538B538GYL1B304B733B733GYL1B297B926B926GYL1B248B1085B1085GYL1B161B1205B1205GYL1B24B357B357GYL1B506B11B506GXL3B55B520B520GYL3B74B388B388GYL3B30B74B74GYL3B24B27B27GYL2B81B186B186GYL2B73B220B220GYL2B23B140B140GYL2B24B185B185GYL1B21B100B100GYL1B158B80B158GXL2B109B68B109GXL3B258B103B258GXL3B171B53B171GXL3B27B274B274GYL3B195B2112B2112GYL3B571B402B571GXL1B343B250B343GXL1B47B24B47GXL1B122B152B152GYL3B608B619B619GYL3B660B657B660GXL3B351B355B355GYL3B168B142B168GXL3B97B30B97GXL3B86B55B86GXL2B24B42B42GYL2B8003B0B8003GXL3B111B391B391GYL4B22B330B330GYL4B14B142B142GYL3B30B60B60GYL3B33B65B65GYL3B8B11B11GYL3B160B197B197GYL2B502B758B758GYL2B129B205B205GYL2B1206B170B1206GXL3B39B241B241GYL4B0B152B152GYL4B49B130B130GYL3B54B74B74GYL3B75B106B106GYL2B213B441B441GYL2B1213B171B1213GXL3B34B316B316GYL4B26B196B196GYL3B51B112B112GYL3B3B2B3GXL3B98B103B103GYL2B268B465B465GYL2B1384B195B1384GXL3B28B193B193GYL3B96B366B366GYL3B116B294B294GYL3B101B188B188GYL3B27B30B30GYL3B17B23B23GYL2B69B185B185GYL2B63B239B239GYL2B27B256B256GYL2B7261B0B7261GXL3B21B261B261GYL4B43B387B387GYL4B11B156B156GYL3B38B16B38GXL3B207B80B207GXL2B305B257B305GXL2B322B465B465GYL2B330B652B652GYL2B332B811B811GYL2B314B1023B1023GYL2B28B130B130GYL2B314B19B314GXL2B594B648B648GYL3B674B675B675GYL3B250B198B250GXL3B61B31B61GXL2B175B219B219GYL2B201B67B201GXL3B20B43B43GYL3B250B457B457GYL3B254B464B464GYL3B206B430B430GYL3B110B365B365GYL3B58B223B223GYL3B16B19B19GYL2B116B301B301GYL2B94B344B344GYL2B10B197B197GYL2B39B166B166GYL1B68B250B250GYL1B57B623B623GYL1B11B1295B1295GYL1B24B1236B1236GYL2B60B537B537GYL2B225B66B225GXL3B239B199B239GXL3B249B197B249GXL3B178B67B178GXL3B142B34B142GXL2B41B38B41GXL2B8470B0B8470GXL3B199B542B542GYL3B192B466B466GYL3B30B121B121GYL4B317B1034B1034GYL4B342B772B772GYL4B290B484B484GYL4B236B243B243GYL4B151B282B282GYL1B112B539B539GYL1B77B385B385GYL1B3B562B562GYL3B15B722B722GYL3B15B365B365GYL4B30B186B186GYL4B28B176B176GYL4B3B147B147GYL4B34B99B99GYL3B54B39B54GXL3B107B16B107GXL2B205B163B205GXL2B299B387B387GYL2B354B655B655GYL2B378B972B972GYL2B349B1094B1094GYL2B477B831B831GYL3B10B13B13GYL3B108B92B108GXL3B36B138B138GYL1B17B32B32GYL1B267B542B542GYL1B203B519B519GYL1B144B566B566GYL2B162B884B884GYL2B35B250B250GYL2B325B156B325GXL3B333B137B333GXL3B0B767B767GYL4B0B821B821GYL4B18B742B742GYL3B54B582B582GYL3B48B282B282GYL3B27B96B96GYL2B53B294B294GYL2B18B271B271GYL2B11B319B319GYL1B33B450B450GYL1B36B705B705GYL1B20B1011B1011GYL1B563B227B563GXL3B77B33B77GXL3B19B225B225GYL3B108B726B726GYL3B182B660B660GYL3B289B601B601GYL3B73B115B115GYL3B180B488B488GYL1B158B588B588GYL1B117B723B723GYL1B30B449B449GYL1B313B128B313GXL3B88B24B88GXL3B35B8B35GXL2B67B38B67GXL2B84B58B84GXL2B79B55B79GXL2B23B28B28GYL2B4B30B30GYL1B55B21B55GXL2B264B338B338GYL2B198B287B287GYL2B192B198B198GYL3B16B1516B1516GYL3B37B1904B1904GYL3B50B971B971GYL3B49B326B326GYL3B69B284B284GYL2B76B409B409GYL2B24B208B208GYL2B25B459B459GYL1B76B1158B1158GYL1B77B1698B1698GYL1B1B96B96GYL1B216B169B216GXL2B63B174B174GYL3B226B514B514GYL3B249B494B494GYL3B225B369B369GYL3B218B314B314GYL3B215B311B311GYL3B102B130B130GYL3B348B740B740GYL1B7300B0B7300GXL3B53B427B427GYL4B131B468B468GYL4B39B244B244GYL4B133B212B212GYL3B299B164B299GXL3B441B57B441GXL3B460B91B460GXL2B371B272B371GXL2B277B404B404GYL2B169B480B480GYL2B96B560B560GYL2B61B635B635GYL2B4B888B888GYL2B76B1331B1331GYL1B77B1184B1184GYL1B4B505B505GYL2B208B56B208GXL2B334B38B334GXL3B332B62B332GXL3B85B18B85GXL3B0B120B120GYL4B4B611B611GYL3B11B1057B1057GYL3B57B1195B1195GYL3B145B1021B1021GYL3B212B864B864GYL3B186B510B510GYL3B95B402B402GYL3B431B939B939GYL3B452B501B501GYL3B373B265B373GXL3B24B270B270GYL3B31B79B79GYL3B9B23B23GYL2B78B412B412GYL2B65B455B455GYL2B21B262B262GYL2B21B472B472GYL1B66B1098B1098GYL1B65B1818B1818GYL1B3B311B311GYL1B229B201B229GXL2B294B751B751GYL3B364B739B739GYL3B393B673B673GYL3B370B527B527GYL3B230B275B275GYL3B37B100B100GYL1B181B305B305GYL1B299B548B548GYL1B403B866B866GYL1B317B783B783GYL1B8281B0B8281GXL3B151B980B980GYL3B265B1092B1092GYL3B337B773B773GYL3B339B473B473GYL3B269B196B269GXL3B147B41B147GXL3B0B137B137GYL2B209B105B209GXL1B266B286B286GYL1B272B573B573GYL1B237B736B736GYL1B160B783B783GYL1B96B649B649GYL1B46B347B347GYL1B23B201B201GYL1B28B411B411GYL2B60B282B282GYL1B25B434B434GYL1B8B645B645GYL1B19B672B672GYL2B58B512B512GYL2B77B426B426GYL2B79B436B436GYL2B177B343B343GYL2B401B43B401GXL2B323B576B576GYL3B105B1372B1372GYL3B38B1416B1416GYL4B142B705B705GYL4B218B257B257GYL4B71B9B71GXL4B48B414B414GYL3B29B1B29GXL3B198B182B198GXL2B200B532B532GYL2B145B806B806GYL2B49B989B989GYL2B38B626B626GYL1B7328B0B7328GXL3B73B667B667GYL4B40B1579B1579GYL4B58B1739B1739GYL3B191B1344B1344GYL3B292B842B842GYL3B38B28B38GXL3B28B247B247GYL2B99B229B229GYL1B133B678B678GYL1B99B1127B1127GYL1B32B1671B1671GYL1B33B1701B1701GYL2B98B1216B1216GYL2B173B755B755GYL2B310B317B317GYL2B307B318B318GYL3B164B754B754GYL3B91B1221B1221GYL3B30B1698B1698GYL3B15B1563B1563GYL4B45B805B805GYL4B61B428B428GYL4B60B427B427GYL4B63B273B273GYL4B5B298B298GYL3B233B713B713GYL2B179B1345B1345GYL2B59B1737B1737GYL2B59B1712B1712GYL1B179B1274B1274GYL1B229B807B807GYL1B199B302B302GYL1B166B37B166GXL1B168B39
