钻井套管头安装程序动画演示.ppt

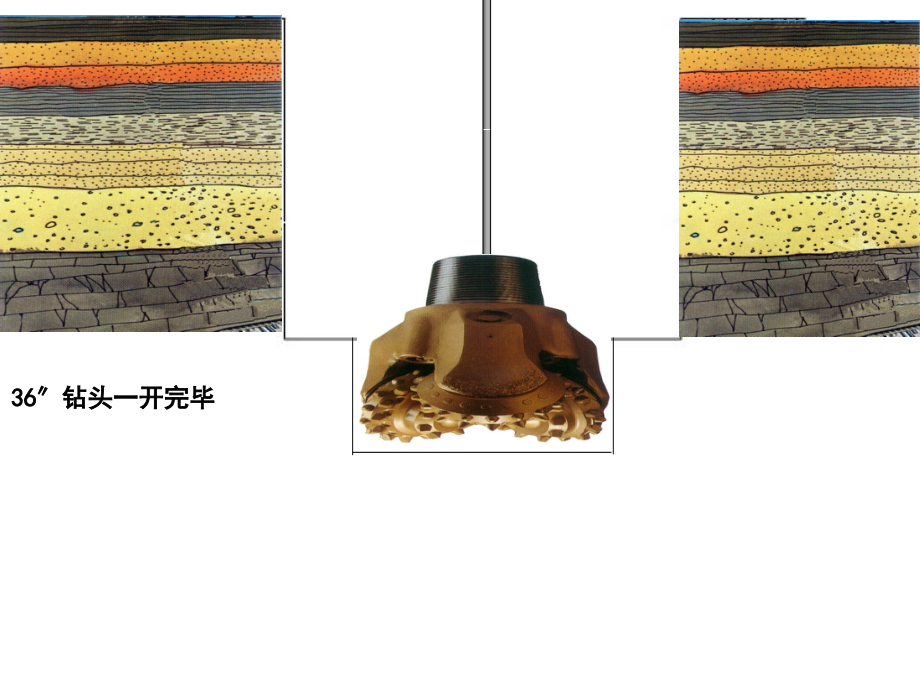

单击此处编辑母版标题样式,单击此处编辑母版文本样式,第二级,第三级,第四级,第五级,*,钻井-套管头安装程序动画演示,36,钻头一开完毕,提,36,钻头,下,30,导管,固,30,导管,固,30,导管完毕,割,30,导管,安装底座，把,30,导管焊接在底座上,26,钻头二开,310m,26,钻头二开完毕,310m,提,26,钻头,310m,下,20,套管,310m,下,20,套管完毕,310m,固,20,套管,310m,固,20,套管完毕,310m,割,20,套管,310m,安装调节底座及表层套管头，用反卡瓦固定,20,套管,310m,注密封脂，试压（,3000PSI,保压,15,分钟）,310m,安装升高短节,310m,安装升高短节完毕,310m,安装,20-3/4,钻井四通,310m,安装,20-3/4,钻井四通完毕,310m,安装,20-3/4,双闸板防喷器,310m,安装,20-3/4,双闸板防喷器完毕,310m,安装,20-3/4,万能防喷器,310m,安装,20-3/4,万能防喷器完毕,310m,下,21-1/4,试压塞,310m,下,21-1/4,试压塞到表层套管四通内,310m,防喷器试压（,3000PSI,保压,15,分钟）,310m,取出,21-1/4,试压塞,310m,下,21-1/4,防磨套,310m,下,21-1/4,防磨套到表层套管四通内,310m,17-1/2,钻头三开,310m,17-1/2,钻头三开,310m,17-1/2,钻头三开完毕,310m,提,17-1/2,钻头,310m,下钻杆提,21-1/4,防磨套,310m,提出,21-1/4,防磨套,310m,下,13-3/8,套管,310m,下,13-3/8,套管完毕,310m,拆升高短节底部螺栓，上提防喷器组,310m,安装,13-3/8,卡瓦式套管悬挂器及密封总成,310m,安装,13-3/8,卡瓦式套管悬挂器及密封总成完毕,310m,下移防喷器组，装升高短节底部螺栓,310m,在表层套管头侧翼,4-1/16,法兰上连接泥浆循环管线,310m,固,13-3/8,套管,310m,提升高短节、防喷器组,310m,拆升高短节、防喷器组,310m,割,13-3/8,套管,装中层套管头,在中层套管头下法兰注密封脂，试压（,10000PSI,保压,15,分钟）,装,13-5/815000PSI X 13-5/810000PSI,转换法兰,装,13-5/810000PSI,钻井四通、防喷器组,下,13-5/8,试压塞,下,13-5/8,试压塞到中层套管四通内,防喷器试压（,10000PSI,保压,15,分钟）,取出,13-5/8,试压塞,下,13-5/8,防磨套,下,13-5/8,防磨套到中层套管四通内,12-1/2,钻头四开,12-1/2,钻头四开完毕,提,12-1/2,钻头,下钻杆提,13-5/8,防磨套,提出,13-5/8,防磨套,下,9-5/8,套管,下,9-5/8,套管完毕,在,9-5/8,套管端部安装双公短节和,9-5/8,心轴式套管悬挂器,9-5/8,心轴式套管悬挂器座挂到中层套管四通内,用顶丝固定,9-5/8,心轴式套管悬挂器,在中层套管头侧翼,3-1/16,法兰上连接泥浆循环管线,固,9-5/8,套管,拆转换法兰、钻井四通、防喷器组,装,13-5/815000PSI X 13-5/8 15000PSI,作业法兰,装,13-5/815000PSI,钻井四通、防喷器组,下,9-5/8,试压塞,下,9-5/8,试压塞到作业法兰内,防喷器试压（,15000PSI,保压,15,分钟）,提出,9-5/8,试压塞,下,9-5/8,防磨套,下,9-5/8,防磨套到作业法兰内,8-1/2,钻头五开,提出,8-1/2,钻头,8-1/2,钻头五开完毕,提出,9-5/8,防磨套,下,5-1/2,套管,下,5-1/2,套管到,9-5/8,尾管上,拆钻井四通、防喷器组,安装套管头护盖,安装套管头护盖完毕,
