伊顿395mm 推式离合器Eaton 395 Push Clutch 2010.8.ppt

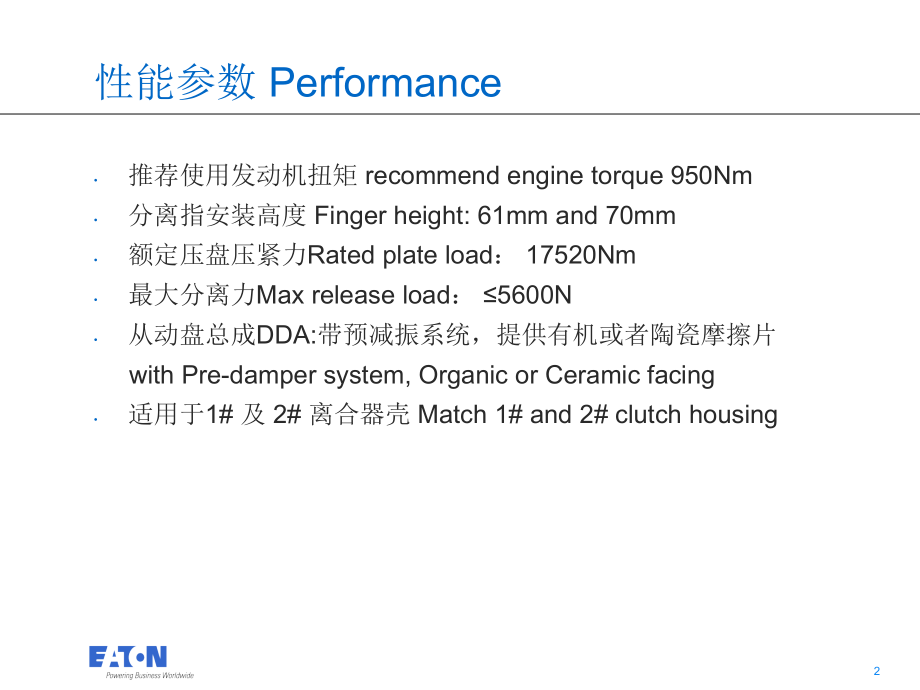

Click to edit Master text styles,Second level,Third Level,Fourth Level,title,*,*,伊顿,395mm,推式离合器,Eaton 395 Push Clutch,性能参数,Performance,推荐使用发动机扭矩,recommend engine torque,950Nm,分离指安装高度,Finger height:61mm and 70mm,额定压盘压紧力,Rated plate load,：,17520Nm,最大分离力,Max release load,：,5600N,从动盘总成,DDA:,带预减振系统，提供有机或者陶瓷摩擦片,with Pre-damper system,Organic or Ceramic facing,适用于,1#,及,2#,离合器壳,Match 1#and 2#clutch housing,盖总成,CA,产品优势,(Product advantage),395,推式技术与伊顿重型离合器技术一脉相承,Inheriting Eaton heavy duty clutch technology,极大限度挖掘经典推式膜片弹簧离合器的寿命设计能力，减少因离合器磨损造成的升程损失,Extreme dig classic push type diaphragm spring clutch life capability,reduce departure lose due to clutch wear.,高质量的压盘设计更适用于严酷工况条件下的使用,High weight PP design for severe working condition,伊顿对疲劳的深入研究支持了高技术水平的膜片弹簧设计,High technology diaphragm spring design based on Eaton fatigue deep study.,大量的,FEA,保证零部件设计的高水平,high quality design based on FEA,运输帽设计保证运输过程保持离合器性能及防止部件受损。,Shipping cap design is for keep clutch performance and prevent parts damage during shipping,从动盘总成,DDA,Excellent Damper,优越的减振性能,0,500,1000,1500,2000,2500,800,1000,1200,1400,1600,1800,2000,ENGINE RPM,TORQUE(ft-lb),Std.Damper,Soft Rate,NORMAL OPERATING,RANGE,Excellent Damper,优越的减振性能,Operating Engine Speed,Vibration point move out normal work speed range and are reduced by damper,共振点移出运行转速区域，且被衰减,Eaton 395 DDA,Local production,Excellent Pre-damper,优越的怠速减振性能,Eaton 395 DDA,Local production,No pre-damper,无怠速减振,Excellent,pre-damper can reduce idle noise,有效的降低汽车怠速噪音,High Quality Friction Facing,高品质的摩擦材料,Long wear life,长磨损寿命,Fast damping can estimate judder when vehicle launch.,快速的吸振性能保证汽车平稳起步,It has a very high thermal resistance,but also a faster recovery after fading,优良的热性能,衰退后有快速恢复性能,High Cycles Fatigue Life,减振器寿命,制造优势（,Manufacturing advantage,）,世界一流的膜簧热处理和喷丸设备，检测设备是高质量产品的保证,First-class diaphragm spring heatreat line and shoot penning machine,，,professional test machine,is,guarantee,of high quality product,世界一流的模具设计和制造保证了冲压零件高质量,First-class die design and manufacture guarantee parts,high quality,完美的铸造及机加工工艺成就高质量压盘,Perfect casting and machining process lead to high quality pressure plate,关键部件进口及原材料进口以保证高产品质量,key product and material import guarantee high quality,TS16949,质量体系保证一如既往地提供高质量产品,TS16949 quality system,persues,for improve quality of products,位于上海的伊顿工程中心负责对产品的全面支持，离合器应用匹配支持有助于帮助顾客正确使用离合器,CTO shanghai respond full support for 395 push,clutch application technology is helpful for customer to use clutch correctly.,
