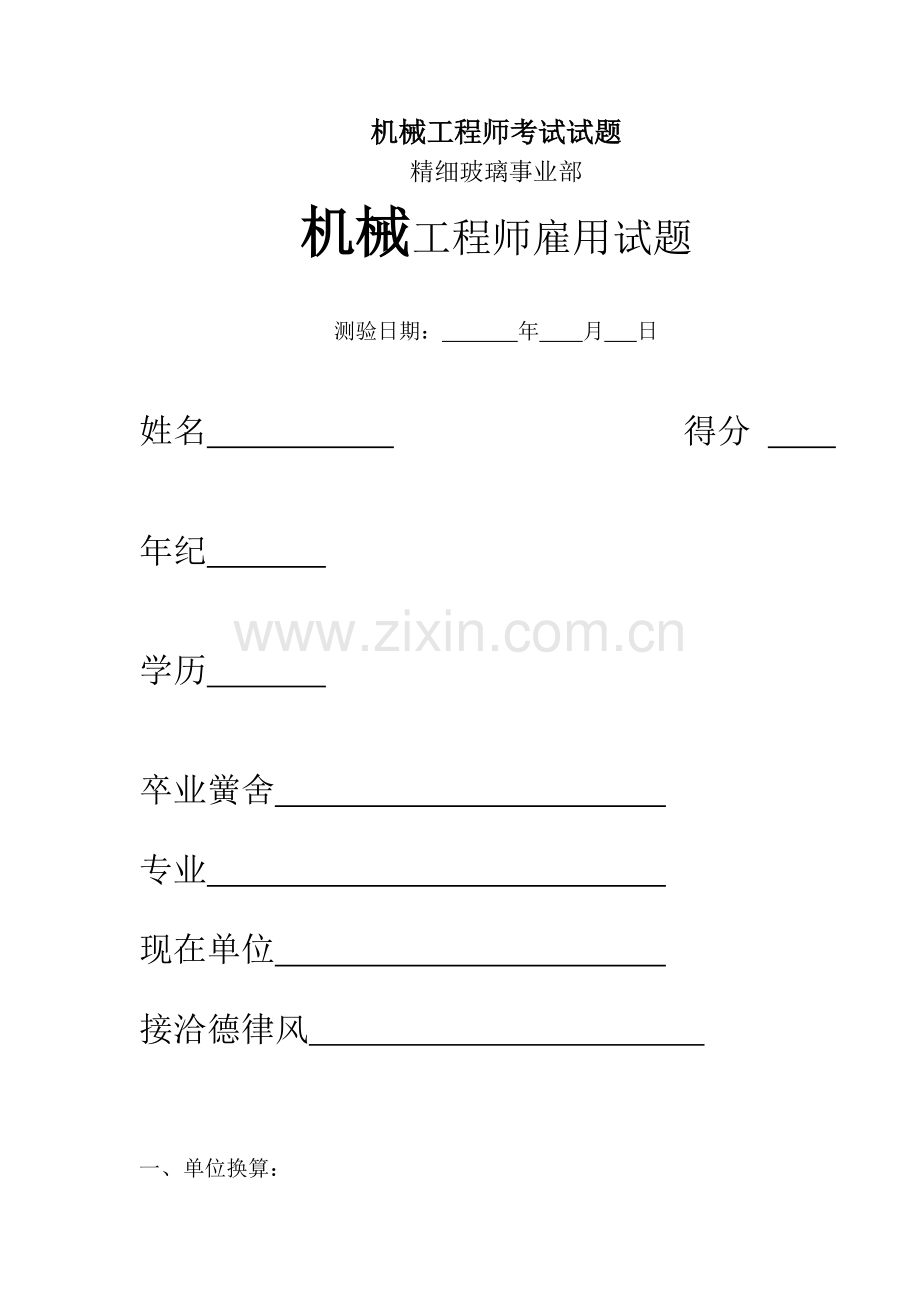

机械工程师考试试题.doc_第1页
第1页 / 共6页
机械工程师考试试题.doc_第2页
第2页 / 共6页
机械工程师考试试题.doc_第3页
第3页 / 共6页
机械工程师考试试题.doc_第4页
第4页 / 共6页
机械工程师考试试题.doc_第5页
第5页 / 共6页
点击查看更多>>
资源描述

1、机械工程师考试试题精细玻璃事业部机械工程师雇用试题 测验日期: 年 月 日姓名 得分 年纪 学历 卒业黉舍 专业 现在单位 接洽德律风 一、 单位换算:1、 1Mpa=( )kg/cm2=( )bar(巴)2、 1英尺=( )英寸; 1英寸=( )厘米3、 1托=( )pa=( )mbar4、 120=( )=( )K5、 1千瓦=( )马力二、 有一真空室,其上盖为一圆板,直径1米。真空室内的绝对压力为310-6大年夜气压。请运算上盖所受的总压力。三、 填空:1、 临盆线有一部件须要无磁,耐温350,合适钢种为( )。2、 如有一45#钢轴需综合机械机能,应采取( )热处理。既( )加( )

2、温度约为( )。3、 单相电机应用( )作为起动的手段。三相电机的起动电流(异步)约为正常运转电流的( )倍。4、 所谓PLC等于( )。用于( )。5、 空调机重要由( )、( )、( )、( ) 、( )等构成。其工质一样为( ),填充压力( )Mpa。工作过程大年夜致是:6、 RZ25=( ); 7=Ra( )。7、0.2A表示以( )为( ),( )误差为( ). 0.1A-B表示以( )为( ),( )误差为( )。8、 模数为2,齿数为20的齿轮,其齿轮分度圆半径为( )。9、 301轴承表示( )轴承,( )系列,内径为( )mm。 6205表示( )轴承,( )系列,内径为(

3、 )mm。10、 关于高温高速中应用的滚动轴承,润滑脂应采取( )。润滑脂应占轴承空间的( )。11、 三角皮带张紧力的调剂:对A型带,在皮带中部用手指压以3-4公斤力,皮带下压距离以( )毫米为正常( )。12、 齿形带传动的特点有:( )13、 75 H7/g6表示基( )制( )合营。轴径为( )mm ( )级精度。孔的下误差为( )mm,孔的精度等级为( )级。13润滑油的重要用处为( ),( ),( ),( ),( )。14、 轴的设计要点为( )。 15、图纸上未注公差一样按IT( )级,长度尺寸误差取( ),外形尺寸误差取( ),内孔/腔尺寸误差取( ), 16. 外形公差与尺寸

4、公差的关系是( ),同一要素的外形公差与地位公差的关系是( ) 四请设计出一个快慢进直线活动的气动体系图。五 说出身产线上应用的紧缩空气的预处理过程,你能明白的空气紧缩机有哪些种类。六 论述润滑油分类,有用范畴,润滑油的应用方法。七 请论述常用轴承的分类,代号意义(从倒数第一开端说明)。八 请画出Fe-Fe3C合金状况图及大年夜致说明每个区域组织状况。九 说明什么缘故斜齿比直齿好?十 试写出一个矩型横断面的平均长杆的抗弯模量。十一 将下面两段英文翻译成中文(可选一段也行)Turbo molecular Pumps (涡轮分子泵)Resembling a jet engine, a turbo

5、pump has a stack of rotors, each with multiple, angled blades which drive at very high tangential speed. Gas molecules, hit by the underside of the angled blades, move with momentum in the direction of the higher pressure exhaust.Turbo pumps come in two basic designs. In the SNECMA design (named aft

6、er a French jet-engine manufacturer) all gas enters through the main flange at the visible single-end of the pump; the Pfeiffer (named after the original turbo pumps manufacturer) double-ended design, has two rotors set-mounted on a common axle. Gas enters the pump through a right angle port between

7、 the two rotor sets and exits into an exhaust manifold connecting the two ends of the pump.For normal commercially-available pumps, pumping speeds range from approximately 20 L/s to 3,000 L/s (although some turbo pumps manufactured in Russia are quoted with pumping speeds of 20,000 L/s). All gases a

8、re pumped at roughly the same rate. One pump, for example, listed with 450 L/s for nitrogen, has a pumping speed for hydrogen of 310 L/s.When selecting a turbo molecular pump, consider not only the rate of pumping, but also compression ratio (CR). Lets look at an example:Turbomolecular pumps are use

9、d in a wide variety of high vacuum applications - any that demand clean, truly oil-free vacuum between 10-4 and 10-10 Torr. The single-ended pump is frequently chosen to replace a comparably sized diffusion pump in existing systems. Versions made from materials that withstand chemical attack when pu

10、mping corrosive gases find extensive application in semiconductor processing, particularly those using reactive gas plasmas. For truly oil-free systems, choose magnetically levitated turbo pumps. They can work with an oil-free piston pump or in some circumstances, with a diaphragm pump. The initial

11、cost of a turbo pump is higher than a diffusion pump with similar pumping speed. But the lack of need for external components (see Technical Notes ), the turbo pumps lower running costs, and the almost negligible chance that clumsy operation will cause an expensive vacuum disaster, make the turbo pu

12、mp the first choice for many users. (We do not recommend turbo pumps for systems generating dust or particulate matter, nor where the induced micro-vibrations might upset precise positioning, e.g. electron microscopes, micro-surface analysis, atomic force and scanning tunneling microscopes.) Turbo pumps find applications in processes involving:
