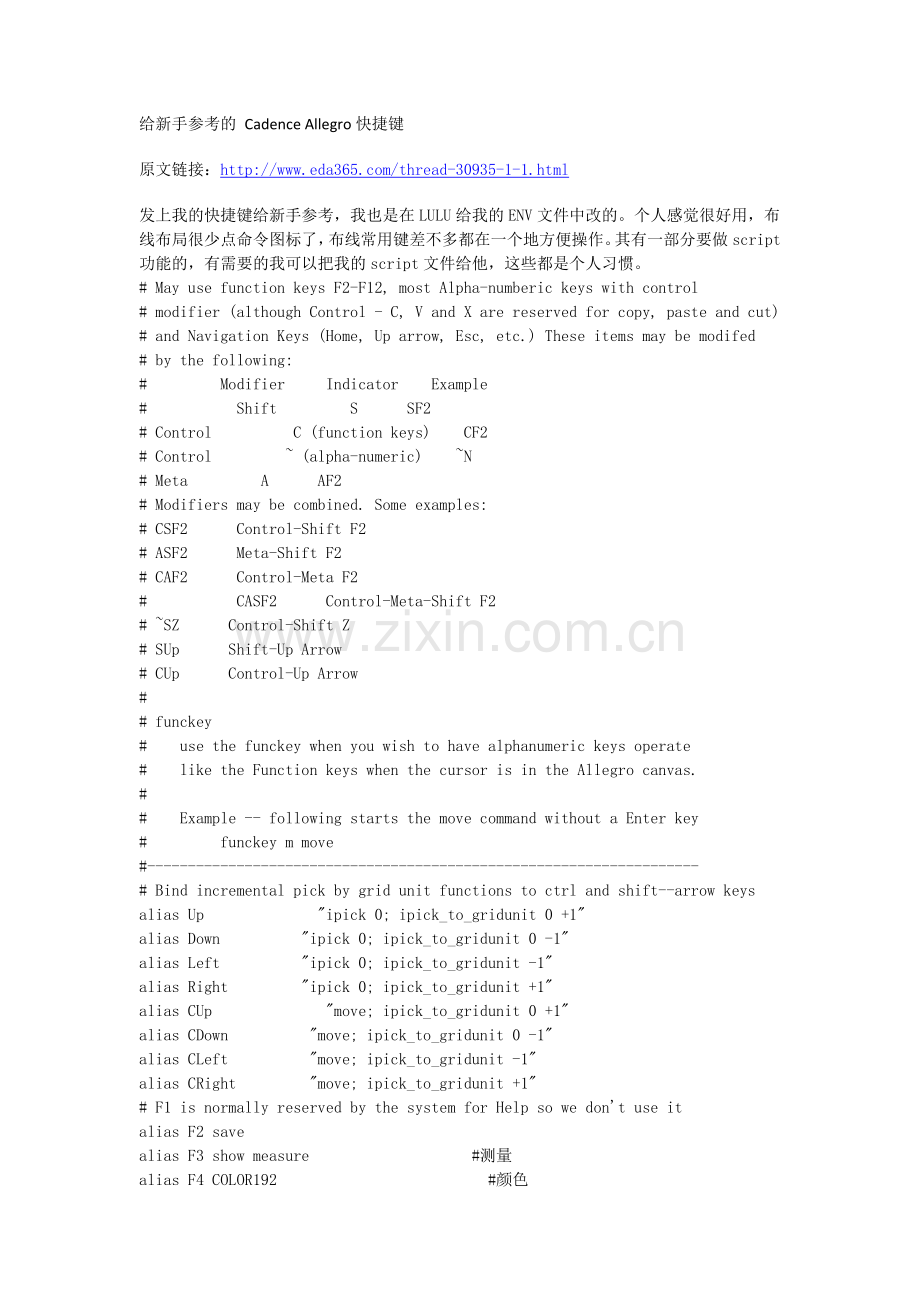

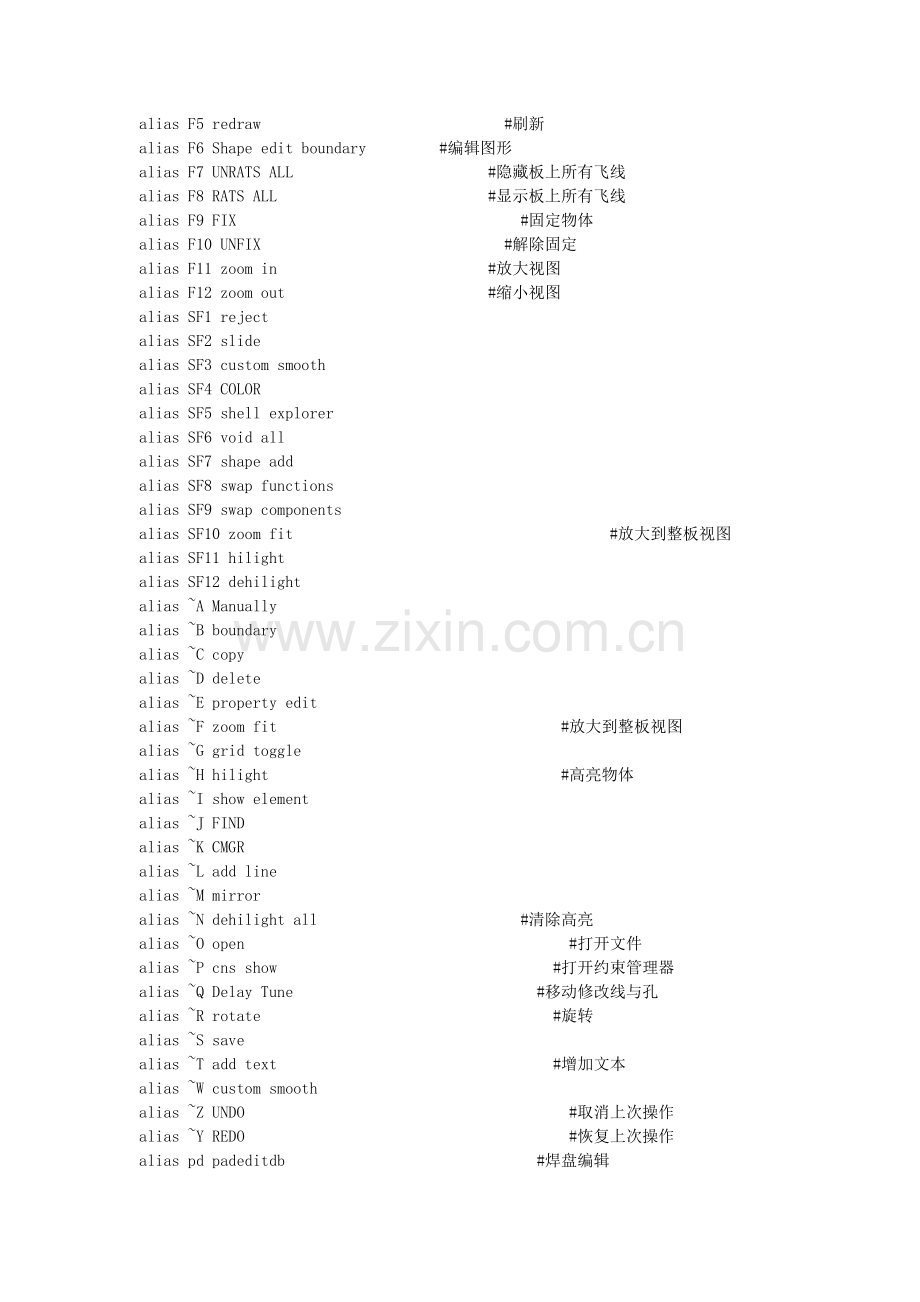

给新手参考的 Cadence Allegro快捷键 原文链接: 发上我的快捷键给新手参考,我也是在LULU给我的ENV文件中改的。个人感觉很好用,布线布局很少点命令图标了,布线常用键差不多都在一个地方便操作。其有一部分要做script功能的,有需要的我可以把我的script文件给他,这些都是个人习惯。 # May use function keys F2-F12, most Alpha-numberic keys with control # modifier (although Control - C, V and X are reserved for copy, paste and cut) # and Navigation Keys (Home, Up arrow, Esc, etc.) These items may be modifed # by the following: #     Modifier   Indicator  Example #       Shift     S    SF2 # Control      C (function keys)  CF2 # Control     ~ (alpha-numeric)  ~N # Meta     A    AF2 # Modifiers may be combined. Some examples: # CSF2    Control-Shift F2 # ASF2    Meta-Shift F2 # CAF2    Control-Meta F2 #       CASF2    Control-Meta-Shift F2 # ~SZ    Control-Shift Z # SUp    Shift-Up Arrow # CUp    Control-Up Arrow # # funckey #  use the funckey when you wish to have alphanumeric keys operate #  like the Function keys when the cursor is in the Allegro canvas. # #  Example -- following starts the move command without a Enter key #     funckey m move #-------------------------------------------------------------------- # Bind incremental pick by grid unit functions to ctrl and shift--arrow keys alias Up        "ipick 0; ipick_to_gridunit 0 +1" alias Down      "ipick 0; ipick_to_gridunit 0 -1" alias Left      "ipick 0; ipick_to_gridunit -1" alias Right     "ipick 0; ipick_to_gridunit +1" alias CUp        "move; ipick_to_gridunit 0 +1" alias CDown      "move; ipick_to_gridunit 0 -1" alias CLeft      "move; ipick_to_gridunit -1" alias CRight     "move; ipick_to_gridunit +1" # F1 is normally reserved by the system for Help so we don't use it alias F2 save                     alias F3 show measure            #测量 alias F4 COLOR192                #颜色 alias F5 redraw                  #刷新 alias F6 Shape edit boundary     #编辑图形 alias F7 UNRATS ALL              #隐藏板上所有飞线 alias F8 RATS ALL                #显示板上所有飞线 alias F9 FIX                     #固定物体 alias F10 UNFIX                  #解除固定 alias F11 zoom in                #放大视图 alias F12 zoom out               #缩小视图 alias SF1 reject alias SF2 slide alias SF3 custom smooth          alias SF4 COLOR alias SF5 shell explorer alias SF6 void all alias SF7 shape add alias SF8 swap functions alias SF9 swap components alias SF10 zoom fit                       #放大到整板视图 alias SF11 hilight alias SF12 dehilight alias ~A Manually alias ~B boundary alias ~C copy alias ~D delete alias ~E property edit alias ~F zoom fit                     #放大到整板视图 alias ~G grid toggle alias ~H hilight                      #高亮物体 alias ~I show element alias ~J FIND alias ~K CMGR alias ~L add line alias ~M mirror alias ~N dehilight all               #清除高亮 alias ~O open                        #打开文件 alias ~P cns show                    #打开约束管理器 alias ~Q Delay Tune                  #移动修改线与孔 alias ~R rotate                      #旋转 alias ~S save                         alias ~T add text                    #增加文本 alias ~W custom smooth               alias ~Z UNDO                        #取消上次操作 alias ~Y REDO                        #恢复上次操作 alias pd padeditdb                   #焊盘编辑 alias jn find_by_name                #查找物体 alias jc FIND component              #查找元件 funckey ' ' iangle 90                #以90度旋转选中的物体 funckey + subclass -+                #跳转到下一个层 funckey - subclass --                #跳转到上一个层 #------------------------------------------------------------------- # View Control alias Pgup oops alias SPgup pop route_from_target alias CPgup shadow toggle alias Home slide alias Pgdown next alias SPgdown angle 90shadow alias SHome pop finish alias End add connect alias Del delete alias SDel pop swap layers alias Insert DONE alias SInsert TOGGLE alias SLeft PLACE Manual alias SRight move alias SUp swap COMPONENTS alias SDown ALIGN COMPONENTS #-------------------------------------------------------------------- # OTHER ALIASESa alias x pick alias y pick 1 alias ix ipick alias iy ipick 0 alias 1 FORM mini acon_line_width 1 alias 2 FORM mini acon_line_width 0.25 alias 2.5 FORM mini acon_line_width 0.25 alias 3 FORM mini acon_line_width 0.3 alias 4 FORM mini acon_line_width 0.4 alias 5 FORM mini acon_line_width 0.5 alias 6 FORM mini acon_line_width 0.6 alias 7 FORM mini acon_line_width 0.7 alias 8 FORM mini acon_line_width 0.8 alias 9 FORM mini acon_line_width 0.9 alias g                "replay g" alias g0.05             replay g0.05.scr alias g0.01             replay g0.01.scr alias g0.1             replay g0.1.scr alias g0.2             replay g0.2.scr alias g0.3             replay g0.3.scr alias g0.5             replay g0.5.scr alias g0.6             replay g0.6.scr alias g0.9             replay g0.7.scr alias g0.9             replay g0.8.scr alias g0.9             replay g0.8.scr alias g0.9             replay g0.9.scr alias g1               replay g1.scr alias g2               replay g2.5.scr alias g2.5               replay g1.scr alias g.1              replay g0p1 alias g.5              replay g0p5 alias g1.5             replay g1p5 alias g2               replay g2 alias g2.5             replay g2p5 alias g3               replay g3.scr alias g3.5               replay g3.5.scr alias g4               replay g4 alias g4.5             replay g4.5.scr alias g5               replay g5 alias g5.5             replay g5p5 alias g6               replay g6 alias g6.5             replay g6.5 alias g7               replay g7 alias g7.5             replay g7.5 alias g8               replay g8 alias g8.5             replay g8.5 alias g9               replay g9 alias g10              replay g10 alias g10.5            replay g10p5 alias g11              replay g11 alias g12              replay g12 alias g12.5            replay g12p5 alias g13              replay g13 alias g14              replay g14 alias g15              replay g15 alias g16              replay g16 alias g17              replay g17 alias g18              replay g18 alias g19              replay g19 alias g20              replay g20 alias g25              replay g25 alias g30              replay g30 alias g50              replay g50 alias g100             replay g100 alias g111             replay g111 alias g500             replay g500 #---------------------------以下为Script快捷键----------------------------------------- alias t      replay   t                             #顶层元件框 alias b      replay   b                             #底层元件框 alias ts     replay   SILKSCREEN_TOP                #顶层元件框序号 alias bs     replay   SILKSCREEN_BOTTOM             #底层元件框序号 alias tss    replay   tss                           #顶层所有丝印 alias bss    replay   bss                           #底层所有丝印 alias so     replay   SILKSCREENoff                 #关闭所有丝印 alias aw     replay   Artwork                       #出图 #----------------------------以上为Script快捷键---------------------------------------- # OTHER ALIASES                         alias rps "replace padstack"                        #焊盘替换 alias unplrp report unplaced                                  alias pn replay pn.scr                     #敷铜显示FILL alias po replay po.scr                     #敷铜显示FILL关闭 alias co replay co.scr                     #敷铜显示FILL alias cn replay cn.scr                     #敷铜显示FILL关闭 #-------------------------------------------------------------------- # OTHER ALIASES alias edps padedit alias rps "replace padstack" alias unplrp report unplaced alias x pick alias y pick l alias ix ipick alias iy ipick 0 alias reopen 'open -q $module' alias revert 'open -q $module' # autoroam alias sar set pcb_autoroam alias uar unset pcb_autoroam alias reopen 'open -q $module' alias bubset 'settoggle shove_mode Off "Hug preferred" "Shove preferred"; options bubble_space $shove_mode' alias ~B bubset alias smoothset 'settoggle smooth_mode Off Minimal Full; options smooth_level $smooth_mode' alias ~C smoothset #-------------------------------------------------------------------- # COMMAND DEFAULTS # allow slide to work on arcs by default set slide_arcs # Compatibility aliases alias window zoom alias hilite hilight alias dehilite dehilight alias pickx pick alias picky pick l alias ipickx ipick alias ipicky ipick 0 alias cdnshelp cdsdoc #-------------------------------------------------------------------- # MOUSE WHEEL SUPPORT (Windows only) #   Environment Variables - Note quote variables so they are evaluated #        at button time not when this file is read. #   - _wheelcnt variable is set based upon number of detents wheel moved # range is -4 to 4 (no 0) #   - sx1 and sy1 are cursor coordinates when wheel is moved # # Button values #   wheel_up:   when wheel is moved up #   wheel_down: when wheel is moved down #   wheel: up/down if either of above 2 buttons are not assigned #   # Keyboard modifiers (note we are case insensitive) #   S - shift key #   C - control key #   SC - shift and control #     Example: SCwheel - for wheel button assignment with both shift & control keys # # Button factor may be factorion (e.g. 0.5) set buttonfactor = 1 button wheel_up "zoom in $buttonfactor" button wheel_down "zoom out $buttonfactor" button Cwheel_up "zoom in $buttonfactor" button Cwheel_down "zoom out $buttonfactor" source -q $ALLEGRO_SITE/site.env
