TBM专用英语培训资料.doc

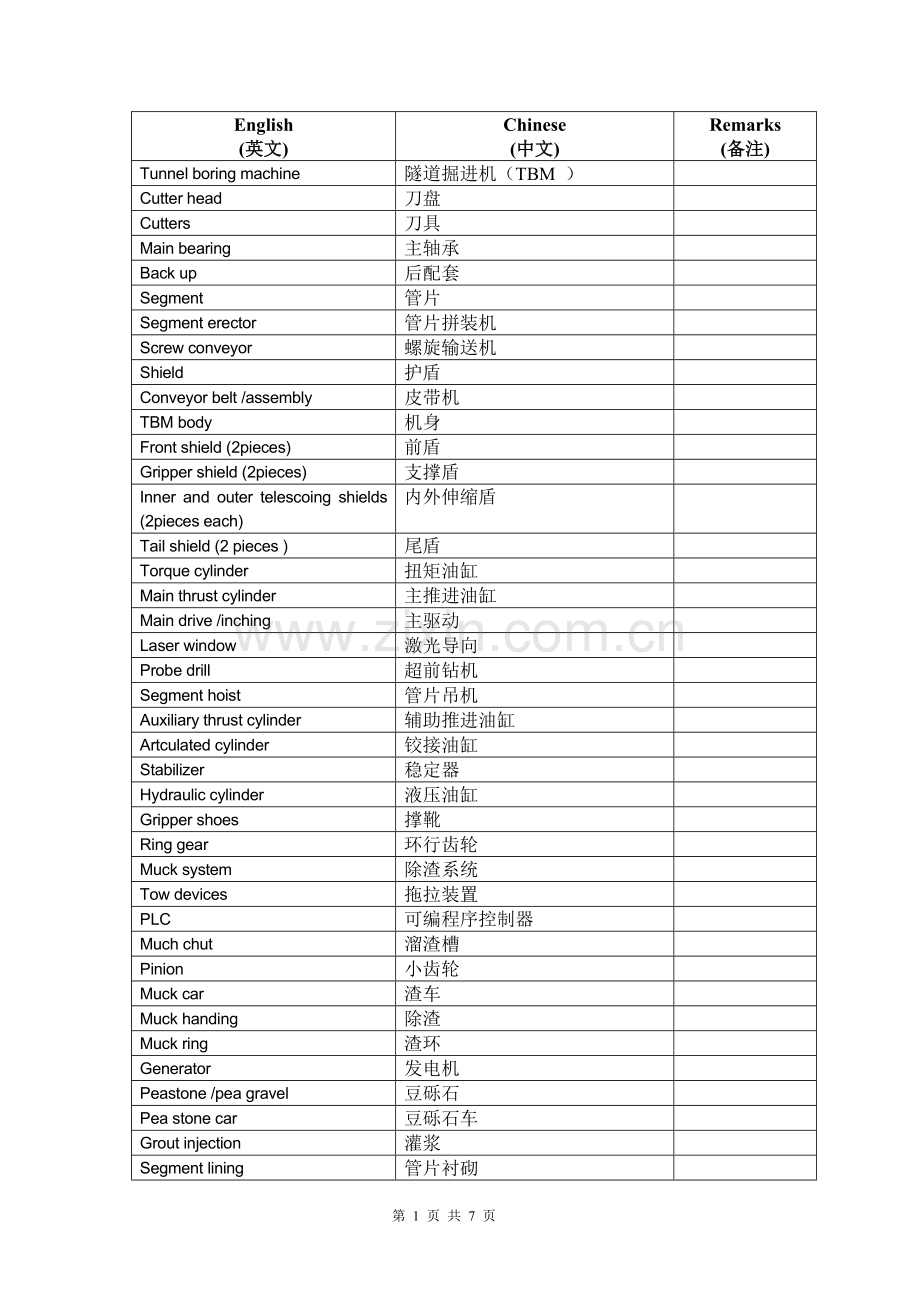

English
(英文)
Chinese
(中文)
Remarks
(备注)
Tunnel boring machine
隧道掘进机（TBM ）

Cutter head
刀盘

Cutters
刀具

Main bearing
主轴承

Back up
后配套

Segment
管片

Segment erector
管片拼装机

Screw conveyor
螺旋输送机

Shield
护盾

Conveyor belt /assembly
皮带机

TBM body
机身

Front shield (2pieces)
前盾

Gripper shield (2pieces)
支撑盾

Inner and outer telescoing shields (2pieces each)
内外伸缩盾

Tail shield (2 pieces )
尾盾

Torque cylinder
扭矩油缸

Main thrust cylinder
主推进油缸

Main drive /inching
主驱动

Laser window
激光导向

Probe drill
超前钻机

Segment hoist
管片吊机

Auxiliary thrust cylinder
辅助推进油缸

Artculated cylinder
铰接油缸

Stabilizer
稳定器

Hydraulic cylinder
液压油缸

Gripper shoes
撑靴

Ring gear
环行齿轮

Muck system
除渣系统

Tow devices
拖拉装置

PLC
可编程序控制器

Much chut
溜渣槽

Pinion
小齿轮

Muck car
渣车

Muck handing
除渣

Muck ring
渣环

Generator
发电机

Peastone /pea gravel
豆砾石

Pea stone car
豆砾石车

Grout injection
灌浆

Segment lining
管片衬砌

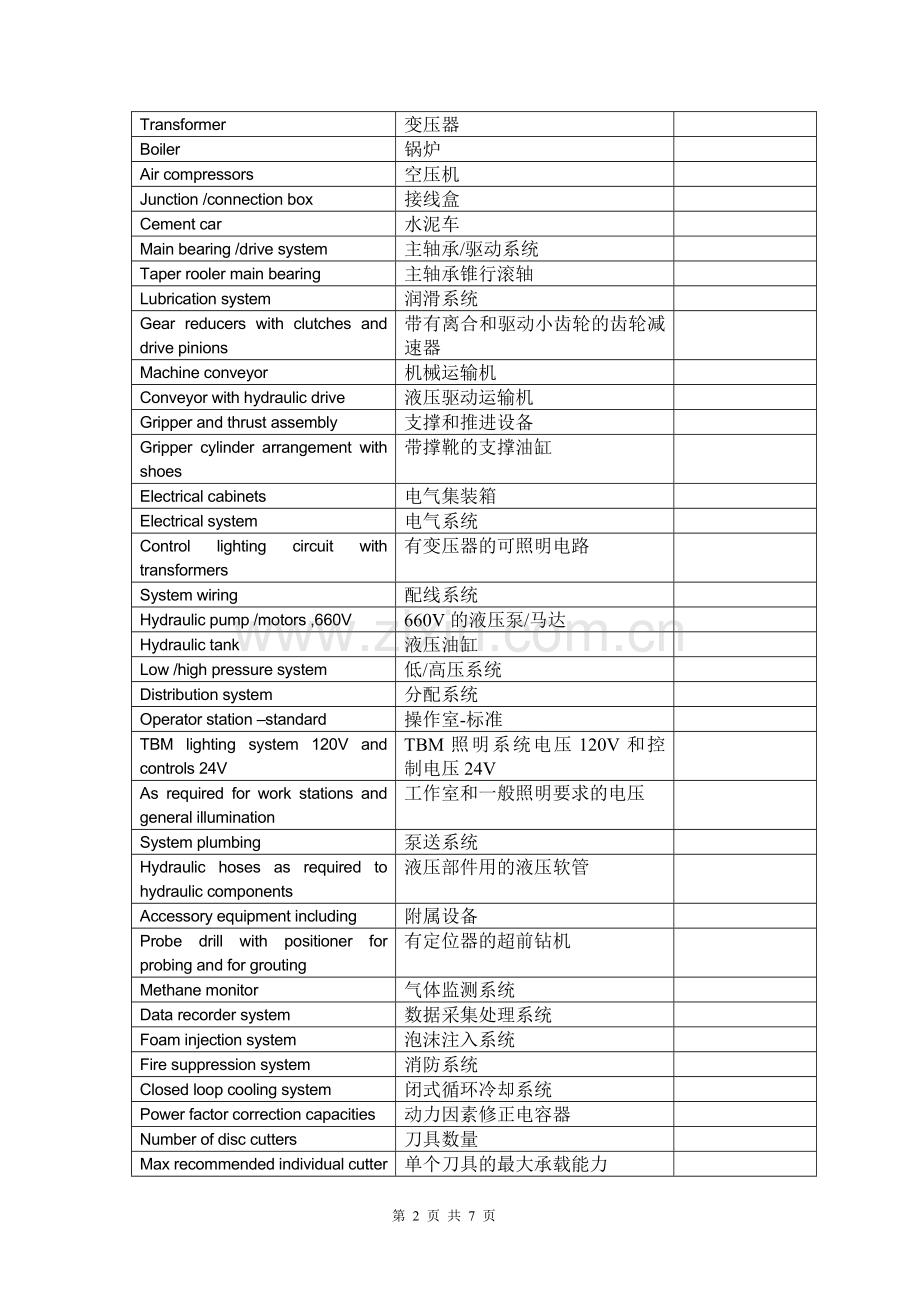

Transformer
变压器

Boiler
锅炉

Air compressors
空压机

Junction /connection box
接线盒

Cement car
水泥车

Main bearing /drive system
主轴承/驱动系统

Taper rooler main bearing
主轴承锥行滚轴

Lubrication system
润滑系统

Gear reducers with clutches and drive pinions
带有离合和驱动小齿轮的齿轮减速器

Machine conveyor
机械运输机

Conveyor with hydraulic drive
液压驱动运输机

Gripper and thrust assembly
支撑和推进设备

Gripper cylinder arrangement with shoes
带撑靴的支撑油缸

Electrical cabinets
电气集装箱

Electrical system
电气系统

Control lighting circuit with transformers
有变压器的可照明电路

System wiring
配线系统

Hydraulic pump /motors ,660V
660V的液压泵/马达

Hydraulic tank
液压油缸

Low /high pressure system
低/高压系统

Distribution system
分配系统

Operator station –standard
操作室-标准

TBM lighting system 120V and controls 24V
TBM照明系统电压120V和控制电压24V

As required for work stations and general illumination
工作室和一般照明要求的电压

System plumbing
泵送系统

Hydraulic hoses as required to hydraulic components
液压部件用的液压软管

Accessory equipment including
附属设备

Probe drill with positioner for probing and for grouting
有定位器的超前钻机

Methane monitor
气体监测系统

Data recorder system
数据采集处理系统

Foam injection system
泡沫注入系统

Fire suppression system
消防系统

Closed loop cooling system
闭式循环冷却系统

Power factor correction capacities
动力因素修正电容器

Number of disc cutters
刀具数量

Max recommended individual cutter load
单个刀具的最大承载能力

Max recommended operating
最大操作力

Cutterhead thrust
刀盘推进

Max propel thrust
最大推进力

Auxiliary thrust
辅助推进

Emergency auxiliary thrust
应急辅助推进

Segment length
管片长度

Auxiliary thrust cylinder stroke
辅助推进油缸冲程

Primary thrust cylinder stroke
主推进油缸冲程

Hydraulic system
液压系统

System operating pressure
系统操作力

Maximum system pressure
最大系统压力

Emergency auxiliary thrust pressure
应急辅助推进压力

Electrical system
电气系统

Motor circuit
电力马达

Control system and lighting
控制系统和照明

Transformer size
变压器型号

Backup power
后配套力

Voltage
电压

Secondary voltage
其次电压

Conveyor capacity
运输机重量

Belt width
皮带宽度

Capacity
容量

Machine weight (approximate )
机器重量

Complete TBM scrubber assembly
TBM除尘器安装总成

Complete ventilation system (fresh air and exhaust air to insure the complete function of the backup fan system )without ducting
完全通风系统

Duct cassette assembly system
通风管盒

One segment pick tool
一个管片推车工具

Electrical switch board electrical cable ,hydraulic hose
电气开关板和电缆、液压软管

High torque /chain driven hydraulic car pusher system
大扭矩驱动液压推车系统

Back-up towing system
后配套拖拉系统

Segment hoist system between front support and segment erector
在前支撑和管片安装机之间的管片提举系统

Car winches
车用绞盘

Compressor
压缩机

The dust scrubber fan
除尘风扇

The air scrubber fan
除尘器风扇

Fresh air booster fan
换风扇/接力风机

Silencer /sound absorber
消音器

Ducting cassette
通风管盒

Scrubber assembly
除尘器总成

Cable reel
电缆卷筒

Cable drum
电缆卷筒

Telephone system
通讯系统

Emergency stand-by generator set
应急发电机

Dewatering system
排水系统

Segment /material handing hoist system
管片/材料提举系统

Electrical system
电气系统

Emergency lighting system
应急照明系统

Conveyor
皮带机

Industrial water system
工业水系统

Rolling decks
滚动甲板

Outrigger device
悬臂梁设备

Ventilation ducting
通风管道

Ramp
渣车

Open center gantries
中心开放拖车

Tow system
拖拉系统

Transmission gantry
传动拖车

Methane monitors
甲烷监控

Fire suppression system
消防系统

Torque
扭矩

Thrust of propelling jacks
推进油缸

Number of running motors for cutterhead Zmotor amps
驱动刀盘转动的马达的数量

Machine clock time for starting Zending or boring
机器启动，停止或掘进时间

Propelling stroke length
推进行程长度

Cutterhead rpm
刀盘的转速（转/分）

Gripper force
支撑力

Tow force
拖拉力

Probe drill installation
超前钻机安装

Tunnel lining system
隧道衬砌系统

Tow speed drive (5Í260/130K main drive motors )
双速主驱动电机

Leakage
渗漏

Conditioning valves
调节阀

Water spray system
喷水系统

Operator’s console
司机室

Dust control
除尘

Personnel facilities
人员配置

The muck handing system of the TBM consists of the muck buckets on the cutterhead, the muck chute and machine conveyor.
TBM 上的出渣系统包括刀盘上的铲斗、溜渣槽和机械运输机

Muck handing
除渣

Seal lubrication system
密封润滑系统

reservoir
蓄水池

The gripper shield consists of a tow piece shield structure, a horizontal gripping mechanism, a forward articulated shield section, which telescopes into the front shield, a tail shield, and primary and auxiliary thrust cylinders.
支撑盾包括两块盾体结构、一个水平夹紧装置、一个向前铰接盾体部分，它可以伸进前盾，一个尾盾，主推进油缸和辅助推进油缸。

Each drive unit consists of a motors , gear reducer , output pinion ,and clutch
每个驱动单元包括电机、齿轮减速器、小齿轮和离合器

Gear reducer assembly
齿轮减速器

Contamination
污染，污染物

Weldment
焊接件

High voltage disconnects and high voltage transformer are included in basic supply .
高压断路器和高压变压器包含在基本设施中

Gear reducers with clutches and pinions
带有离合和驱动小齿轮的齿轮减速器

Conveyor with hydraulic drive
液压驱动运输机

Back-fill supply –not included in scope of supply by the seller .The supply of back-fill materials is by grout pump and pea gravel blower . Both the pea gravel blower and the grout pump/distribution system are shown as rail mounted ,but may be deck mounted .
回填供应—不包含在卖方的供货范围中。回填材料的供应是靠注浆泵和豆砾石泵完成的，豆砾石泵和注浆泵系统可以安放在路轨上，也可以安放在甲板上。

Spoil removal
渣土转移

An automated electronic data recording system is using the PLC on the TBM .It reads and displays the operating levels of the machine’s various hydraulic and electric system and logs them on the hard disc on the pc.
一个自动电子数据采集系统用于PLC上，它能记录和显示机器的各种液压或电气系统的工作水平，而且把此记录在电脑的硬盘上

Effects of corrosion ,erosion and normal wear and tear are specifically excluded from this warranty .
货物的腐蚀、腐烂以及正常磨损和撕裂不包括在本保证中

Probe drilling unit
探钻装置

Muck handing system
出渣系统

The air scrubber fans and silencers are supplied with the backup system
除尘器风扇和消音器是为后配套系统提供的

Hydraulic power unit
液压电力设备

Monitoring and testing
监控系统

Control and distribution network
网络控制和分配

A forward circular frame
前拱架

Horizontal guide columns
水平导管

The saddle assembly
鞍状总成

The pick-up pan
抓升盘

Grout holes
灌浆孔

A bolt-on system
附加系统

Fire suppression system
消防系统

Three pneumatic actuators
三个气动执行器

Three containers to store the dry chemical extinguishers agent
三个储存干燥化学灭火剂的容器

Two manual actuators
两个手动式执行器

Nitrogen cartridges for delivering the agent to the power units
氮气筒用于输送试剂到动力单元

Locomotive
运动的

Six segment cars
六台管片车

One pea gravel car
一台豆砾石车

Nine muck cars
九台渣车

One personnel car or flat car
一台人车或平板车

One grout car
一台注浆车

Electric switch board electric cable ,hydraulic hose
电气开关板、电缆、液压软管

High voltage tunnel power cable
高压隧道电源电缆

All lubricating compounds, hydraulic oils and labor operating and maintenance personnel required to place the machine into operating condition .
润滑组件、液压油、劳工操作和机器保养

Flexible ventilation ducting
弹性通风管

Any material for roof support probe drilling such as water , power , bolts ,mesh or drills bits
屋顶支撑材料或超前打钻用的材料：像水、电能、螺栓、网格、钻头

Rail switches
道叉

Motors circuit breakers monitoring
电机熔断器监控

Power pack
液压站

Positioning cutter head
刀盘定位

Control cabin /desk
控制柜/台

Standstill during boring ,segment installing
掘进期间停止，管片安装

Shift data
班次日期

Job mode
点动模式

Grease lubrication torque reaction beams
扭矩梁甘油润滑

Main contactor on
主接触器正常

Leakage oil pressure
油泄露压力

Releases breakout mode
脱困模式解锁

Breakout mode preselected
脱困模式预选制

Cutter head brake released
刀盘制动器打开

Cooling cutter head drive ok
刀盘传动冷却正常

Agitator
搅拌器/机

Gantry
门架

Deck
台车，甲板

Invert area
仰拱区域

Gripper assembly
撑靴总成

Positive oil distributor
分油器

Control fuses monitoring
控制熔断器监控

Bucket wear lips
铲斗磨损条

A hinged face plate
铰链面板

Face cutter
滚刀

Guide bushings
导向轴衬

Two radial guide columns
两个径向导向柱

Accessory equipment
附属设备

Power factor
动力因素

Painting
喷漆

Shop test and documentation
车间测试及文件

Operation and maintenance
操作维修手册

A segment hoist beam
管片提举梁

Power distribution cabinet
电源分配柜

Polyurethane wheel
聚安亚脂轮

Polyethylene wheel
聚乙烯轮

Air /water heat exchanger assembly
空气/水热交换器总成

gearbox
变速箱/减速器
