Alcatel7750SR设备查看命令.docx

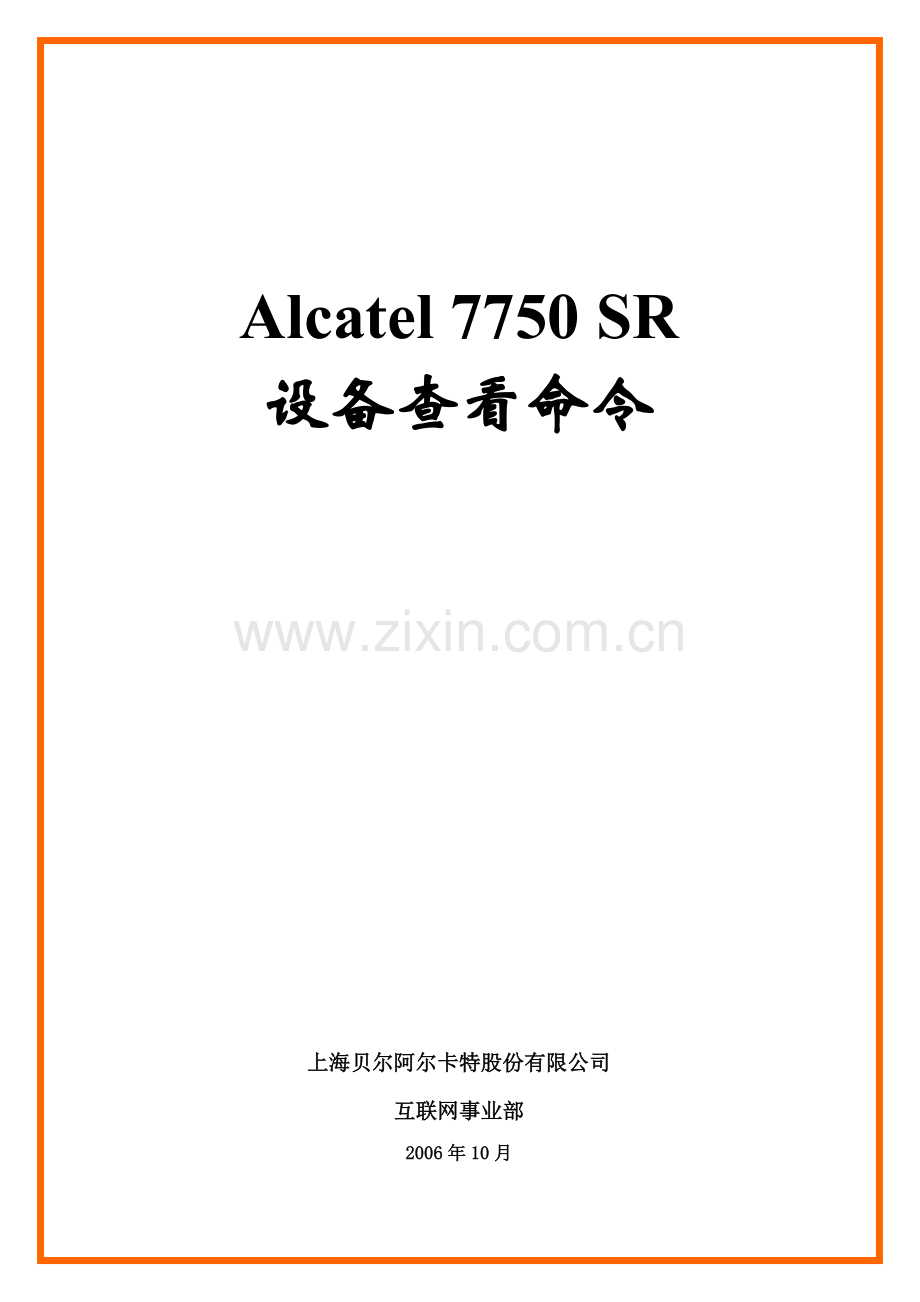

Alcatel 7750 SR
设备查看命令

上海贝尔阿尔卡特股份有限公司
互联网事业部
2006年10月

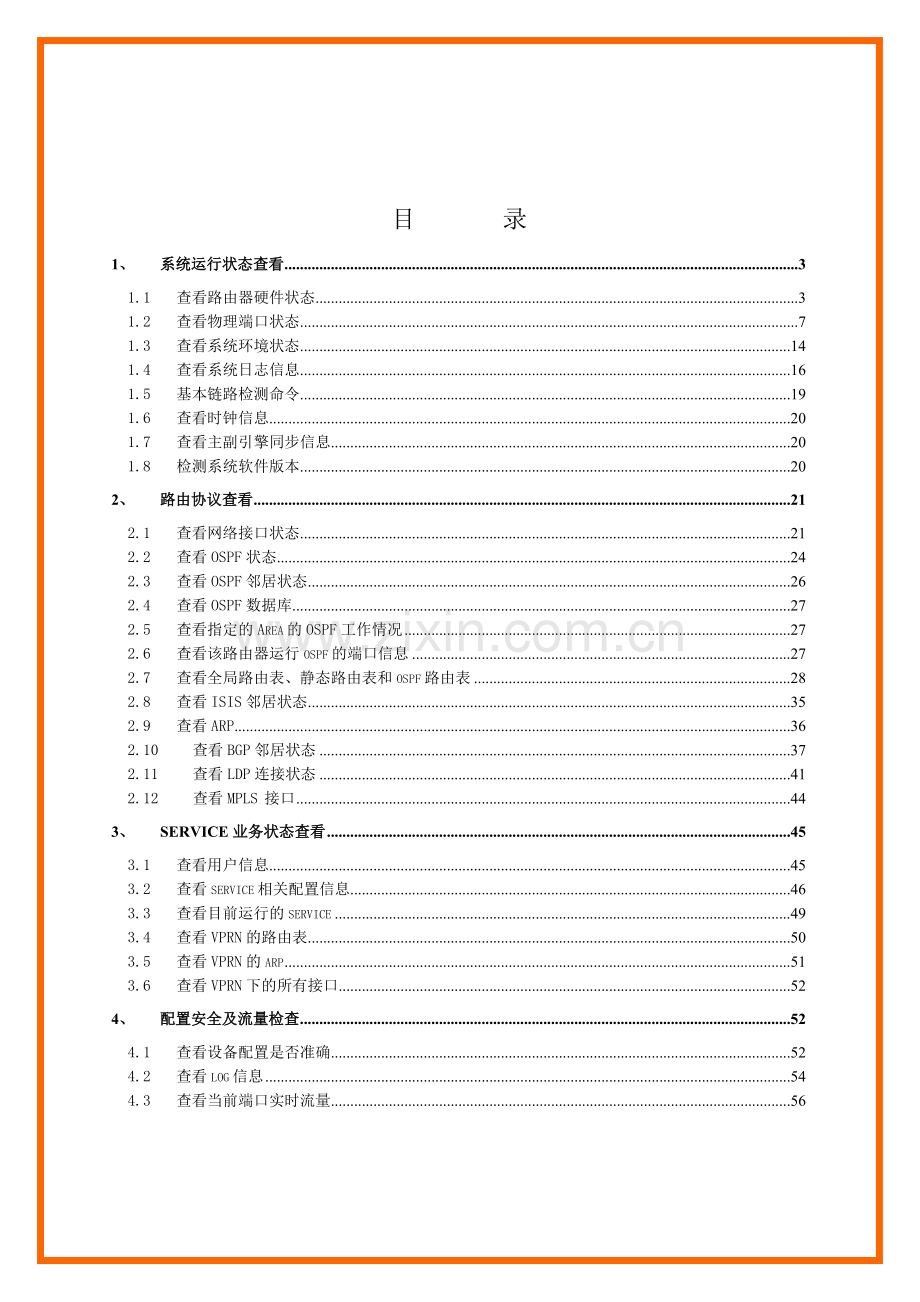

目 录
1、 系统运行状态查看 3
1.1 查看路由器硬件状态 3
1.2 查看物理端口状态 7
1.3 查看系统环境状态 14
1.4 查看系统日志信息 16
1.5 基本链路检测命令 19
1.6 查看时钟信息 20
1.7 查看主副引擎同步信息 20
1.8 检测系统软件版本 20
2、 路由协议查看 21
2.1 查看网络接口状态 21
2.2 查看OSPF状态 24
2.3 查看OSPF邻居状态 26
2.4 查看OSPF数据库 27
2.5 查看指定的Area的OSPF工作情况 27
2.6 查看该路由器运行ospf的端口信息 27
2.7 查看全局路由表、静态路由表和ospf路由表 28
2.8 查看ISIS邻居状态 35
2.9 查看ARP 36
2.10 查看BGP邻居状态 37
2.11 查看LDP连接状态 41
2.12 查看MPLS 接口 44
3、 SERVICE业务状态查看 45
3.1 查看用户信息 45
3.2 查看service相关配置信息 46
3.3 查看目前运行的service 49
3.4 查看VPRN的路由表 50
3.5 查看VPRN的arp 51
3.6 查看VPRN下的所有接口 52
4、 配置安全及流量检查 52
4.1 查看设备配置是否准确 52
4.2 查看log信息 54
4.3 查看当前端口实时流量 56

1、 系统运行状态查看
1.1 查看路由器硬件状态
# show chassis
A:YZ-SYL-R-AC7750-01# show chassis
===============================================================================
Chassis Information
===============================================================================
Name : YZ-SYL-R-AC7750-01
Type : 7750 SR-12
Location :
Coordinates :
CLLI code :
Number of slots : 12
Number of ports : 60
Critical LED state : Off
Major LED state : Off
Minor LED state : Off
Base MAC address : 00:03:fa:df:fb:56
Admin chassis mode : c
Oper chassis mode : c

Hardware Data
Part number : 3HE00104AAAB01
CLEI code : IPME400FRA
Serial number : NS061751349
Manufacture date : 05022006
Manufacturing string :
Manufacturing deviations :
Time of last boot : 2006/11/15 01:39:03
Current alarm state : alarm cleared

Environment Information
Number of fan trays : 3
Number of fans : 6

Fan tray number : 1
Status : up
Speed : half speed

Fan tray number : 2
Status : up
Speed : half speed

Fan tray number : 3
Status : up
Speed : half speed

Power Supply Information
Number of power supplies : 2

Power supply number : 1
Defaulted power supply type : dc
Status : up

Power supply number : 2
Defaulted power supply type : dc
Status : up
===============================================================================
A:YZ-SYL-R-AC7750-01#

# show card
A:YZ-SYL-R-AC7750-01# show card
===============================================================================
Card Summary
===============================================================================
Slot Provisioned Equipped Admin Operational
Card-type Card-type State State
-------------------------------------------------------------------------------
1 iom2-20g iom2-20g up up
2 iom2-20g iom2-20g up up
3 iom2-20g iom2-20g up up
A sfm-400g sfm2-200g up up/active
B sfm-400g sfm2-200g up up/standby
===============================================================================

A:YZ-SYL-R-AC7750-01# show card a detail
===============================================================================
Card A
===============================================================================
Slot Provisioned Equipped Admin Operational
Card-type Card-type State State
-------------------------------------------------------------------------------
A sfm-400g sfm2-200g up up/active

BOF last modified : N/A
Config file version : TUE NOV 14 15:46:33 2006 UTC
Config file last modified : 2006/11/29 23:23:28
Config file last saved : 2006/11/28 16:15:09
CPM redundancy status : active

Flash - cf1:
Administrative State : up
Operational state : not equipped

Flash - cf2:
Administrative State : up
Operational state : not equipped

Flash - cf3:
Administrative State : up
Operational state : up
Serial number : 146CT066S0763SC0153
Firmware revision : V2.23
Model number : SILICONSYSTEMS INC 256MB
Size : 253,932 KB
Free space : 68,488 KB

Hardware Data
Part number : 3HE01171AAAA01
CLEI code : IPUCAEAFAA
Serial number : NS061750736
Manufacture date : 05092006
Manufacturing string :
Manufacturing deviations :
Administrative state : up
Operational state : up
Temperature : 43C
Temperature threshold : 75C
Software boot version : X-4.0.R1 on Thu Apr 27 12:42:18 PST 2006 b*
Software version : TiMOS-C-4.0.R3 cpm/hops ALCATEL SR 7750 Co*
Time of last boot : 2006/11/15 01:39:03
Current alarm state : alarm cleared
Base MAC address : 00:03:fa:ac:ea:da
Memory capacity : 2,016 MB
===============================================================================
A:YZ-SYL-R-AC7750-01#

# show mda
A:YZ-SYL-R-AC7750-01# show mda
===============================================================================
MDA Summary
===============================================================================
Slot Mda Provisioned Equipped Admin Operational
Mda-type Mda-type State State
-------------------------------------------------------------------------------
1 1 m10-1gb-sfp m10-1gb-sfp up up
2 m10-1gb-sfp m10-1gb-sfp up up
2 1 m10-1gb-sfp m10-1gb-sfp up up
2 m10-1gb-sfp m10-1gb-sfp up up
3 1 m10-1gb-sfp m10-1gb-sfp up up
2 m10-1gb-sfp m10-1gb-sfp up up
===============================================================================

A:YZ-SYL-R-AC7750-01# show mda 1/1 detail

===============================================================================
MDA 1/1 detail
===============================================================================
Slot Mda Provisioned Equipped Admin Operational
Mda-type Mda-type State State
-------------------------------------------------------------------------------
1 1 m10-1gb-sfp m10-1gb-sfp up up

MDA Specific Data
Maximum port count : 10
Number of ports equipped : 10
Network ingress queue policy : JSYZ-NIQ
Capabilities : Ethernet

Hardware Data
Part number : 3HE00026AAAC01
CLEI code : IPPAAANBAA
Serial number : NS061350207
Manufacture date : 03272006
Manufacturing string :
Manufacturing deviations :
Administrative state : up
Operational state : up
Temperature : 41C
Temperature threshold : 75C
Time of last boot : 2006/11/15 01:39:51
Current alarm state : alarm cleared
Base MAC address : 00:03:fa:c6:ff:4c
===============================================================================
A:YZ-SYL-R-AC7750-01#

1.2 查看物理端口状态
#show port

A:YZ-SYL-R-AC7750-01# show port
==============================================================================
Ports on Slot 1
==============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port SFP/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
------------------------------------------------------------------------------
1/1/1 Up Yes Up 9212 9212 - netw null gige GIGE-LX 10KM
1/1/2 Up Yes Up 9212 9212 - netw null gige GIGE-LX 10KM
1/1/3 Up Yes Up 1518 1518 - accs dotq gige GIGE-LX 10KM
1/1/4 Up Yes Up 1518 1518 - accs dotq gige GIGE-LX 10KM
1/1/5 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/1/6 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/1/7 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/1/8 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/1/9 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/1/10 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/2/1 Up Yes Up 1518 1518 - accs dotq gige GIGE-LX 10KM
1/2/2 Up No Down 1518 1518 - accs dotq gige GIGE-LX 10KM
1/2/3 Up No Down 1518 1518 - accs dotq gige GIGE-LX 10KM
1/2/4 Down No Down 1518 1518 - accs dotq gige GIGE-LX 10KM
1/2/5 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/2/6 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/2/7 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/2/8 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/2/9 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
1/2/10 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM

==============================================================================
Ports on Slot 2
==============================================================================
Port Admin Link Port Cfg Oper LAG/ Port Port Port SFP/XFP/
Id State State MTU MTU Bndl Mode Encp Type MDIMDX
------------------------------------------------------------------------------
2/1/1 Up Yes Up 9212 9212 - netw null gige GIGE-LX 10KM
2/1/2 Up Yes Up 9212 9212 - netw null gige GIGE-LX 10KM
2/1/3 Up Yes Up 1518 1518 - accs dotq gige GIGE-LX 10KM
2/1/4 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
2/1/5 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
2/1/6 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
2/1/7 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
2/1/8 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
2/1/9 Down No Down 9212 9212 - netw null gige GIGE-LX 10KM
2/1/10 Down No Down 9212 9212 - netw null gige G
