电子海图题库(第三次修订版).(DOC).doc

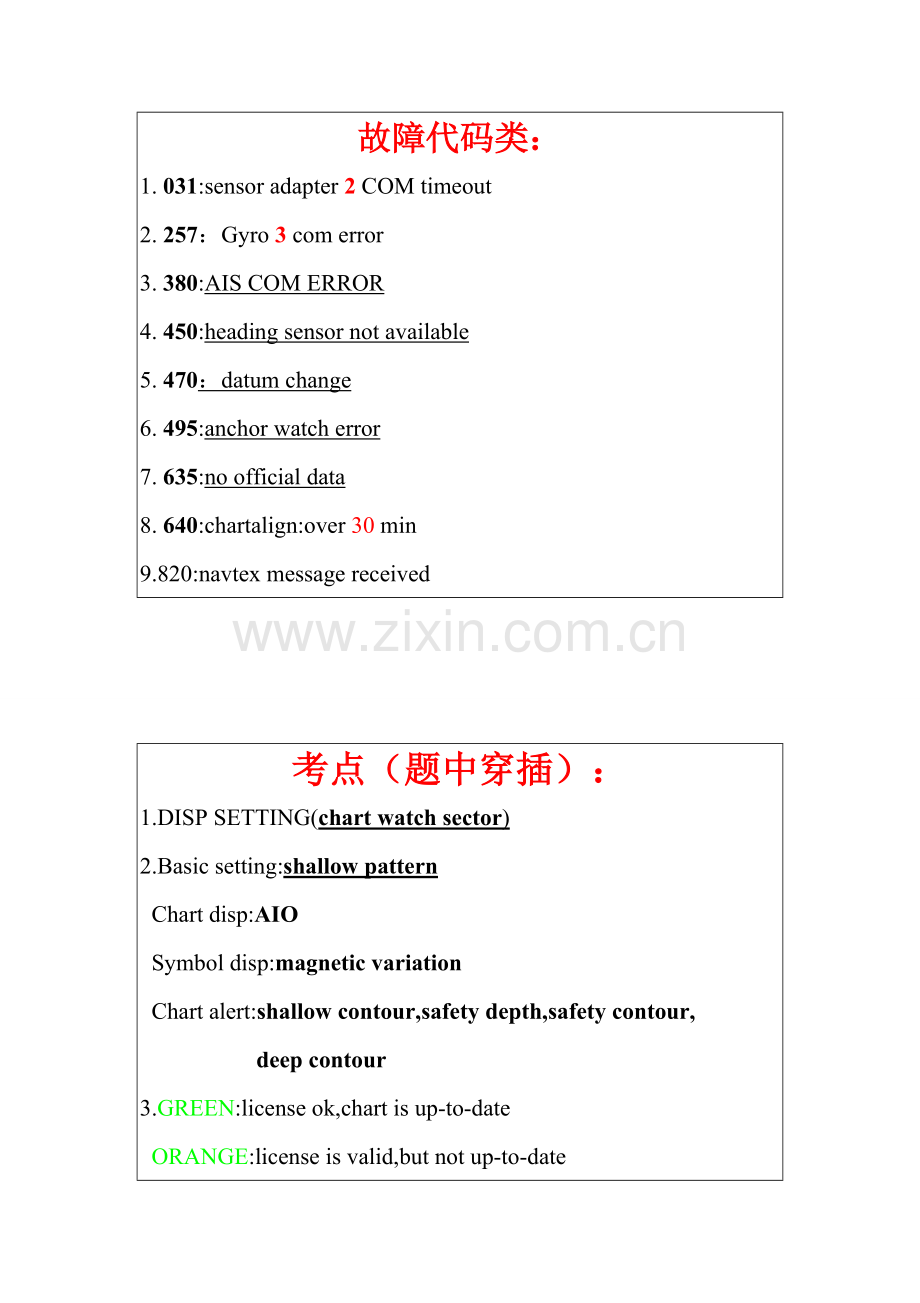

故障代码类：
1. 031:sensor adapter 2 COM timeout
2. 257：Gyro 3 com error
3. 380:AIS COM ERROR
4. 450:heading sensor not available
5. 470：datum change
6. 495:anchor watch error
7. 635:no official data
8. 640:chartalign:over 30 min
9.820:navtex message received

考点（题中穿插）：
1. DISP SETTING(chart watch sector)
2. Basic setting:shallow pattern
Chart disp:AIO
Symbol disp:magnetic variation
Chart alert:shallow contour,safety depth,safety contour,
deep contour
3. GREEN:license ok,chart is up-to-date
ORANGE:license is valid,but not up-to-date

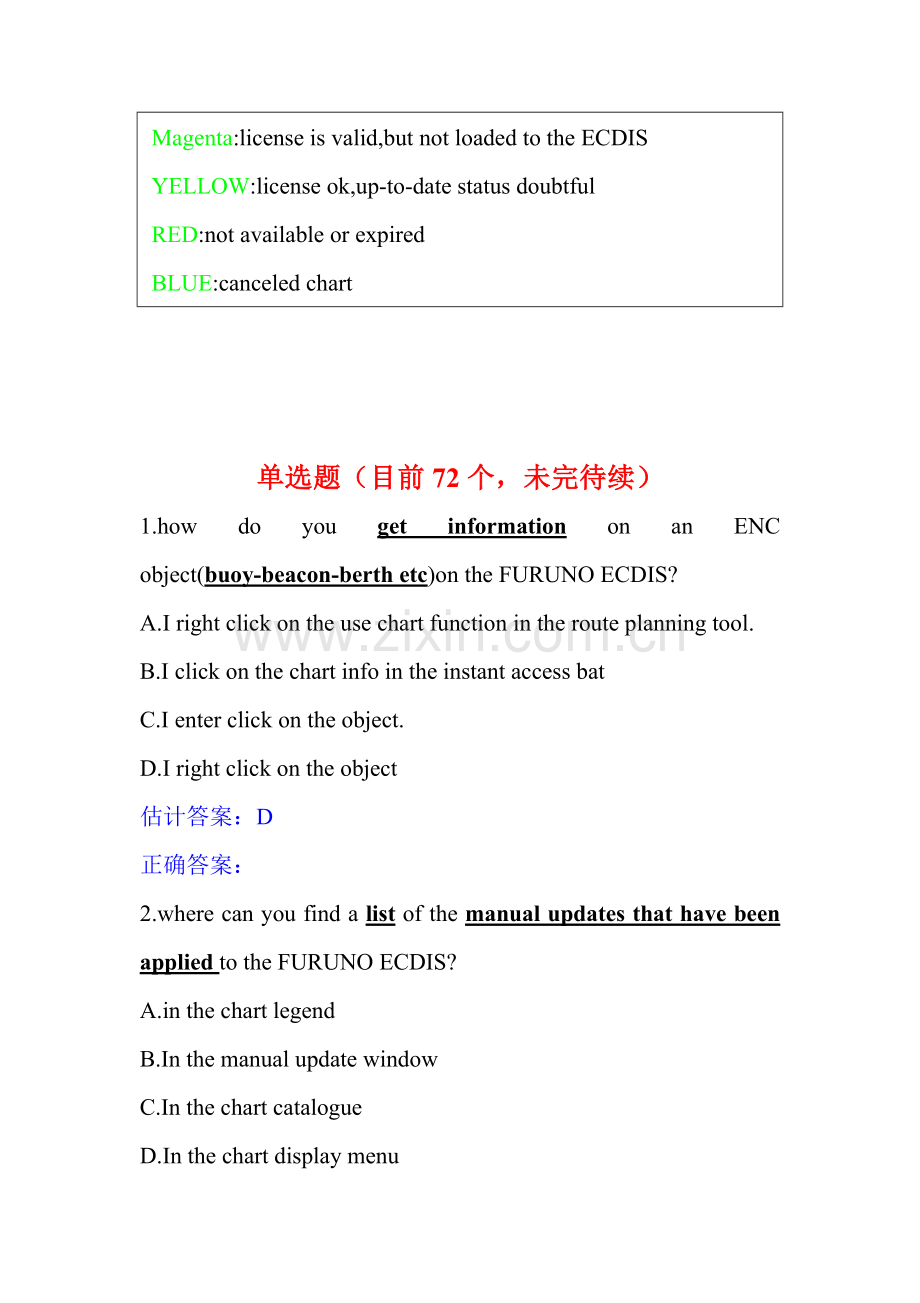

Magenta:license is valid,but not loaded to the ECDIS
YELLOW:license ok,up-to-date status doubtful
RED:not available or expired
BLUE:canceled chart

单选题（目前72个，未完待续）
1. how do you get information on an ENC object(buoy-beacon-berth etc)on the FURUNO ECDIS?
A. I right click on the use chart function in the route planning tool.
B. I click on the chart info in the instant access bat
C. I enter click on the object.
D. I right click on the object
估计答案：D
正确答案：
2. where can you find a list of the manual updates that have been applied to the FURUNO ECDIS?
A. in the chart legend
B. In the manual update window
C. In the chart catalogue
D. In the chart display menu
估计答案：B
正确答案：
3. how can you see if a chart object i cteated using manual updates?
A. the manual update will be larger than any other chart objects
B. It is always shown in red
C. It will have a special orange marker
D. There is no way i can see if a chart object is created using manual updates
估计答案：C
正确答案：
4. How do you add navigation chart objects to the FURUNO ECDIS when you are require to do so by notices to mariners?
A. i can not add any chart objects to the ECDIS unless they are included in the weekly update
B. I use the manual update function
C. I use the user chart function
D. I use the chart edit function
估计答案：我估计选B 老大选D
正确答案：
5. how can you verity which route is being monitored?
A. by clicking on the “route”and then on “route info” in the quick access sidebar in Plan mode
B. The mame of the route will be displayed in the status bar
C. By clicking on “route”and then on “route info” in the quick access sidebar in Navi mode
D. I can not get information on the route which is being monitored
估计答案：C
正确答案：C
6. where do you switch between multicolor and two color setting for the chart?
A. in chart legend
B. In symbol display
C. In basic setting
D. In chart display
估计答案：C 网上选 C
正确答案：C
7. what should you remember to set up first when planning a route?
A. the setting for the voyage log
B. The alarm level in the operation submenu
C. The safety contour in the route planing tool
D. The radar overlay
估计答案：C
正确答案：C
8. Which ECDIS setting is adjusted in ship and route parameters?
A. chart alignment 排列图
B. Safety contour
C. Maximum rate of turn(MAX.R.O.T)
D. Safety depth
估计答案：C
正确答案：C
9. When do you use a manual update?
A. always when i have to update my charts
B. When i receive information which must be displayed on my ECDIS and this is not yet included in the official weekly updates
C. I should never use manual updates
D. When i have to update the software of the ECDIS
估计答案：B
正确答案：
10. How do you hide(not delete) a manual update objetc?
A. i select clear from the manual update menu
B. I select undo last from the manual update menu
C. I deselect that general type of chart object in the chart display dialogue
D. I deselect the option from the symbol display dialogue
估计答案：A
正确答案：
11. Can you create a manual update from an AIS safety message shown on the ECDIS?
A. yes-by manually creating the object
B. Yes-by letting the ECDIS creat the object antomatically
C. Yes-either by creating it manually or letting the ECDIS create it automatically
D. No
估计答案：A
正确答案：
12. which recording function is available in the FURUNO ECDIS?
A. gyro log
B. Engine log
C. Ship’s log
D. Details log
估计答案：D
正确答案：D
13. How do you update your vector charts on the FURUNO ECDIS using the ENC update CD?
A. i use the autoload function
B. I cteate a manual update from the information on the CD
C. I creat a user chart
D. I import the information using the chart details function in the chart catalogue
估计答案：A
正确答案：
14. can you edit the user chart when the ECDIS is in Navi mode?
A. Yes
B. Only if the user chart is not linked to a route plan
C. Yes if the user chart contains no tidal information
D. No
估计答案：D
正确答案：
15. Can you edit a route without removing it from the route monitoring function?
A. No
B. Yes,but i must copy it to another ECDIS where it can be edited without interfering with the monitoring function of the FURUNO ECDIS
C. Yes,if i create a copy of the route plan in ANTS format on a USB and edit the file on a normal offrice PC
D. Yes,if i select copy from monitor in the route plan menu and edit the copy.when copying is completed i select-exchange with monitor in the plan menu
估计答案：D
正确答案：
16. Which operation can you perform on the FURUNO ECDIS?
A. i can record my position manually on the ENCS
B. I can set the ECDIS to automatically shoosing a safety contour based on my setting of ship’s maximum draft
C. I can set ship’s maximum height to enable chart alerts from areas in charts where there is not sufficient air draft
D. I can send a copy of my route plan to an AIS target as a safety message
估计答案：C
正确答案：
17. which informatin can you find in VECTOR CHART LEGEND?
A. T&P notice
B. Name
C. Warning
D. Safety contour setting
估计答案：B
正确答案：B
18. Where do you select the color Palette(颜色暗淡模式) used to display the charts?
A. in chart legend
B. In chart display
C. In quick accessor bar
D. In chart catalogue
估计答案：C 网上选 C
正确答案：C
19. Which information can you find in the Raster Chart Legend?
A. horizontal datum
B. Safety depth
C. User permit number
D. License number
估计答案：A
正确答案：A
20. Which information can you find in the Raster Chart Legend?
A. shallow water
B. Chart name
C. Chart viewing date
D. Depth contour
估计答案：B
正确答案：B
21. Which information can you find in the Vector Chart Legend?
A. notice to mariner
B. Presentation library edition number
C. Chart edition & update date
D. Safety contour setting
估计答案：C
正确答案：C
22. How can you tell if your FURUNO ECDIS is displaying an ENC?
A. there is an”ENC data available”indication in the own ship functions box
B. there is an”RNC data ”indication in the own ship functions box
C. The FURUNO ECDIS will give an audible alarm if i am not viewing an ENC
D. There is no special indication in the own ship functions box
估计答案：A 网上选 D
正确答案：
23. How do you manually record Own Ship's current position in the Logs?
A. by opening the voyage log and entering the current position
B. By right clicking on own ship icon on the use interface
C. By press the record button on the control unit
D. By using the record position event function of the event log
估计答案：D
正确答案：
24. What is a Manual Update?
A. A manual update is an update applied using the manual function in load & update charts
B. A manual update is an update to the charts created by the operator from information received from pilot-a navtex message-a VHF broadcast etc.
C. A manual update is an update to the charts by an official representative of the chart producer
D. A manual update is a chart created using the digitizer function of FURUNO ECDIS
估计答案：B
正确答案：
25. What should you do if you have to leave your planned route during a voyage?
A. switch off the FURUNO ECDIS and concentrate on the radar
B. Disable the routing monitoring on the RURUNO ECDIS
C. Change the display of the FURUNO ECDIS to all IMO all other
D. Configue and enable the check area function to assis me in scaning the ENCS for danger to navigation and hazardous objects
估计答案：D
正确答案：
26. Which operation can you perform (进行)on the FURUNO ECDIS?
A. I can record target ship’s position in the voyage log automatically
B. I can record a position fix manually bu using just one distance and one bearing
C. I can playback my past voyage track on the charts
D. I can send my route plan and user chart and notes to FURUNO GPS for displaying the GPS
估计答案：C
正确答案：
27. Where can you change the settings for the Safety Contour used for monitoring?
A. nowhere-because i must never change the setting for the safety contour
B. In the setting menu and i can only change the setting if i have the service password
C. In chart alert
D. In the route planing tool
估计答案：C
正确答案：
28.Which color scheme is used for a Manual update on the Furuno ECDIS?
A.blue ENC symbols
B.standard ENC symbols
C.orange ENC symbols
D.red ENC symbols
估计答案：C
正确答案：
29. Which setting can be changed in Sensors?
A. log stabilization mode
B. Safety contour setting
C. Safety depth setting
D. Kalmen filter setting
估计答案：A
正确答案：A
30. Where do you change the Ship Outlines(轮廓)?
A. in the quick access bar
B. In chart display
C. In symbol display
D. In the status bar
估计答案：C
正确答案：C
31. Can you set the overall maximum speed for a route plan?
A. yes in the ship and route parameters of menu
B. In chart display
C. Yes in optimization parameters
D. Yes in the route planing tool
估计答案：A
正确答案：A
32. Which information can you find in the Vector Chart Legend?
A. magtinec variation
B. Base CD number
C. Permit expiration date
D. Safety contour setting
估计答案：A
正确答案：
33. Where do you change the Velocity Vectors style?
A. in the quick access bar
B. In chart display
C. In symbol display
D. In the status bar
估计答案：C
正确答案：C
34. Where can you find information concerning the charts stored on the HDD(硬盘驱动器)?
A. on the internet
B. The chief officer will know
C. In the chart catalogue
D. In the chart display menu
估计答案：C 或 D(可能性比较大) 网上选C
正确答案：
35. How do you document(记录) your previous voyage on the FURUNO ECDIS?
A. I use my paper logbook as documentation
B. I use my paper logbook and my VDR or SVDR as documentation
C. I use the tracking function in the symbol display
D. I show a playback of my past voyage track on the charts
估计答案：D
正确答案：
36. Which operation can you perform during a voyage or after completion of a voyage?
A. i can use the record function to record special events in the voyage log
B. I can create and save a screen shot(截屏) for future reference
C. I can view and print a copy of details log
D. I can connect the ECDIS to the internat and upload all documentation to an external storage
估计答案：A
正确答案:
37. Which information can you find in the Raster Chart Legend?
A. magnetic variation
B. Safety contour setting
C. Quality of data
D. T&P notice
估计答案：A
正确答案: A
38. How can you reset the odometer?
A. I can reset the odometer from the voyage tab of the menu
B. I can reset the odometer from the sensor setting dialogue
C. I can reset the odometer from the symbol display dialogue
D. I can reset the odometer from the quick access sidebar
估计答案：A
正确答案: A
39. Can you plan a route while you monitor another route?
A. No
B. Yes but only if i have two ECDIS
C. Yes the routing planing function is independent(不相关联的) from the route monitoring function
D. Yes but i must select the safety contour for both route plan
估计答案：C
正确答案: C
40. Where do you find information on the software version of the FURUNO ECDIS?
A. in the voyage log
B. In the system dialogue of the menu
C. In the about dialogue
D. In the S52 presentation library(图书馆)
估计答案：C
正确答案: C
41. How are loaded ENCs converted into SENCs when updating?
A. the FURUNO ECDIS will normally convert(转变) the ENCs to SENCs automatically
B. I must use the conversion tool（转变工具） from the menu
C. I can not convert the ENCs to SENCs
D. I load the new permit file using the file named ENC.PMT and then i use S52 presentation library from the system menu in the chart menu to convert the ENCs to SENCs
估计答案：D
正确答案:
42. How do you add navigational chart objects to the FURUNO ECDIS when you are required to do so by information received via VHF broadcast?
A. I can not add any chart objects to the ECDIS unless they are included in the weekly update CD
B. I use the manual update function
C. I use the user chart function
D. I use the chart edit function
估计答案：B(类似于第4题)
正确答案:
43. How do you switch from Vector chart to Raster chart on the FURUNO ECDIS?
A. i select rather chart in the main menu
B. I selet RNC in the chart legend
C. I lelect raster chart from the drop down list in the status bar
D. I selet RNC in the chart catalogue
估计答案：C
正确答案: C
44. Which operation can you perform after completion of a voyage?
A. i can add additional records of manual positions to the voyage log adding further details to the past voyage
B. I can cteate a user chart from the monitored route plan and save it to a USB memory device
C. I can create a backup copy of the voyage plan on a USB memory device
D. I can view and print a copy of the chart usage log(chart alert)
估计答案：D
正确答案: D
45. What is the maximum limit of the Check Area?
A. NO limit
B. 240min+20nm+5km+999m
C. 120min+10nm+3km+500m
D. 999min+999nm+999km+999m
估计答案： B
正确答案: B
46. Which ECDIS setting is activated in Ship and Route Parameters?
A. Gyro error
B. Safety contour
C. Notes alarm time
D. Ship’s minimum speed
估计答案：A
正确答案: A
47. Where do you offset own ship chart position on the FURUNO ECDIS?
A. in symbol display
B. In chart display
C. In chart menu
D. In own ship functions box
估计答案：D
正确答案: D
48. Where do you set system priority of multiple GPS connected to the FURUNO ECDIS?
A. In the sensor dialogue
B. In basic setting.
C. In ship and route parameters
D. In nav tools
估计答案：A
正确答案: A
49. Where do you change the Targets color?
A. in the quick access bar
B. In chart display
C. In symbol dispaly
D. In the status bar
估计答案：C
正确答案: C
50. Where do you control the settings and visibility of the chart layers?
A. in chart legend
B. In symbol display
C. In chart display
D. In basic setting
估计答案：C 网上选 C
正确答案:
51. which manual update objects can be hidden from view by operatior selecrion?
A. only the manual updates special area (from the chart display dialogue)
B. All manual updates objects (from the chart display dialogue)
C. Only the manual updates buoys (from the chart display dialogue)
D. Only the manual updates sonding (from the chart display dialogue)
估计答案：B
正确答案:
52. how do you switch the kalman filter on or off?
A. the kalman filter is always switched on when a route is put into monitor mode and switched off when theres is no route being monitored
B. The kalman filter is always on so i never have to switch it on or off
C. The kalman filter is swiched on or off in the sensor menu on the position tab
D. The kalman filter is switched on when steering is switched to autopilot
估计答案：D
正确答案:
53. when the software of the FURUNO ECDIS is being updated-it is important that?
A. the software is updated by a FURUNO service engineer（古野检修师）
B. the software is updated by the captain（船长）
C.
