HDS管理：
IP：192.168.0.16/17
登陆：system 密码：manager
登陆存储：root 密码： storage

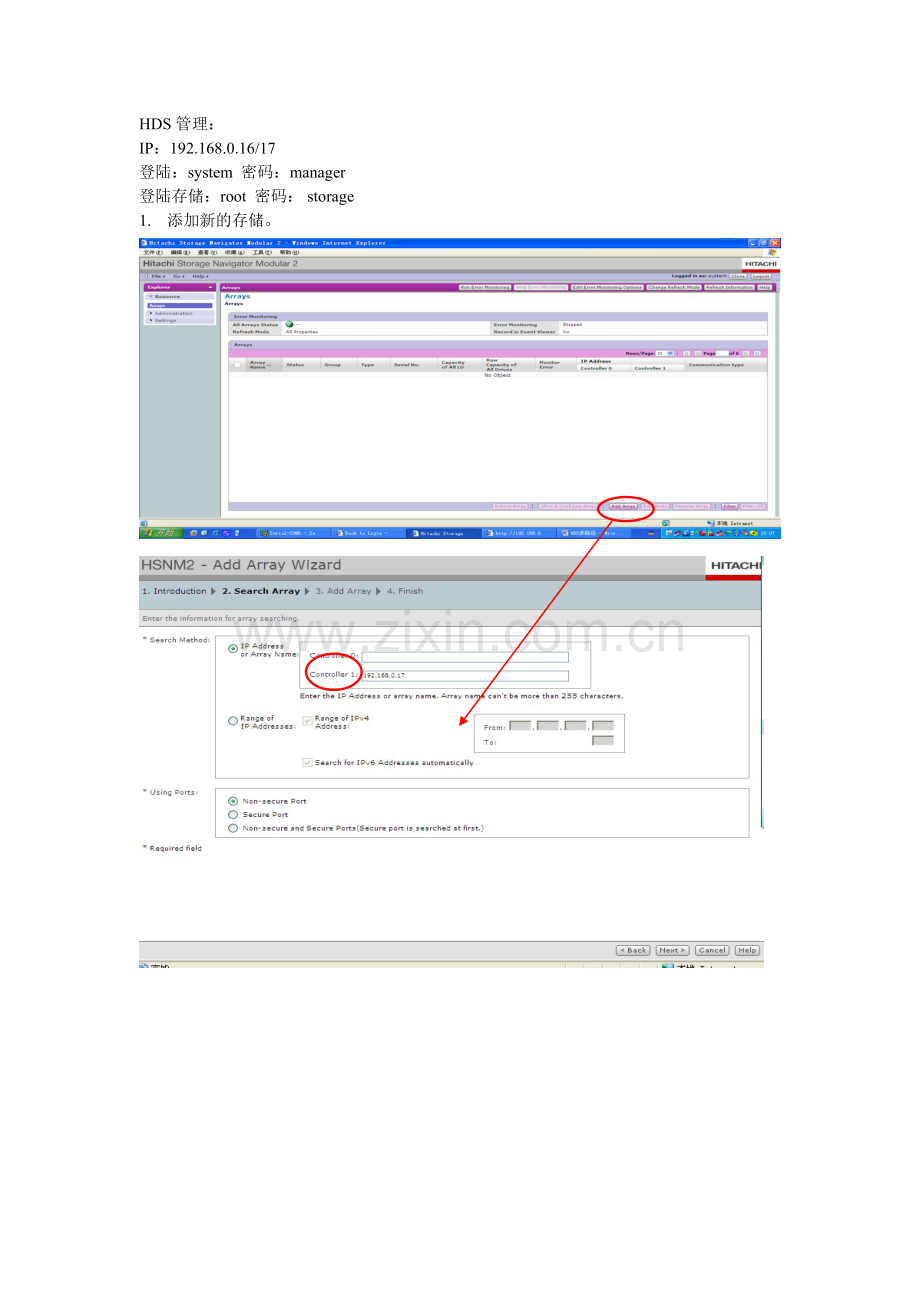

1. 添加新的存储。

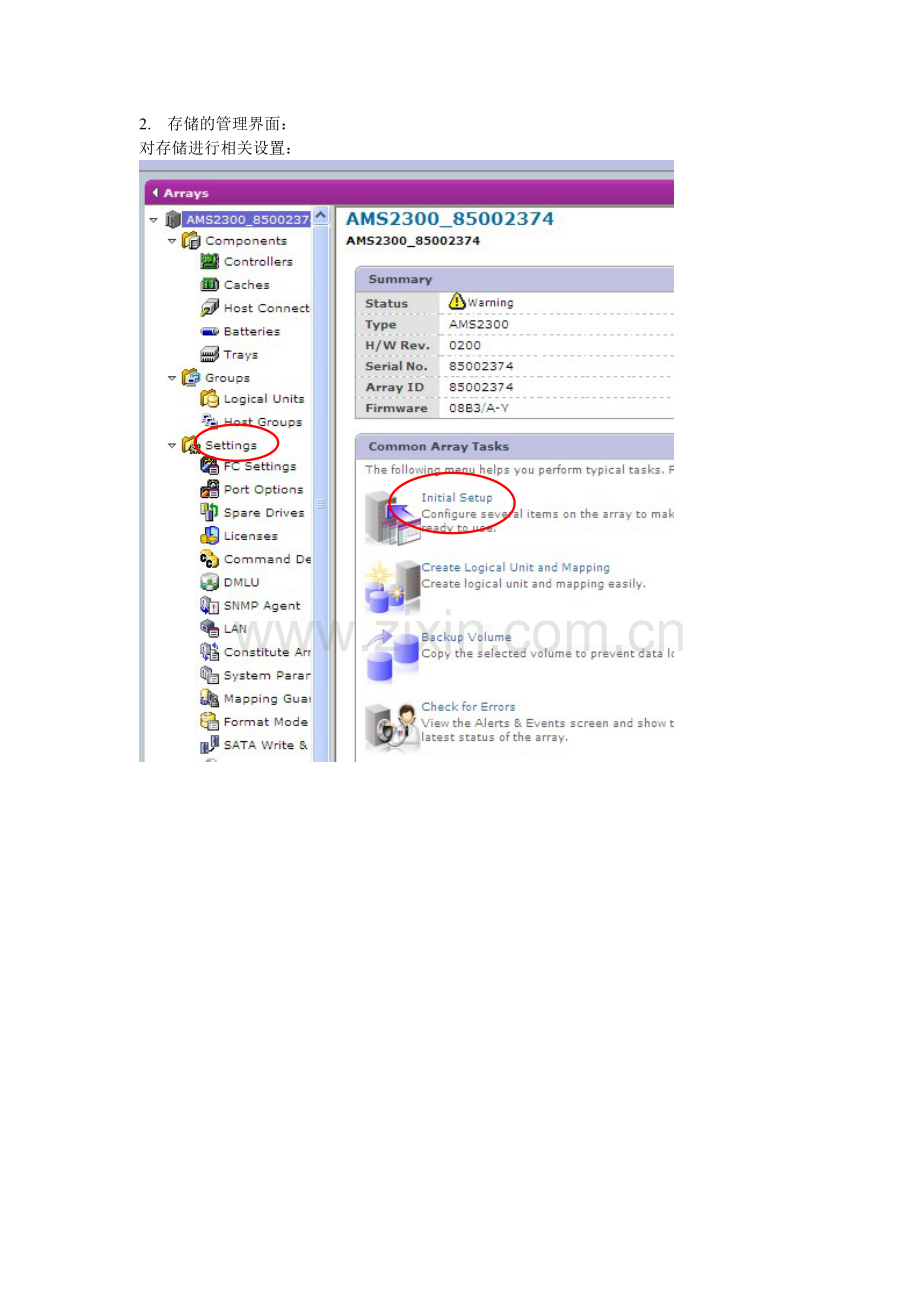

2. 存储的管理界面：
对存储进行相关设置：

3.指定热备盘：
2
1

3
1
2
4. 创建群组：

5.划LAN：
2
1

5
4
3
2
1
查看WWN号
6.设置光纤接口：

3
2
1
改为YES

7.重启服务器：
#reboot -- -r
………
root@test # format
Searching for disks...Jul 19 11:11:53 test scsi: WARNING: /scsi_vhci/ssd@g60060e80102094600511088600000001 (ssd16):
Jul 19 11:11:53 test Corrupt label; wrong magic number
Jul 19 11:11:53 test scsi: WARNING: /scsi_vhci/ssd@g60060e80102094600511088600000001 (ssd16):
Jul 19 11:11:53 test Corrupt label; wrong magic number
Jul 19 11:11:53 test scsi: WARNING: /scsi_vhci/ssd@g60060e80102094600511088600000000 (ssd12):
Jul 19 11:11:53 test Corrupt label; wrong magic number
Jul 19 11:11:53 test scsi: WARNING: /scsi_vhci/ssd@g60060e80102094600511088600000000 (ssd12):
Jul 19 11:11:53 test Corrupt label; wrong magic number
done

c4t60060E80102094600511088600000001d0: configured with capacity of 159.96GB
c4t60060E80102094600511088600000000d0: configured with capacity of 119.95GB

AVAILABLE DISK SELECTIONS:
0. c1t0d0 <SUN146G cyl 14087 alt 2 hd 24 sec 848>
/pci@0/pci@0/pci@2/scsi@0/sd@0,0
1. c1t1d0 <SUN146G cyl 14087 alt 2 hd 24 sec 848>
/pci@0/pci@0/pci@2/scsi@0/sd@1,0
2. c4t60060E80102094600511088600000001d0 <HITACHI-DF600F-0000 cyl 8736 alt 2 hd 50 sec 768>
/scsi_vhci/ssd@g60060e80102094600511088600000001
3. c4t60060E80102094600511088600000000d0 <HITACHI-DF600F-0000 cyl 6551 alt 2 hd 50 sec 768>
/scsi_vhci/ssd@g60060e80102094600511088600000000

8.label磁盘2和3
9.
#stmsboot –e /整合多路径
# stmsboot -D mpt –d / 将机器上的盘整理
# stmsboot -d c0 /筛选机器上的盘l
#luxadm display /dev/rdsk/c…….. /检查多路径

..\项目\hitachi-HDS\HDS_AMS2100配置手册.doc
详细信息请参考..\EISchecklists\OPL-Mx000.pdf
#stmsboot –e /整合多路径
# stmsboot -D mpt –d / 将机器上的盘整理
# stmsboot -d c0 /筛选机器上的盘l
#luxadm display /dev/rdsk/c…….. /检查多路径
