定点着色器入门(续)
2008-08-10 12:35:49| 分类: 游戏 | 标签: |字号大中小 订阅

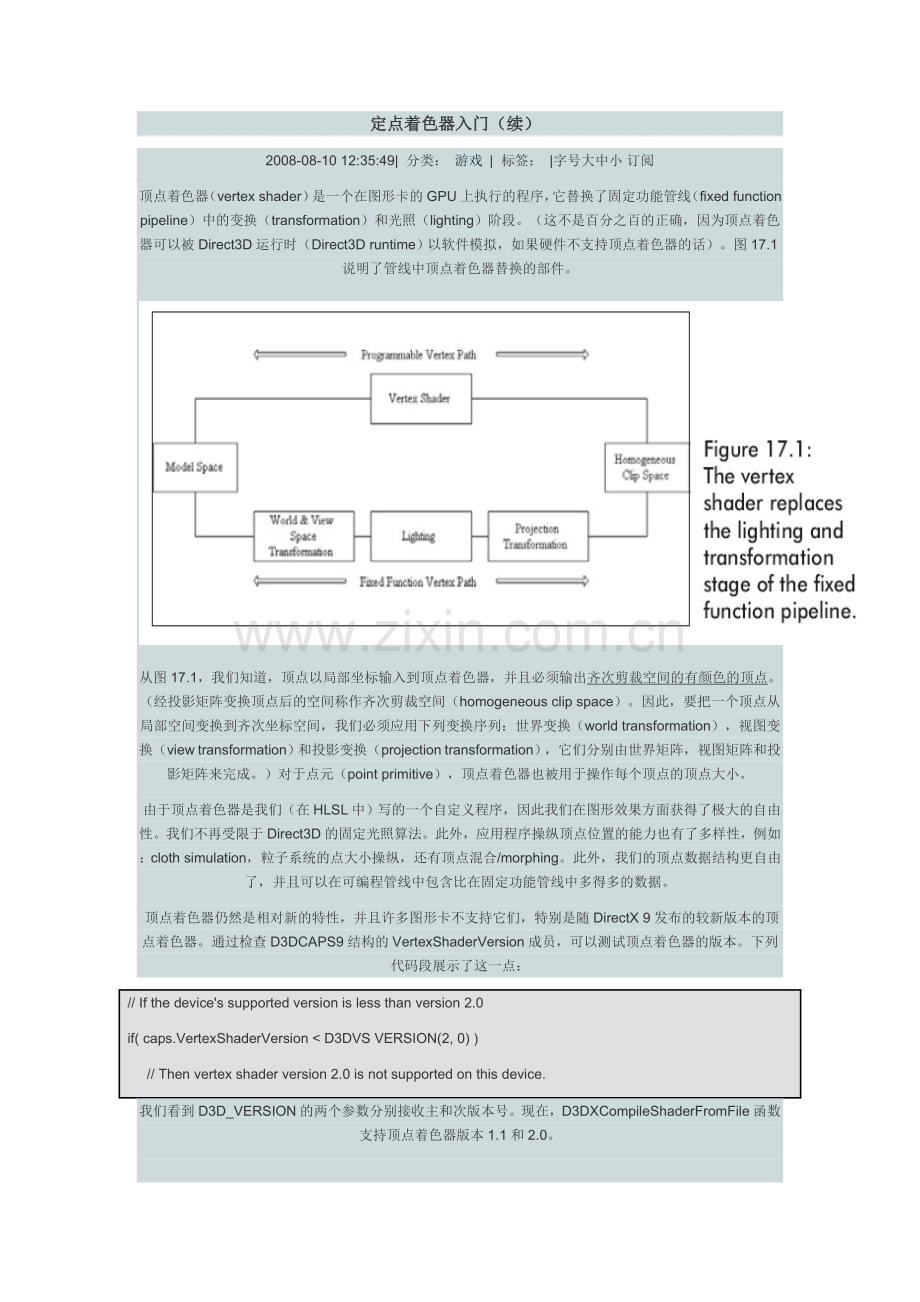

顶点着色器(vertex shader)是一个在图形卡的GPU上执行的程序,它替换了固定功能管线(fixed function pipeline)中的变换(transformation)和光照(lighting)阶段。(这不是百分之百的正确,因为顶点着色器可以被Direct3D运行时(Direct3D runtime)以软件模拟,如果硬件不支持顶点着色器的话)。图17.1说明了管线中顶点着色器替换的部件。
从图17.1,我们知道,顶点以局部坐标输入到顶点着色器,并且必须输出齐次剪裁空间的有颜色的顶点。(经投影矩阵变换顶点后的空间称作齐次剪裁空间(homogeneous clip space)。因此,要把一个顶点从局部空间变换到齐次坐标空间,我们必须应用下列变换序列:世界变换(world transformation),视图变换(view transformation)和投影变换(projection transformation),它们分别由世界矩阵,视图矩阵和投影矩阵来完成。)对于点元(point primitive),顶点着色器也被用于操作每个顶点的顶点大小。
由于顶点着色器是我们(在HLSL中)写的一个自定义程序,因此我们在图形效果方面获得了极大的自由性。我们不再受限于Direct3D的固定光照算法。此外,应用程序操纵顶点位置的能力也有了多样性,例如:cloth simulation,粒子系统的点大小操纵,还有顶点混合/morphing。此外,我们的顶点数据结构更自由了,并且可以在可编程管线中包含比在固定功能管线中多得多的数据。
顶点着色器仍然是相对新的特性,并且许多图形卡不支持它们,特别是随DirectX 9发布的较新版本的顶点着色器。通过检查D3DCAPS9结构的VertexShaderVersion成员,可以测试顶点着色器的版本。下列代码段展示了这一点:
// If the device's supported version is less than version 2.0
if( caps.VertexShaderVersion < D3DVS VERSION(2, 0) )
// Then vertex shader version 2.0 is not supported on this device.
我们看到D3D_VERSION的两个参数分别接收主和次版本号。现在,D3DXCompileShaderFromFile函数支持顶点着色器版本1.1和2.0。
17.1顶点声明
我们已经使用自由顶点格式(flexible vertex format,FVF)来描述顶点结构中的各分量。但是,在可编程管线中,顶点数据包含的数据比用FVF所能表达的多很多。因此,我们通常使用更具表达性并且更强大的顶点声明(vertex declaration)。注意:如果FVF能够描述我们的顶点格式我们仍然可以在可编程管线中使用它。不管用何种方法,只是为了方便,同样FVF会在内部被转换为一个顶点声明。
17.1.1 描述顶点声明
我们将一个顶点声明描述为一个D3DVERTEXELEMENT9结构的数组。D3DVERTEXELEMENT9数组中的每个成员描述了一个顶点的分量。所以,如果你的顶点结构有三个分量(例如:位置、法线、颜色),那么其相应的顶点声明将描述3个D3DVERTEXELEMENT9结构的数组。这个D3DVERTEXELEMENT9结构定义如下:
typedef struct _D3DVERTEXELEMENT9 {
BYTE Stream;
BYTE Offset;
BYTE Type;
BYTE Method;
BYTE Usage;
BYTE UsageIndex;
} D3DVERTEXELEMENT9;
Stream——指定与顶点分量相关联的流
ffset——偏移,按字节,相对于顶点结构成员的顶点分量的开始。例如,如果顶点结构是:
struct Vertex
{
D3DXVECTOR3 pos;
D3DXVECTOR3 normal;
};
……pos分量的偏移是0,因为它是第一个分量;normal分量的偏移是12,因为sizeof(pos) = 12。换句话说,normal分量以Vertex的第12个字节为开始。
Type——指定数据类型。它可以是D3DDECLTYPE枚举类型的任意成员;完整列表请参见文档。常用类型如下:
D3DDECLTYPE_FLOAT1——浮点数值
D3DDECLTYPE_FLOAT2——2D浮点向量
D3DDECLTYPE_FLOAT3——3D浮点向量
D3DDECLTYPE_FLOAT4——4D浮点向量
D3DDECLTYPE_D3DCOLOR—D3DCOLOR类型,它扩展为RGBA浮点颜色向量(r g b a),其每一分量都是归一化到区间[0, 1]了的。
Method——指定网格化方法。我们认为这个参数是高级的,因此我们使用默认值,标识为D3DDECLMETHOD_DEFAULT.。
Usage——指定已计划的对顶点分量的使用。例如,它是否准备用于一个位置向量、法线向量、纹理坐标等?有效的用途标识符(usage identifier)是D3DDECLUSAGE枚举类型的:
typedef enum _D3DDECLUSAGE {
D3DDECLUSAGE_POSITION = 0, // Position.
D3DDECLUSAGE_BLENDWEIGHTS = 1, // Blending weights.
D3DDECLUSAGE_BLENDINDICES = 2, // Blending indices.
D3DDECLUSAGE_NORMAL = 3, // Normal vector.
D3DDECLUSAGE_PSIZE = 4, // Vertex point size.
D3DDECLUSAGE_TEXCOORD = 5, // Texture coordinates.
D3DDECLUSAGE_TANGENT = 6, // Tangent vector.
D3DDECLUSAGE_BINORMAL = 7, // Binormal vector.
D3DDECLUSAGE_TESSFACTOR = 8, // Tessellation factor.
D3DDECLUSAGE_POSITIONT = 9, // Transformed position.
D3DDECLUSAGE_COLOR = 10, // Color.
D3DDECLUSAGE_FOG = 11, // Fog blend value.
D3DDECLUSAGE_DEPTH = 12, // Depth value.
D3DDECLUSAGE_SAMPLE = 13 // Sampler data.
} D3DDECLUSAGE;
D3DDECLUSAGE_PSIZE类型用于指定一个顶点的大小。它用于点精灵,因此我们可以基于每个顶点控制其大小。一个D3DDECLUSAGE_POSITION成员的顶点声明意味着这个顶点已经被变换,它通知图形卡不要把这个顶点送到顶点处理阶段(变形和光照)。
UsageIndex——用于标识多个相同用途的顶点分量。这个用途索引是位于区间[0, 15]间的一个整数。例如,假设我们有三个用途为D3DDECLUSAGE_NORMAL的顶点分量。我们可以为第一个指定用途索引为0,为第二个指定用途索引为1,并且为第三个指定用途索引为2。按这种方式,我们可以通过其用途索引标识每个特定的法线。
顶点描述声明的例子:假设我们想要描述的顶点格式由位置向量和三个法线向量组成。顶点声明可以指定如下:
D3DVERTEXELEMENT9 decl[] =
{
{0, 0, D3DDECLTYPE_FLOAT3, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_POSITION, 0},
{0, 12, D3DDECLTYPE_FLOAT3, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_NORMAL, 0},
{0, 24, D3DDECLTYPE_FLOAT3, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_NORMAL, 1},
{0, 36, D3DDECLTYPE_FLOAT3, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_NORMAL, 2},
D3DDECL_END()
};
D3DDECL_END宏用于初始化D3DVERTEXELEMENT9数组的最后一个顶点元素。同样的,注意法向量的用途索引标签。
17.1.2 创建顶点声明
一旦你描述了一个顶点声明为D3DVERTEXELEMENT9数组,我们就可以使用下面的方法获得一个IDirect3DVertexDeclaration9接口指针:
HRESULT IDirect3DDevice9::CreateVertexDeclaration(
CONST D3DVERTEXELEMENT9* pVertexElements,
IDirect3DVertexDeclaration9** ppDecl
);
pVertexElements——D3DVERTEXELEMENT9结构数组,它描述我们想要创建的顶点声明。
ppDecl——用于返回创建的IDirect3DVertexDeclaration9接口指针
例子调用,其中decl是一个D3DVERTEXELEMENT9数组:
IDirect3DVertexDeclaration9* _decl = 0;
hr = _device->CreateVertexDeclaration(decl, &_decl);
17.1.3 使用一个顶点声明
回忆一下:自由顶点格式是一个方便的特性并且在内部转换成了顶点声明。因此,当直接使用顶点声明,我们不再需要调用:Device->SetFVF( fvf );
相反,我们调用:Device->SetVertexDeclaration( _decl );
其中,_decl是一个IDirect3DVertexDeclaration9接口指针。
17.2顶点数据用途
考虑这个顶点声明:
D3DVERTEXELEMENT9 decl[] =
{
{0, 0, D3DDECLTYPE_FLOAT3, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_POSITION, 0},
{0, 12, D3DDECLTYPE_FLOAT3, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_NORMAL, 0},
{0, 24, D3DDECLTYPE_FLOAT3, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_NORMAL, 1},
{0, 36, D3DDECLTYPE_FLOAT3, D3DDECLMETHOD_DEFAULT, D3DDECLUSAGE_NORMAL, 2},
D3DDECL_END()
};
我们需要一种方式,来定义一个顶点声明的元素到顶点着色器的Input结构的数据成员的映射。我们在Input结构中通过指定每个数据成员的语义(: usage-type [usage-index])定义这个映射。语义通过元素的用途类型和用途索引标识顶点声明中的一个元素。由数据成员的语义标识的顶点元素是得以映射到数据成员的元素。例如,对应于前面的顶点声明的输入结构是:
struct VS_INPUT
{
vector position : POSITION;
vector normal : NORMAL0;
vector faceNormal1 : NORMAL1;
vector faceNormal2 : NORMAL2;
};
注意:如果我们遗漏了用途索引,就意味着用途索引为零。例如,POSITION和POSITION0是同一样东西。
这里decl中的元素0,由用途POSITION和用途索引0标识,它映射到position。decl中的元素1,由用途NORMAL和用途索引0标识,它映射到normal。decl中的元素2,由NORMAL和用途索引1标识,它映射到faceNormal1。decl中的元素3,由用途NORMAL和用途索引2标识,它映射到faceNormal2。
受支持的顶点着色器输入用途(input usage)是:
POSITION [n]——位置
BLENDWEIGHTS [n]——混合权重
BLENDINDICES [n]——混合索引
NORMAL [n]——法线向量
PSIZE[n]——顶点大小
DIFFUSE [n]——散射颜色
SPECULAR [n]——镜面颜色
TEXCOORD [n]——纹理坐标
其中,n是一个位于区间[0, 15]的可选整数。
此外,对于输出结构,我们必须指定每个成员是用来做什么的。例如,数据成员应该被作为位置向量、颜色、纹理坐标等对待吗?图形卡没主意,除非你强制的告诉它。这也需要通过语法的语义来完成:
struct VS_OUTPUT
{
vector position : POSITION;
vector diffuse : COLOR0;
vector specular : COLOR1;
};
受支持的顶点着色器输出用途是:
POSITION—位置
PSIZE—顶点大小
FOG—雾混合值
COLOR [n]—顶点颜色。注意:可以有多个顶点颜色被输出,并且这些颜色可以被混合在一起以产生最终的颜色。
TEXCOORD [n]—顶点纹理坐标。注意:多个顶点纹理坐标可以被输出。
其中,n是一个位于区间[0, 15]的可选整数。
17.3使用顶点着色器的步骤
下面的列表概括了创建和使用顶点着色器的必须步骤:
1. 编写并编译顶点着色器
2. 创建一个IDirect3DVertexShader9接口以引用已编译的着色器代码上的顶点着色器。
3. 用IDirect3DDevice9:: SetVertexShader方法使用这个顶点着色器。
当然,在我们做完这些之后,我们还得销毁这个顶点着色器。
17.3.1 编写并编译顶点着色器
首先,我们必须编写一个顶点着色器程序。一旦着色器代码写好之后,我们就使用D3DXCompileShaderFromFile函数编译这个着色器。回忆一下,这个函数返回一个ID3DXBuffer指针,它包含已编译的着色器代码。
17.3.2 创建顶点着色器
一旦我们拥有了编译好的着色器代码,我们就能够获得一个IDirect3DVertexShader9接口的指针,它代表一个顶点着色器——通过使用下面的方法:
HRESULT IDirect3DDevice9::CreateVertexShader(
const DWORD *pFunction,
IDirect3DVertexShader9** ppShader
);
pFunction——已编译着色器代码的指针
ppShader——返回一个IDirect3DVertexShader9接口的指针
例如,假设变量shader是一个包含已编译的,着色器代码的ID3DXBuffer指针。然后要获得一个IDirect3DVertexShader9接口,我们可以写:
IDirect3DVertexShader9* ToonShader = 0;
hr = Device->CreateVertexShader(
(DWORD*)shader->GetBufferPointer(),
&ToonShader);
注意:重申一遍,D3DXCompileShaderFromFile是一个函数,它将返回已编译着色器的代码(shader)。
17.3.3 建立顶点着色器
在我们获得了一个代表我们的顶点着色器的IDirect3DVertexShader9接口的指针之后,我们就能够使用下面的方法使用它:
HRESULT IDirect3DDevice9::SetVertexShader(
IDirect3DVertexShader9* pShader
);
这个方法仅接受一个参数,我们在其中传递一个想要使用的顶点着色器的指针。要使用这个着色器,我们可以写:Device->SetVertexShader(ToonShader);
17.3.4 销毁顶点着色器
和所有的Direc3D接口一样,要清除他们,我们就必须在用完它们之后调用其的Release方法。
17.4应用程序:散射光照
作为创建并使用顶点着色器的热身,我们写一个顶点着色器,它用一个方向(平行)光对每个顶点进行标准的散射光照。简而言之,散射光照根据顶点法线和光线向量(它朝向光源方向)的角度计算顶点接收到的光线的数量。角度越小,则顶点接收到的光线就越多;而角度越大,则顶点接收到的光线就越少。如果角度大于等于90度,顶点就接收不到光线了。
我们以检阅着色器代码作为开始:
/**********************************************************************************
Vertex shader that does diffuse lighting.
**********************************************************************************/
matrix g_view_matrix;
matrix g_view_proj_matrix;
vector g_ambient_material;
vector g_diffuse_material;
vector g_dir_to_light; // the direction to the light source
// Global variables used to hold the ambient light intensity (ambient light the light
// source emits) and the diffuse light intensity (diffuse light the light source emits).
// These variables are initialized here in the shader.
const vector DIFFUSE_LIGHT_INTENSITY = {0.5f, 0.5f, 0.5f, 1.0f};
const vector AMBIENT_LIGHT_INTENSITY = {2.0f, 2.0f, 1.0f, 1.0f};
struct sVertexInput
{
vector position : POSITION;
vector normal : NORMAL;
};
struct sVertexOutput
{
vector position : POSITION;
vector diffuse : COLOR;
};
///////////////////////////////////////////////////////////////////////////////////////////////
sVertexOutput main(sVertexInput vertex_input)
{
sVertexOutput vertex_output = (sVertexOutput) 0;
// transform position to homogeneous clip space
vertex_output.position = mul(vertex_input.position, g_view_proj_matrix);
// Transform lights and normals to view space.
// Set w components to zero since we're transforming vectors here and not points.
g_dir_to_light.w = 0.0f;
vertex_input.normal.w = 0.0f;
g_dir_to_light = mul(g_dir_to_light, g_view_matrix);
vertex_input.normal = mul(vertex_input.normal, g_view_matrix);
// compute cosine of the angle between light and normal
float scalar = dot(g_dir_to_light, vertex_input.normal);
// Recall that if the angle between the surface and light is greater than 90 degrees
// the surface recieves no light. Thus, if the angle is greater than 90 degrees we set
// scalar to zero so that the surface will not be lit.
if(scalar < 0.0f)
scalar = 0.0f;
// Ambient light reflected is computed by performing a component wise multiplication with
// the ambient material vector and the ambient light intensity vector.
//
// Diffuse light reflected is computed by performing a component wise multiplication with
// the diffuse material vector and the diffuse light intensity vector.
// Further we scale each component by the shading scalar s, which shades the color based on
// how much light the vertex received from the light source.
//
// The sum of both the ambient and diffuse components gives us our final vertex color.
vertex_output.diffuse = (g_ambient_material * AMBIENT_LIGHT_INTENSITY) +
(scalar * (g_diffuse_material * DIFFUSE_LIGHT_INTENSITY));
return vertex_output;
}
执行程序:
/**************************************************************************************************
Demonstrates diffuse lighting using a vertex shader. You will have to switch to
the REF device to run this sample if your hardware does not support shaders.
Or you can use software vertex processing: D3DCREATE_SOFTWARE_VERTEXPROCESSING.
**************************************************************************************************/
#include "d3dUtility.h"
#pragma warning(disable : 4100)
const int WIDTH = 640;
const int HEIGHT = 480;
IDirect3DDevice9* g_device;
ID3DXMesh* g_teapot_mesh;
IDirect3DVertexShader9* g_vertex_shader;
ID3DXConstantTable* g_constant_table;
D3DXHANDLE g_view_matrix_handle;
D3DXHANDLE g_view_proj_matrix_handle;
D3DXHANDLE g_ambient_material_handle;
D3DXHANDLE g_diffuse_material_handle;
D3DXHANDLE g_dir_to_light_handle;
D3DXMATRIX g_proj_matrix;
////////////////////////////////////////////////////////////////////////////////////////////////////
bool setup()
{
D3DXCreateTeapot(g_device, &g_teapot_mesh, NULL);
// compile shader
ID3DXBuffer* shader_buffer;
ID3DXBuffer* error_buffer;
HRESULT hr = D3DXCompileShaderFromFile("DiffuseShader.cxx", NULL, NULL, "main", "vs_1_1",
D3DXSHADER_ENABLE_BACKWARDS_COMPATIBILITY,
&shader_buffer, &error_buffer, &g_constant_table);
// output any error messages
if(error_buffer)
{
MessageBox(NULL, (char*)error_buffer->GetBufferPointer(), "ERROR", MB_OK);
safe_release<ID3DXBuffer*>(error_buffer);
}
if(FAILED(hr))
{
MessageBox(NULL, "D3DXCreateEffectFromFile() - FAILED", "ERROR", MB_OK);
return false;
}
hr = g_device->CreateVertexShader((DWORD*) shader_buffer->GetBufferPointer(), &g_vertex_shader);
if(FAILED(hr))
{
MessageBox(NULL, "CreateVertexShader - FAILED", "ERROR", MB_OK);
return false;
}
safe_release<ID3DXBuffer*>(shader_buffer);
// get handles
g_view_matrix_handle = g_constant_table->GetConstantByName(NULL, "g_view_matrix");
g_view_proj_matrix_handle = g_constant_table->GetConstantByName(NULL, "g_view_proj_matrix");
g_ambient_material_handle = g_constant_table->GetConstantByName(NULL, "g_ambient_material");
g_diffuse_material_handle = g_constant_table->GetConstantByName(NULL, "g_diffuse_material");
g_dir_to_light_handle = g_constant_table->GetConstantByName(NULL, "g_light_direction");
//
// set shader constants
//
// light direction
D3DXVECTOR4 dir_to_light(-0.57f, 0.57f, -0.57f, 0.0f);
g_constant_table->SetVector(g_device, g_dir_to_light_handle, &dir_to_light);
// materials
D3DXVECTOR4 ambient_material(1.0f, 1.0f, 0.5f, 1.0f);
D3DXVECTOR4 diffuse_material(1.0f, 1.0f, 0.5f, 1.0f);
g_constant_table->SetVector(g_device, g_ambient_material_handle, &ambient_material);
g_constant_table->SetVector(g_device, g_diffuse_material_handle, &diffuse_material);
g_constant_table->SetDefaults(g_device);
// set the projection matrix
D3DXMatrixPerspectiveFovLH(&g_proj_matrix, D3DX_PI/4.0f, (float)WIDTH/HEIGHT, 1.0f,
