加工中心用刀杆.doc

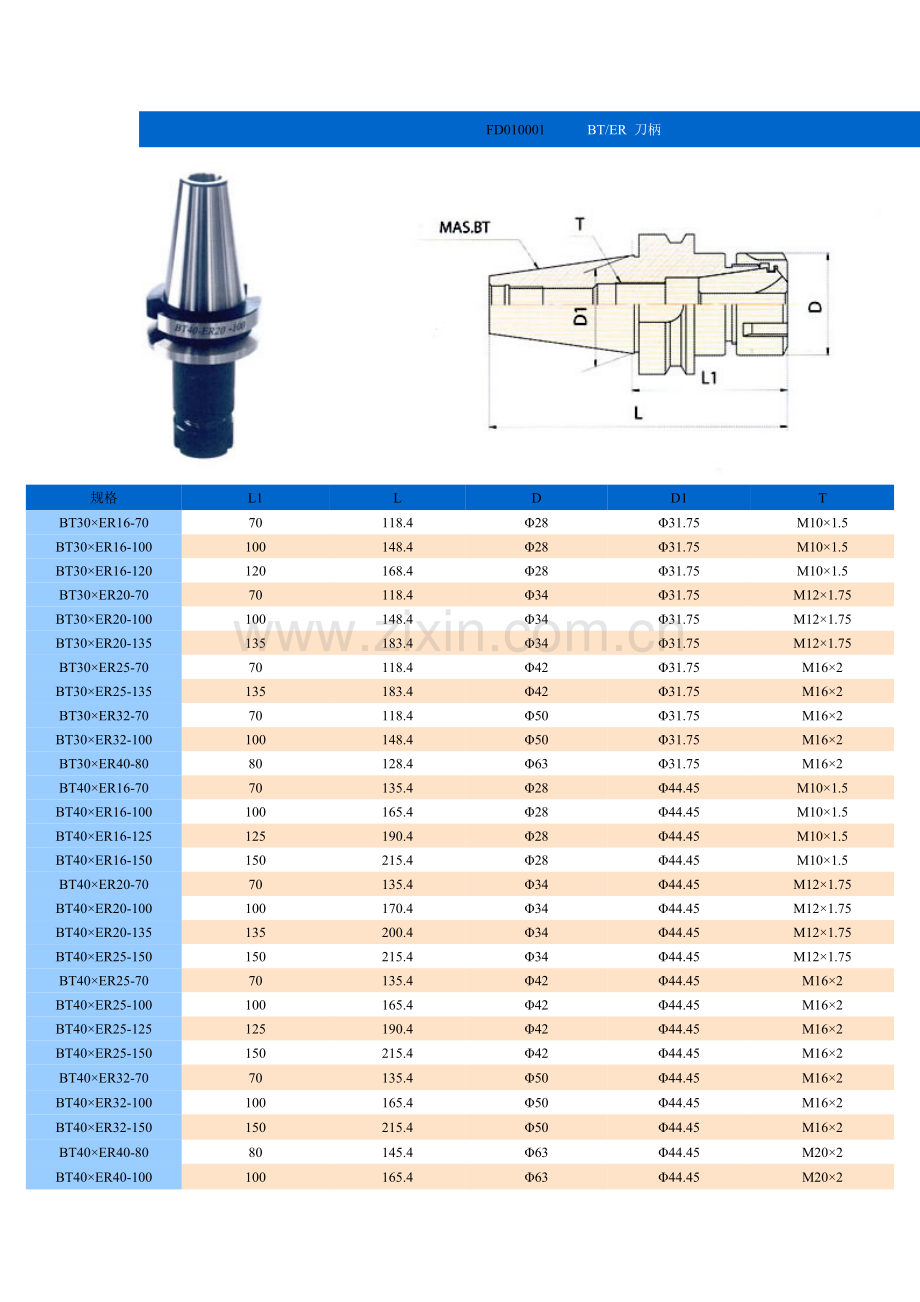

FD010001　　　BT/ER 刀柄

规格
L1
L
D
D1
T
BT30×ER16-70
70
118.4
Φ28
Φ31.75
M10×1.5
BT30×ER16-100
100
148.4
Φ28
Φ31.75
M10×1.5
BT30×ER16-120
120
168.4
Φ28
Φ31.75
M10×1.5
BT30×ER20-70
70
118.4
Φ34
Φ31.75
M12×1.75
BT30×ER20-100
100
148.4
Φ34
Φ31.75
M12×1.75
BT30×ER20-135
135
183.4
Φ34
Φ31.75
M12×1.75
BT30×ER25-70
70
118.4
Φ42
Φ31.75
M16×2
BT30×ER25-135
135
183.4
Φ42
Φ31.75
M16×2
BT30×ER32-70
70
118.4
Φ50
Φ31.75
M16×2
BT30×ER32-100
100
148.4
Φ50
Φ31.75
M16×2
BT30×ER40-80
80
128.4
Φ63
Φ31.75
M16×2
BT40×ER16-70
70
135.4
Φ28
Φ44.45
M10×1.5
BT40×ER16-100
100
165.4
Φ28
Φ44.45
M10×1.5
BT40×ER16-125
125
190.4
Φ28
Φ44.45
M10×1.5
BT40×ER16-150
150
215.4
Φ28
Φ44.45
M10×1.5
BT40×ER20-70
70
135.4
Φ34
Φ44.45
M12×1.75
BT40×ER20-100
100
170.4
Φ34
Φ44.45
M12×1.75
BT40×ER20-135
135
200.4
Φ34
Φ44.45
M12×1.75
BT40×ER25-150
150
215.4
Φ34
Φ44.45
M12×1.75
BT40×ER25-70
70
135.4
Φ42
Φ44.45
M16×2
BT40×ER25-100
100
165.4
Φ42
Φ44.45
M16×2
BT40×ER25-125
125
190.4
Φ42
Φ44.45
M16×2
BT40×ER25-150
150
215.4
Φ42
Φ44.45
M16×2
BT40×ER32-70
70
135.4
Φ50
Φ44.45
M16×2
BT40×ER32-100
100
165.4
Φ50
Φ44.45
M16×2
BT40×ER32-150
150
215.4
Φ50
Φ44.45
M16×2
BT40×ER40-80
80
145.4
Φ63
Φ44.45
M20×2
BT40×ER40-100
100
165.4
Φ63
Φ44.45
M20×2
BT40×ER40-120
120
185.4
Φ63
Φ44.45
M20×2
BT40×ER40-150
150
215.4
Φ63
Φ44.45
M20×2
BT40×ER50-85
85
145.4
Φ78
Φ44.45
M24×2
BT40×ER50-100
100
165.4
Φ78
Φ44.45
M24×2
BT50×ER16-70
70
171.8
Φ28
Φ69.85
M10×1.5
BT50×ER16-90
90
191.8
Φ28
Φ69.85
M10×1.5
BT50×ER16-105
105
206.8
Φ28
Φ69.85
M10×1.5
BT50×ER16-135
135
236.8
Φ28
Φ69.85
M10×1.5
BT50×ER16-165
165
266.8
Φ28
Φ69.85
M10×1.5
BT50×ER20-70
70
171.8
Φ34
Φ69.85
M12×1.75
BT50×ER20-90
90
191.8
Φ34
Φ69.85
M12×1.75
BT50×ER20-105
105
206.8
Φ34
Φ69.85
M12×1.75
BT50×ER20-135
135
236.8
Φ34
Φ69.85
M12×1.75
BT50×ER20-150
150
251.8
Φ34
Φ69.85
M12×1.75
BT50×ER20-165
165
266.8
Φ34
Φ69.85
M12×1.75
BT50×ER20-200
200
301
Φ34
Φ69.85
M12×1.75
BT50×ER25-70
70
171.8
Φ42
Φ69.85
M16×2
BT50×ER25-105
105
206.8
Φ42
Φ69.85
M16×2
BT50×ER25-135
135
236.8
Φ42
Φ69.85
M16×2
BT50×ER25-165
165
266.8
Φ42
Φ69.85
M16×2
BT50×ER32-80
80
181.8
Φ50
Φ69.85
M16×2
BT50×ER32-100
100
201.8
Φ50
Φ69.85
M16×2
BT50×ER32-120
120
221.8
Φ50
Φ69.85
M16×2
BT50×ER32-150
150
251
Φ50
Φ69.85
M16×2
BT50×ER32-200
200
301
Φ50
Φ69.85
M16×2
BT50×ER40-80
80
181.8
Φ63
Φ69.85
M20×2
BT50×ER40-100
100
201.8
Φ63
Φ69.85
M20×2
BT50×ER40-120
120
221.8
Φ63
Φ69.85
M20×2
BT50×ER40-135
135
236.8
Φ63
Φ69.85
M20×2
BT50×ER50-90
90
191.8
Φ78
Φ69.85
M24×2
BT50×ER50-120
120
221.8
Φ78
Φ69.85
M24×2
BT50×ER50-165
165
266.8
Φ78
Φ69.85
M24×2

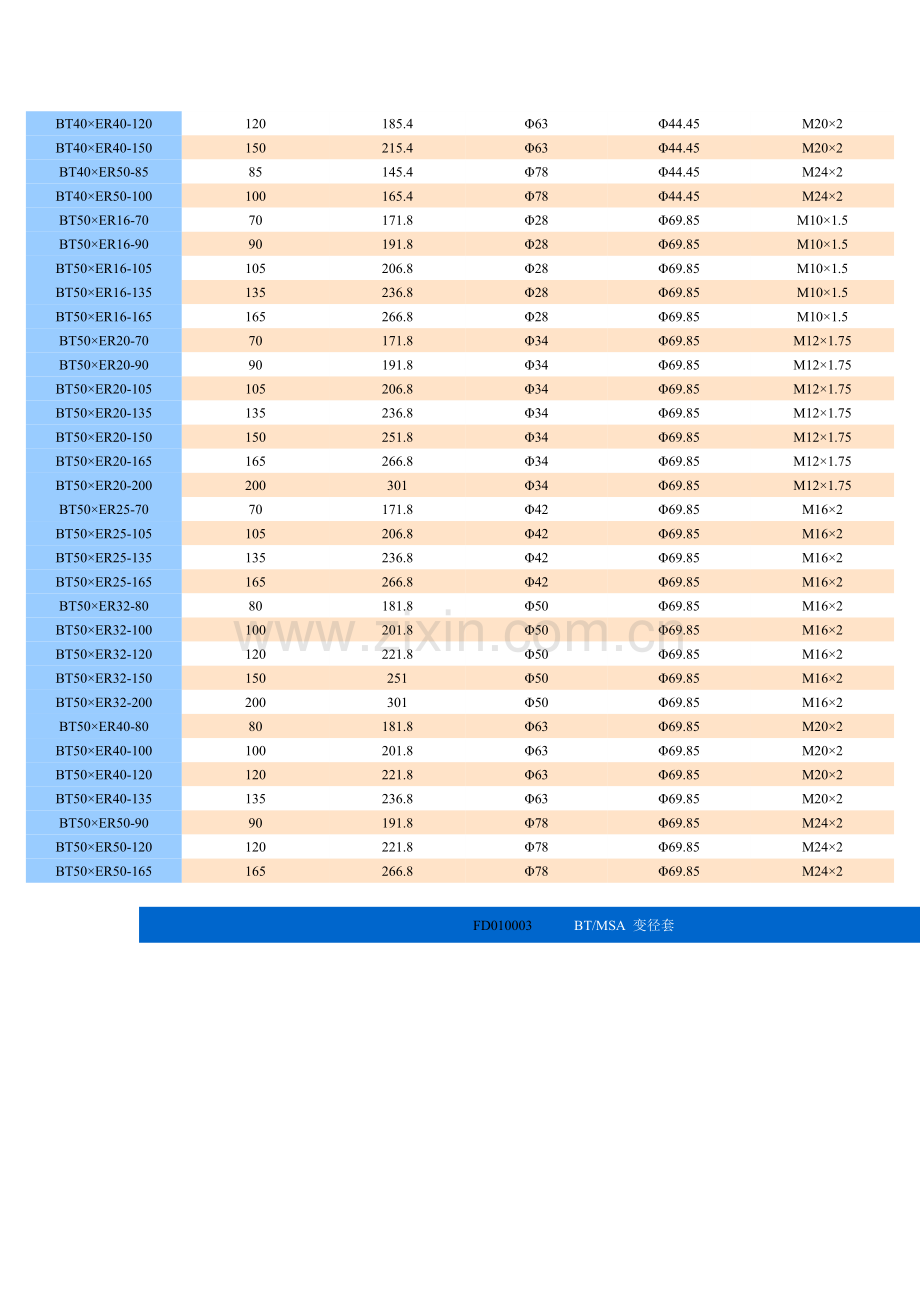

FD010003　　　BT/MSA 变径套

规格
L
D
D1
重量(kg)
BT30×MS1-45
93.4
25
31.75
0.55
BT30×MS1-50
98.4
25
31.75
0.60
BT30×MS2-60
108.4
32
31.75
0.90
BT30×MS3-80
128.4
40
31.75
0.90
BT40×MS1-45
110.4
25
44.45
1.20
BT40×MS1-50
115.4
25
44.45
1.25
BT40×MS1-120
185.4
25
44.45
1.50
BT40×MS2-50
115.4
32
44.45
1.55
BT40×MS2-60
125.4
32
44.45
1.65
BT40×MS2-120
185.4
32
44.45
1.78
BT40×MS3-70
135.4
40
44.45
1.80
BT40×MS3-75
140.4
40
44.45
1.90
BT40×MS4-90
155.4
48
44.45
2.30
BT40×MS4-95
160.4
48
44.45
2.40
BT40×MS4-135
200.4
48
44.45
2.50
BT40×MS4-165
230.4
48
44.45
2.65
BT45×MS1-120
202.8
25
57.15
1.90
BT45×MS2-120
202.8
32
57.15
2.30
BT45×MS3-120
202.8
40
57.15
2.40
BT45×MS3-140
222.8
40
57.15
2.60
BT45×MS4-98
180.8
48
57.15
2.40
BT50×MS1-45
146.8
25
69.85
4.10
BT50×MS2-50
151.8
32
69.85
4.00
BT50×MS2-60
161.8
32
69.85
4.20
BT50×MS2-120
221.8
32
69.85
4.30
BT50×MS2-135
236.8
32
69.85
4.35
BT50×MS3-65
166.8
40
69.85
4.20
BT50×MS3-75
176.8
40
69.85
4.30
BT50×MS3-120
221.8
40
69.85
4.40
BT50×MS3-135
236.8
40
69.85
4.46
BT50×MS3-150
251.8
40
69.85
4.68
BT50×MS4-85
186.8
48
69.85
4.80
BT50×MS4-95
196.8
48
69.85
5.00
BT50×MS4-180
281.8
48
69.85
5.80
BT50×MS5-105
206.8
63
69.85
5.00
BT50×MS5-108
209.8
63
69.85
5.06

FD010009　　　BT 端面铣刀杆

BT-d-L1
D
重量Wt(kg)
BT-d-L1
D
重量Wt(kg)
BT30×16-60
32
1.0
BT45×22-60
40
2.6
BT30×22-60
40
1.3
BT45×27-60
48
2.8
BT30×27-60
48
1.5
BT45×27-100
48
3.1
BT30×32-60
58
1.8
BT45×40-100
70
3.4
BT30×40-60
70
2.2
BT45×40-105
70
3.5
BT30×50-70
90
4.5
BT50×16-60
32
3.6
BT40×16-45
32
1.0
BT50×16-75
32
3.9
BT40×16-60
32
1.3
BT50×16-120
32
4.3
BT40×16-120
32
1.7
BT50×22-60
40
5.0
BT40×22-45
40
1.5
BT50×22-75
40
4.0
BT40×22-60
40
1.7
BT50×22-100
40
4.5
BT40×22-100
40
3.0
BT50×22-120
40
5.0
BT40×22-102
40
3.6
BT50×27-60
48
5.5
BT40×27-45
48
1.5
BT50×27-105
48
4.0
BT40×27-60
48
1.6
BT50×32-60
58
4.5
BT40×27-75
48
1.8
BT50×32-75
58
1.6
BT40×27-105
48
2.1
BT50×32-105
58
1.8
BT40×27-120
48
2.3
BT50×40-60
70
2.2
BT40×32-45
58
1.2
BT50×40-75
70
3.6
BT40×23-60
58
1.5
BT50×40-90
70
3.7
BT40×32-75
58
1.8
BT50×40-100
70
3.75
BT40×32-120
58
2.8
BT50×40-105
70
3.8
BT40×40-60
70
2.0
BT50×50-60
90
4.0
