EE磁芯参数.doc

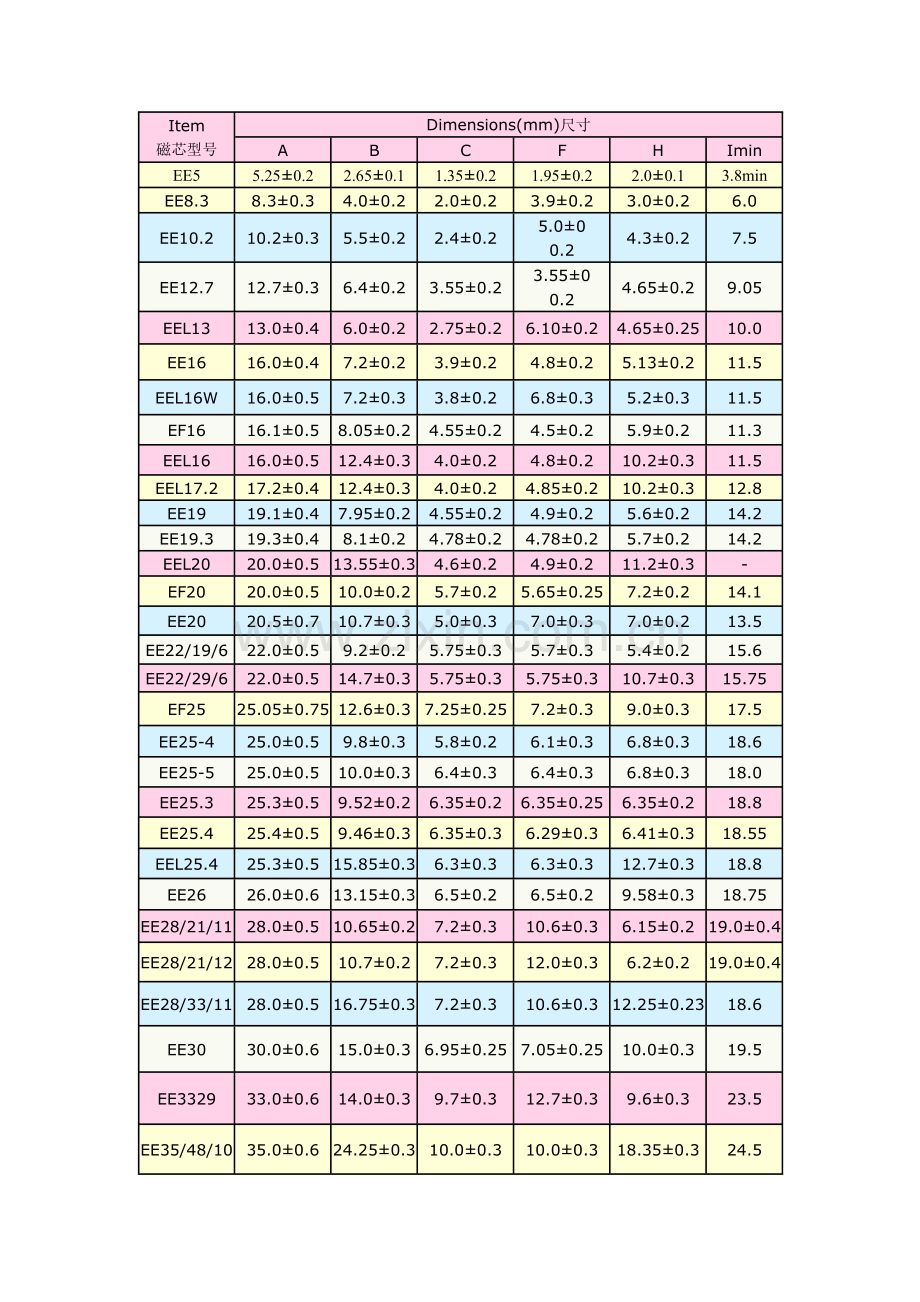

Item
磁芯型号
Dimensions(mm)尺寸
A
B
C
F
H
Imin
EE5
5.25±0.2
2.65±0.1
1.35±0.2
1.95±0.2
2.0±0.1
3.8min
EE8.3
8.3±0.3
4.0±0.2
2.0±0.2
3.9±0.2
3.0±0.2
6.0
EE10.2
10.2±0.3
5.5±0.2
2.4±0.2
5.0±0
0.2
4.3±0.2
7.5
EE12.7
12.7±0.3
6.4±0.2
3.55±0.2
3.55±0
0.2
4.65±0.2
9.05
EEL13
13.0±0.4
6.0±0.2
2.75±0.2
6.10±0.2
4.65±0.25
10.0
EE16
16.0±0.4
7.2±0.2
3.9±0.2
4.8±0.2
5.13±0.2
11.5
EEL16W
16.0±0.5
7.2±0.3
3.8±0.2
6.8±0.3
5.2±0.3
11.5
EF16
16.1±0.5
8.05±0.2
4.55±0.2
4.5±0.2
5.9±0.2
11.3
EEL16
16.0±0.5
12.4±0.3
4.0±0.2
4.8±0.2
10.2±0.3
11.5
EEL17.2
17.2±0.4
12.4±0.3
4.0±0.2
4.85±0.2
10.2±0.3
12.8
EE19
19.1±0.4
7.95±0.2
4.55±0.2
4.9±0.2
5.6±0.2
14.2
EE19.3
19.3±0.4
8.1±0.2
4.78±0.2
4.78±0.2
5.7±0.2
14.2
EEL20
20.0±0.5
13.55±0.3
4.6±0.2
4.9±0.2
11.2±0.3
-
EF20
20.0±0.5
10.0±0.2
5.7±0.2
5.65±0.25
7.2±0.2
14.1
EE20
20.5±0.7
10.7±0.3
5.0±0.3
7.0±0.3
7.0±0.2
13.5
EE22/19/6
22.0±0.5
9.2±0.2
5.75±0.3
5.7±0.3
5.4±0.2
15.6
EE22/29/6
22.0±0.5
14.7±0.3
5.75±0.3
5.75±0.3
10.7±0.3
15.75
EF25
25.05±0.75
12.6±0.3
7.25±0.25
7.2±0.3
9.0±0.3
17.5
EE25-4
25.0±0.5
9.8±0.3
5.8±0.2
6.1±0.3
6.8±0.3
18.6
EE25-5
25.0±0.5
10.0±0.3
6.4±0.3
6.4±0.3
6.8±0.3
18.0
EE25.3
25.3±0.5
9.52±0.2
6.35±0.2
6.35±0.25
6.35±0.2
18.8
EE25.4
25.4±0.5
9.46±0.3
6.35±0.3
6.29±0.3
6.41±0.3
18.55
EEL25.4
25.3±0.5
15.85±0.3
6.3±0.3
6.3±0.3
12.7±0.3
18.8
EE26
26.0±0.6
13.15±0.3
6.5±0.2
6.5±0.2
9.58±0.3
18.75
EE28/21/11
28.0±0.5
10.65±0.2
7.2±0.3
10.6±0.3
6.15±0.2
19.0±0.4
EE28/21/12
28.0±0.5
10.7±0.2
7.2±0.3
12.0±0.3
6.2±0.2
19.0±0.4
EE28/33/11
28.0±0.5
16.75±0.3
7.2±0.3
10.6±0.3
12.25±0.23
18.6
EE30
30.0±0.6
15.0±0.3
6.95±0.25
7.05±0.25
10.0±0.3
19.5
EE3329
33.0±0.6
14.0±0.3
9.7±0.3
12.7±0.3
9.6±0.3
23.5
EE35/48/10
35.0±0.6
24.25±0.3
10.0±0.3
10.0±0.3
18.35±0.3
24.5
EE40/55/12
40.0±0.7
27.25±0.3
11.65±0.35
11.65±0.35
20.05±0.3
27.2
EE41
41.5±1.2
17.0±0.3
12.2±0.3
12.7±0.3
10.8±0.3
29.0
EE4212
42.0±
1.0
21.2±0.4
12.0±0.3
12.0±
0.2
15.0±
0.3
29.5
0.7
0.5
0.1
EE4215
42.0±
1.0
21.2±0.4
12.0±0.3
15.0±
0.2
15.0±
0.3
29.5
0.7
0.5
0.1
EE4220
42.0±
1.0
21.2±0.4
12.0±0.3
20.0±
0.2
15.0±
0.3
29.5
0.7
0.5
0.1
EE46
46.0±
1.0
23.8±0.45
14.2±
0
30.0±
0
16.95±0.4
31.5
0.7
0.5
0.8
EE55
55.2±1.0
27.5±0.3
16.9±0.3
20.5±0.4
18.8±0.3
38.3±0.5
EE65
65.2±1.3
32.5±0.4
19.65±0.4
27.4±0.4
22.55±0.4
44.2

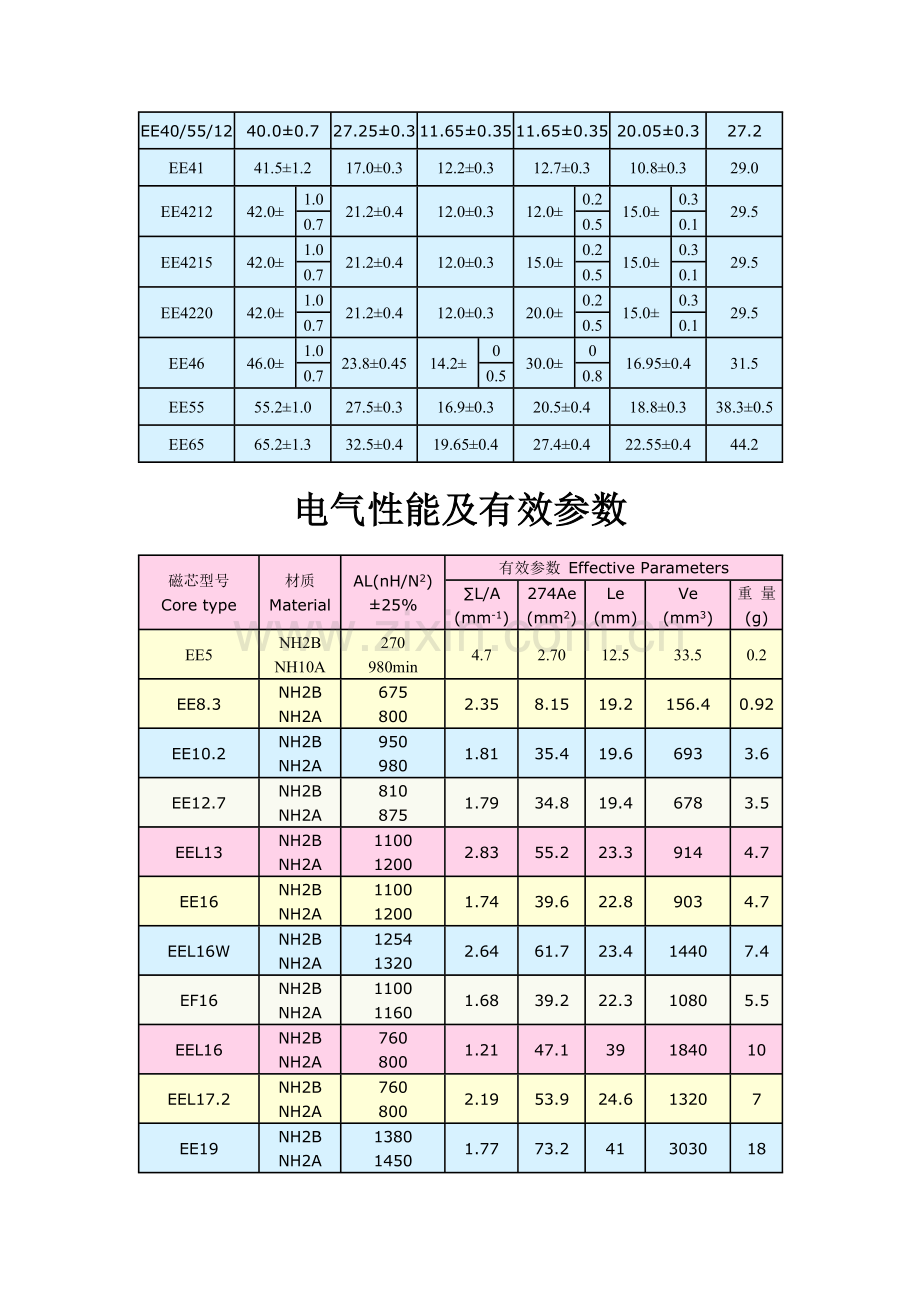

电气性能及有效参数
磁芯型号
Core type
材质
Material
AL(nH/N2)
±25%
有效参数 Effective Parameters
∑L/A
(mm-1)
274Ae
(mm2)
Le
(mm)
Ve
(mm3)
重 量
(g)
EE5
NH2B
NH10A
270
980min
4.7
2.70
12.5
33.5
0.2
EE8.3
NH2B
NH2A
675
800
2.35
8.15
19.2
156.4
0.92
EE10.2
NH2B
NH2A
950
980
1.81
35.4
19.6
693
3.6
EE12.7
NH2B
NH2A
810
875
1.79
34.8
19.4
678
3.5
EEL13
NH2B
NH2A
1100
1200
2.83
55.2
23.3
914
4.7
EE16
NH2B
NH2A
1100
1200
1.74
39.6
22.8
903
4.7
EEL16W
NH2B
NH2A
1254
1320
2.64
61.7
23.4
1440
7.4
EF16
NH2B
NH2A
1100
1160
1.68
39.2
22.3
1080
5.5
EEL16
NH2B
NH2A
760
800
1.21
47.1
39
1840
10
EEL17.2
NH2B
NH2A
760
800
2.19
53.9
24.6
1320
7
EE19
NH2B
NH2A
1380
1450
1.77
73.2
41
3030
18
EE19.3
NH2B
NH2A
1260
1290
1.24
49.0
40
1930
10
EEL19
NH2B
NH2A
910
980
1.82
73.4
40.4
2960
15
EF20
NH2B
NH2A
1570
1670
1.11
66
60
3950
22
EE20
NH2B
NH2A 　
1900
1900
61.1
83.3
5000
25.6
18
EE22/19/6
NH2B
NH2A
1900
2000
0.61
67.7
111
7520
38
EE22/29/6
NH2B
NH2A
1300
1400
0.659
96.5
146
1410
73
EF25
NH2B
NH2A
1950
2000
0.48
77.5
161
1250
64
EE25-4
NH2B
NH2A
1500
1500
0.682
98
143
14000
72
EE25-5
NH2B
NH2A
1800
2000
0.546
97
178
17300
92
EE25.3
NH2B
NH2A
1830
1920
0.409
97
237
23000
116
EE25.4
NH2B
NH2A
1980
2000
0.268
107.9
402
43400
230
EEL25.4
NH2B
NH2A
1320
1410
0.425
96
226
21700
116
EE26
NH2B
NH2A
1850
1910
0.423
120
284
34100
174
EE28/21/11
NH2B
NH2A
4210
4330
0.34
120
354
42500
216
EE28/21/12
NH2B
NH2A
4500
4635
1.87
37.6
20.1
754
3.9
EE28/33/11
NH2B
NH2A
2930
3000
1.45
46
32
1490
7.4
EE30
NH2B
NH2A
2000
2100
1.11
60.0
60.0
3950
22.0
EE3329
NH2B
NH2A
4000
4000
0.57
111.0
66.1
7520
40.6
EE35/48/10
NH2B
NH2A
2350
2400
1.0
103.1
103.4
10662.0
58.0
EE40/55/12
NH2B
NH2A
2995
3150
0.8
145.8
117.4
17116.7
89.0
EE41
NH2B
3800
0.51
152
77.1
11722
70
EE4212
NH2B
3700
0.7
147.4
96.8
14275
70
EE4215
NH2B
4700
0.5
184.3
96.8
17843
86
EE4220
NH2B
5700
0.4
235
97.4
22889
118
EE46
NH2B
8300
0.27
385
105
43260
109
EE55
NH2B
6700
0.35
354
123
43542
216
EE65
NH2B
8000
0.274
540
147
79000
400
