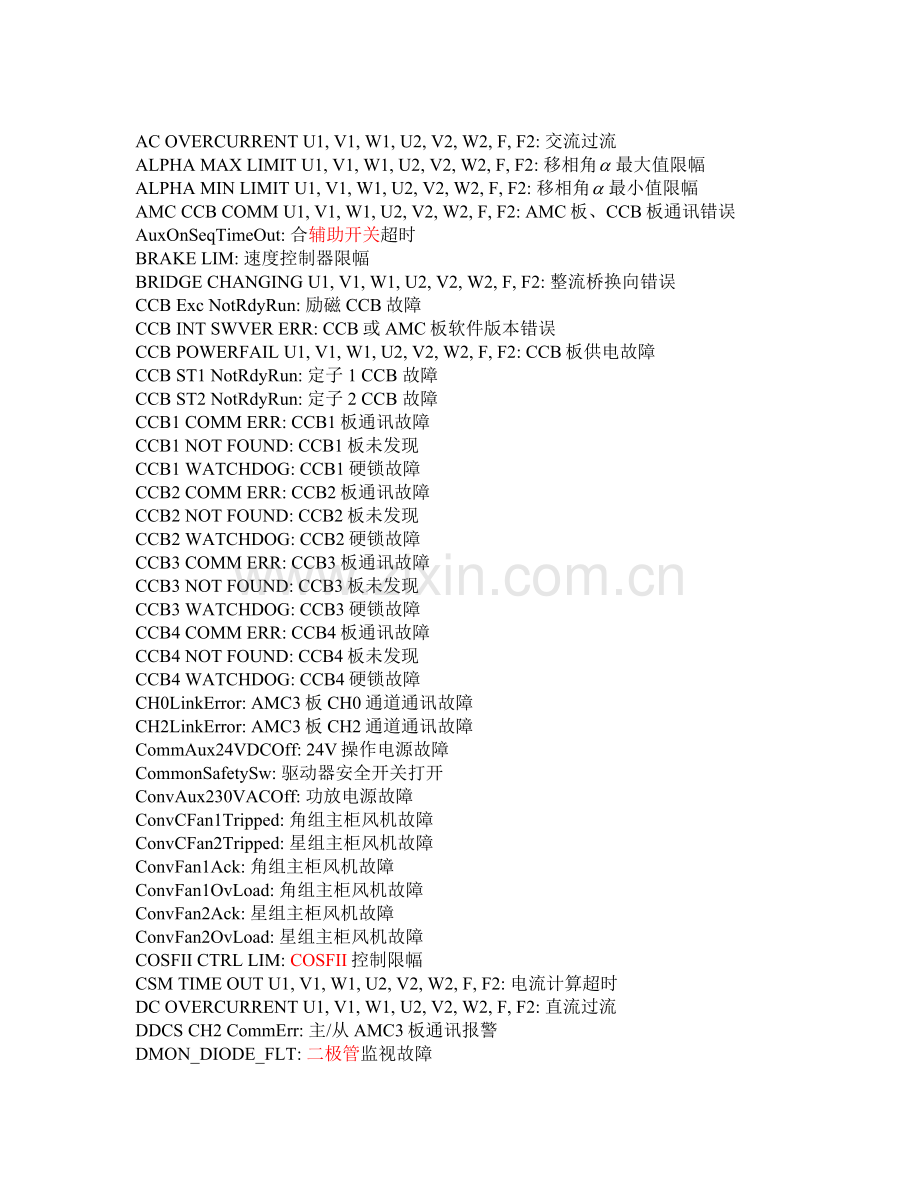

AC OVERCURRENT U1, V1, W1, U2, V2, W2, F, F2: 交流过流 ALPHA MAX LIMIT U1, V1, W1, U2, V2, W2, F, F2: 移相角最大值限幅 ALPHA MIN LIMIT U1, V1, W1, U2, V2, W2, F, F2: 移相角最小值限幅 AMC CCB COMM U1, V1, W1, U2, V2, W2, F, F2: AMC板、CCB板通讯错误 AuxOnSeqTimeOut: 合辅助开关超时 BRAKE LIM: 速度控制器限幅 BRIDGE CHANGING U1, V1, W1, U2, V2, W2, F, F2: 整流桥换向错误 CCB Exc NotRdyRun: 励磁CCB故障 CCB INT SWVER ERR: CCB或AMC板软件版本错误 CCB POWERFAIL U1, V1, W1, U2, V2, W2, F, F2: CCB板供电故障 CCB ST1 NotRdyRun: 定子1 CCB 故障 CCB ST2 NotRdyRun: 定子2 CCB 故障 CCB1 COMM ERR: CCB1板通讯故障 CCB1 NOT FOUND: CCB1板未发现 CCB1 WATCHDOG: CCB1硬锁故障 CCB2 COMM ERR: CCB2板通讯故障 CCB2 NOT FOUND: CCB2板未发现 CCB2 WATCHDOG: CCB2硬锁故障 CCB3 COMM ERR: CCB3板通讯故障 CCB3 NOT FOUND: CCB3板未发现 CCB3 WATCHDOG: CCB3硬锁故障 CCB4 COMM ERR: CCB4板通讯故障 CCB4 NOT FOUND: CCB4板未发现 CCB4 WATCHDOG: CCB4硬锁故障 CH0LinkError: AMC3板CH0通道通讯故障 CH2LinkError: AMC3板CH2通道通讯故障 CommAux24VDCOff: 24V操作电源故障 CommonSafetySw: 驱动器安全开关打开 ConvAux230VACOff: 功放电源故障 ConvCFan1Tripped: 角组主柜风机故障 ConvCFan2Tripped: 星组主柜风机故障 ConvFan1Ack: 角组主柜风机故障 ConvFan1OvLoad: 角组主柜风机故障 ConvFan2Ack: 星组主柜风机故障 ConvFan2OvLoad: 星组主柜风机故障 COSFII CTRL LIM: COSFII控制限幅 CSM TIME OUT U1, V1, W1, U2, V2, W2, F, F2: 电流计算超时 DC OVERCURRENT U1, V1, W1, U2, V2, W2, F, F2: 直流过流 DDCS CH2 CommErr: 主/从AMC3板通讯报警 DMON_DIODE_FLT: 二极管监视故障 DRAW LIM: 速度控制器限幅到达 Drive2TripReq: AMC CH2 通讯故障跳闸 DrvstartSeqTimeOut: 启动故障 DrvStop1SeqTimeOut: 停车1故障 DrvStop2SeqTimeOut: 停车 2故障 EMERGENCY OFF: 紧急断电 EMERGENCY STOP: 急停 EXC 1 TRIP CCB: 励磁CCB跳闸 EXC1 CCB ALARM: 励磁CCB板报警 Exc1CtrlRel|BlkTOut: 励磁电流控制器未开放 ExcAux230VACOff: 励磁功放电源故障 ExcCB NotClosed: 励磁接触器故障 ExcContractorAck: 励磁接触器无反馈 ExcFanOvload: 励磁柜风机故障 ExcitEarthFault: 转子接地故障 FLUX CTRL LIM: 磁通控制器限幅到达 FLUX D COR LIM: 磁通D轴分量限幅到达 FLUX Q COR LIM: 磁通Q轴分量限幅到达 FLUXREF CTRL LIM: 磁通给定限幅到达 FREQUENCY FAULT U1, V1, W1, U2, V2, W2, F, F2: 电源频率错误（高/低） FUSE TRIP U1, V1, W1, U2, V2, W2, F, F2: 正组或反组快熔故障 GRAY IO BOARD ERR: NGRB板故障 GRAY IO NOT FOUND: NGRB板通讯故障 GRAY POS DIFF ERR: NGRB板检测到位置滑动过大 HVSupplyNotOK: 高压供电电路未准备好 I D POS LIM: 矢量控制限幅 I S REF LIM: 电流给定限幅到达 IOAnalogChError: S800模拟输入通道初始化/状态错误 IOMokuleFault: S800模块初始化/状态错误 IOModulewarning: S800模块初始化/状态错误 LOAD ANGLE LIM: 负载角限幅到达 LongZeroSpeedRun: 零速运行时间过长 MCBAck: 高压开关未合上 MCBTripPresignal: 主回路断路器故障 MEAS UNIT BOARD U1, V1, W1, U2, V2, W2, F, F2: MUB0或MUB1板通讯故障 MUBfaultX: MUB板通讯故障 NoExtStartPermis: 励磁启动允许信号丢失 NTAC IO BOARD ERR: NTAC板故障 NTAC IO NOT FOUND: NTAC板通讯故障 NATC POS DIFF ERR: NTAC板检测到位置滑动过大 OS SW CCB U1, V1, W1, U2, V2, W2, F, F2: 操作系统故障（更换CCB板） OUT OF SYNC U1, V1, W1, U2, V2, W2, F, F2: 同步故障 OVERSPEED: 过速 OVERVOLTAGE PROT U1, V1, W1, U2, V2, W2, F, F2: 硬件过压保护继电器动作 PAI COMM U1, V1, W1, U2, V2, W2, F, F2: PAI板通讯故障 PAI FIRING INST U1, V1, W1, U2, V2, W2, F, F2: 触发脉冲故障 PAI GDR FB U1, V1, W1, U2, V2, W2, F, F2: GDR板到PAI板反馈错误 PAI IO Error: PAI板与AMC3板通讯报警 PAI OVERLOAD U1, V1, W1, U2, V2, W2, F, F2: PAI板通讯过载 PAI PWR LOW U1, V1, W1, U2, V2, W2, F, F2: PAI、GDR1、GDR2板电源故障 PanelLost: 本地控制丢失 RdyRunSeqTimeOut: 系统启动超时 RemoteAndTestMode: 测试模式下选择远程控制报警 ROTOR STALLED: 堵转 Sta1CtrlRel|BlkTOut: 角组电流控制器未开放 Sta2CtrlRel|BlkTOut: 星组电流控制器未开放 StartUpPrevented: 启动允许信号丢失 STATOR 1 MCB TRIP CCB: 角组CCB故障跳闸 STATOR 1 TRIP CCB: 角组CCB故障跳闸 STATOR 2 MCB TRIP CCB: 星组CCB故障跳闸 STATOR 2 TRIP CCB: 星组CCB故障跳闸 STATOR1 CCB ALARM: CCB板报警(u1, v1, w1) Stator1Aux230VACOff: 角组功放电源故障 Stator1EarthFault: 定子1接地故障 STATOR2 CCB ALARM: CCB板报警(u2, v2, w2) Stator2Aux230VACOff: 星组功放电源故障 Stator2EarthFault: 定子2接地故障 TORQUE OR SPEED LIM: 速度控制器限幅（过载） UNDERVOLTAGE U1, V1, W1, U2, V2, W2, F, F2: 欠压
