反射内存卡资料整理.doc

一、 反射内存卡基本特征
型号：vmipci-5565-11000

1． 板载内存128MB ，地址空间：0x0 ~ 0x7FFFFFF
2． 4k FIFOs
3． Transmission Mode=Multimode
4． No Conformal Coating保形[角]涂料
二、 中断式通信流程

图1 中断式通信流程图

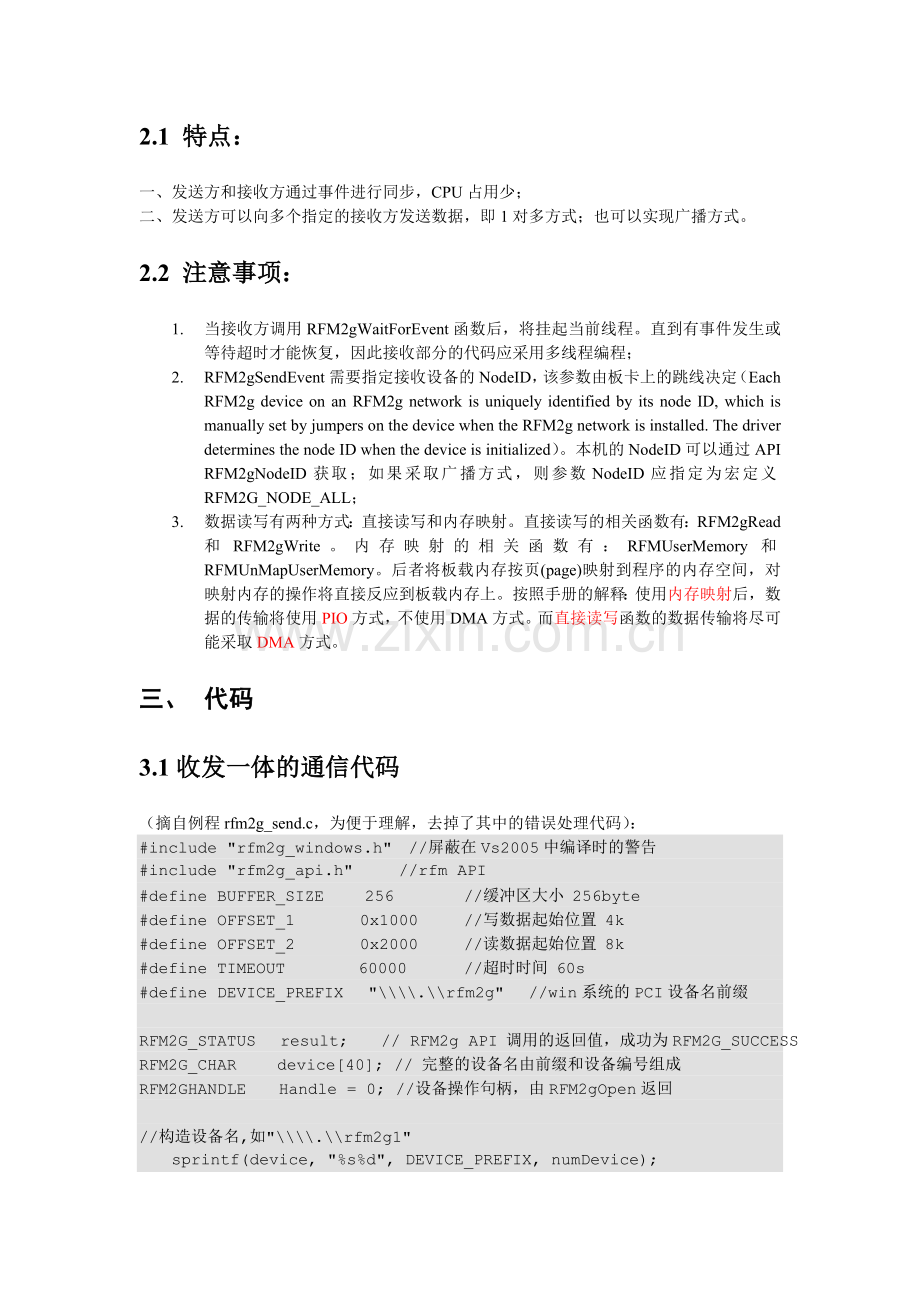

2.1 特点：
一、 发送方和接收方通过事件进行同步，CPU占用少；
二、 发送方可以向多个指定的接收方发送数据，即1对多方式；也可以实现广播方式。
2.2 注意事项：
1. 当接收方调用RFM2gWaitForEvent函数后，将挂起当前线程。直到有事件发生或等待超时才能恢复，因此接收部分的代码应采用多线程编程；
2. RFM2gSendEvent需要指定接收设备的NodeID，该参数由板卡上的跳线决定（Each RFM2g device on an RFM2g network is uniquely identified by its node ID, which is manually set by jumpers on the device when the RFM2g network is installed. The driver determines the node ID when the device is initialized）。本机的NodeID可以通过API RFM2gNodeID获取；如果采取广播方式，则参数NodeID应指定为宏定义RFM2G_NODE_ALL；
3. 数据读写有两种方式：直接读写和内存映射。直接读写的相关函数有：RFM2gRead和RFM2gWrite。内存映射的相关函数有：RFMUserMemory和RFMUnMapUserMemory。后者将板载内存按页(page)映射到程序的内存空间，对映射内存的操作将直接反应到板载内存上。按照手册的解释：使用内存映射后，数据的传输将使用PIO方式，不使用DMA方式。而直接读写函数的数据传输将尽可能采取DMA方式。
三、 代码
3.1收发一体的通信代码
（摘自例程rfm2g_send.c，为便于理解，去掉了其中的错误处理代码）：
#include "rfm2g_windows.h" //屏蔽在Vs2005中编译时的警告
#include "rfm2g_api.h" //rfm API
#define BUFFER_SIZE 256 //缓冲区大小 256byte
#define OFFSET_1 0x1000 //写数据起始位置 4k
#define OFFSET_2 0x2000 //读数据起始位置 8k
#define TIMEOUT 60000 //超时时间 60s
#define DEVICE_PREFIX "\\\\.\\rfm2g" //win系统的PCI设备名前缀

RFM2G_STATUS result; // RFM2g API 调用的返回值，成功为RFM2G_SUCCESS
RFM2G_CHAR device[40]; // 完整的设备名由前缀和设备编号组成
RFM2GHANDLE Handle = 0; //设备操作句柄，由RFM2gOpen返回

//构造设备名,如"\\\\.\\rfm2g1"
sprintf(device, "%s%d", DEVICE_PREFIX, numDevice);

//打开设备
result = RFM2gOpen( device, &Handle );

//使网络中断可用。默认情况下，反射内存网的中断是不可用的，RFM2gEnableEvent函数使得接收设备可以响应网络中断。如果发送方不需响应中断，则不必调用该函数
result = RFM2gEnableEvent( Handle, RFM2GEVENT_INTR2 );

//将数据写入反射内存卡的板载内存。
result = RFM2gWrite( Handle, OFFSET_1, (void *)outbuffer, BUFFER_SIZE*4 );
/*在板载内存的有效范围之内，从第二个参数指定起始地址开始写入数据。写入的长度按字节计算。
字长换算法则：
1 byte= 1 RFM2G_UINT8
1 word= 1 RFM2G_UINT16= 2* RFM2G_UINT8
1 long word= 1 RFM2G_UINT32= 4* RFM2G_UINT8
*/

//发网络中断
result = RFM2gSendEvent( Handle, otherNodeId, RFM2GEVENT_INTR1, 0);

//等待中断
RFM2GEVENTINFO EventInfo;
EventInfo.Event = RFM2GEVENT_INTR2; //等待的网络中断类型
EventInfo.Timeout = TIMEOUT; //等待多久即超时
result = RFM2gWaitForEvent( Handle, &EventInfo );//调用后程序挂起

//读数据.与RFM2gWrite函数类似，需要事先分配读取缓冲和指定读取数据的长度
result = RFM2gRead( Handle, OFFSET_2, (void *)inbuffer, BUFFER_SIZE*4);

//关闭设备
RFM2gClose( &Handle );

//通用错误处理
if( result != RFM2G_SUCCESS )
{
printf("Error: %s\n", RFM2gErrorMsg(result) );
RFM2gClose( &Handle );
return(result);
}
3.2 测试用代码段
3.2.1 获取板卡配置信息
RFM2G_STATUS Status;
RFM2GCONFIG Config;
/* Get the board Configuration */
Status = RFM2gGetConfig( Handle, &Config );
if( Status != RFM2G_SUCCESS )
{
printf( "Could not get the board Configuration.\n" );
printf( "Error: %s.\n\n", RFM2gErrorMsg(Status));
return(-1);
}

/* Print board configuration */
printf (" Driver Part Number \"%s\"\n", Config.Name);
printf (" Driver Version \"%s\"\n", Config.DriverVersion);
printf (" Device Name \"%s\"\n", Config.Device);
printf (" Board Instance %d\n", Config.Unit);
printf (" Board ID 0x%02X\n", Config.BoardId);
printf (" Node ID 0x%02X\n", Config.NodeId);
printf (" Installed Memory %ud (0x%08X)\n",
Config.MemorySize, Config.MemorySize);
printf (" Memory Offset: ");

switch (Config.Lcsr1 & 0x0030000 )
{
case 0x00000000:
printf ("0x00000000\n");
break;

case 0x00010000:
printf ("0x04000000\n");
break;

case 0x00020000:
printf ("0x08000000\n");
break;

case 0x00030000:
printf ("0x0c000000\n");
break;

default: /* S/W Error */
printf("\n");
}

printf (" Board Revision 0x%02X\n", Config.BoardRevision);
printf (" PLX Revision 0x%02X\n", Config.PlxRevision);

/* Display Board Configuration */
printf (" Config.Lcsr1 0x%08x\n", Config.Lcsr1);

printf("RFM2g Configuration:\n");

if (Config.Lcsr1 & 0x01000000)
{
printf (" Rogue Master 0 Enabled\n");
}

if (Config.Lcsr1 & 0x02000000)
{
printf (" Rogue Master 1 Enabled\n");
}

if (Config.Lcsr1 & 0x04000000)
{
printf (" Redundant Mode\n");
}
else
{
printf (" Fast Mode\n");
}

if (Config.Lcsr1 & 0x08000000)
{
printf (" Local Bus Parity Enabled\n");
}

if (Config.Lcsr1 & 0x10000000)
{
printf (" Loopback Enabled\n");
}

if (Config.Lcsr1 & 0x20000000)
{
printf (" Dark-on-Dark Enabled\n");
}

if (Config.Lcsr1 & 0x40000000)
{
printf (" Transmitter Disabled\n");
}

/* PCI Configuration Info */
printf("RFM2g PCI Configuration:\n");
printf (" bus 0x%02x\n", Config.PciConfig.bus);
printf (" function 0x%02x\n", Config.PciConfig.function);
printf (" type 0x%04x\n", Config.PciConfig.type);
printf (" devfn 0x%08x\n", Config.PciConfig.devfn);
printf (" revision 0x%02x\n", Config.PciConfig.revision);
printf (" rfm2gOrBase 0x%08x\n", Config.PciConfig.rfm2gOrBase);
printf (" rfm2gOrWindowSize 0x%08x\n", Config.PciConfig.rfm2gOrWindowSize);
printf (" rfm2gOrRegSize 0x%08x\n", Config.PciConfig.rfm2gOrRegSize);
printf (" rfm2gCsBase 0x%08x\n", Config.PciConfig.rfm2gCsBase);
printf (" rfm2gCsWindowSize 0x%08x\n", Config.PciConfig.rfm2gCsWindowSize);
printf (" rfm2gCsRegSize 0x%08x\n", Config.PciConfig.rfm2gCsRegSize);
printf (" rfm2gBase 0x%08x\n", Config.PciConfig.rfm2gBase);
printf (" rfm2gWindowSize 0x%08x\n", Config.PciConfig.rfm2gWindowSize);
printf (" interruptNumber 0x%02x\n", Config.PciConfig.interruptNumber);
3.2.2 测试反射内存网连接
RFM2G_STATUS status;
/* If the ring is intact, the "own-data" bit will be set */
status = RFM2gCheckRingCont(cmd->Handle);
if( status == RFM2G_SUCCESS )
{
printf( "The Reflective Memory link is intact.\n" );
}
else
{
printf( "Error: %s.\n\n", RFM2gErrorMsg(status));
}
3.2.3 DMA性能测试
RFM2G_INT32 index; /* Selects appropriate nomenclature */
char * name; /* Local pointer to command name */
char * desc; /* Local pointer to command description */
RFM2G_STATUS Status;
time_t time1; /* ANSI C time */
double mBytePerSec = 0;
int numBytes = 0;
int numIterations = 10000;
int count;
int timeToRunTest = 2; /* Time to run tests in seconds */
RFM2G_UINT32 dmaThreshold;

/* Get the DMA Threshold */
RFM2gGetDMAThreshold(Handle, &dmaThreshold);

printf("\nRFM2g Performance Test (DMA Threshold is %d)\n", dmaThreshold);
printf("---------------------------------------------------\n");
printf(" Bytes Read IOps Read MBps Write IOps Write MBps\n");

for (numBytes = 0; numBytes < MEMBUF_SIZE; )
{
if (numBytes < 32)
{
numBytes += 4;
}
else if (numBytes < 128)
{
numBytes += 32;
}
else if (numBytes < 2048)
{
numBytes += 128;
}
else if (numBytes < 4096)
{
numBytes += 512;
}
else if (numBytes < 16384)
{
numBytes += 4096;
}
else if (numBytes < 131072)
{
numBytes += 16384;
}
else if (numBytes < 262144)
{
numBytes += 65536;
}
else
{
numBytes += 262144;
}

numIterations = 0;

if (time(&time1) == -1)
{
printf("ANSI C time function returned ERROR\n");
return(-1);
}

/* Wait for the timer to get to the begining of a second */
while (difftime(time(0), time1) == 0)
{
/* Let's wait */
count++;
}

/* Get the start time */
time(&time1);

/* The accuracy of the results is dependent on the amount of time
the test runs and the Number of IO's per second. This is not a
precise test, the priority of this task along with the limited
resolution (1 Sec) of the ANSI C time function affects the
precision. */

while (difftime(time(0), time1) < timeToRunTest)
{
Status = RFM2gRead(Handle,
0, /* rfmOffset */
(void*) MemBuf,
numBytes);

if (Status != RFM2G_SUCCESS)
{
printf("RFM2gRead : Failure\n");
printf( "Error: %s.\n\n", RFM2gErrorMsg(Status));
return(-1);
}

numIterations++;

}

/* Calculate MByte/Sec = Total number of bytes transferred / (Time
in seconds * 1024 * 1024) */
mBytePerSec = (double)(numBytes * numIterations) / ( timeToRunTest *
1024.0 * 1024.0);

printf("%8d %10d %6.1f", numBytes,
(numIterations / timeToRunTest), mBytePerSec);

numIterations = 0;

time(&time1);

/* Wait for the timer to get to the begining of a second */
while (difftime(time(0), time1) == 0)
{
/* Let's wait */
count++;
}

/* Get the start time */
time(&time1);

/* Perform the IO until the elapsed time occurs */
while (difftime(time(0), time1) < timeToRunTest)
{
Status = RFM2gWrite(Handle,
0, /* rfmOffset */
(void*) MemBuf,
numBytes);

if (Status != RFM2G_SUCCESS)
{
printf( "RFM2gWrite : Failure\n");
printf( "Error: %s.\n\n", RFM2gErrorMsg(Status));
return(-1);
}

numIterations++;

}

mBytePerSec = (double) (numBytes * numIterations) / (timeToRunTest *
1024.0 * 1024.0);

printf(" %10d %6.1f\n",
(numIterations / timeToRunTest), mBytePerSec);

} /* for */
3.3 常用API
3.3.1 RFM2gOpen()
Several programs and execution threads may have the same RFM2g interface open at any given time. The driver and the API library are thread-safe; （该函数支持多线程）
Syntax
STDRFM2GCALL RFM2gOpen( char *DevicePath, RFM2GHANDLE *rh );
Parameters
l DevicePath Path to special device file (I). Refer to your driver-specific manual for the format of DevicePath.
l rh Pointer to an RFM2GHANDLE structure (IO).
3.3.2 RFM2gClose()
Once the RFM2g handle is closed, all of the facilities using that handle are no longer accessible, including the local RFM2g memory, which may be mapped into the application program’s virtual memory space.
Syntax
STDRFM2GCALL RFM2gClose( RFM2GHANDLE *rh );
Parameters
rh Initialized previously with a call to RFM2gOpen() (I).
3.3.3 RFM2gRead()
The RFM2g driver attempts to fulfill the RFM2gRead() request using the bus master DMA feature available on the RFM2g device. The driver will move the data using the DMA feature if the length of the I/O request is at least as long as the minimum DMA threshold.
If the RFM2g device does not support the bus master DMA feature, or if the I/O request does not meet the constraints listed above, then the driver will move the data using PIO.
Syntax
STDRFM2GCALL RFM2gRead( RFM2GHANDLE rh,RFM2G_UINT32 Offset,void *Buffer, RFM2G_UINT32 Length );
Parameters
l rh Handle to open RFM2g device (I).
l Offset Width-aligned offset to Reflective Memory at which to begin the read (I).Valid offset values are 0x0 to 0x3FFFFFF for 64MB cards, 0x0 to 0x7FFFFFF for 128MB cards and 0x0 to 0x0FFFFFF for 256MB cards.
l Buffer Pointer to where data is copied from Reflective Memory (O).
l Length Number of bytes to transfer (I). Valid values are 0 to ([RFM Size] -rfmOffset ).
3.3.4 RFM2gWrite()
If the RFM2g interface supports the bus master DMA feature and the I/O request meets certain constraints, the RFM2g device driver will use DMA to perform the I/O transfer.
Syntax
STDRFM2GCALL RFM2gWrite( RFM2GHANDLE rh,RFM2G_UINT32 Offset,void *Buffer, RFM2G_UINT32 Length );
Parameters
l rh Handle to open RFM2g device (I).
l Offset Width-aligned offset in Reflective Memory at which to begin the write (I).Valid offset values are 0x0 to 0x3FFFFFF for 64MB cards, 0x0 to 0x7FFFFFF for 128MB cards and 0x0 to 0x0FFFFFFF for 256MB cards.
l Buffer Pointer to where data is copied to Reflective Memory (I).
l Length Number of bytes units to write (I). Valid values are 0 to ([RFM Size] -rfmOffset).
3.3.5 RFM2gEnableEvent()
RFM2g network interrupts are not enabled by default. The RFM2gEnableEvent() function enables an event so an interrupt can be generated on the receiving node. User applications are notified of received events by using the RFM2gWaitForEvent() or RFM2gEnableEventCallback() function.
Syntax
STDRFM2GCALL RFM2gEnableEvent( RFM2GHANDLE rh, RFM2GEVENTTYPE EventType );
Parameters
l rh Handle to open RFM2g device (I).
l EventType Specifies which interrupt event to enable (I).Interrupts correlate to the following event IDs:
Event Interrupt
Reset Interrupt
Network Interrupt 1
Network Interrupt 2
Network Interrupt 3
Network Interrupt 4 (Init Interrupt)
Bad Data Interrupt
RX FIFO Full Interrupt
Rogue Packet Detected and Removed Interrupt
RX FIFO Almost Full Interrupt
Sync Loss Occurred Interrupt
Memory Write Inhibited
Memory Parity Error
Event ID
RFM2GEVENT_RESET
RFM2GEVENT_INTR1
RFM2GEVENT_INTR2
RFM2GEVENT_INTR3
RFM2GEVENT_INTR4
RFM2GEVENT_BAD_DATA
RFM2GEVENT_RXFIFO_FULL
RFM2GEVENT_ROGUE_PKT
RFM2GEVENT_RXFIFO_AFULL
RFM2GEVENT_SYNC_LOSS
RFM2GEVENT_MEM_WRITE_INHIBITED
RFM2GEVENT_LOCAL_MEM_PARITY_ERR
3.3.6 RFM2gClearEvent()
The RFM2gClearEvent() function clears any or all pending interrupt events for a specified event.
Syntax
STDRFM2GCALL RFM2gClearEvent( RFM2GHANDLE rh,RFM2GEVENTTYPE EventType );
Parameters
l rh Handle to open RFM2g device (I).
l EventType The event FIFO to clear (I).Interrupts correlate to the following event IDs:
Interrupt
Reset Interrupt
Network Interrupt 1
Network Interrupt 2
Net
