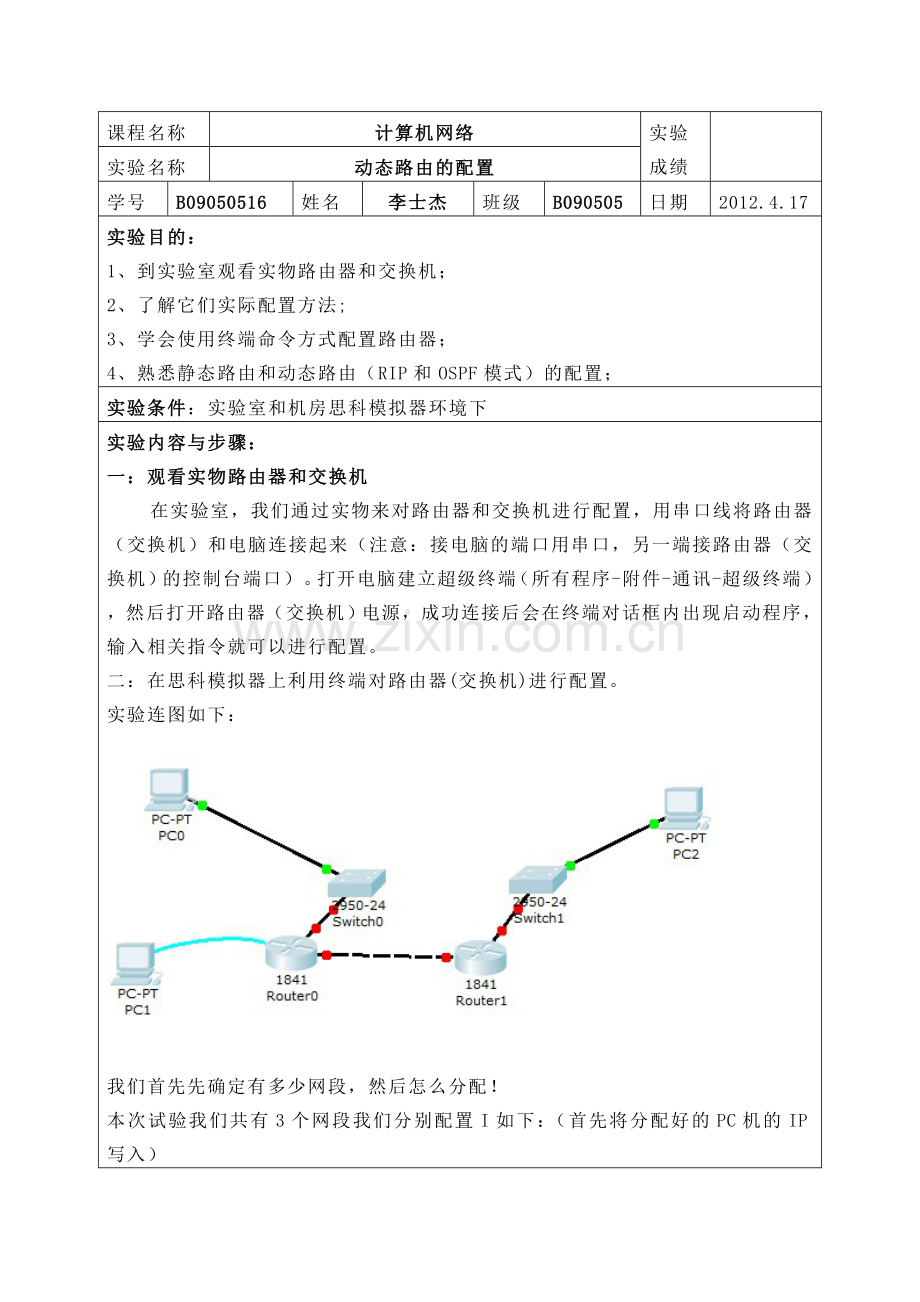

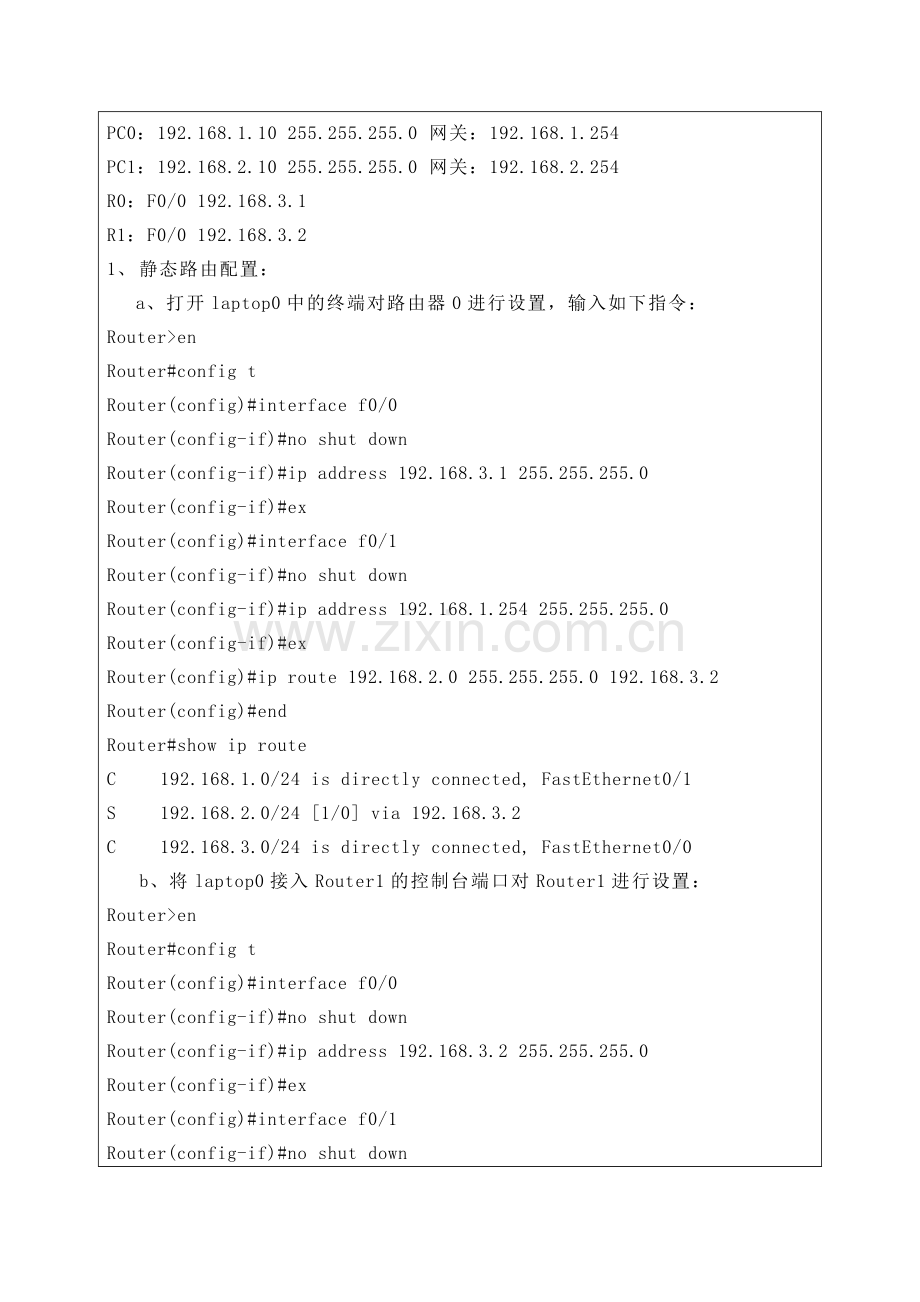

课程名称 计算机网络 实验 成绩 实验名称 动态路由的配置 学号 B09050516 姓名 李士杰 班级 B090505 日期 2012.4.17 实验目的: 1、到实验室观看实物路由器和交换机; 2、了解它们实际配置方法; 3、学会使用终端命令方式配置路由器; 4、熟悉静态路由和动态路由(RIP和OSPF模式)的配置; 实验条件:实验室和机房思科模拟器环境下 实验内容与步骤: 一:观看实物路由器和交换机 在实验室,我们通过实物来对路由器和交换机进行配置,用串口线将路由器(交换机)和电脑连接起来(注意:接电脑的端口用串口,另一端接路由器(交换机)的控制台端口)。打开电脑建立超级终端(所有程序-附件-通讯-超级终端) ,然后打开路由器(交换机)电源,成功连接后会在终端对话框内出现启动程序,输入相关指令就可以进行配置。 二:在思科模拟器上利用终端对路由器(交换机)进行配置。 实验连图如下: 我们首先先确定有多少网段,然后怎么分配! 本次试验我们共有3个网段我们分别配置I如下:(首先将分配好的PC机的IP写入) PC0:192.168.1.10 255.255.255.0 网关:192.168.1.254 PC1:192.168.2.10 255.255.255.0 网关:192.168.2.254 R0:F0/0 192.168.3.1 R1:F0/0 192.168.3.2 1、 静态路由配置: a、打开laptop0中的终端对路由器0进行设置,输入如下指令: Router>en Router#config t Router(config)#interface f0/0 Router(config-if)#no shut down Router(config-if)#ip address 192.168.3.1 255.255.255.0 Router(config-if)#ex Router(config)#interface f0/1 Router(config-if)#no shut down Router(config-if)#ip address 192.168.1.254 255.255.255.0 Router(config-if)#ex Router(config)#ip route 192.168.2.0 255.255.255.0 192.168.3.2 Router(config)#end Router#show ip route C 192.168.1.0/24 is directly connected, FastEthernet0/1 S 192.168.2.0/24 [1/0] via 192.168.3.2 C 192.168.3.0/24 is directly connected, FastEthernet0/0 b、将laptop0接入Router1的控制台端口对Router1进行设置: Router>en Router#config t Router(config)#interface f0/0 Router(config-if)#no shut down Router(config-if)#ip address 192.168.3.2 255.255.255.0 Router(config-if)#ex Router(config)#interface f0/1 Router(config-if)#no shut down Router(config-if)#ip address 192.168.2.254 255.255.255.0 Router(config-if)#ex Router(config)#ip route 192.168.1.0 255.255.255.0 192.168.3.1 Router(config)#end Router#show ip route S 192.168.1.0/24 [1/0] via 192.168.3.1 C 192.168.2.0/24 is directly connected, FastEthernet0/1 C 192.168.3.0/24 is directly connected, FastEthernet0/0 2、 动态路由配置:接口配置和静态路由接口配置一样,我们只利用终端进入对其进行修改: 对 Router0: Router# Router#configure terminal Router(config)#router rip Router(config-router)#network 192.168.1.0 Router(config-router)#network 192.168.3.0 Router(config-router)#end Router#show ip route C 192.168.1.0/24 is directly connected, FastEthernet0/1 R 192.168.2.0/24 [120/1] via 192.168.3.2, 00:00:07, FastEthernet0/0 C 192.168.3.0/24 is directly connected, FastEthernet0/0 对 Router0: Router# Router#configure terminal Router(config)#router rip Router(config-router)#network 192.168.2.0 Router(config-router)#network 192.168.3.0 Router(config-router)#end Router#show ip route R 192.168.1.0/24 [120/1] via 192.168.3.1, 00:00:01, FastEthernet0/0 C 192.168.2.0/24 is directly connected, FastEthernet0/1 C 192.168.3.0/24 is directly connected, FastEthernet0/0 3、 用OSPF模式进行配置: 4、 清除静态路由和RIP设置,端口设置不变! 5、 然后在终端对Router0进行如下操作: 6、 Router# 7、 Router#config t 8、 Router(config)#router ospf 1 9、 Router(config-router)# 10、 Router(config-router)#network 182.168.1.0 0.0.0.255 area 0 11、 Router(config-router)#network 182.168.3.0 0.0.0.255 area 0 12、 Router#show ip route 13、 C 192.168.1.0/24 is directly connected, FastEthernet0/1 14、 O 192.168.2.0/24 [110/2] via 192.168.3.2, 00:00:18, FastEthernet0/0 15、 C 192.168.3.0/24 is directly connected, FastEthernet0/0 16、 然后在终端对Router1进行如下操作: 17、 Router# 18、 Router#config t 19、 Router(config)#router ospf 1 20、 Router(config-router)# 21、 Router(config-router)#network 182.168.2.0 0.0.0.255 area 0 22、 Router(config-router)#network 182.168.3.0 0.0.0.255 area 0 23、 Router#show ip route 24、 O 192.168.1.0/24 [110/2] via 192.168.3.1, 00:00:02, FastEthernet0/0 25、 C 192.168.2.0/24 is directly connected, FastEthernet0/1 C 192.168.3.0/24 is directly connected, FastEthernet0/0 实验总结(结论或问题分析): 在老师的帮助和指导下,首先在实验室观看实物路由器和交换机。对交换机和路由器有了真是的接触和了解,并对其配置的方法有了初步的认识。通过老师的指导和自己的动手操作,在本次试验中了解其在不同模式下用运用不同命令的实际配置方法;同时学会使用终端命令方式配置路由器;在其基础上用通过自己的努力进一步熟悉了静态路由和动态路由(RIP和OSPF模式)的配置。
