ProE折弯表(钣金最强的折弯表)——通用版.doc

资源描述

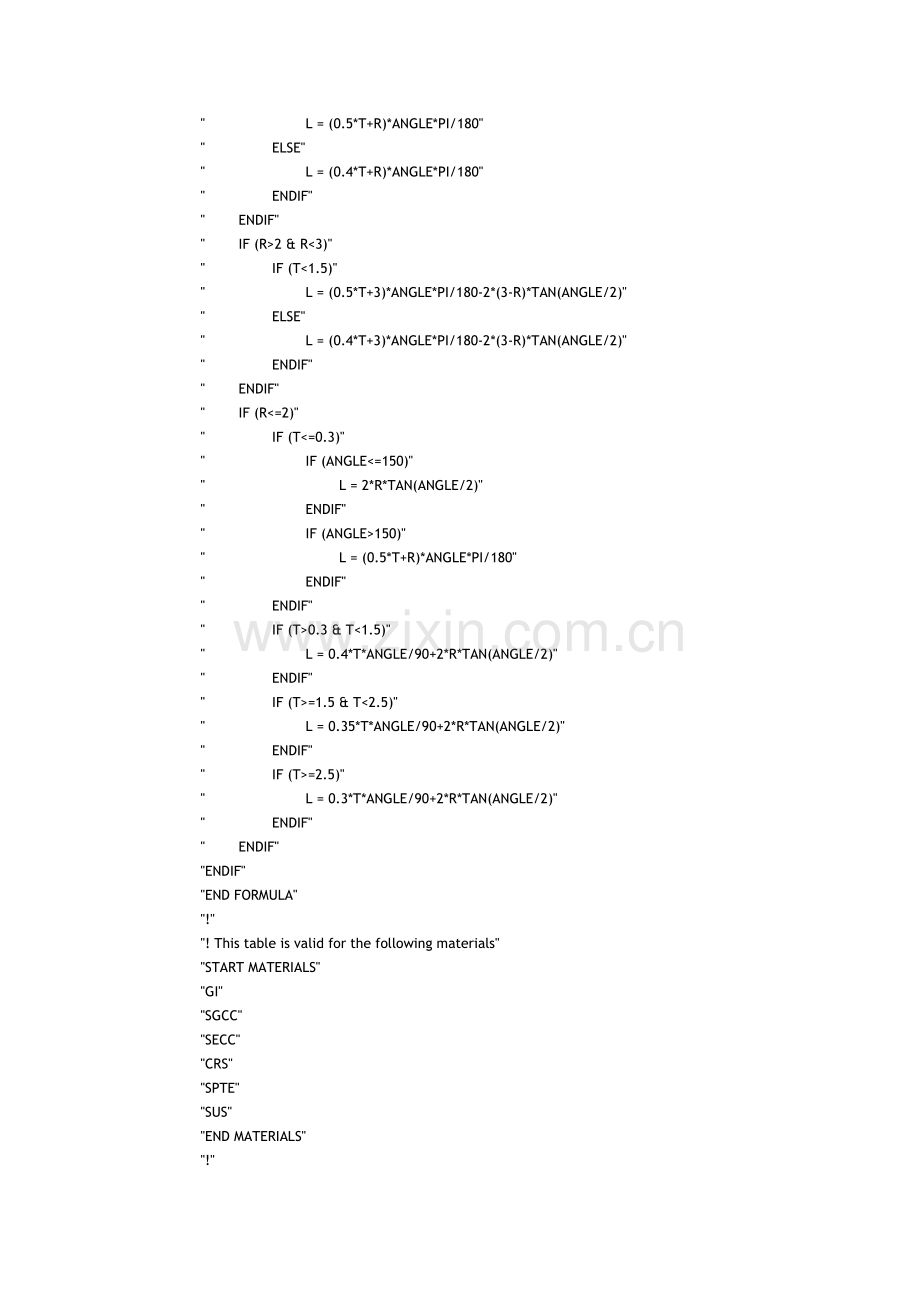

ProE折弯表(钣金最强的折弯表)——通用版本 !# Pro/TABLE !# ! [] S 92; ! [] W 8; ![A] W 10; ![B] W 10; "!" "! 90-Degree Bends - Required Straight Length of Stock (L)" "!" "! For Values of T and R outside the table range use the following," "!" "FORMULA" "IF (R>=0.25 & ANGLE==180)" " IF (T<1.5)" " L = (0.5*T+R)*ANGLE*PI/180" " ELSE" " L = (0.4*T+R)*ANGLE*PI/180" " ENDIF" "ENDIF" "IF (R<0.25 & ANGLE==180)" " IF (T<=0.3)" " L = 2*(R+T)" " ENDIF" " IF (T>0.3 & T<1.5)" " L = 2*R+1.6*T" " ENDIF" " IF (T>=1.5 & T<2.5)" " L = 2*R+1.65*T" " ENDIF" " IF (T>=2.5)" " L = 2*R+1.7*T" " ENDIF" "ENDIF" "IF (ANGLE<180)" " IF (R>3)" " IF (T<1.5)" " L = (0.5*T+R)*ANGLE*PI/180" " ELSE" " L = (0.4*T+R)*ANGLE*PI/180" " ENDIF" " ENDIF" " IF (R>2 & R<3)" " IF (T<1.5)" " L = (0.5*T+3)*ANGLE*PI/180-2*(3-R)*TAN(ANGLE/2)" " ELSE" " L = (0.4*T+3)*ANGLE*PI/180-2*(3-R)*TAN(ANGLE/2)" " ENDIF" " ENDIF" " IF (R<=2)" " IF (T<=0.3)" " IF (ANGLE<=150)" " L = 2*R*TAN(ANGLE/2)" " ENDIF" " IF (ANGLE>150)" " L = (0.5*T+R)*ANGLE*PI/180" " ENDIF" " ENDIF" " IF (T>0.3 & T<1.5)" " L = 0.4*T*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF (T>=1.5 & T<2.5)" " L = 0.35*T*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF (T>=2.5)" " L = 0.3*T*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " ENDIF" "ENDIF" "END FORMULA" "!" "! This table is valid for the following materials" "START MATERIALS" "GI" "SGCC" "SECC" "CRS" "SPTE" "SUS" "END MATERIALS" "!" "TABLE" "! INSIDE RADIUS (R)" " " 0 "!THICKNESS (T)" 100 0 +++++++++++++ !# Pro/TABLE !# ![] W 8; ![] S 92; ![A] W 10; ![B] W 10; "!" "! 90度折弯 - 需要原料的直线长度(L)" "!" "! 对于表范围以外的R和T，使用下列值，" "!" "FORMULA" " IF(R<=3 & ANGLE<=105)" " IF(T<=0.5)" " L=(2*T-0.8)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>0.5 & T<=0.9)" " L=(2*T-1.4)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>0.9 & T<=1.1)" " L=(2*T-1.7)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>1.1 & T<=1.3)" " L=(2*T-2.1)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>1.4 & T<=1.8)" " L=(2*T-2.5)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>1.8 & T<=2.3)" " L=(2*T-3.3)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>2.3 & T<=2.8)" " L=(2*T-4.1)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>2.8 & T<=3.3)" " L=(2*T-5.0)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>3.3 & T<=3.8)" " L=(2*T-5.8)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>3.8 & T<=4.3)" " L=(2*T-7.0)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>4.3 & T<=5.3)" " L=(2*T-8.0)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>5.3)" " L=(2*T-10)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " ELSE" " IF(R<=0.5 & ANGLE==180)" " L=1.575*T+2*R" " ELSE" " IF(T<1.5)" " L=(0.5*T+R)*ANGLE*PI/180" " ELSE" " L=(0.4*T+R)*ANGLE*PI/180" " ENDIF" " ENDIF" " ENDIF" "END FORMULA" "!" "! 该表可用于以下材料" "START MATERIALS" "END MATERIALS" "!" "TABLE" "! 内侧半径(R)" " " 0.000000 "!厚度 (T)" 100.000000 0.000000 +++++++++++++++++++++++++++++++++++ !# Pro/TABLE !# ![] W 8; ![] S 92; ![A] W 10; ![B] W 10; "!" "! 90度折弯 - 需要原料的直线长度(L)" "!" "! 对于表范围以外的R和T，使用下列值，" "!" "FORMULA" " IF(R<=3 & ANGLE<=105)" " IF(T<=0.5)" " L=(2*T-0.8)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>0.5 & T<=0.9)" " L=(2*T-1.4)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>0.9 & T<=1.1)" " L=(2*T-1.7)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>1.1 & T<=1.3)" " L=(2*T-2.1)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>1.4 & T<=1.8)" " L=(2*T-2.5)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>1.8 & T<=2.3)" " L=(2*T-3.3)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>2.3 & T<=2.8)" " L=(2*T-4.1)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>2.8 & T<=3.3)" " L=(2*T-5.0)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>3.3 & T<=3.8)" " L=(2*T-5.8)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>3.8 & T<=4.3)" " L=(2*T-7.0)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>4.3 & T<=5.3)" " L=(2*T-8.0)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>5.3)" " L=(2*T-10)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " ELSE" " IF(R<=0.5 & ANGLE==180)" " L=1.575*T+2*R" " ELSE" " IF(T<1.5)" " L=(0.5*T+R)*ANGLE*PI/180" " ELSE" " L=(0.4*T+R)*ANGLE*PI/180" " ENDIF" " ENDIF" " ENDIF" "END FORMULA" "!" "! 该表可用于以下材料" "START MATERIALS" "END MATERIALS" "!" "TABLE" "! 内侧半径(R)" " " 0.000000 "!厚度 (T)" 100.000000 0.000000 +++++++++++++++++++++++++++ !# Pro/TABLE !# ![] W 8; ![] S 92; ![A] W 10; ![B] W 10; "!" "! 90度折弯 - 需要原料的直线长度(L)" "!" "! 对于表范围以外的R和T，使用下列值，" "!" "FORMULA" " IF(R<=3 & ANGLE<=105)" " IF(T<=0.3)" " L=2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>0.3 & T<=0.9)" " L=(2*T-1.4)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>0.9 & T<=1.1)" " L=(2*T-1.7)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>1.1 & T<=1.3)" " L=(2*T-2.1)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>1.4 & T<=1.8)" " L=(2*T-2.5)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>1.8 & T<=2.3)" " L=(2*T-3.3)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>2.3 & T<=2.8)" " L=(2*T-4.1)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>2.8 & T<=3.3)" " L=(2*T-5.0)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>3.3 & T<=3.8)" " L=(2*T-6.0)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " IF(T>3.8)" " L=(2*T-7.0)*ANGLE/90+2*R*TAN(ANGLE/2)" " ENDIF" " ELSE" " IF(R<=0.5 & ANGLE==180)" " L=1.575*T+2*R" " ELSE" " IF(T<1.5)" " L=(0.5*T+R)*ANGLE*PI/180" " ELSE" " L=(0.4*T+R)*ANGLE*PI/180" " ENDIF" " ENDIF" " ENDIF" "END FORMULA" "!" "! 该表可用于以下材料" "START MATERIALS" "END MATERIALS" "!" "TABLE" "! 内侧半径(R)" " " 0.000000 "!厚度 (T)" 100.000000 0.000000 +++++++++++++++++++++ 大家看这些折弯表，一看就是精华吧．斑竹请加分哦！靠自己编出来的！才是最好的！我这个好的公司用的哦！我们公司１５位工艺的都用这个，但是不适合小折（Ｚ折又叫段差）设计的时候注意Ｒ角！第一份倒０角　　展开才准　　　具体展开的补偿　　请参照富士康或霍尼卡姆公司的　展开计算标准　　三阶文件
