天正容光达

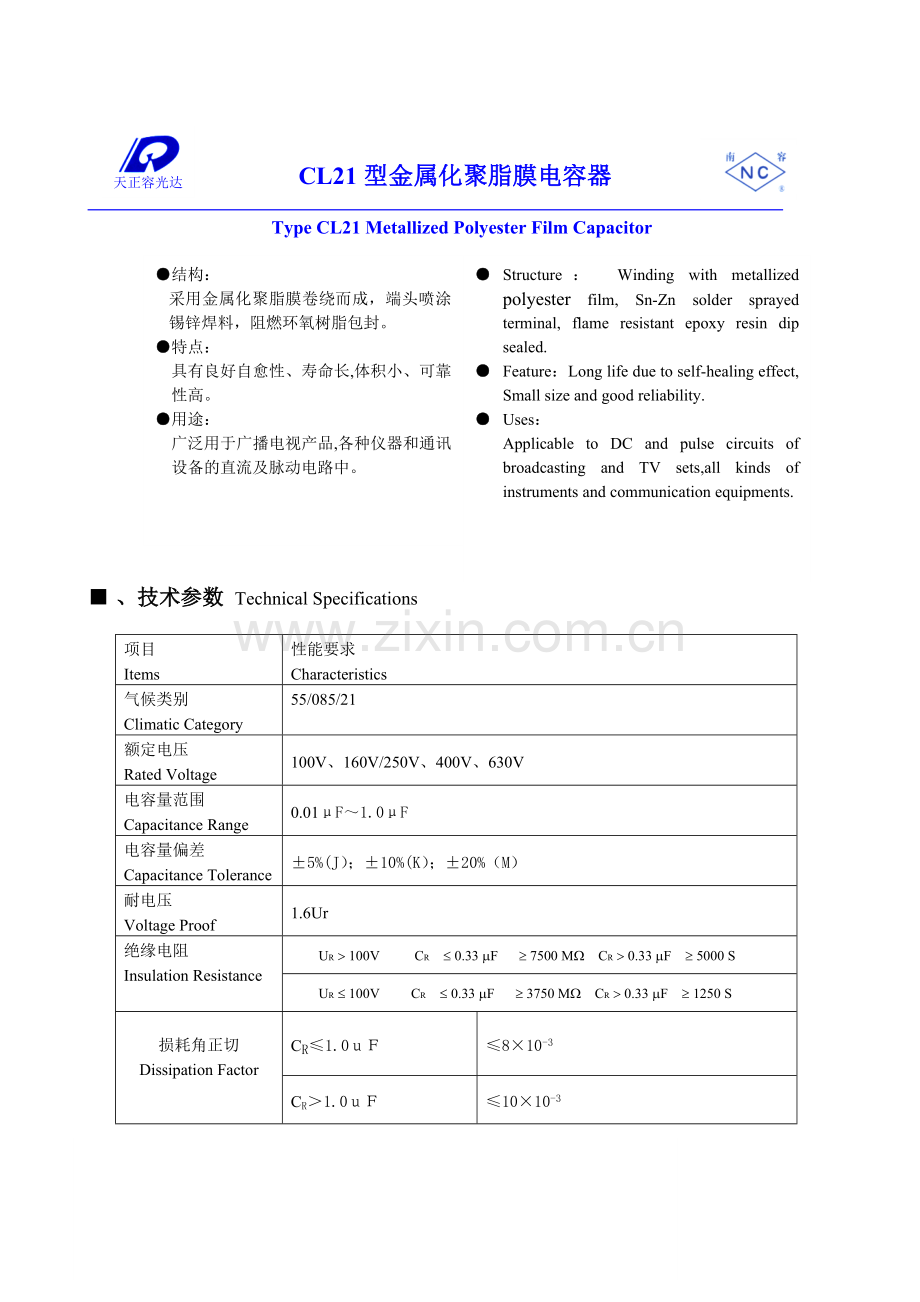

CL21型金属化聚脂膜电容器
Type CL21 Metallized Polyester Film Capacitor
●结构：
采用金属化聚脂膜卷绕而成，端头喷涂锡锌焊料，阻燃环氧树脂包封。
●特点：
具有良好自愈性、寿命长,体积小、可靠性高。
●用途：
广泛用于广播电视产品,各种仪器和通讯设备的直流及脉动电路中。

● Structure： Winding with metallized polyester film, Sn-Zn solder sprayed terminal, flame resistant epoxy resin dip sealed.
● Feature：Long life due to self-healing effect, Small size and good reliability.
● Uses：
Applicable to DC and pulse circuits of broadcasting and TV sets,all kinds of instruments and communication equipments.

■ 、技术参数 Technical Specifications

项目
Items
性能要求
Characteristics
气候类别
Climatic Category
55/085/21
额定电压
Rated Voltage
100V、160V/250V、400V、630V
电容量范围
Capacitance Range
0.01μF～1.0μF
电容量偏差
Capacitance Tolerance
±5%(J）；±10%(K）；±20%（M）
耐电压
Voltage Proof
1.6Ur
绝缘电阻
Insulation Resistance
UR > 100V CR £ 0.33 mF ³ 7500 MW CR > 0.33 mF ³ 5000 S
UR £ 100V 　 CR £ 0.33 mF ³ 3750 MW CR > 0.33 mF ³ 1250 S
损耗角正切
Dissipation Factor

CR≤1.0ｕＦ
≤8×10-3
CR＞1.0ｕＦ
≤10×10-3

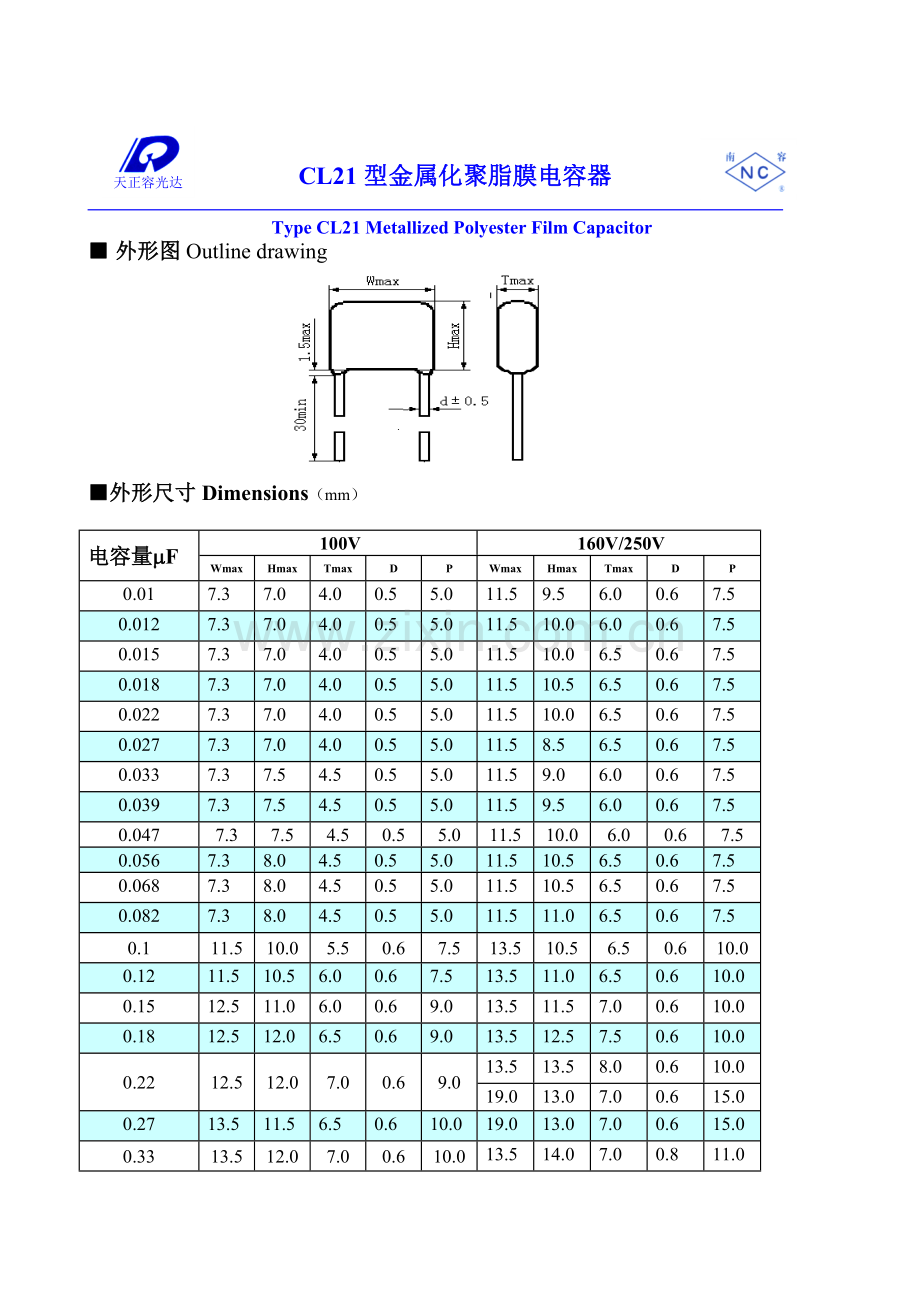

■ 外形图Outline drawing

■外形尺寸Dimensions（mm）

电容量mF
100V
160V/250V
Wmax
Hmax
Tmax
D
P
Wmax
Hmax
Tmax
D
P
0.01
7.3
7.0
4.0
0.5
5.0
11.5
9.5
6.0
0.6
7.5
0.012
7.3
7.0
4.0
0.5
5.0
11.5
10.0
6.0
0.6
7.5
0.015
7.3
7.0
4.0
0.5
5.0
11.5
10.0
6.5
0.6
7.5
0.018
7.3
7.0
4.0
0.5
5.0
11.5
10.5
6.5
0.6
7.5
0.022
7.3
7.0
4.0
0.5
5.0
11.5
10.0
6.5
0.6
7.5
0.027
7.3
7.0
4.0
0.5
5.0
11.5
8.5
6.5
0.6
7.5
0.033
7.3
7.5
4.5
0.5
5.0
11.5
9.0
6.0
0.6
7.5
0.039
7.3
7.5
4.5
0.5
5.0
11.5
9.5
6.0
0.6
7.5
0.047
7.3
7.5
4.5
0.5
5.0
11.5
10.0
6.0
0.6
7.5
0.056
7.3
8.0
4.5
0.5
5.0
11.5
10.5
6.5
0.6
7.5
0.068
7.3
8.0
4.5
0.5
5.0
11.5
10.5
6.5
0.6
7.5
0.082
7.3
8.0
4.5
0.5
5.0
11.5
11.0
6.5
0.6
7.5
0.1
11.5
10.0
5.5
0.6
7.5
13.5
10.5
6.5
0.6
10.0
0.12
11.5
10.5
6.0
0.6
7.5
13.5
11.0
6.5
0.6
10.0
0.15
12.5
11.0
6.0
0.6
9.0
13.5
11.5
7.0
0.6
10.0
0.18
12.5
12.0
6.5
0.6
9.0
13.5
12.5
7.5
0.6
10.0
0.22
12.5
12.0
7.0
0.6
9.0
13.5
13.5
8.0
0.6
10.0
19.0
13.0
7.0
0.6
15.0
0.27
13.5
11.5
6.5
0.6
10.0
19.0
13.0
7.0
0.6
15.0
0.33
13.5
12.0
7.0
0.6
10.0
13.5
14.0
7.0
0.8
11.0
19.0
13.5
8.0
0.6
15.0
0.39
13.5
12.5
7.5
0.6
10.0
19.0
14.0
8.5
0.6
15.0
0.47
13.5
13.5
8.0
0.6
10.0
19.0
14.5
9.5
0.8
15.0
0.56
13.5
14.0
8.5
0.6
10.0
19.0
15.0
10.0
0.8
15.0
0.68
19.0
13.5
8.0
0.6
15.0
19.0
15.5
10.5
0.8
15.0
0.82
19.0
14.0
8.5
0.6
15.0
19.0
16.5
11.0
0.8
15.0
1.0
19.0
15.0
9.0
0.6
15.0
24.5
17.0
10.0
0.8
20.0
1.2
19.0
15.5
10.0
0.8
15.0
24.5
18.0
10.5
0.8
20.0
1.5
19.0
16.5
10.5
0.8
15.0
24.5
19.0
11.5
0.8
20.0
1.8
19.0
17.5
11.5
0.8
15.0
24.5
20.0
12.5
0.8
20.0
2.2
25.0
18.5
11.0
0.8
20.0
24.5
22.0
13.5
0.8
20.0
2.7
25.0
20.0
12.0
0.8
20.0
24.5
23.5
15.0
0.8
20.0
3.3
25.0
21.0
14.0
0.8
20.0
24.5
24.0
15.5
0.8
20.0
3.9
25.0
21.5
14.5
0.8
20.0
30.0
23.5
14.5
0.8
25.0
4.7
30.0
21.0
12.5
0.8
25.0
30.0
25.0
15.5
0.8
25.0
5.6
30.0
22.0
13.5
0.8
25.0
30.0
26.5
17.0
0.8
25.0
6.8
36.0
23.5
14.5
0.8
30.0
36.0
28.0
18.5
0.8
30.0
8.2
36.0
25.5
16.0
0.8
30.0
36.0
30.0
20.5
0.8
30.0
10.0
36.0
26.5
17.0
0.8
30.0
36.0
32.0
22.5
0.8
30.0

电容量mF
400V
630V
Wmax
Hmax
Tmax
D
P
Wmax
Hmax
Tmax
D
P
0.01
11.5
9.5
5.5
0.6
7.5
11.5
10.0
6.0
0.6
7.5
0.012
11.5
9.5
5.5
0.6
7.5
11.5
10.0
6.5
0.6
7.5
0.015
11.5
10.0
5.5
0.6
7.5
11.5
10.5
7.0
0.6
7.5
0.018
11.5
10.0
5.5
0.6
7.5
11.5
11.0
7.5
0.6
7.5
0.022
11.5
10.0
6.0
0.6
7.5
11.5
11.5
8.0
0.6
7.5
0.027
11.5
9.0
6.5
0.6
7.5
13.5
12.0
8.0
0.6
10.0
0.033
11.5
9.5
7.0
0.6
7.5
13.5
12.5
8.5
0.6
10.0
0.039
11.5
9.5
7.5
0.6
7.5
13.5
12.5
9.0
0.6
10.0
0.047
11.5
9.5
7.0
0.6
7.5
13.5
13.0
9.5
0.6
10.0
13.5
9.5
7.5
0.6
10.0
0.056
11.5
10.5
8.0
0.6
7.5
13.5
13.5
9.5
0.6
10.0
0.068
13.5
11.5
7.0
0.6
10.0
19.0
13.0
9.0
0.6
15.0
0.082
13.5
11.5
7.5
0.6
10.0
19.0
13.5
9.5
0.6
15.0
0.1
13.5
12.0
7.5
0.6
10.0
19.0
14.0
9.5
0.8
15.0
13.5
11.5
7.5
0.6
10.0
0.12
13.5
12.0
7.5
0.6
10.0
19.0
14.5
10.0
0.8
15.0
0.15
19.0
13.5
8.5
0.6
15.0
19.0
16.0
10.0
0.8
15.0
0.18
19.0
14.0
8.5
0.6
15.0
19.0
16.5
10.0
0.8
15.0
0.22
13.5
13.5
9.0
0.6
10.0
19.0
17.0
10.0
0.8
15.0
19.0
15.0
9.5
0.6
15.0
0.27
19.0
15.5
9.5
0.6
15.0
25.0
17.5
10.5
0.8
20.0
0.33
19.0
16.0
9.5
0.8
15.0
25.0
18.0
11.0
0.8
20.0
0.39
19.0
16.5
10.0
0.8
15.0
25.0
18.0
11.5
0.8
20.0
0.47
19.0
16.5
10.5
0.8
15.0
25.0
19.0
11.5
0.8
20.0
25.0
15.5
8.0
0.8
20.0
0.56
25.0
19.5
12.0
0.8
20.0
25.0
20.0
12.0
0.8
20.0
0.68
25.0
20.0
12.5
0.8
20.0
25.0
22.0
13.0
0.8
20.0
0.82
25.0
21.5
13.5
0.8
20.0
25.0
24.0
15.0
0.8
20.0
1.0
25.0
22.5
14.5
0.8
20.0
30.0
25.5
16.0
0.8
25.0
1.2
25.0
23.0
15.0
0.8
20.0
30.0
27.0
17.5
0.8
25.0
1.5
30.0
23.0
14.0
0.8
25.0
30.0
28.0
18.5
0.8
25.0
1.8
30.0
24.0
15.5
0.8
25.0
30.0
28.5
19.5
0.8
25.0
2.2
30.0
24.5
16.0
0.8
25.0
36.0
30.0
22.0
0.8
30.0
2.7
30.0
26.0
17.5
0.8
25.0

3.3
36.0
27.5
19.5
0.8
30.0

3.9
36.0
29.5
21.5
0.8
30.0

4.7
36.0
31.0
23.0
0.8
30.0

备注：特殊需要可根据客户要求另行设计
