钢格栅板理论重量.doc

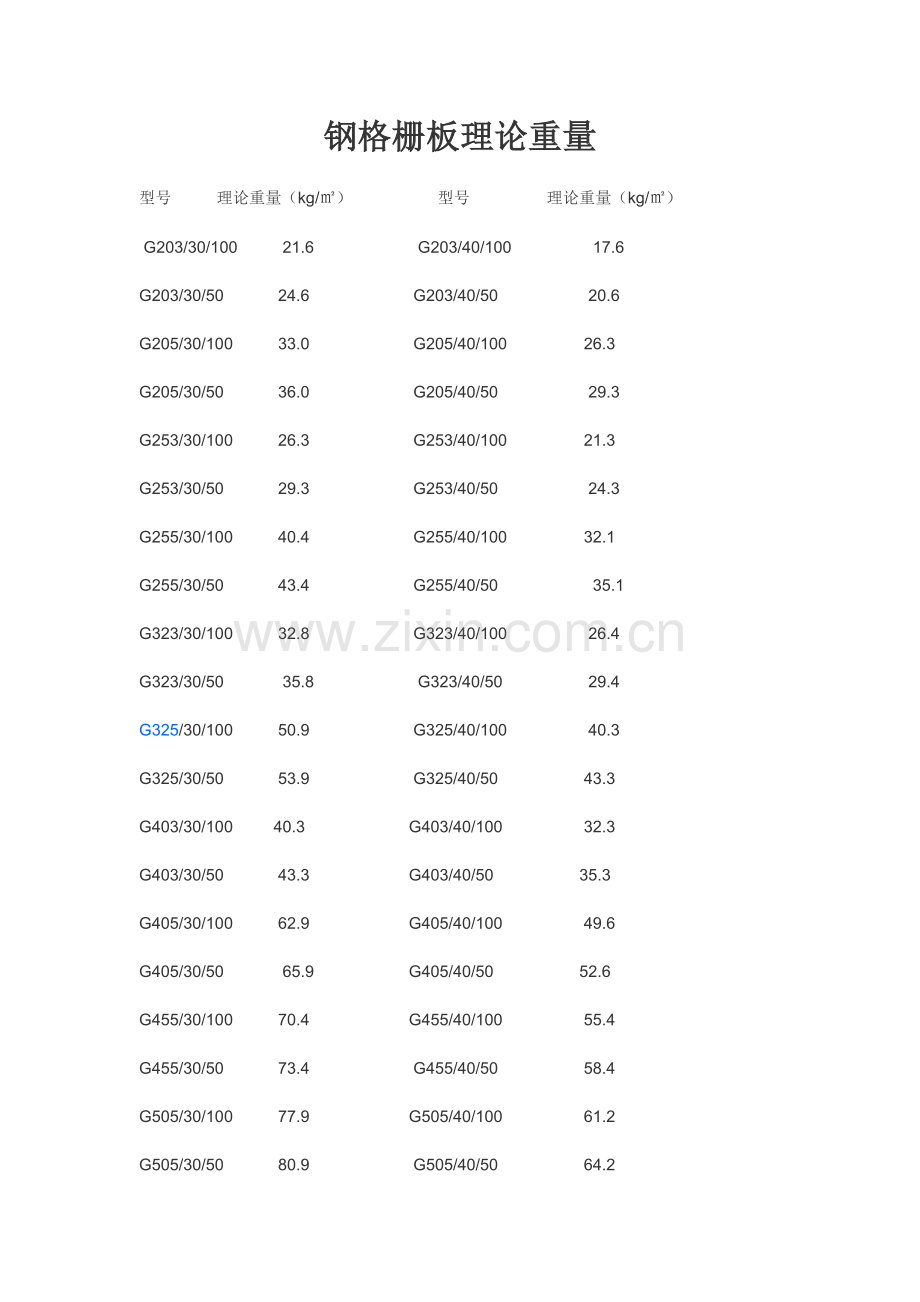

钢格栅板理论重量
型号          理论重量（kg/㎡）                   型号                 理论重量（kg/㎡）
 G203/30/100          21.6                       G203/40/100                  17.6
G203/30/50            24.6                       G203/40/50                    20.6
G205/30/100          33.0                       G205/40/100                 26.3
G205/30/50            36.0                       G205/40/50                    29.3
G253/30/100          26.3                       G253/40/100                 21.3
G253/30/50            29.3                       G253/40/50                    24.3
G255/30/100          40.4                       G255/40/100                 32.1
G255/30/50            43.4                       G255/40/50                     35.1
G323/30/100          32.8                       G323/40/100                  26.4
G323/30/50             35.8                       G323/40/50                   29.4
G325/30/100          50.9                       G325/40/100                  40.3
G325/30/50            53.9                       G325/40/50                   43.3
G403/30/100         40.3                       G403/40/100                  32.3
G403/30/50            43.3                      G403/40/50                   35.3
G405/30/100          62.9                      G405/40/100                  49.6
G405/30/50             65.9                     G405/40/50                   52.6
G455/30/100          70.4                      G455/40/100                  55.4
G455/30/50            73.4                       G455/40/50                   58.4
G505/30/100          77.9                      G505/40/100                  61.2
G505/30/50            80.9                       G505/40/50                   64.2

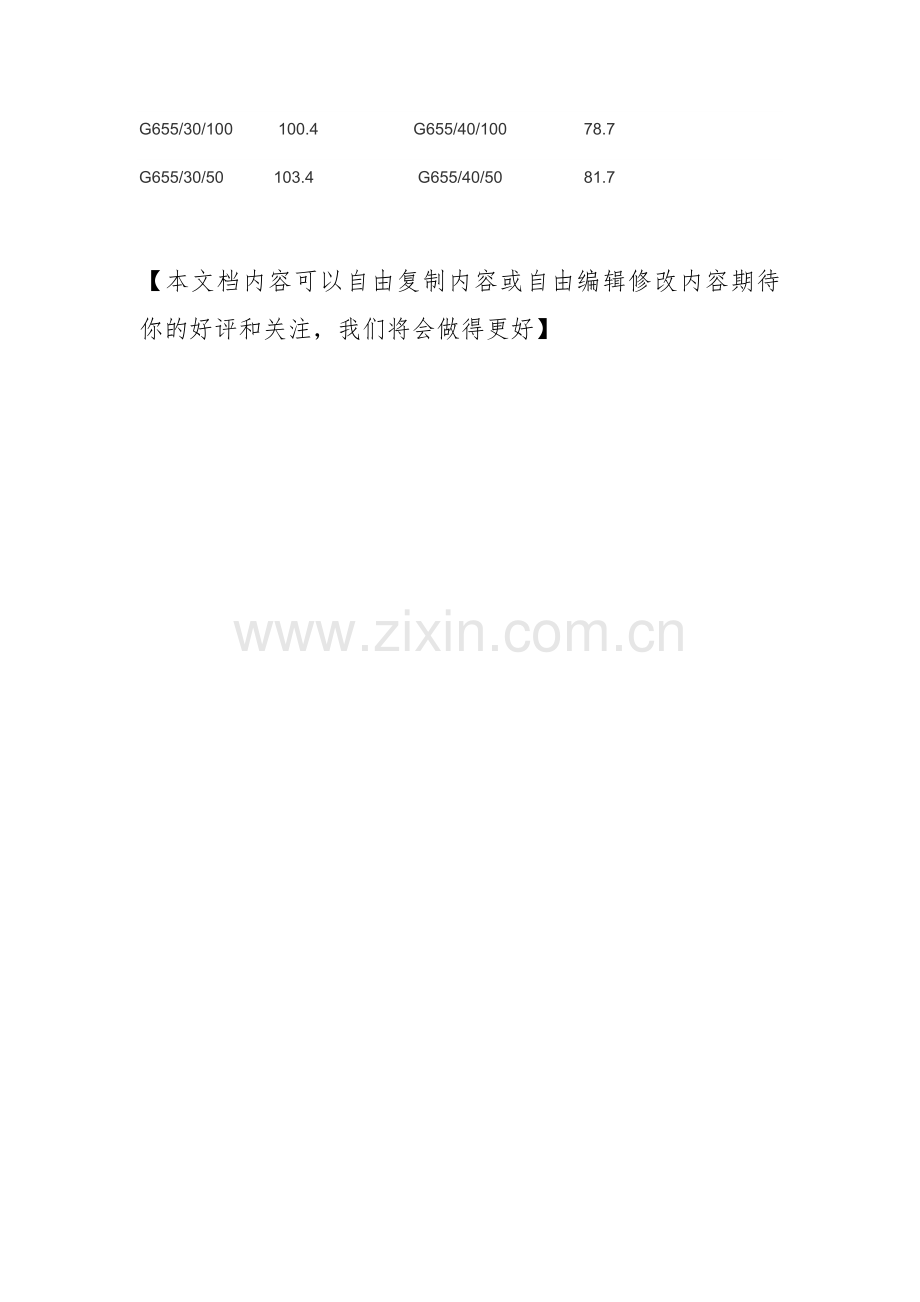

G655/30/100          100.4                     G655/40/100                 78.7
G655/30/50           103.4                       G655/40/50                  81.7
