1、AZ431-A Document number: DS36721 Rev. 5 - 2 1 of 21 September 2015 Diodes Incorporated AZ431-A ADJUSTABLE PRECISION SHUNT REGULATORS Description The AZ431-A is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on charact
2、eristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators. The output voltage of AZ431-A can be set to any value between VREF (2.5V) and the corresponding maxi

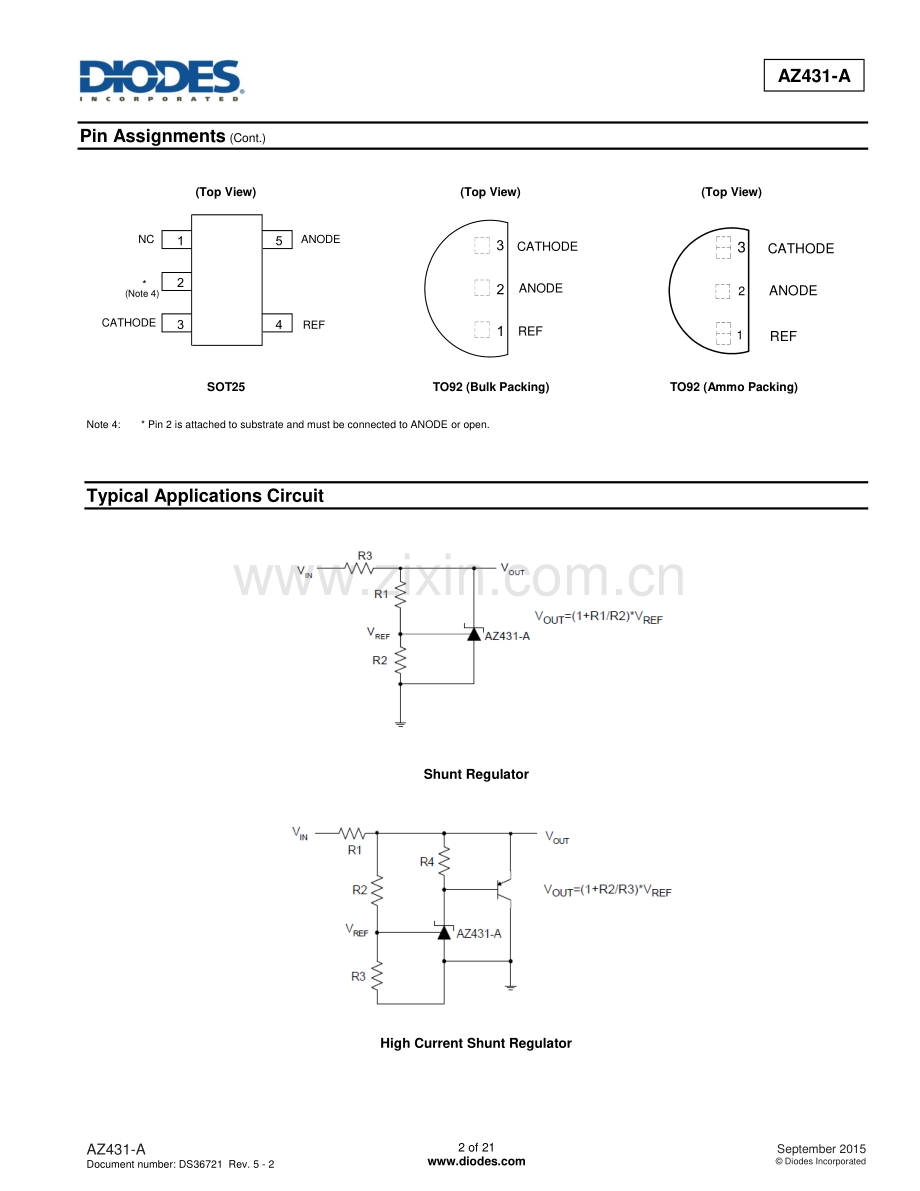

3、mum cathode voltage (36V). The AZ431-A precision reference is offered in two voltage tolerance: 0.4% and 0.8%. This IC is available in 4 packages: TO92 (bulk or ammo packing), SOT23, SOT25 and SOT89. Features Programmable Precise Output Voltage from 2.5V to 36V High Stability under Capacitive Load L
4、ow Temperature Deviation: 4.5mV Typical Low Equivalent Full-range Temperature Coefficient with 20PPM/oC Typical Sink Current Capacity from 1mA to 100mA Low Output Noise Wide Operating Range of -40 to +125oC Lead-Free Packages: TO92, SOT23, SOT25, SOT89 Totally Lead-Free; RoHS Compliant (Notes 1 neit
5、her does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies
6、whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products
7、for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintend
8、ed or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. This document is written in
9、English but may be translated into multiple languages for reference. Only the English version of this document is the final and determinative format released by Diodes Incorporated. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life suppo
10、rt devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when
11、 properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure
12、 of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory a
13、nd safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright 2015, Diodes Incorporated
