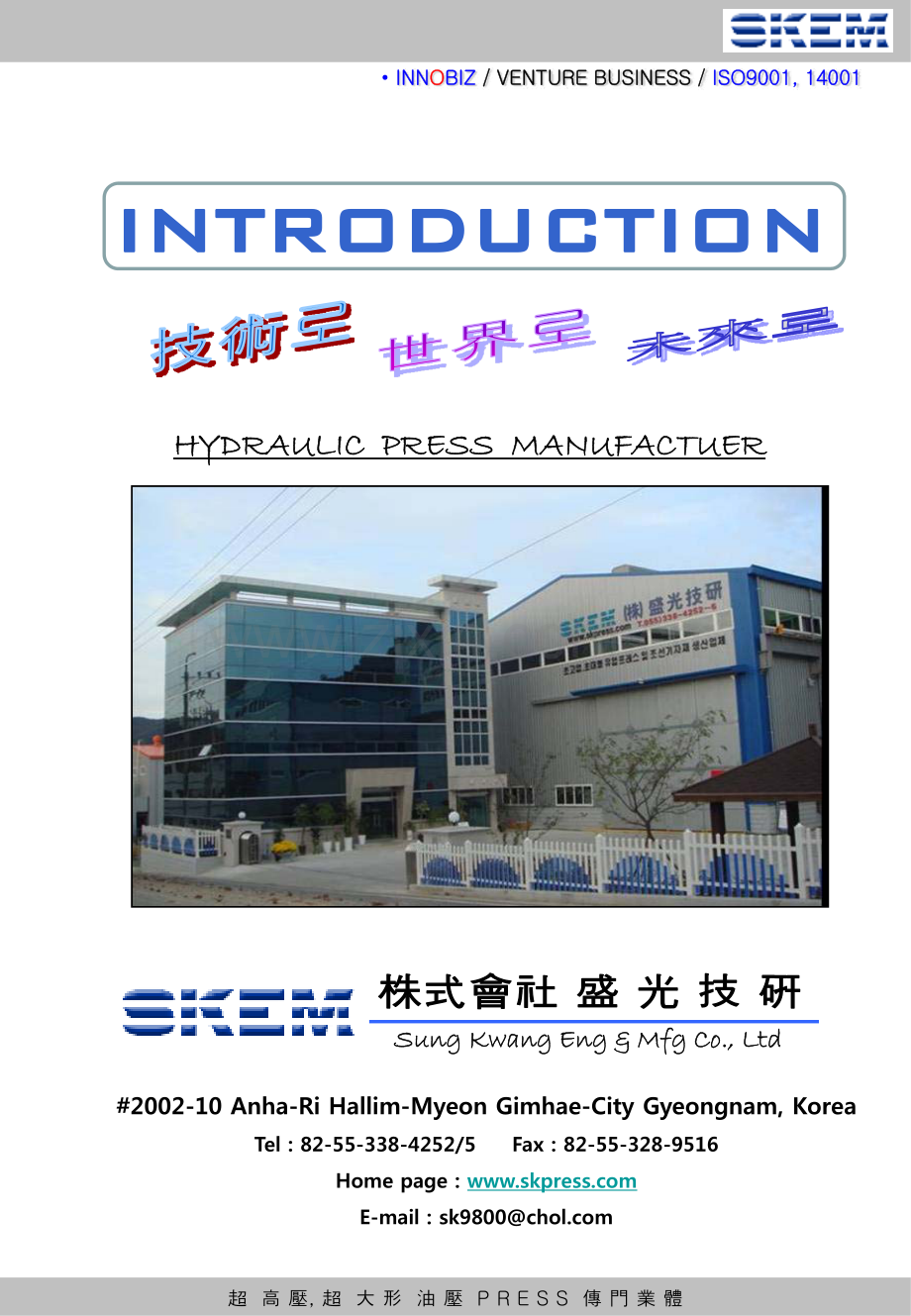

超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體#2002-10 Anha-Ri Hallim-Myeon Gimhae-City Gyeongnam,KoreaTel:82-55-338-4252/5 Fax:[phone] Home page:E-mail:sk9800INTRODUCTIONINTRODUCTIONSung Kwang Eng&Mfg Co.,LtdSung Kwang Eng&Mfg Co.,Ltd INNINNO OBIZ BIZ/VENTURE BUSINESS/VENTURE BUSINESS/ISO9001,14001ISO9001,14001HYDRAULIC PRESS MANUFACTUERHYDRAULIC PRESS MANUFACTUER超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體PRODUCTMEMO1.TUBE&PIPE FITTING PRODUCTION PRESS PARTa)TEE HYDRO FORMING PRESSb)ELBOW/BEND HOT DRAW BENCHc)REDUCER/CAP/STUB END/SIZING PRESSd)SPECIAL&LARGE DIAMETER FITTING FORMINGPRESSe)PIPE EXPENDING PRESS f)HEATING FURNACE2.ULTRA-HIGH PRESSURE HYDRAULIC PRESS PARTa)PLATE HEAT EXCHANGE EMBOSSING PRESSb)CARBON&DIAMOND COMPOUNDING PRESSc)CERAMIC&POWDER COMPACTING PRESSd)SHEET HYDRO FORMING PRESSe)INTENSIFIER UNIT3.FORGING PRESS PARTa)OPEN DIE FORGING PRESSb)FLANGE UPSETTING PRESS(HORIZONTAL FORGING)c)COLD FORGING PRESSd)MANIPULATORe)ROLL RING MILL4.SHIPBUILDING STEEL PLATE BENDING PRESS PARTa)CNC 3-ROLL BENDING PRESSb)PORTAL PRESS(RAM TRAVELLING PRESS)c)FRAME BENDERd)VERTICAL BENDERe)KNUCKLE(CORRUGATING)PRESS5.METAL WORKING PRESS PARTa)DEEP DRAWING PRESSb)STAMPING PRESSc)PRESS BRAKEd)EXTRUSION PRESSe)PIPE FORMING PRESS LINEf)CNG&OXYGEN GAS CYLINDERDRAWING LINEg)HYDRO FORMING PRESS6.AUTOMOTIVE PARTS PRODUCTIONPRESS PARTa)BRAKE PAD&LINING MOLDING PRESSb)HEAD LINING&DOOR TRIMM MOLDINGPRESSc)ENGINEERING PLASTIC MOLDING PRESSd)PIPE END FORMING MACHINEe)RUBBER MOLDING PRESS7.LAMINATION SHEET&RUBBER SHEETMOLDING PRESS PARTa)CONSTRUCTION PANEL&PLYWOODLAMINATION PRESSb)ENDLESS RUBBER SHEET MOLDING PRESSc)EVA SPONG SHEET FOAMED PRESSd)SHOES SOLE MOLDING PRESS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體We,sung kwang eng&mfg co.,Ltd.,Are a manufacturer whichproduces large,ultra-high pressure hydraulic press and specializedmachines.In particular,we are committed to creating products that meet theneeds of customers;supplying hydraulic systems to power ultra-highpressure generators at over 2000/.Our products range from auto parts,vessels,electrics,electronics,pipefitting,rubber and rubber sheets,plastic,shoes,chemicals and laminatesto test equipments with advanced units.With our 27-year long experience,we have invested in advancedtechnology with japan and apply recently-developed technologies.We provide the most reasonable and economical equipment systems toimprove our corporate competitiveness as well as create value.In the future,we will be committed to secure global competitivenessthrough corporate innovation and ceaselessly developing technologies.We hope you will continue to support and encourage us.Directors and employees of Sung kwang Eng&Mfg Co.,Ltd.超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體MAIN PRODUCT MAIN PRODUCT 1.BUTT WELDED FITTING LINE-WORKING CAPACITY:36”18”A.20,000 TON TEE HYDRO FORMING PRESSIt is the Ultra-high pressure,liquid pressure forming hyd pressure press todesired form the pipe by filling liquid pressure of high pressure(200 3000/)into the raw material of pipe of jointing tee of pipe for piping.It is suitable for production of products such as automobile parts andshipbuilding,chemical parts,pressure vessels,etc.And especially it is equippedwithtechnology and facility of manufacturing exclusively production by themethod of seamless,2-seams,etc.of tee,bend and reducer of stainless steel,mild steel,and alloy steel pipe.超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體B.20,000TON HYDRO FORMING PRESSC.TEE PRODUCTS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體D.TEE FORMING PRESS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體E.6,000TON 2 SEAM HEAVY DUTY PRESSF.5,000TON HEAVY DUTY PRESS(MOVING BOLSTER TYPE)超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體G.BEND HOT FORMING DRAW BENCHH.SUS BEND COLD FORMING PRESS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體I.PIPE EXTENSION M/CJ.REDUCER/CAP FORMING&SIZING PRESSK.6,000TON HYDRAULIC PRESS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體2.50,000 TON HYD PRESS&POWER UNIT(FOR HEATING PLATE)A.50,000 TON EMBOSSING PRESS()PRODUCTSIt is the press to manufacture heat plate of heat plate of heat exchanger of plateshape,which needs super large number of embossing on the surface of the heatstainless plate,so the high pressure equipment generating strength of 50,000tons isused by using super high pressure(2,000/).The structure of frame is manufactured as very compact compared with pressingcapability by grafting up-to-date technology maintaining strength by winding wire ofsuper rigidity on around the frame.超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體B.30,000TON EMBOSSING PRESSC.ULTRA-HIGH PRESSURE APPARATUSD.10,000TON HYDRAULIC PRESS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體3.SHIPYARD MACHINERIERSA.2,200TON C.N.C PLATE ROLL BENDING PRESS(Worlds length:20m)B.1,000TON BENDING PRESSC.1,200TON PORTAL PRESSD.5,000TON18M KNUCKLE BENDING&PIPE FORMING PRESS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體4-1.OPEN DIE FORGING PRESSThis press has a reliable strengthened frame torealize superlative stiffness and precision underthe severely unfavorable forging conditions so itcould be suitable to press for manufacturingvarious mechanical components needed highstrengthandtoughnesslikeasaircraftcomponents,turbinecomponents,nuclearpowerplantscomponents,windpowergeneration components and ships machinerycomponents,etcA.CONTROL DIAGRAMD.MANIPULATORC.FLANGE LATERAL FORGINGB.3,000TON FORGING PRESS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體4-2.SEAMLESS ROLLED RING FORGING PROCESS1,500TON GAS CYLINDER DRAWING PRESSGas cylinder4-3.GAS CYLINDER FORGING&DRAWING PRESS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體4-4.ASSY&INSERT,METAL WORKING,DEEP DRAWING PRESSThis is the press suitable for work of deepdrawing,sizing,blanking,etc.of iron sheet,and it is suitable press for assembling work ofbearing and housing or press fit,straightening,marking word etc.Because mighty structureand the press operated at high speed by theslide of precise slope guide method and bodystructure of c-type.超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體5.BRAKE PAD&LINING MOLDING PRESS(FOR AUTOMOBILE)A.300TON MOLDING PRESSThis is hydpress manufacturing bake pad,sheet lining,etc.by temporary formingand heat forming friction material which is the raw material of automobile brake,which is operated fully automatic.It is manufactured high precision degree and theelectric heater is used,so it the structure suitable for forming resin products ofhardening by heat,and since the pressing strength is controlled by digital method,itcan control pressing strength precisely and the metal mold is feed automatically,soit is an advantageous equipment for safety,too.超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體B.300TON BRAKE PAD,LINING THERMOFORMING HYD PRESSC.100TON 2-HEAD&SHUTTLE TYPE MOLDING PRESS超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體6.PIPE END FORMG&BENDG,ROLLG MACHINE7.DOOR TRIMM,HEAD LINING MOLDING PRESS,TRIMMING PRESSThis is the equipment exclusively forpipebendingandendprocessingwhich are used for automobile partsand the whole industry,and also it istheequipmentexclusivelyforforming various kinds of pipe ends ifjig is changed.It is the press to adhere products ofinterior decorative material such as doortrim,head lining,etc.For automobile bymovingtabletoleftandrightcontinuously by utilizing high frequency,and it is the equipment to do trimmingcontinuously the sound-proof materialsticking to the lower body and interior ofthe automobile,and it does trimmingautomaticallybyinterrockingwithfront and rear conveyer.超 高 壓,超 大 形 油 壓 P R E S S 傳 門 業 體8.RUBBER SHEET&LAMINATION SHEET MOLDING PRESS-HS R&AMalaysia factory-CAPA:4100 TON-PRODUCT SIZE:90”x 6000L-HEATING PLATE SIZE:2300 x6000 x80-HS R&AMalaysia factory-CAPA:1100 TON-PRODUCT SIZE:90”x 1500L-HEATING PLATE SIZE:2300 x1500 x80This is the press for heat forming of productssuch as rubber sheet or packing,layer plate,panel for construction,etc,and it is thestructure to produce products of long size ifframes are connected.Heat is transferred tothe heat plate by utilizing heat medium oil,steam,electric heater,etc.And the heat plateis manufactured without heat deviation,and itiscomposedtodocontinuousworkbyattaching feed device at front and rear.Thank YouThank You
