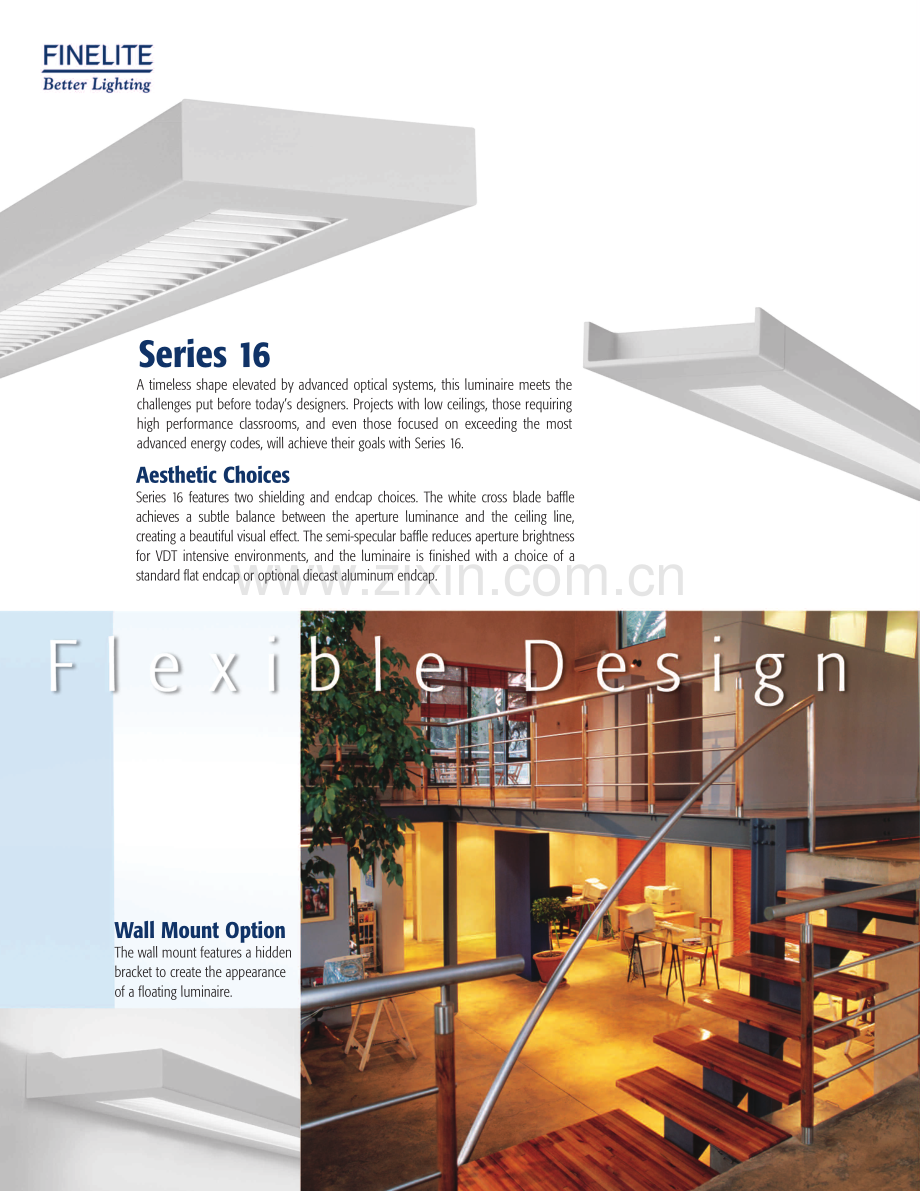

A timeless shape elevated by advanced optical systems,this luminaire meets thechallenges put before todays designers.Projects with low ceilings,those requiringhigh performance classrooms,and even those focused on exceeding the mostadvanced energy codes,will achieve their goals with Series 16.Series 16Aesthetic ChoicesSeries 16 features two shielding and endcap choices.The white cross blade baffleachieves a subtle balance between the aperture luminance and the ceiling line,creating a beautiful visual effect.The semi-specular baffle reduces aperture brightnessfor VDT intensive environments,and the luminaire is finished with a choice of a standard flat endcap or optional diecast aluminum endcap.Wall Mount OptionThe wall mount features a hiddenbracket to create the appearance of a floating luminaire.General Illumination ModeThe multi-scene luminaire providesindirect/direct lighting and deliversan average of 35-50 fc to the desk,while evenly illuminating the ceilingand walls.High Performance SchoolsHigh performance classrooms improve student productivity by implementing quality electric and daylighting design.Use Series 16 as a partof the award-winning Integrated Classroom Lighting System(ICLS)to achieve best practices and maximize teacher effectiveness.Audiovisual ModeThe A/V mode directs 100%of light downward to eliminate veilingreflections from projection screens,while directing 10-20 fc to the desk,helping keep students alert and giving them enough light for note taking.High Performance OpticsHigh performance luminaires like Series 16 reduce energy and materials consumption without sacrificing occupant satisfaction.Series 16 usesballast technology and optical designs to space luminaires farther apart,resulting in the use of fewer lamps and ballasts,which drasticallyreduces energy consumption.The optional Wide Spread Optic makes it possible to achieve these goals regardless of ceiling height.SERIES 16:1 T8-WSODistribution:59%up/41%downEfficiency:83.8%Peak Candela Value:525 110LSI Report 21895SERIES 16-1T8-91 WHITEDistribution:69%up/31%downEfficiency:94%Peak Candela Value:458 135LSI Report 21896Reduce Materials&Save EnergyApplicationHigh Ceilings-1T8Low Ceilings-1T8-WSOCeiling Height10121496”90”86”Row Spacing121214121010Room Size48x4048x4056x4048x4040 x4040 x40Suspension24”36”48”18”12”12”(to bottom of luminaire)Ballast Factor1.181.181.181.00.880.88Avg.FC Maintained 51 fc48 fc40 fc40 fc40 fc43 fcCeiling Uniformity5:12:12:14:18:18:1Power Density LPD(w/ft.2)0.63 0.630.540.570.560.56%Below Title 24LPD 1.2 w/ft.248%48%55%52.5%53%53%Low Ceiling Solutions Optical performance and luminaire scalecombine to make Series 16 an idealsolution for low ceiling applications.The Wide Spread Optic(WSO)deliversamazing results for 1T5HO or 1 T8 lamp.Daylight HarvestingHigh performance schools and officesincorporate daylighting,and Series 16combined with Finelites custom wiringcapability will make your daylight harvesting goals a reality.Design Flexibility Accommodate space changes usingSeries 16.The Soft Top Optic(STO)and Total Direct Optic(TDO)adjust the amount of downlight and can be easilyadded after installation.Installation Efficiency Design features like alignersleeves,plug together wiring,and wire management channels reduce installation time and improve the finished look of every Finelite project.T8T5/T5HOT8T5/T5HO7.681.92.254.0Additional 4 and 8 segments can be added to create runs as long as required.Modular section lengths offer standard 4 and 8 support spacing that aligns with grid ceiling systems.Finelite,Inc.30500 Whipple Road Union City,CA 94587-1530Phone:[phone] Fax:[phone]Form No.CPI0026 2006 Finelite,Inc.All rights reserved.TDOSTODimensions and LampingLengths
