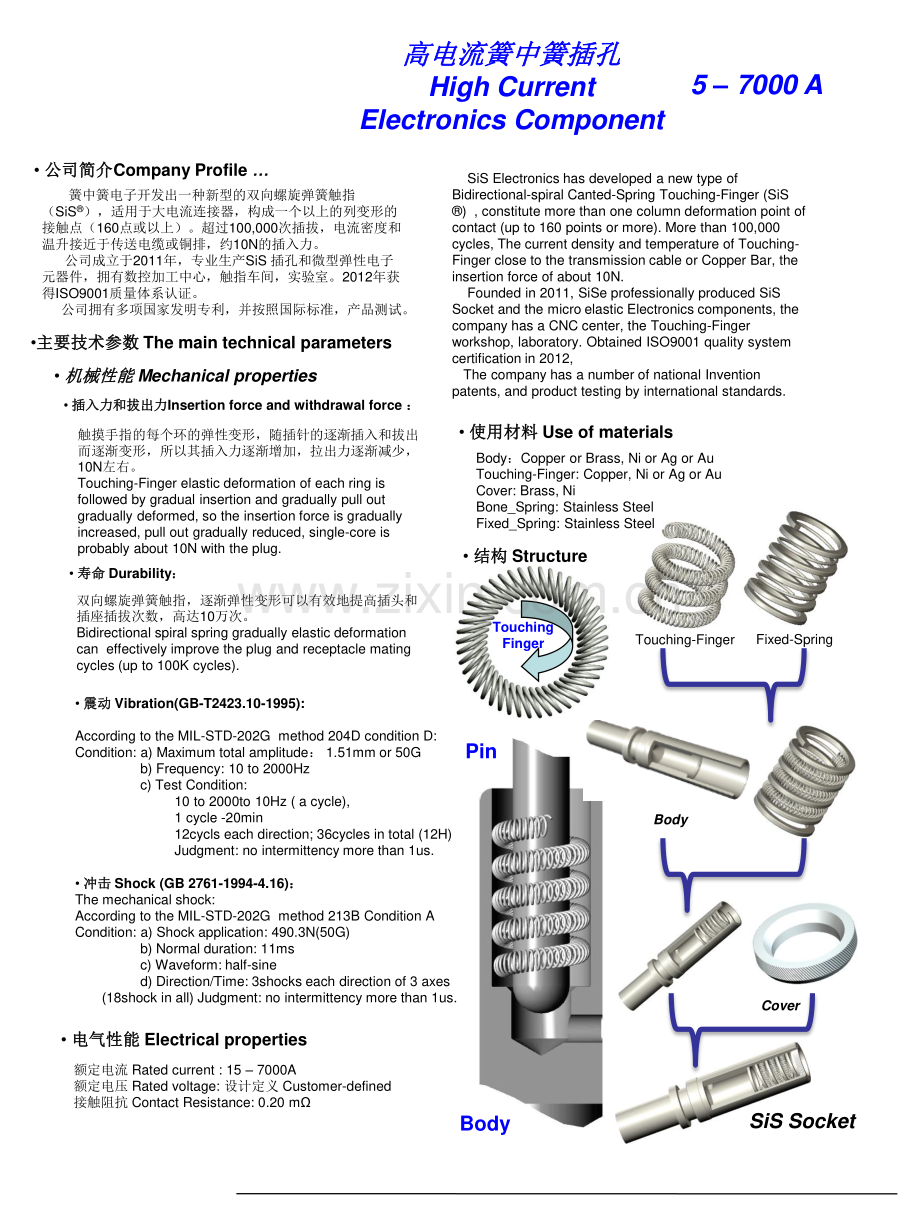

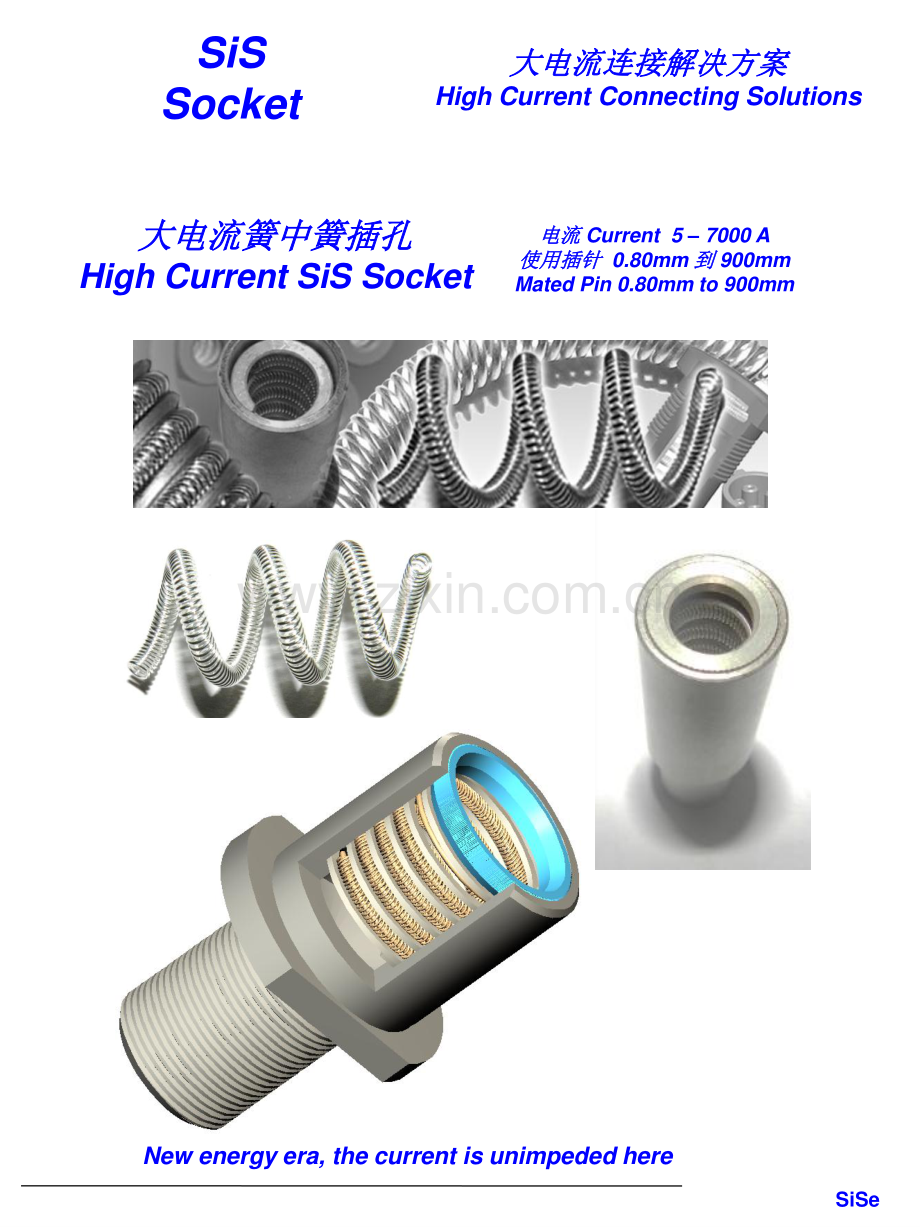

New energy era,the current is unimpeded here 大电流簧中簧插孔大电流簧中簧插孔 High Current SiS Socket SiS Socket 电流电流 Current 5 7000 A 使用插针使用插针 0.80mm 到到 900mm Mated Pin 0.80mm to 900mm SiSe 大电流连接解决方案大电流连接解决方案 High Current Connecting Solutions Pin Body 公司简介公司简介Company Profile 簧中簧电子开发出一种新型的双向螺旋弹簧触指（SiS），适用于大电流连接器，构成一个以上的列变形的接触点（160点或以上）。超过100,000次插拔，电流密度和温升接近于传送电缆或铜排，约10N的插入力。公司成立于2011年，专业生产SiS 插孔和微型弹性电子元器件，拥有数控加工中心，触指车间，实验室。2012年获得ISO9001质量体系认证。公司拥有多项国家发明专利，并按照国际标准，产品测试。高电流簧中簧插孔高电流簧中簧插孔 High Current Electronics Component 5 7000 A SiS Electronics has developed a new type of Bidirectional-spiral Canted-Spring Touching-Finger(SiS),constitute more than one column deformation point of contact(up to 160 points or more).More than 100,000 cycles,The current density and temperature of Touching-Finger close to the transmission cable or Copper Bar,the insertion force of about 10N.Founded in 2011,SiSe professionally produced SiS Socket and the micro elastic Electronics components,the company has a CNC center,the Touching-Finger workshop,laboratory.Obtained ISO9001 quality system certification in 2012,The company has a number of national Invention patents,and product testing by international standards.主要技术参数主要技术参数 The main technical parameters 插入力和拔出力插入力和拔出力Insertion force and withdrawal force：使用材料使用材料 Use of materials Body：Copper or Brass,Ni or Ag or Au Touching-Finger:Copper,Ni or Ag or Au Cover:Brass,Ni Bone_Spring:Stainless Steel Fixed_Spring:Stainless Steel 机械性能机械性能 Mechanical properties 震动震动 Vibration(GB-T2423.10-1995):According to the MIL-STD-202G method 204D condition D:Condition:a)Maximum total amplitude：1.51mm or 50G b)Frequency:10 to 2000Hz c)Test Condition:10 to 2000to 10Hz(a cycle),1 cycle-20min 12cycls each direction;36cycles in total(12H)Judgment:no intermittency more than 1us.冲击冲击 Shock(GB 2761-1994-4.16)：The mechanical shock:According to the MIL-STD-202G method 213B Condition A Condition:a)Shock application:490.3N(50G)b)Normal duration:11ms c)Waveform:half-sine d)Direction/Time:3shocks each direction of 3 axes (18shock in all)Judgment:no intermittency more than 1us.触摸手指的每个环的弹性变形，随插针的逐渐插入和拔出而逐渐变形，所以其插入力逐渐增加，拉出力逐渐减少，10N左右。Touching-Finger elastic deformation of each ring is followed by gradual insertion and gradually pull out gradually deformed,so the insertion force is gradually increased,pull out gradually reduced,single-core is probably about 10N with the plug.寿命寿命 Durability：双向螺旋弹簧触指，逐渐弹性变形可以有效地提高插头和插座插拔次数，高达10万次。Bidirectional spiral spring gradually elastic deformation can effectively improve the plug and receptacle mating cycles(up to 100K cycles).电气性能电气性能 Electrical properties 结构结构 Structure Body Touching-Finger Cover SiS Socket Touching Finger 额定电流 Rated current:15 7000A 额定电压 Rated voltage:设计定义 Customer-defined 接触阻抗 Contact Resistance:0.20 m Fixed-Spring SiSe C1,C2,OS1,OS2,TH1,TH2,TH3,TH4 Touching-Finger can effectively enhance the cross-sectional area of the current,in order to ensure the current density of the cable,pins,finger touch and jack is basically the same.Frequent bidirectional spiral spring and pin plug,surface coated with the wear resistance of the silver,while adjusting with the size of the finger touch and pin to ensure that each ring spring pin inserted positive pressure in order to obtain less contact with the surface impedance RC and good insertion and extraction forces.Calculated on the bidirectional-way spiral spring touch the great multi-touch contact(up to 400)and insertion and extraction forces,to achieve high current connector temperature rise,tens of thousands of mating cycles.C1 Series C2 Series OS1 Series OS2 Series TH1 Series TH2 Series TH4 Series TH3 Series 簧中簧插孔种类簧中簧插孔种类 SiS Socket Type 弹簧触指可以有效地增强横截面面积，以确保电缆的电流密度下，插针、触摸和插孔基本上是相同的。触指和插针，表面电镀有耐磨损银，同时调整的触指和装置孔的尺寸，以确保每个环弹簧结于插入插针正压力，以获得较少的接触的表面阻抗RC和良好的插入和拔出力。双向螺旋弹簧触指提供多触点接触（400个）。铆线电源插孔铆线电源插孔 Crimping SiS Socket 焊接或螺纹电源插孔焊接或螺纹电源插孔 Welding or threaded power Jack 穿孔式电源插孔穿孔式电源插孔 Through-Hole SiS Socket 单芯大电流航空接头单芯大电流航空接头 Single-core high current aviation connector SiS3.60 Socket SAE J1772 EV Charger SiS6.00 Socket GB EV Charger
