艾迪飞实验分享.frame-relay实验
将路由器模拟成FR交换机.
1.frame-relay switching
2.定义接口的封装类型,encapsulation frame-relay
3.定义接口的lmi类型,frame-relay lmi-type cisco
4.定义接口的接口类型,frame-relay intf-type dce
5.定义接口的时钟率,clock rate 64000.
6.定义fr的PVC,frame-relay route 102 interface s0/2 201

客户端:
1.encapsulation frame-relay
2.no arp frame-relay
3.frame-relay map ip 100.0.0.2 102 broadcast
4.no frame-relay inverse-arp
(如果不关闭反向ARP,只用封装FR就行了.这一端的DTE指定不指定
都可以)

点到多点子接口:
interface Serial0/0.100 multipoint
ip address 100.0.0.1 255.255.255.0
no arp frame-relay
frame-relay map ip 100.0.0.2 102 broadcast
frame-relay map ip 100.0.0.3 103 broadcast
no frame-relay inverse-arp

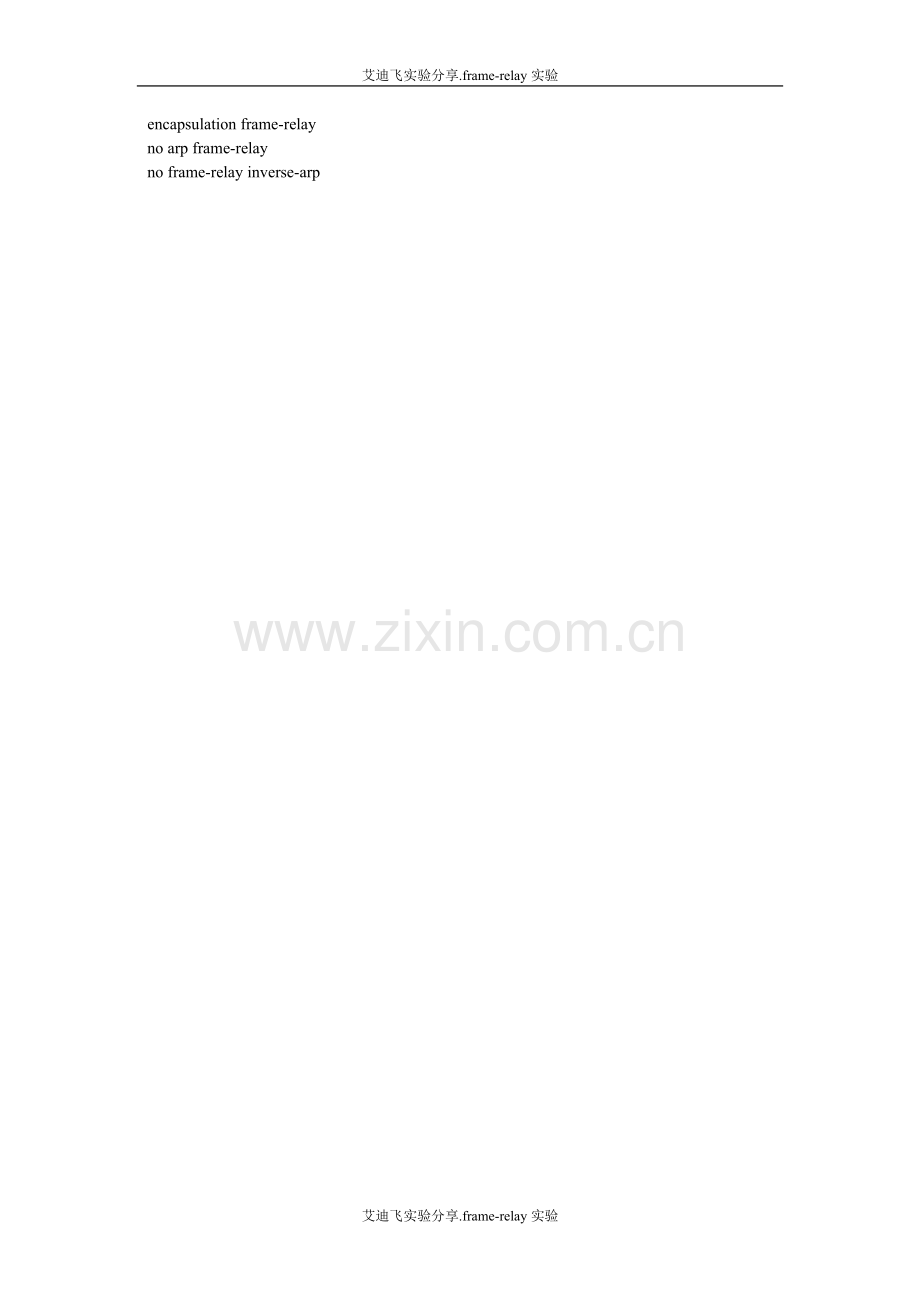

interface Serial0/0
no ip address
encapsulation frame-relay
no arp frame-relay
no frame-relay inverse-arp

点到点子接口:

interface Serial0/0.201 point-to-point
ip address 100.0.0.2 255.255.255.0
no arp frame-relay
frame-relay interface-dlci 201

interface Serial0/0
no ip address
encapsulation frame-relay
no arp frame-relay
no frame-relay inverse-arp
