matlab读取图像并用串口发送.doc

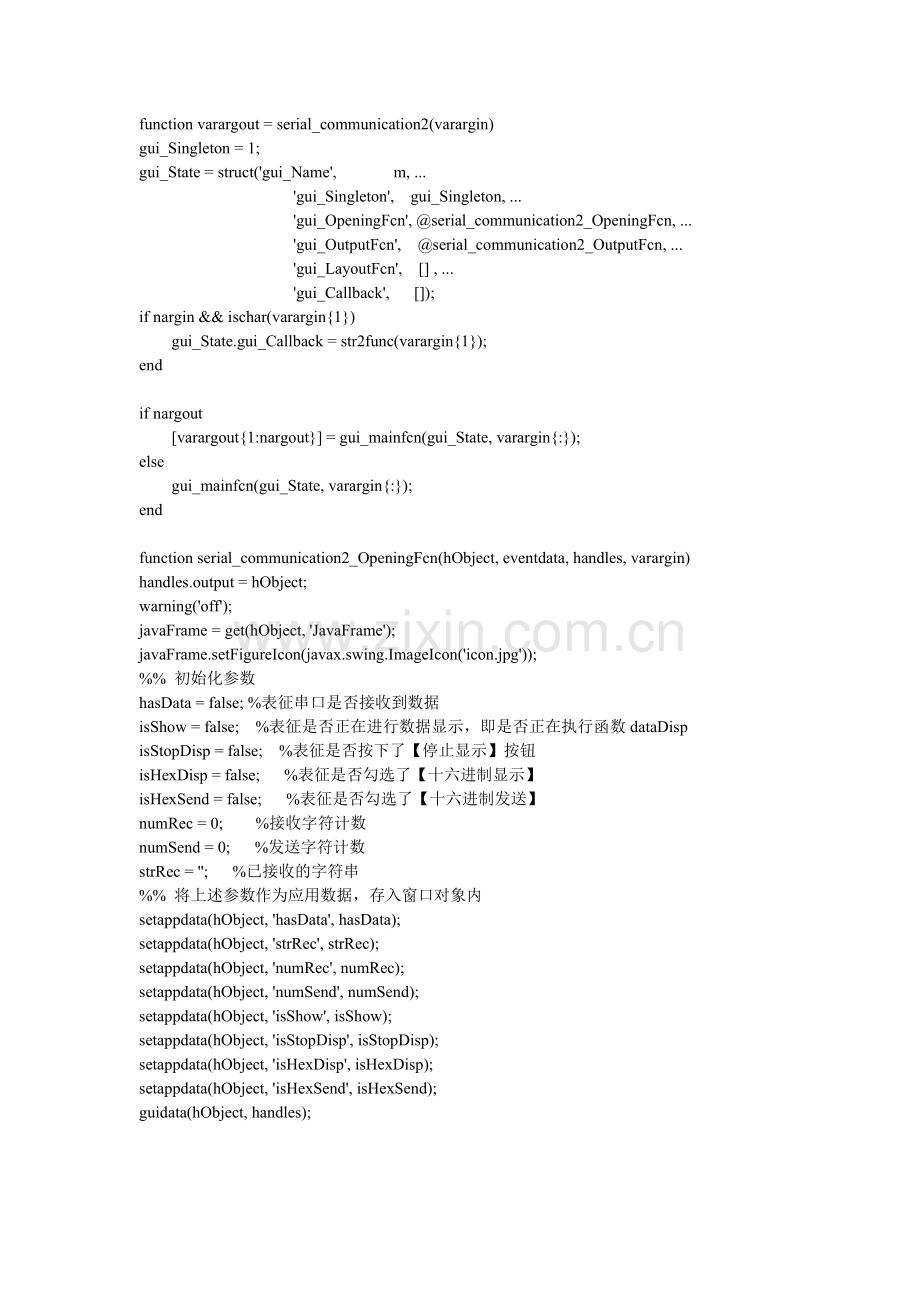

function varargout = serial_communication2(varargin)
gui_Singleton = 1;
gui_State = struct('gui_Name', m, ...
'gui_Singleton', gui_Singleton, ...
'gui_OpeningFcn', @serial_communication2_OpeningFcn, ...
'gui_OutputFcn', @serial_communication2_OutputFcn, ...
'gui_LayoutFcn', [] , ...
'gui_Callback', []);
if nargin && ischar(varargin{1})
gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
[varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
gui_mainfcn(gui_State, varargin{:});
end

function serial_communication2_OpeningFcn(hObject, eventdata, handles, varargin)
handles.output = hObject;
warning('off');
javaFrame = get(hObject, 'JavaFrame');
javaFrame.setFigureIcon(javax.swing.ImageIcon('icon.jpg'));
%% 初始化参数
hasData = false; %表征串口是否接收到数据
isShow = false; %表征是否正在进行数据显示，即是否正在执行函数dataDisp
isStopDisp = false; %表征是否按下了【停止显示】按钮
isHexDisp = false; %表征是否勾选了【十六进制显示】
isHexSend = false; %表征是否勾选了【十六进制发送】
numRec = 0; %接收字符计数
numSend = 0; %发送字符计数
strRec = ''; %已接收的字符串
%% 将上述参数作为应用数据，存入窗口对象内
setappdata(hObject, 'hasData', hasData);
setappdata(hObject, 'strRec', strRec);
setappdata(hObject, 'numRec', numRec);
setappdata(hObject, 'numSend', numSend);
setappdata(hObject, 'isShow', isShow);
setappdata(hObject, 'isStopDisp', isStopDisp);
setappdata(hObject, 'isHexDisp', isHexDisp);
setappdata(hObject, 'isHexSend', isHexSend);
guidata(hObject, handles);

function varargout = serial_communication2_OutputFcn(hObject, eventdata, handles)
varargout{1} = handles.output;

function com_Callback(hObject, ~, handles)

function com_CreateFcn(hObject, eventdata, handles)
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end

function rate_Callback(hObject, eventdata, handles)

function rate_CreateFcn(hObject, eventdata, handles)
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end

function jiaoyan_Callback(hObject, eventdata, handles)

function jiaoyan_CreateFcn(hObject, eventdata, handles)
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end

function data_bits_Callback(hObject, eventdata, handles)

function data_bits_CreateFcn(hObject, eventdata, handles)
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end

function stop_bits_Callback(hObject, eventdata, handles)

function stop_bits_CreateFcn(hObject, eventdata, handles)
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end

function start_serial_Callback(hObject, eventdata, handles)
% 【打开/关闭串口】按钮的回调函数
% 打开串口，并初始化相关参数

%% 若按下【打开串口】按钮，打开串口
if get(hObject, 'value')
%% 获取串口的端口名
com_n = sprintf('com%d', get(, 'value'));
%% 获取波特率
rates = [1200 2400 4800 9600 19200 38400 43000 56000 57600 115200 921600 1036800];
baud_rate = rates(get(handles.rate, 'value'));
%% 获取校验位设置
switch get(handles.jiaoyan, 'value')
case 1
jiaoyan = 'none';
case 2
jiaoyan = 'odd';
case 3
jiaoyan = 'even';
end
%% 获取数据位个数
data_bits = 5 + get(handles.data_bits, 'value');
%% 获取停止位个数
stop_bits = get(handles.stop_bits, 'value');
%% 创建串口对象
scom = serial(com_n);
%% 配置串口属性，指定其回调函数
set(scom, 'BaudRate', baud_rate, 'Parity', jiaoyan, 'DataBits',...
data_bits, 'StopBits', stop_bits,'InputBufferSize',1638400, 'OutputBufferSize',1638400,'BytesAvailableFcnCount', 10,...
'BytesAvailableFcnMode', 'byte', 'BytesAvailableFcn', {@bytes, handles},...
'TimerPeriod', 0.05, 'timerfcn', {@dataDisp, handles});
%% 将串口对象的句柄作为用户数据，存入窗口对象
set(handles.figure1, 'UserData', scom);
%% 尝试打开串口
try
fopen(scom); %打开串口
catch % 若串口打开失败，提示“串口不可获得！”
msgbox('串口不可获得！');
set(hObject, 'value', 0); %弹起本按钮
return;
end
%% 打开串口后，允许串口发送数据，清空接收显示区，点亮串口状态指示灯，
%% 并更改本按钮文本为“关闭串口”
set(handles.period_send, 'Enable', 'on'); %启用【自动发送】按钮
set(handles.manual_send, 'Enable', 'on'); %启用【手动发送】按钮
set(handles.xianshi, 'string', ''); %清空接收显示区
set(handles.activex1, 'value', 1); %点亮串口状态指示灯
set(hObject, 'String', '关闭串口'); %设置本按钮文本为“关闭串口”
else %若关闭串口
%% 停止并删除定时器
t = timerfind;
if ~isempty(t)
stop(t);
delete(t);
end
%% 停止并删除串口对象
scoms = instrfind;
stopasync(scoms);
fclose(scoms);
delete(scoms);
%% 禁用【自动发送】和【手动发送】按钮，熄灭串口状态指示灯
set(handles.period_send, 'Enable', 'off', 'value', 0); %禁用【自动发送】按钮
set(handles.manual_send, 'Enable', 'off'); %禁用【手动发送】按钮
set(handles.activex1, 'value', 0); %熄灭串口状态指示灯
end

function dataDisp(obj, event, handles)
global value
% 串口的TimerFcn回调函数
% 串口数据显示
%% 获取参数
hasData = getappdata(handles.figure1, 'hasData'); %串口是否收到数据
strRec = getappdata(handles.figure1, 'strRec'); %串口数据的字符串形式，定时显示该数据
numRec = getappdata(handles.figure1, 'numRec'); %串口接收到的数据个数
%% 若串口没有接收到数据，先尝试接收串口数据
if ~hasData
bytes(obj, event, handles);
end
%% 若串口有数据，显示串口数据
if hasData
%% 给数据显示模块加互斥锁
%% 在执行显示数据模块时，不接收串口数据，即不执行BytesAvailableFcn回调函数
setappdata(handles.figure1, 'isShow', true);
set(handles.xianshi, 'string', strRec);
%% 更新接收计数
set(handles.rec,'string', numRec);
%% 更新hasData标志，表明串口数据已经显示
setappdata(handles.figure1, 'hasData', false);
%% 给数据显示模块解锁
setappdata(handles.figure1, 'isShow', false);
end

function bytes(obj, ~, handles)
% 串口的BytesAvailableFcn回调函数
% 串口接收数据
%% 获取参数
strRec = getappdata(handles.figure1, 'strRec'); %获取串口要显示的数据
numRec = getappdata(handles.figure1, 'numRec'); %获取串口已接收数据的个数
isStopDisp = getappdata(handles.figure1, 'isStopDisp'); %是否按下了【停止显示】按钮
isHexDisp = getappdata(handles.figure1, 'isHexDisp'); %是否十六进制显示
isShow = getappdata(handles.figure1, 'isShow'); %是否正在执行显示数据操作
%% 若正在执行数据显示操作，暂不接收串口数据
if isShow
return;
end
%% 获取串口可获取的数据个数
n = get(obj, 'BytesAvailable');
%% 若串口有数据，接收所有数据
if n
%% 更新hasData参数，表明串口有数据需要显示
setappdata(handles.figure1, 'hasData', true);
%% 读取串口数据
a = fread(obj, n, 'uchar');
%% 若没有停止显示，将接收到的数据解算出来，准备显示
if ~isStopDisp
%% 根据进制显示的状态，解析数据为要显示的字符串
if ~isHexDisp
c = char(a');
else
strHex = dec2hex(a')';
strHex2 = [strHex; blanks(size(a, 1))];
c = strHex2(:)';
end

%% 更新已接收的数据个数
numRec = numRec + size(a,1);
%% 更新要显示的字符串
strRec = [strRec c];

end
%% 更新参数
setappdata(handles.figure1, 'numRec', numRec); %更新已接收的数据个数
setappdata(handles.figure1, 'strRec', strRec); %更新要显示的字符串
end

function qingkong_Callback(hObject, eventdata, handles)
%% 清空要显示的字符串
setappdata(handles.figure1, 'strRec', '');
%% 清空显示
set(handles.xianshi, 'String', '');

function stop_disp_Callback(hObject, eventdata, handles)
%% 根据【停止显示】按钮的状态，更新isStopDisp参数
if get(hObject, 'Value')
isStopDisp = true;
else
isStopDisp = false;
end
setappdata(handles.figure1, 'isStopDisp', isStopDisp);

function hex_disp_Callback(hObject, eventdata, handles)
%% 根据【十六进制显示】复选框的状态，更新isHexDisp参数
if get(hObject, 'Value')
isHexDisp = true;
else
isHexDisp = false;
end
setappdata(handles.figure1, 'isHexDisp', isHexDisp);

function manual_send_Callback(hObject, eventdata, handles)
scom = get(handles.figure1, 'UserData');
numSend = getappdata(handles.figure1, 'numSend');
val = get(handles.sends, 'UserData');
numSend = numSend + length(val);
set(handles.trans, 'string', num2str(numSend));
setappdata(handles.figure1, 'numSend', numSend);
%% 若要发送的数据不为空，发送数据
if ~isempty(val)
%% 设置倒计数的初值
n = 2000000;
while n
%% 获取串口的传输状态，若串口没有正在写数据，写入数据
str = get(scom, 'TransferStatus');
if ~(strcmp(str, 'write') || strcmp(str, 'read&write'))
fwrite(scom, val, 'uint8', 'async'); %数据写入串口
break;
end
n = n - 1; %倒计数
end
end

function clear_send_Callback(hObject, eventdata, handles)
%% 清空发送区
set(handles.sends, 'string', '')
%% 更新要发送的数据
set(handles.sends, 'UserData', []);

function period_send_Callback(hObject, eventdata, handles)
% 【自动发送】按钮的Callback回调函数
%% 若按下【自动发送】按钮，启动定时器；否则，停止并删除定时器
if get(hObject, 'value')
t1 = 0.001 * str2double(get(handles.period1, 'string'));%获取定时器周期
t = timer('ExecutionMode','fixedrate', 'Period', t1, 'TimerFcn',...
{@manual_send_Callback, handles}); %创建定时器
set(handles.period1, 'Enable', 'off'); %禁用设置定时器周期的Edit Text对象
set(handles.sends, 'Enable', 'inactive'); %禁用数据发送编辑区
start(t); %启动定时器
else
set(handles.period1, 'Enable', 'on'); %启用设置定时器周期的Edit Text对象
set(handles.sends, 'Enable', 'on'); %启用数据发送编辑区
t = timerfind; %查找定时器
stop(t); %停止定时器
delete(t); %删除定时器
end

%function period1_Callback(hObject, eventdata, handles)

function period1_CreateFcn(hObject, eventdata, handles)
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end

function clear_count_Callback(hObject, eventdata, handles)
%% 计数清零，并更新参数numRec和numSend
set([handles.rec, handles.trans], 'string', '0')
setappdata(handles.figure1, 'numRec', 0);
setappdata(handles.figure1, 'numSend', 0);

function copy_data_Callback(hObject, eventdata, handles)
%% 设置是否允许复制接收数据显示区内的数据
if get(hObject,'value')
set(handles.xianshi, 'enable', 'on');
else
set(handles.xianshi, 'enable', 'inactive');
end

function figure1_CloseRequestFcn(hObject, eventdata, handles)
% 关闭窗口时，检查定时器和串口是否已关闭
% 若没有关闭，则先关闭
%% 查找定时器
t = timerfind;
%% 若存在定时器对象，停止并关闭
if ~isempty(t)
stop(t); %若定时器没有停止，则停止定时器
delete(t);
end
%% 查找串口对象
scoms = instrfind;
%% 尝试停止、关闭删除串口对象
try
stopasync(scoms);
fclose(scoms);
delete(scoms);
end
%% 关闭窗口
delete(hObject);

function hex_send_Callback(hObject,eventdata, handles)
%% 根据【十六进制发送】复选框的状态，更新isHexSend参数
if get(hObject,'value')
isHexSend = true;
else
isHexSend = false;
end
setappdata(handles.figure1, 'isHexSend', isHexSend);
%% 更新要发送的数据
sends_Callback(handles.sends, eventdata, handles);

function sends_Callback(hObject,eventdata, handles)
% 数据发送编辑区的Callback回调函数
% 更新要发送的数据
%% 获取数据发送编辑区的字符串

str = get(hObject, 'string');
%% 获取参数isHexSend的值
isHexSend = getappdata(handles.figure1, 'isHexSend');
if ~isHexSend %若为ASCII值形式发送，直接将字符串转化为对应的数值
val = double(str);
else %若为十六进制发送，获取要发送的数据
n = find(str == ' '); %查找空格
n =[0 n length(str)+1]; %空格的索引值
%% 每两个相邻空格之间的字符串为数值的十六进制形式，将其转化为数值
for i = 1 : length(n)-1
temp = str(n(i)+1 : n(i+1)-1); %获得每段数据的长度，为数据转换为十进制做准备
if ~rem(length(temp), 2)
b{i} = reshape(temp, 2, [])'; %将每段十六进制字符串转化为单元数组
else
break;
end
end
val = hex2dec(b)'; %将十六进制字符串转化为十进制数，等待写入串口
end
%% 更新要显示的数据
set(hObject, 'UserData', val);

% --- Executes on button press in open.
function open_Callback(hObject, eventdata, handles)
[name,path]=uigetfile('*.*','');
file=[path,name];
axes(handles.axesl);
x=imread(file);
handles.img=x;
guidata(hObject,handles);
imshow(x);

IM2=imread(file);
[row,col,h]=size(IM2);

red=IM2(:,:,1);
red1=uint16(red);
red2=bitshift(red1,-3);
red=bitshift(red2,11);
test1=dec2bin(red(1));

green=IM2(:,:,2);
green1=uint16(green);
green2=bitshift(green1,-2);
green=bitshift(green2,5);
test2=dec2bin(green(1));

blue=IM2(:,:,3);
blue1=uint16(blue);
blue2=bitshift(blue1,-3);
blue=blue2;
test3=dec2bin(blue(1));

IM3=red+green+blue;
[n,m]=size(IM3);
im=zeros(n,2*m);
fid=fopen('image.txt','w');
for ii=1:n
for jj=1:m
temp=dec2hex(IM3(ii,jj),4);
fprintf(fid,'%s %s ',temp(1:2),temp(3:4));
end
% fprintf(fid,'\r');
end
fclose(fid);
%以只读、文本方式打开文本文件
fid=fopen('image.txt','rt');
a1=fread(fid);
%将文本字符ASCII值转换为字符串
a2=char(a1');
%把文本中图像数据显示在输入窗口
set(handles.sends,'string',a2);
%每次打开图像就更新要发送的数据
sends_Callback(handles.sends, eventdata, handles);
