LTE频段划分及地区频段规划表

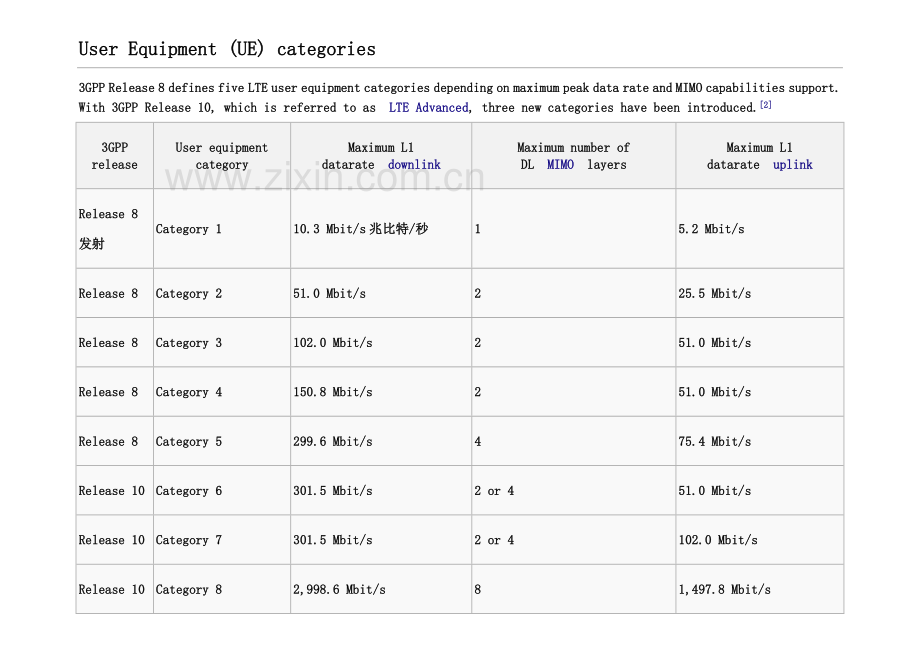

User Equipment (UE) categories
3GPP Release 8 defines five LTE user equipment categories depending on maximum peak data rate and MIMO capabilities support. With 3GPP Release 10, which is referred to as LTE Advanced, three new categories have been introduced.[2]
3GPP release
User equipment category
Maximum L1 datarate downlink
Maximum number of DL MIMO layers
Maximum L1 datarate uplink
Release 8
发射
Category 1
10.3 Mbit/s兆比特/秒
1
5.2 Mbit/s
Release 8
Category 2
51.0 Mbit/s
2
25.5 Mbit/s
Release 8
Category 3
102.0 Mbit/s
2
51.0 Mbit/s
Release 8
Category 4
150.8 Mbit/s
2
51.0 Mbit/s
Release 8
Category 5
299.6 Mbit/s
4
75.4 Mbit/s
Release 10
Category 6
301.5 Mbit/s
2 or 4
51.0 Mbit/s
Release 10
Category 7
301.5 Mbit/s
2 or 4
102.0 Mbit/s
Release 10
Category 8
2,998.6 Mbit/s
8
1,497.8 Mbit/s

Frequency bands and channel bandwidths[edit]频段和宽带的通道
E-UTRA
operating
band
Uplink (UL)
BS receive
UE transmit (MHz)上行
Downlink (DL)
BS transmit
UE receive (MHz)下行
Duplex
mode
Channel
bandwidths
(MHz)信道
Common name
Frequency
band
(MHz)
Duplex spacing (MHz)
1
1,920– 1,980
2,110– 2,170
FDD
5, 10, 15, 20
IMT
2,100
190
2
1,850– 1,910
1,930–1,990
FDD
1.4,3,5,10, 15, 20
PCS
1,900
80
3
1,710– 1,785
1,805– 1,880
FDD
1.4, 3, 5, 10, 15, 20
DCS
1,800
95
4
1,710– 1,755
2,110– 2,155
FDD
1.4, 3, 5, 10, 15, 20
AWS-1
1,700
400
5
824– 849
869– 894
FDD
1.4, 3, 5, 10
CLR
850
45
6
830– 840
875– 885
FDD
5, 10
UMTS 800
(not applicable, replaced by band 19)
850
45
7
2,500– 2,570
2,620– 2,690
FDD
5, 10, 15, 20
IMT-E
2,600
120
8
880–915
925– 960
FDD
1.4, 3, 5, 10
E-GSM
900
45
9
1,749.9-1,784.9
1,844.9-1,879.9
FDD
5, 10, 15, 20
UMTS 1700 / Japan DCS
(subset of band 3)
1,800
95
10
1,710 – 1,770
2,110–2,170
FDD
5, 10, 15, 20
Extended AWS
(superset of band 4)
1,700
400
11
1,427.9– 1,447.9
1,475.9–1,495.9
FDD
5, 10
Lower PDC
1,500
48
12
699– 716
729– 746
FDD
1.4, 3, 5, 10
Lower SMH blocks A/B/C
700
30
13
777– 787
746– 756
FDD
5, 10
Upper SMH block C
700
−31
14
788– 798
758– 768
FDD
5, 10
Upper SMH block D
700
−30
15
1,900– 1,920
2,600– 2,620
FDD
5, 10
Reserved

700
16
2,010– 2,025
2,585– 2,600
FDD
5, 10, 15
Reserved

575
17
704– 716
734– 746
FDD
5, 10
Lower SMH blocks B/C
(subset of band 12)
700
30
18
815– 830
860– 875
FDD
5, 10, 15
Japan lower 800
850
45
19
830– 845
875– 890
FDD
5, 10, 15
Japan upper 800
(superset of band 6)
850
45
20
832– 862
791 – 821
FDD
5, 10, 15, 20
EU Digital Dividend
800
−41
21
1,447.9– 1,462.9
1,495.9-1,510.9
FDD
5, 10, 15
Upper PDC
1,500
48
22
3,410– 3,490
3,510 – 3,590
FDD
5, 10, 15, 20

3,500
100
23
2,000– 2,020
2,180 – 2,200
FDD
1.4, 3, 5, 10
S-Band
(a/k/a AWS-4)
2,000
180
24
1,626.5– 1,660.5
1,525– 1,559
FDD
5, 10
L-Band
1,600
−101.5
25
1,850– 1,915
1,930- 1,995
FDD
1.4, 3, 5, 10, 15, 20
Extended PCS
(superset of band 2)
1,900
80
26
814– 849
859– 894
FDD
1.4,3,5,10, 15
Extended CLR
(superset of bands 5, 6, 18 and 19)
850
45
27
807– 824
852– 869
FDD
1.4, 3, 5, 10, 15
SMR
850
45
28
703– 748
758– 803
FDD
5, 10, 15, 20
APAC
700
55
29
n/a
716– 728
FDD
5, 10
Lower SMH blocks D/E
(additional DL via Carrier Aggregation)
700
n/a
30
2,305– 2,315
2,350– 2,360
FDD
5, 10
WCS blocks A/B
2,300
45
31
452.5– 457.5
462.5– 467.5
FDD

450
10
not assigned
1,915– 1,920
1,995– 2,000
FDD

AWS-2
1,900
80
not assigned
1,755– 1,780
2,155– 2,180
FDD

AWS-3
1,700
400
33
1,900– 1,920
TDD
5, 10, 15, 20
IMT
2,100

34
2,010– 2,025
TDD
5, 10, 15
IMT
2,100

35
1,850– 1,910
TDD
1.4, 3, 5, 10, 15, 20
PCS (Uplink)
1,900

36
1,930– 1,990
TDD
1.4, 3, 5, 10, 15, 20
PCS (Downlink)
1,900

37
1,910– 1,930
TDD
5, 10, 15, 20
PCS (Duplex spacing)
1,900

38
2,570– 2,620
TDD
5, 10, 15, 20
IMT-E
2,600

39
1,880– 1,920
TDD
5, 10, 15, 20

1,900

40
2,300– 2,400
TDD
5, 10, 15, 20

2,300

41
2,496– 2,690
TDD
5, 10, 15, 20
BRS / EBS
2,500

42
3,400– 3,600
TDD
5, 10, 15, 20

3,500

43
3,600– 3,800
TDD
5, 10, 15, 20

3,700

44
703– 803
TDD
5, 10, 15, 20
APAC
700

Deployments by region[edit]
The following table shows the standardized LTE bands and their regional use. The main LTE bands are in bold print.
Networks on LTE-bands 1, 3, 7, 28 (FDD-LTE) or 38, 40 (TDD-LTE) are suitable for future global roaming in ITU Regions 1, 2 and 3.
· Networks on LTE-band 8 (FDD-LTE) may allow global roaming in the future (ITU Regions 1, 2 and 3) (Long-term perspective).
· Networks on LTE-band 20 (FDD-LTE) are suitable for roaming in ITU Region 1 (EMEA) only.
· Networks on LTE-bands 2 and 4 (FDD-LTE) are suitable for roaming in ITU Region 2 (Americas) only.

Operating band
Frequency band频带范围
Common name
North America北美洲
Latin America拉美国家
Europe欧洲
Asia亚洲
Africa非洲
Oceania大洋洲
01
2100
IMT
No
No
Sweden (3)
Yes
Angola (Unitel), South Africa (Cell C)
(no deployments)
02
1900
PCS A-F
USA (C Spire)
Dominican Republic (Tricom), Paraguay (Personal)
No
No
No
No
03
1800
DCS
No
Dominican Republic (Orange), Venezuela (Digitel GSM)
Yes
Yes
Yes
Yes
04
1700
AWS A-F
USA (AT&T, T-Mobile, BendBroadband, Big River Broadband, C Spire, Leap,Verizon), Canada (Bell, Eastlink, MTS, Rogers, Telus, SaskTel)
Argentina (Movistar) (in Trial), Mexico (Telcel), Paraguay (Copaco), Peru (Movistar) (in Trial), Uruguay (Ancel)
No
No
No
No
05
850
CLR
(no deployments)
(no deployments)
No
韩国South Korea (LG U+, SK Telecom)
No
(no deployments)
06
800

No
No
No
replaced by band 19
No
No
07
2600
IMT-E
Canada (Bell, Rogers)
Brazil (Claro, Oi, TIM, Vivo), Chile (Claro), Colombia (Une-EPM), Costa Rica (ICE Celular)
Yes
Yes
(no deployments)
Australia, New Zealand
(no deployments)
08
900
E-GSM
No
No
Sweden (Net4Mobility)
South Korea (KT)
(no deployments)
Australia (Telstra) (in Trial)
09
1700

No
No
No
Japan (EMOBILE)
(to be replaced by band 3)
No
No
10
1700
EAWS A-G
(no deployments)
(no deployments)
No
No
No
No
11
1500
LPDC
No
No
No
Japan (au)
No
No
12
700
LSMH A/B/C
USA (Regional)
No
No
No
No
No
13
700
USMH C
USA (Verizon)
Bolivia (Entel Bolivia)
No
Uzbekistan (UCell)
No
No
14
700
USMH D
USA (Public Safety)
No
No
No
No
No
15

No
No
Reserved
No
No
No
16

No
No
Reserved
No
No
No
17
700
LSMH B/C
USA (AT&T)
No
No
No
No
No
18
800

No
No
No
Japan (au)
(to be replaced by band 26)
No
No
19
800

No
No
No
Japan (NTT Docomo)
(to be replaced by band 26)
No
No
20
800
EUDD
No
No
Yes
Qatar (Ooredoo)
Tanzania (Smile), Uganda (Orange, Smile)
No
21
1500
UPDC
No
No
No
Japan (NTT Docomo)
No
No
22
3500

No
No
(no deployments)
No
No
No
23
2000
S-Band
USA
(no deployments)
No
No
No
No
No
24
1600
L-Band
USA
(no deployments)
No
No
No
No
No
25
1900
EPCS A-G
USA (Sprint)
(no deployments)
No
No
No
No
26
850
ECLR
USA (Sprint)
(no deployments)
No
(no deployments)
No
(no deployments)
27
800
SMR
USA
(no deployments)
No
No
No
No
No
28
700
APAC
(no deployments)
(no deployments)
No
(no deployments)
No
(no deployments)
29
800
LSMH D/E
USA (AT&T)
(no deployments)
No
No
No
No
No
30
2300
WCS
USA (AT&T)
(no deployments)
No
No
No
No
No
31/32

Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
33
TDD 2100
IMT
No
No
(no deployments)
Sri Lanka, 斯里兰卡Singapore, 新加坡Malaysia马来西亚
(no deployments)
No
Australia澳大利亚
(no deployments)
34
TDD 2100
IMT
No
No
(no deployments)
China, Japan
(no deployments)
No
No
35
TDD 1900
PCS
(no deployments)
(no deployments)
No
No
No
No
36
TDD 1900
PCS
(no deployments)
(no deployments)
No
No
No
No
37
TDD 1900
PCS
(no deployments)
(no deployments)
No
No
No
No
38
TDD 2600
IMT-E
No
Brazil 巴西(On Telecom, SKY Brasil)
Poland (Aero2), Russia (MegaFon, MTS),Spain (COTA) (in Trial), Sweden (3)
Saudi Arabia 沙特阿拉伯(Mobily, Zain), China (China Mobile) (in Trial)
Uganda 乌干达(MTN)
No
39
TDD 1900

No
No
No
China (China Mobile) (in Trial)
No
No
40
TDD 2300

No
(no deployments)
Russia俄罗斯 (Vainah Telecom)
China (China Mobile) (in Trial), Hong Kong (China Mobile), India 印度(Airtel), Oman 阿曼(Omantel), Saudi Arabia 沙特阿拉伯(STC), Sri Lanka 斯里兰卡(Dialog)
South Africa, Uganda
(no deployments)
Australia澳大利亚 (NBN Co, Optus)
41
TDD 2500
BRS/EBS
USA (Sprint, nTelos (in Trial))
No
No
Japan (SoftBank (WCP))
No
No
42
TDD 3500

No
Chile (Entel) (in Trial)
United Kingdom (UK Broadband)
No
No
No
43
TDD 3700

No
No
United Kingdom (UK Broadband)
No
No
No
44
TDD 700
APAC
No
No
No
China
(no deployments)
No
No

中国移动(130MHZ) 1880MHZ-1900MHZ(BAND39) 2320MHZ-2370MHZ(BAND40) 2575MHZ-2635MHZ(BAND38 )

中国联通（40MHZ) 2300MHZ-2320MHZ(BAND40) 2555MHZ-2575MHZ(BAND41) 1955MHZ-1980MHZ/2145MHZ-2170MHZ(BAND1)

中国电信(40MHZ) 2370MHZ-2390MHZ(BAND40) 2635MHZ-2655MZH(BAND41) 1755MHZ-1785MHZ/1850MHZ-1880MHZ(BAND3)
