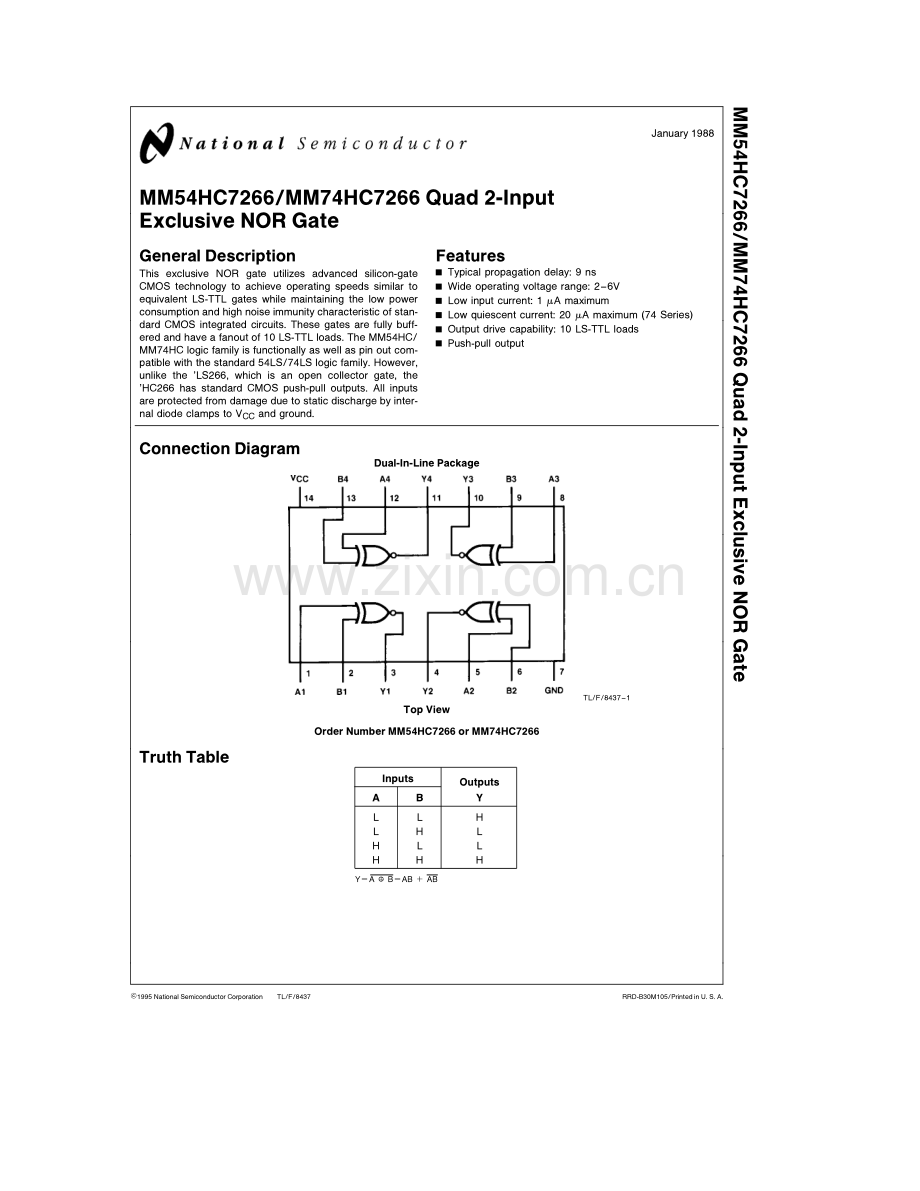

TL/F/8437MM54HC7266/MM74HC7266 Quad 2-Input Exclusive NOR GateJanuary 1988MM54HC7266/MM74HC7266 Quad 2-InputExclusive NOR GateGeneral DescriptionThis exclusive NOR gate utilizes advanced silicon-gateCMOS technology to achieve operating speeds similar toequivalent LS-TTL gates while maintaining the low powerconsumption and high noise immunity characteristic of stan-dard CMOS integrated circuits.These gates are fully buff-ered and have a fanout of 10 LS-TTL loads.The MM54HC/MM74HC logic family is functionally as well as pin out com-patible with the standard 54LS/74LS logic family.However,unlike the LS266,which is an open collector gate,theHC266 has standard CMOS push-pull outputs.All inputsare protected from damage due to static discharge by inter-nal diode clamps to VCCand ground.FeaturesYTypical propagation delay:9 nsYWide operating voltage range:26VYLow input current:1 mA maximumYLow quiescent current:20 mA maximum(74 Series)YOutput drive capability:10 LS-TTL loadsYPush-pull outputConnection DiagramDual-In-Line PackageTL/F/84371Top ViewOrder Number MM54HC7266 or MM74HC7266Truth TableInputsOutputsABYLLHLHLHLLHHHYeAZBeABaABC1995 National Semiconductor CorporationRRD-B30M105/Printed in U.S.A.Absolute Maximum Ratings(Notes 1&2)If Military/Aerospace specified devices are required,pleasecontacttheNationalSemiconductorSalesOffice/Distributors for availability and specifications.Supply Voltage(VCC)b0.5 toa7.0VDC Input Voltage(VIN)b1.5 to VCCa1.5VDC Output Voltage(VOUT)b0.5 to VCCa0.5VClamp Diode Current(IIK,IOK)g20 mADC Output Current,per pin(IOUT)g25 mADC VCCor GND Current,per pin(ICC)g50 mAStorage Temperature Range(TSTG)b65C toa150CPower Dissipation(PD)(Note 3)600 mWS.O.Package only500 mWLead Temp.(TL)(Soldering 10 seconds)260COperating ConditionsMinMaxUnitsSupply Voltage(VCC)26VDC Input or Output Voltage0VCCV(VIN,VOUT)Operating Temp.Range(TA)MM74HCb40a85CMM54HCb55a125CInput Rise or Fall TimesVCCe2.0V(tr,tf)1000nsVCCe4.5V500nsVCCe6.0V400nsDC Electrical Characteristics(Note 4)TAe25C74HC54HCSymbolParameterConditionsVCCTAeb40C to 85CTAeb55C to 125CUnitsTypGuaranteed LimitsVIHMinimum High Level2.0V1.51.51.5VInput Voltage4.5V3.153.153.15V6.0V4.24.24.2VVILMaximum Low Level2.0V0.50.50.5VInput Voltage*4.5V1.351.351.35V6.0V1.81.81.8VVOHMinimum High LevelVINeVIHor VILOutput VoltagelIOUTls20 mA2.0V2.01.91.91.9V4.5V4.54.44.44.4V6.0V6.05.95.95.9VVINeVIHor VILlIOUTls4.0 mA4.5V4.23.983.843.7VlIOUTls5.2 mA6.0V5.75.485.345.2VVOLMaximum Low LevelVINeVIHor VILOutput VoltagelIOUTls20 mA2.0V00.10.10.1V4.5V00.10.10.1V6.0V00.10.10.1VVINeVIHor VILlIOUTls4.0 mA4.5V0.20.260.330.4VlIOUTls5.2 mA6.0V0.20.260.330.4VIINMaximum InputVINeVCCor GND6.0Vg0.1g1.0g1.0mACurrentICCMaximum QuiescentVINeVCCor GND6.0V2.02040mASupply CurrentIOUTe0 mANote 1:Absolute Maximum Ratings are those values beyond which damage to the device may occur.Note 2:Unless otherwise specified all voltages are referenced to ground.Note 3:Power Dissipation temperature derating plastic N package:b12 mW/C from 65C to 85C;ceramic J package:b12 mW/C from 100C to 125C.Note 4:For a power supply of 5Vg10%the worst case output voltages(VOH,and VOL)occur for HC at 4.5V.Thus the 4.5V values should be used when designingwith this supply.Worst case VIHand VILoccur at VCCe5.5V and 4.5V respectively.(The VIHvalue at 5.5V is 3.85V.)The worst case leakage current(IIN,ICC,andIOZ)occur for CMOS at the higher voltage and so the 6.0V values should be used.*VILlimits are currently tested at 20%of VCC.The above VILspecification(30%of VCC)will be implemented no later than Q1,CY89.2AC Electrical CharacteristicsVCCe5V,TAe25C,CLe15 pF,tretfe6 nsSymbolParameterConditionsTypGuaranteedUnitsLimittPHL,tPLHMaximum Propagation1220nsDelayAC Electrical CharacteristicsVCCe2.0V to 6.0V,CLe50 pF,tretfe6 ns(unless otherwise specified)TAe25C74HC54HCSymbolParameterConditionsVCCTAeb40C to 85CTAeb55C to 125CUnitsTypGuaranteed LimitstPHL,tPLHMaximum Propagation2.0V60120151179nsDelay4.5V12243036ns6.0V10202630nstTHL,tTLHMaximum Output Rise2.0V307595110nsand Fall Time4.5V8151922ns6.0V7131619nsCPDPower Dissipation(per gate)25pFCapacitance(Note 5)CINMaximum Input5101010pFCapacitanceNote 5:CPDdetermines the no load dynamic power consumption,PDeCPDVCC2faICCVCC,and the no load dynamic current consumption,ISeCPDVCCfaICC.3MM54HC7266/MM74HC7266 Quad 2-Input Exclusive NOR GatePhysical Dimensionsinches(millimeters)Order Number MM54HC7266J or MM74HC7266JNS Package J14AOrder Number MM74HC7266NNS Package N14ALIFE SUPPORT POLICYNATIONALS PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORTDEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONALSEMICONDUCTOR CORPORATION.As used herein:1.Lifesupportdevicesorsystemsaredevicesor2.A critical component is any component of a lifesystems which,(a)are intended for surgical implantsupport device or system whose failure to perform caninto the body,or(b)support or sustain life,and whosebe reasonably expected to cause the failure of the lifefailure to perform,when properly used in accordancesupport device or system,or to affect its safety orwith instructions for use provided in the labeling,caneffectiveness.be reasonably expected to result in a significant injuryto the user.National SemiconductorNational SemiconductorNational SemiconductorNational SemiconductorCorporationEuropeHong Kong Ltd.Japan Ltd.1111 West Bardin RoadFax:(a49)0-180-530 85 8613th Floor,Straight Block,Tel:[phone]Arlington,TX 76017Email:Ocean Centre,5 Canton Rd.Fax:[phone]Tel:[phone]Deutsch Tel:(a49)0-180-530 85 85Tsimshatsui,KowloonFax:1(800)737-7018EnglishTel:(a49)0-180-532 78 32Hong KongFran3ais Tel:(a49)0-180-532 93 58Tel:[phone]ItalianoTel:(a49)0-180-534 16 80Fax:[phone]National does not assume any responsibility for use of any circuitry described,no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
